رله های برق، بیش از 2 آمپر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | ولتاژ سیم پیچ | فرم تماس | رتبه بندی تماس (جاری) | ولتاژ سوئیچینگ | بار - حداکثر سوئیچینگ | جریان سیم پیچ | نوع کویل | ویژگی ها | سبک خاتمه | رتبه بندی مهر و موم | عایق کویل | ولتاژ باید کار کند | ولتاژ باید آزاد شود | زمان عملیات | زمان انتشار | دمای عملیاتی | مواد تماس | آژانس تایید | نوع رله | درجه | صلاحیت |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G5RL-1A4-E-TV8-DC5POWER RELAYS - POWER PCB RELAY |
174 |
|
برگه مشخصات |
G5RL | Box | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 16 A | 250VAC, 24VDC - Max | - | 80 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.5 VDC | 0.5 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Alloy | - | General Purpose | - | - |
|
|
G2RL8045HRELAY GEN PURPOSE SPST 12A 9V |
113 |
|
برگه مشخصات |
G2RL | Box | Active | Through Hole | 9VDC | SPST-NO (1 Form A) | 12 A | 440VAC, 300VDC - Max | - | 44.4 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 6.3 VDC | 0.9 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | - | General Purpose | - | - |
|
G2RL-1A4-DC9POWER RELAYS - POWER PCB RELAY |
113 |
|
برگه مشخصات |
G2RL | Box | Active | Through Hole | 9VDC | SPST-NO (1 Form A) | 12 A | 440VAC, 300VDC - Max | - | 44.4 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 6.3 VDC | 0.9 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | - | General Purpose | - | - |
|
|
G6B 6049CRELAY GEN PURPOSE DPST 5A 24V |
20,666 |
|
برگه مشخصات |
G6B | Box | Active | Through Hole | 24VDC | DPST-NO/NC (1 Form A, 1 Form B) | 5 A | 380VAC, 125VDC - Max | - | 12.5 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 19.2 VDC | 2.4 VDC | 10 ms | 10 ms | -25°C ~ 70°C | Silver Alloy, Cadmium Free | - | General Purpose | - | - |
|
|
G5CA6002GRELAY GEN PURPOSE SPST 10A 12V |
120 |
|
برگه مشخصات |
G5CA | Box | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 125VDC - Max | - | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9 VDC | 1.2 VDC | 10 ms | 10 ms | -25°C ~ 70°C | Silver Alloy, Cadmium Free | - | General Purpose | - | - |
|
|
G6C 1122DRELAY GEN PURPOSE DPST 8A 5V |
1,926 |
|
برگه مشخصات |
G6C | Bulk | Active | Through Hole | 5VDC | DPST-NO/NC (1 Form A, 1 Form B) | 8 A | 380VAC, 125VDC - Max | 3040VA, 1000W | 40 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 3.5 VDC | 0.5 VDC | 10 ms | 10 ms | -25°C ~ 70°C | Silver Alloy, Cadmium Free | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
2-1393793-42-1393793-4 |
200 |
|
برگه مشخصات |
V23105, AXICOM | Bulk | Active | Through Hole | 48VDC | DPDT (2 Form C) | 3 A | 250VAC, 220VDC - Max | 750VA, 660W | 12 mA | Non Latching | - | PC Pin | - | - | 33.6 VDC | 2.4 VDC | 6 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | cURus | Telecom | - | - |
|
V23105A5507A201RF RELAY, 2 FORM C, DPDT, MOMENT |
200 |
|
برگه مشخصات |
V23105, AXICOM | Bulk | Obsolete | Through Hole | 48VDC | DPDT (2 Form C) | 3 A | 250VAC, 220VDC - Max | 750VA, 660W | 12 mA | Non Latching | - | PC Pin | - | - | 33.6 VDC | 2.4 VDC | 6 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | cURus | Telecom | - | - |
|

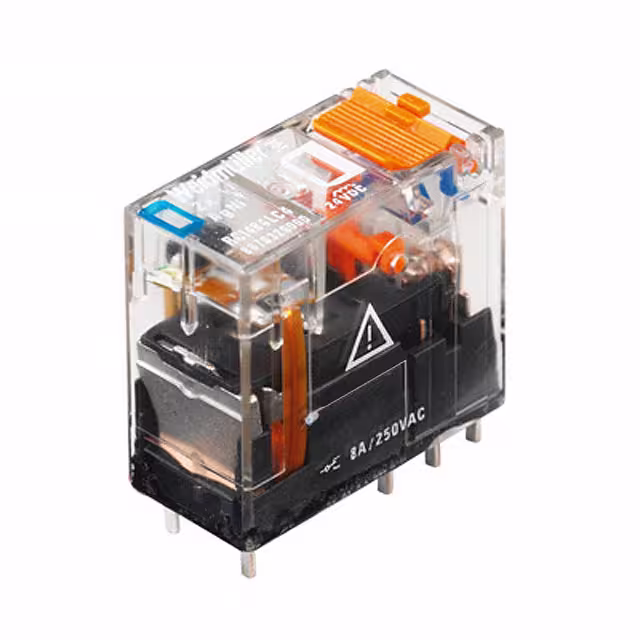

8870270000MINIATURE INDUSTRIAL RELAY 110 V |
270 |
|
برگه مشخصات |
RCI | Bulk | Active | Through Hole | 110VDC | SPDT (1 Form C) | 16 A | 250VAC - Max | 4000VA, 384W | 4.1 mA | Non Latching | Diode, Lighted Indicator, Test Button | PC Pin | - | - | 77 VDC | 11 VDC | 8 ms | 6 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CSA, cURus, UKCA, VDE | General Purpose | - | - |
|
G6RL-14-ASI-DC6POWER RELAYS - POWER PCB RELAY |
200 |
|
برگه مشخصات |
G6RL | Box | Active | Through Hole | 6VDC | SPDT (1 Form C) | 8 A | 250VAC - Nom | - | 36.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 4.2 VDC | 0.6 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Tin Indium (AgSnIn) | - | General Purpose | - | - |
|
|
G2RN5036ARELAY GEN PURPOSE SPDT 5A 24V |
132 |
|
برگه مشخصات |
G2R | Bulk | Active | Through Hole | 24VDC | SPDT (1 Form C) | 5 A | 380VAC, 125VDC - Max | 1900VA, 625W | 15 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 16.8 VDC | 3.6 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy, Cadmium Free | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
PE014F02Power/Signal Relay, 1 Form C, 2V |
8,693 |
|
برگه مشخصات |
PE Bistable, SCHRACK | Tray | Active | Through Hole | 2.2VDC | SPDT (1 Form C) | 5 A | 400VAC - Max | 1250VA | 9.9 mA | Latching, Single Coil | - | PC Pin | Sealed - Flux Protection | - | 1.65 VDC | - | 8 ms | 8 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
|
|
G6C 1099FRELAY GEN PURPOSE SPST 10A 12V |
1,172 |
|
برگه مشخصات |
G6C | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 10 A | 380VAC, 125VDC - Max | 3800VA, 1250W | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 8.4 VDC | 1.2 VDC | 10 ms | 10 ms | -25°C ~ 70°C | Silver Alloy, Cadmium Free | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
G5RL6275FRELAY GEN PURPOSE SPST 16A 24V |
178 |
|
برگه مشخصات |
G5RL | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 16 A | 250VAC, 24VDC - Max | 4000VA, 384W | 35 mA | Latching, Dual Coil | - | PC Pin | Sealed - Flux Protection | - | 16.8 VDC | - | 10 ms | 10 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | CQC, CSA, cURus, UR, VDE | General Purpose | - | - |
|
RT314F05POWER/SIGNAL RELAY, 1 FORM C, SP |
1,954 |
|
برگه مشخصات |
RT1 Bistable, SCHRACK | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 16 A | 400VAC - Max | 4000VA | 119 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 3.5 VDC | - | 10 ms | 10 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | cCSAus, CQC, cURus, VDE | General Purpose | - | - |
|
|
8-1393239-5Power/Signal Relay, 1 Form C, SP |
1,954 |
|
برگه مشخصات |
RT1 Bistable, SCHRACK | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 16 A | 400VAC - Max | 4000VA | 119 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 3.5 VDC | - | 10 ms | 10 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | cCSAus, CQC, cURus, VDE | General Purpose | - | - |
|
|
RTS3LA05General Purpose Relays RTS3LA05 |
1,000 |
|
برگه مشخصات |
- | Tray | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 16 A | 480VAC - Max | 4000VA | - | Latching, Single Coil | - | PC Pin | - | Class F | - | - | 10 ms | 10 ms | -10°C ~ 105°C | Silver Tin Oxide (AgSnO) | cCSAus, cURus, VDE | General Purpose | - | - |
|
|
4-1415898-3General Purpose Relays RTS3LA05 |
1,000 |
|
برگه مشخصات |
- | Tray | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 16 A | 480VAC - Max | 4000VA | - | Latching, Single Coil | - | PC Pin | - | Class F | - | - | 10 ms | 10 ms | -10°C ~ 105°C | Silver Tin Oxide (AgSnO) | cCSAus, cURus, VDE | General Purpose | - | - |
|
|
G2RN5011FRELAY GEN PURPOSE SPDT 10A 24V |
650 |
|
- |
G2R | Box | Active | Through Hole | 24VDC | SPDT (1 Form C) | 10 A | 380VAC, 125VDC - Max | - | 21.8 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 16.8 VDC | 3.6 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy, Cadmium Free | - | General Purpose | - | - |
|
|
G6CK1102RRELAY GEN PURPOSE DPST 8A 3V |
1,131 |
|
برگه مشخصات |
G6C | Box | Active | Through Hole | 3VDC | DPST-NO/NC (1 Form A, 1 Form B) | 8 A | 250VAC, 125VDC - Max | - | 67 mA | Latching, Single Coil | - | PC Pin | Sealed - Flux Protection | - | 2.1 VDC | - | 10 ms | 10 ms | -25°C ~ 70°C | Silver Alloy, Cadmium Free | - | General Purpose | - | - |
