رله های برق، بیش از 2 آمپر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | ولتاژ سیم پیچ | فرم تماس | رتبه بندی تماس (جاری) | ولتاژ سوئیچینگ | بار - حداکثر سوئیچینگ | جریان سیم پیچ | نوع کویل | ویژگی ها | سبک خاتمه | رتبه بندی مهر و موم | عایق کویل | ولتاژ باید کار کند | ولتاژ باید آزاد شود | زمان عملیات | زمان انتشار | دمای عملیاتی | مواد تماس | آژانس تایید | نوع رله | درجه | صلاحیت |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

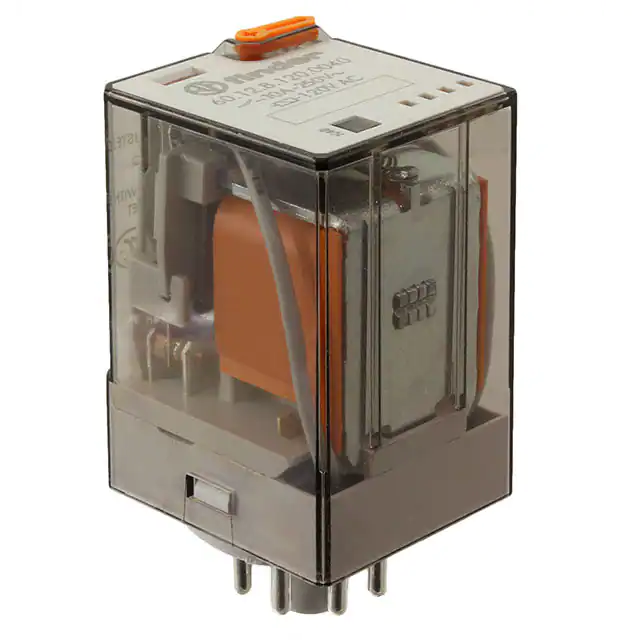

60.12.8.120.0040RELAY GEN PURPOSE DPDT 10A 120V |
63 |
|
برگه مشخصات |
60 | Bulk | Active | Socketable | 120VAC | DPDT (2 Form C) | 10 A | 400VAC - Max | 4000VA | 18.6 mA | Non Latching | Mechanical Indicator, Test Button | Plug In, 8 Pin (Octal) | - | - | 96 VAC | 24 VAC | 11 ms | 4 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CCC, CE, CSA, cURus, EAC, RINA, UKCA, VDE | General Purpose | - | - |
|
60.12.9.024.0040RELAY GEN PURPOSE DPDT 10A 24V |
30 |
|
برگه مشخصات |
60 | Bulk | Active | Socketable | 24VDC | DPDT (2 Form C) | 10 A | 400VAC - Max | 4000VA | 53.9 mA | Non Latching | Mechanical Indicator, Test Button | Plug In, 8 Pin (Octal) | - | - | 19.2 VDC | 4.8 VDC | 11 ms | 4 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CCC, CE, CSA, cURus, EAC, RINA, UKCA, VDE | General Purpose | - | - |
|
60.12.8.024.0040RELAY GEN PURPOSE DPDT 10A 24V |
29 |
|
برگه مشخصات |
60 | Bulk | Active | Socketable | 24VAC | DPDT (2 Form C) | 10 A | 400VAC - Max | 4000VA | 90 mA | Non Latching | Mechanical Indicator, Test Button | Plug In, 8 Pin (Octal) | - | - | 19.2 VAC | 4.8 VAC | 11 ms | 4 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CCC, CE, CSA, cURus, EAC, RINA, UKCA, VDE | General Purpose | - | - |
|
RH3B-UDC24VRELAY GEN PURPOSE 3PDT 10A 24V |
12 |
|
برگه مشخصات |
RH | Bulk | Active | Socketable | 24VDC | 3PDT (3 Form C) | 10 A | 120VAC, 30VDC - Max | 1200VA, 300W | 60 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 19.2 VDC | 2.4 VDC | 25 ms | 25 ms | -25°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CE, CSA, cURus, TUV | General Purpose | - | - |
|

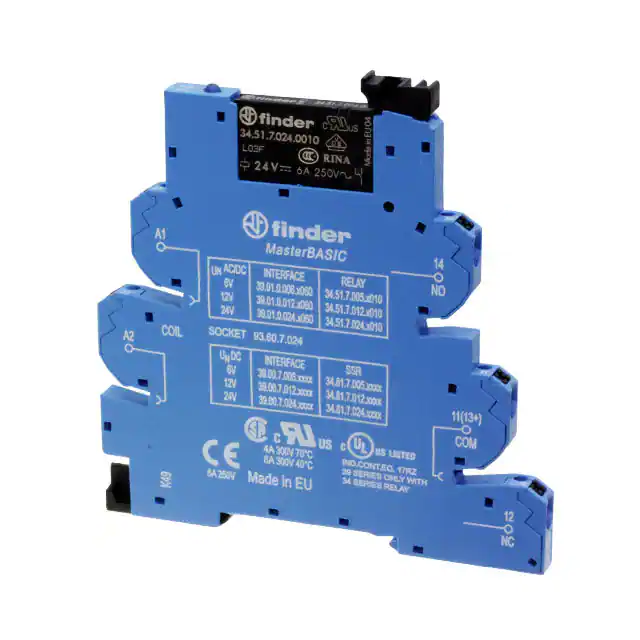

39.01.0.024.0060RELAY GEN PURPOSE SPDT 6A 24V |
96 |
|
برگه مشخصات |
39 | Bulk | Active | DIN Rail | 24VAC/DC | SPDT (1 Form C) | 6 A | 400VAC - Max | 2400VA | 11 mA | Non Latching | - | Spring Terminal | - | - | 19.2 VAC/DC | 2.4 VAC/DC | 5 ms | 6 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CE, CSA, cURus, EAC, RINA, VDE | General Purpose | - | - |
|
RPM32BDHARMONY, POWER PLUG-IN RELAY, 15 |
89 |
|
برگه مشخصات |
Harmony | Box | Active | Socketable | 24VDC | 3PDT (3 Form C) | 15 A | 250VAC, 28VDC - Max | 3750VA, 420W | 75 mA | Non Latching | Lighted Indicator, Test Button | Plug In | - | - | 19.2 VDC | 2.4 VDC | 20 ms | 20 ms | -40°C ~ 55°C | Silver Nickel (AgNi) | CSA, EAC, UL | General Purpose | - | - |
|
RH1B-ULAC120VRELAY GEN PURPOSE SPDT 10A 120V |
21 |
|
برگه مشخصات |
RH | Bulk | Active | Socketable | 120VAC | SPDT (1 Form C) | 10 A | 240VAC, 30VDC - Max | 2400VA, 300W | 7.5 mA | Non Latching | Lighted Indicator | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 96 VAC | 36 VAC | 20 ms | 20 ms | -25°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CE, CSA, cURus, TUV | General Purpose | - | - |
|
1122780000RELAY GEN PURPOSE SPDT 6A 24V |
80 |
|
برگه مشخصات |
TERMSERIES | Bulk | Active | DIN Rail | 24VAC/DC | SPDT (1 Form C) | 6 A | 250VAC, 250VDC - Max | - | 11.7 mA | Non Latching | Lighted Indicator, Socket Included | Screw Terminal | - | - | - | - | 6 ms | 40 ms | -40°C ~ 60°C | Silver Nickel (AgNi) | CE, cULus, EAC | General Purpose | - | - |
|
LY1N-DC24RELAY GEN PURPOSE SPDT 15A 24V |
24 |
|
برگه مشخصات |
LY | Bulk | Active | Socketable | 24VDC | SPDT (1 Form C) | 15 A | 250VAC, 125VDC - Max | 3750VA, 1875W | 36.9 mA | Non Latching | Lighted Indicator | Plug In | - | - | 19.2 VDC | 2.4 VDC | 25 ms | 25 ms | -25°C ~ 55°C | Silver Alloy | CE, CSA, TUV, UR | General Purpose | - | - |
|
RH2B-ULAC110-120VRELAY GEN PURPOSE DPDT 10A 120V |
16 |
|
برگه مشخصات |
RH | Bulk | Active | Socketable | 120VAC | DPDT (2 Form C) | 10 A | 240VAC, 30VDC - Max | 2400VA, 300W | 9.2 mA | Non Latching | Lighted Indicator | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 96 VAC | 36 VAC | 20 ms | 20 ms | -25°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CE, CSA, cURus, TUV | General Purpose | - | - |
|
60.13.9.024.0040RELAY GEN PURPOSE 3PDT 10A 24V |
59 |
|
برگه مشخصات |
60 | Bulk | Active | Socketable | 24VDC | 3PDT (3 Form C) | 10 A | 400VAC - Max | 4000VA | 53.9 mA | Non Latching | Mechanical Indicator, Test Button | Plug In, 11 Pin (Octal) | - | - | 19.2 VDC | 4.8 VDC | 11 ms | 4 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CCC, CE, CSA, cURus, EAC, RINA, UKCA, VDE | General Purpose | - | - |
|

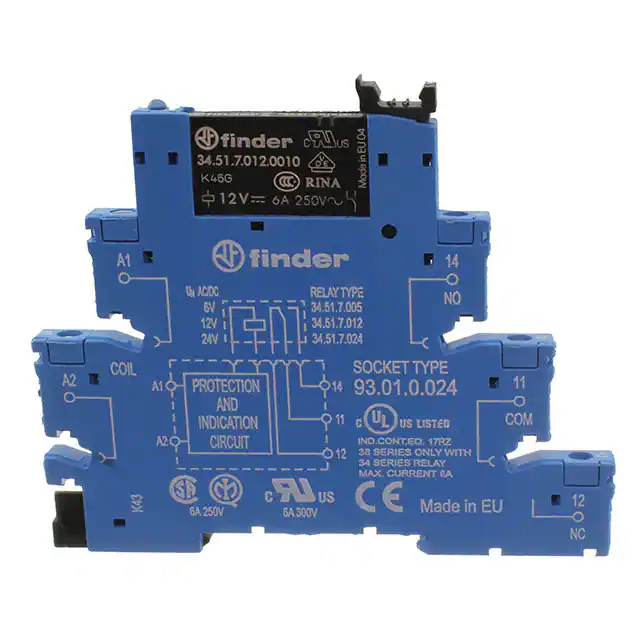

38.51.0.012.0060RELAY GEN PURPOSE SPDT 6A 12V |
51 |
|
برگه مشخصات |
38 | Bulk | Active | DIN Rail | 12VAC/DC | SPDT (1 Form C) | 6 A | 400VAC - Max | 2400VA | 16 mA | Non Latching | Socket Included | Screw Terminal | - | - | 9.6 VAC/DC | 1.2 VAC/DC | 5 ms | 6 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CE, CSA, cURus, EAC, RINA, UKCA | General Purpose | - | - |
|
|
RH3B-UAC120VRELAY GEN PURPOSE 3PDT 10A 120V |
16 |
|
برگه مشخصات |
RH | Bulk | Active | Socketable | 120VAC | 3PDT (3 Form C) | 10 A | 120VAC, 30VDC - Max | 1200VA, 300W | 14.2 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 96 VAC | 36 VAC | 25 ms | 25 ms | -25°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CE, CSA, cURus, TUV | General Purpose | - | - |
|
NC2EBD-DC12VRELAY GEN PURPOSE DPDT 5A 12V |
74 |
|
برگه مشخصات |
NC | Tube | Active | Socketable | 12VDC | DPDT (2 Form C) | 5 A | 250VAC - Max | 1250VA | 30 mA | Non Latching | - | Plug In | Sealed - Fully | - | 9.6 VDC | 1.2 VDC | 20 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | CSA, UR | General Purpose | - | - |
|
|
RH2B-ULAC24VRELAY GEN PURPOSE DPDT 10A 24V |
36 |
|
برگه مشخصات |
RH | Bulk | Active | Socketable | 24VAC | DPDT (2 Form C) | 10 A | 240VAC, 30VDC - Max | 2400VA, 300W | 50 mA | Non Latching | Lighted Indicator | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 19.2 VAC | 7.2 VAC | 20 ms | 20 ms | -25°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CE, CSA, cURus, TUV | General Purpose | - | - |
|
2618400000RELAY GEN PURPOSE DPDT 8A 24V |
7 |
|
برگه مشخصات |
TERMSERIES | Box | Active | DIN Rail | 24VDC | DPDT (2 Form C) | 8 A | 250VAC, 250VDC - Max | - | 20.5 mA | Non Latching | Diode, Lighted Indicator, Socket Included | Spring Terminal | - | - | 17 VDC | 3 VDC | 6 ms | 18 ms | -40°C ~ 60°C | Silver Nickel (AgNi) | CE, cULus, EAC | General Purpose | - | - |
, G2R-1-S-DC12S, G2R-1-S-DC24S, G2R-1-S-DC48(S).jpg)
|
G2R-1-SND-DC12(S)RELAY GEN PURPOSE SPDT 10A 12V |
79 |
|
برگه مشخصات |
G2RS | Bulk | Active | Socketable | 12VDC | SPDT (1 Form C) | 10 A | 440VAC, 125VDC - Max | 4400VA, 1250W | 43.2 mA | Non Latching | Diode, Lighted Indicator | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 8.4 VDC | 1.8 VDC | 15 ms | 20 ms | -40°C ~ 70°C | - | CE, CSA, LR, UR, VDE | General Purpose | - | - |
.JPG)
|
MY4ZN DC24 (S)RELAY GEN PURPOSE 4PDT 3A 24V |
17 |
|
برگه مشخصات |
MY | Bulk | Active | Socketable | 24VDC | 4PDT (4 Form C) | 3 A | 250VAC, 125VDC - Max | 750VA, 375W | 36.3 mA | Non Latching | Lighted Indicator | Plug In | - | - | 19.2 VDC | 2.4 VDC | 20 ms | 20 ms | -55°C ~ 70°C | Silver (Ag), Gold (Au) | CE, CSA, UR, VDE | General Purpose | - | - |
|
MY3-DC24RELAY GEN PURPOSE 3PDT 5A 24V |
16 |
|
برگه مشخصات |
MY | Bulk | Active | Socketable | 24VDC | 3PDT (3 Form C) | 5 A | 250VAC, 125VDC - Max | 1250VA, 625W | 36.3 mA | Non Latching | - | Plug In | - | - | 19.2 VDC | 2.4 VDC | 20 ms | 20 ms | -55°C ~ 70°C | Silver (Ag) | CE, CSA, UR, VDE | General Purpose | - | - |
|

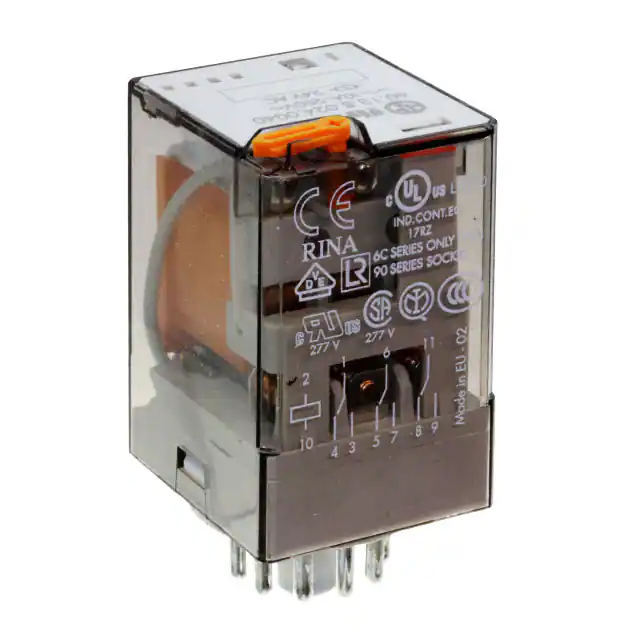

60.13.8.120.0000RELAY GEN PURPOSE 3PDT 10A 120V |
10 |
|
برگه مشخصات |
60 | Bulk | Active | Socketable | 120VAC | 3PDT (3 Form C) | 10 A | 400VAC - Max | 4000VA | 18.6 mA | Non Latching | - | Plug In, 11 Pin (Octal) | - | - | 96 VAC | 24 VAC | 11 ms | 4 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CCC, CE, CSA, cURus, EAC, RINA, UKCA, VDE | General Purpose | - | - |
