رله های برق، بیش از 2 آمپر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | ولتاژ سیم پیچ | فرم تماس | رتبه بندی تماس (جاری) | ولتاژ سوئیچینگ | بار - حداکثر سوئیچینگ | جریان سیم پیچ | نوع کویل | ویژگی ها | سبک خاتمه | رتبه بندی مهر و موم | عایق کویل | ولتاژ باید کار کند | ولتاژ باید آزاد شود | زمان عملیات | زمان انتشار | دمای عملیاتی | مواد تماس | آژانس تایید | نوع رله | درجه | صلاحیت |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RV8H-L-D24-C1D2RELAY GEN PURPOSE SPDT 6A 24V |
17 |
|
برگه مشخصات |
RV8 | Bulk | Active | DIN Rail | 24VDC | SPDT (1 Form C) | 6 A | 400VAC, 125VDC - Max | 2400VA, 750W | 10.6 mA | Non Latching | Socket Included | Screw Terminal | - | - | 21.6 VDC | 1.68 VDC | - | - | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | CE, cULus | General Purpose | - | - |
|

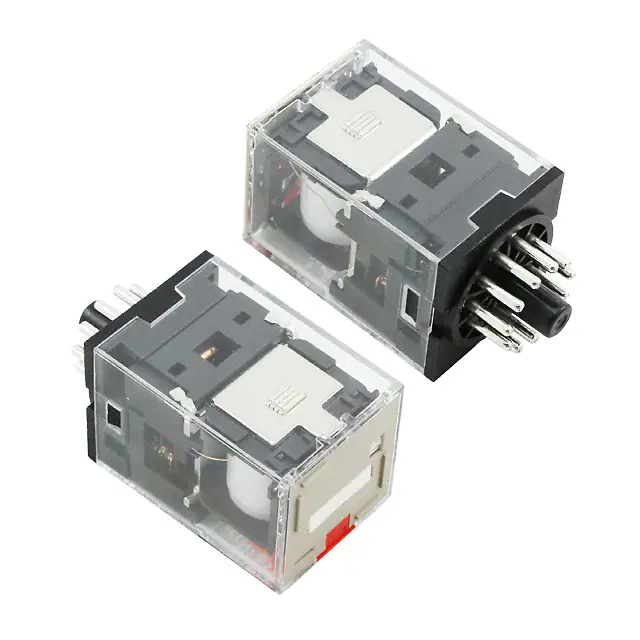

MKS3PIN-5 AC24RELAY GEN PURPOSE 3PDT 10A 24V |
14 |
|
برگه مشخصات |
MK-S | Bulk | Active | Socketable | 24VAC | 3PDT (3 Form C) | 10 A | 250VAC, 30VDC - Max | 2500VA, 300W | 96.3 mA | Non Latching | Lighted Indicator, Mechanical Indicator, Test Button | Plug In, 11 Pin (Octal) | - | - | 19.2 VAC | 7.2 VAC | 20 ms | 20 ms | -25°C ~ 60°C | Silver Tin Indium (AgSnIn) | CSA, cURus, TUV | General Purpose | - | - |
|
RH4B-ULCDC24VRELAY GEN PURPOSE 4PDT 10A 24V |
20 |
|
برگه مشخصات |
RH | Bulk | Active | Socketable | 24VDC | 4PDT (4 Form C) | 10 A | 120VAC, 28VDC - Max | 1200VA, 280W | 62 mA | Non Latching | Lighted Indicator, Test Button | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 19.2 VDC | 2.4 VDC | 25 ms | 25 ms | -25°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CE, CSA, cURus, TUV | General Purpose | - | - |
|
T92S7D22-22RELAY GEN PURPOSE DPST 30A 22V |
52 |
|
برگه مشخصات |
T92 | Bulk | Active | Chassis Mount | 22VDC | DPST-NO (2 Form A) | 30 A | 600VAC - Max | 18000VA | 77.3 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class F | 16.5 VDC | 2.2 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | UR | General Purpose | - | - |
|
KUP-11A55-120RELAY GEN PURPOSE DPDT 10A 120V |
67 |
|
برگه مشخصات |
KUP | Bulk | Active | Chassis Mount | 120VAC | DPDT (2 Form C) | 10 A | 240VAC - Max | 2400VA | 17.5 mA | Non Latching | - | Quick Connect - 0.187" (4.7mm) | - | Class B | 102 VAC | - | 15 ms | 10 ms | -45°C ~ 55°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
RR2P-UCAC120VRELAY GEN PURPOSE DPDT 10A 120V |
13 |
|
برگه مشخصات |
RR | Bulk | Active | Socketable | 120VAC | DPDT (2 Form C) | 10 A | 240VAC, 30VDC - Max | 2400VA, 300W | 20.5 mA | Non Latching | Test Button | Plug In, 8 Pin (Octal) | - | - | 96 VAC | 36 VAC | 25 ms | 25 ms | -25°C ~ 40°C | Silver (Ag) | CE, CSA, cURus, TUV | General Purpose | - | - |
|
1219550000RELAY GEN PURPOSE DPST 25A 24V |
7 |
|
برگه مشخصات |
PWR | Bulk | Active | DIN Rail | 24VDC | DPST-NO (2 Form A) | 25 A | 277VAC - Nom | - | 79.2 mA | Non Latching | Lighted Indicator | Screw Terminal | - | - | 18 VDC | 3.6 VDC | 30 ms | 30 ms | -25°C ~ 55°C | Silver Tin Oxide (AgSnO) | CE, cURus, UKCA | General Purpose | - | - |
|

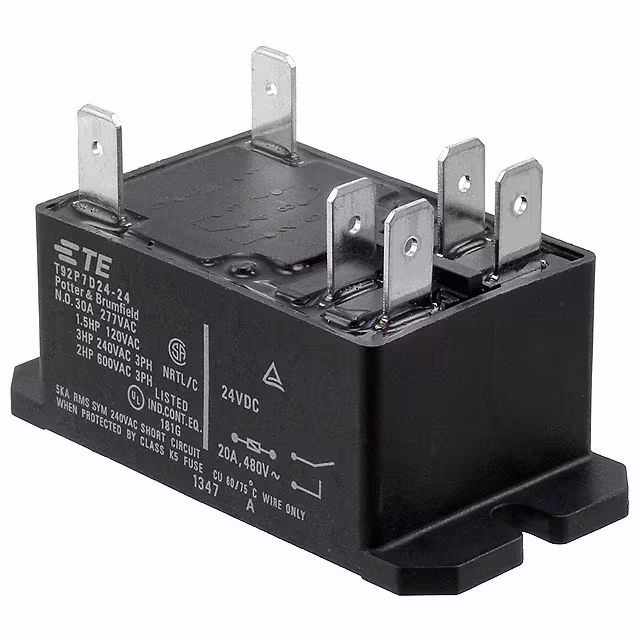

T92P7D24-24RELAY GEN PURPOSE DPST 30A 24V |
83 |
|
برگه مشخصات |
T92 | Bulk | Active | Chassis Mount | 24VDC | DPST-NO (2 Form A) | 30 A | 600VAC - Max | 18000VA | 70.8 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class F | 18 VDC | 2.4 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | UR | General Purpose | - | - |
|
RR3B-ULCAC120VRELAY GEN PURPOSE 3PDT 10A 120V |
19 |
|
برگه مشخصات |
RR | Bulk | Active | Socketable | 120VAC | 3PDT (3 Form C) | 10 A | 240VAC, 30VDC - Max | 2400VA, 300W | 20.5 mA | Non Latching | Lighted Indicator, Test Button | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 96 VAC | 36 VAC | 25 ms | 25 ms | -25°C ~ 40°C | Silver (Ag) | CE, CSA, cURus, TUV | General Purpose | - | - |
|

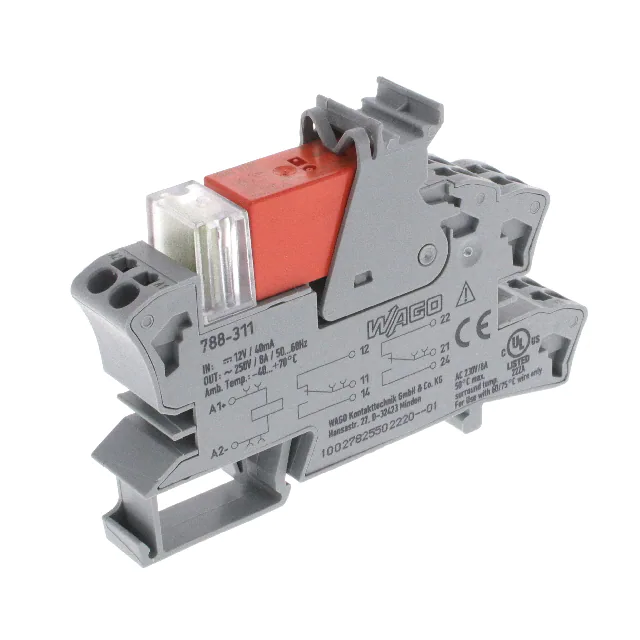

788-311RELAY GEN PURPOSE DPDT 8A 12V |
37 |
|
برگه مشخصات |
788 | Bulk | Active | DIN Rail | 12VDC | DPDT (2 Form C) | 8 A | 250VAC - Max | 2000VA | 36 mA | Non Latching | Lighted Indicator | Spring Terminal | - | - | 10.8 VDC | - | 8 ms | 13 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | - | General Purpose | - | - |
|
RSL1PVBUHARMONY, SLIM INTERFACE RELAY PR |
51 |
|
برگه مشخصات |
Harmony | Box | Active | DIN Rail | 24VDC | SPDT (1 Form C) | 6 A | 277VAC - Max | 1662VA | 7.1 mA | Non Latching | Lighted Indicator | Screw Terminal | - | - | - | 1.2 VDC | 12 ms | 5 ms | -40°C ~ 55°C | Silver Tin Oxide (AgSnO) | CSA, GOST, UL | General Purpose | - | - |
|
|
RH4B-ULD-DC24VRELAY GEN PURPOSE 4PDT 10A 24V |
16 |
|
برگه مشخصات |
RH | Bulk | Active | Socketable | 24VDC | 4PDT (4 Form C) | 10 A | 120VAC, 28VDC - Max | 1200VA, 280W | 62 mA | Non Latching | Diode, Lighted Indicator | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 19.2 VDC | 2.4 VDC | 25 ms | 25 ms | -25°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CE, CSA, cURus, TUV | General Purpose | - | - |
|
1078683RELAY GEN PURPOSE SPST 6A 24V |
17 |
|
برگه مشخصات |
PLC-RPT | Bulk | Active | DIN Rail | 24VDC | SPST-NO (1 Form A) | 6 A | 250VAC, 250VDC - Max | - | 18 mA | Non Latching | Diode, Lighted Indicator, Socket Included | Spring Terminal | - | - | 20.2 VDC | - | 8 ms | 10 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) | CE, UKCA | General Purpose | - | - |
|
|
RR2P-ULDC24VRELAY GEN PURPOSE DPDT 10A 24V |
30 |
|
برگه مشخصات |
RR | Bulk | Active | Socketable | 24VDC | DPDT (2 Form C) | 10 A | 240VAC, 30VDC - Max | 2400VA, 300W | 60 mA | Non Latching | Lighted Indicator | Plug In, 8 Pin (Octal) | - | - | 19.2 VDC | 2.4 VDC | 25 ms | 25 ms | -25°C ~ 40°C | Silver (Ag) | CE, CSA, cURus, TUV | General Purpose | - | - |
|
|
RV8H-1S1-AD110RELAY GEN PURPOSE SPDT 12A 120V |
27 |
|
برگه مشخصات |
RV8 | Bulk | Active | DIN Rail | 120VAC/DC | SPDT (1 Form C) | 12 A | 250VAC - Nom | - | 5.8 mA | Non Latching | Socket Included | Spring Terminal | - | - | 96 VAC/DC | 8.4 VAC/DC | 15 ms | 15 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CE, cULus | General Purpose | - | - |
|

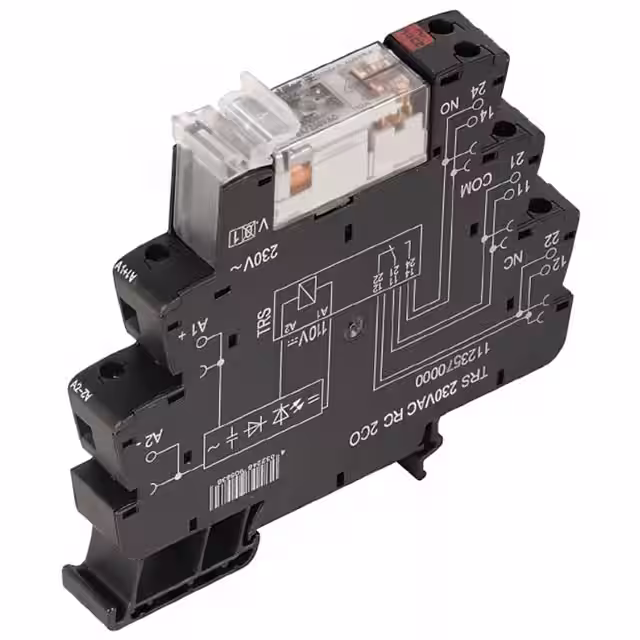

1123550000RELAY GEN PURPOSE DPDT 8A 120V |
14 |
|
برگه مشخصات |
TERMSERIES | Bulk | Active | DIN Rail | 120VAC | DPDT (2 Form C) | 8 A | 250VAC, 250VDC - Max | - | 5.5 mA | Non Latching | Lighted Indicator, RC Circuit, Socket Included | Screw Terminal | - | - | 81 VAC | 30 VAC | 9 ms | 10 ms | -40°C ~ 60°C | Silver Nickel (AgNi) | CE, cULus, EAC | General Purpose | - | - |
.jpg)
|

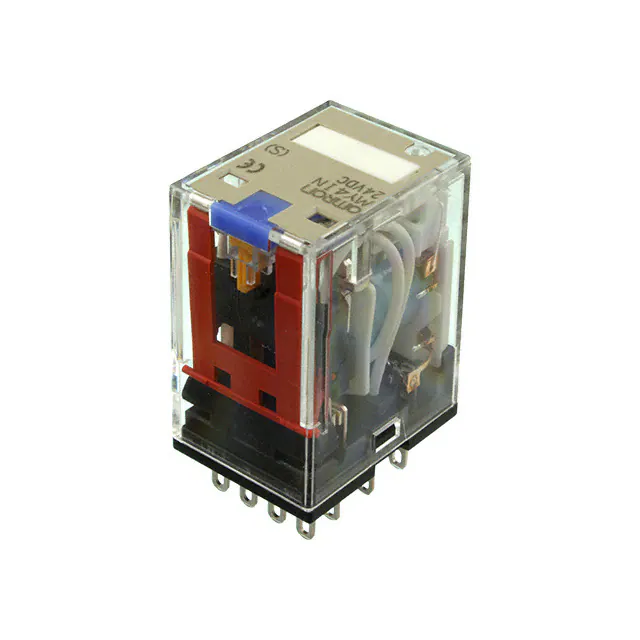

MY4IN-D2 DC24 (S)RELAY GEN PURPOSE 4PDT 3A 24V |
34 |
|
برگه مشخصات |
MY | Bulk | Last Time Buy | Socketable | 24VDC | 4PDT (4 Form C) | 3 A | 250VAC, 125VDC - Max | 750VA, 375W | 36.3 mA | Non Latching | Diode, Latching Lever, Lighted Indicator, Test Button | Plug In | - | - | 19.2 VDC | 2.4 VDC | 20 ms | 20 ms | -55°C ~ 70°C | Silver (Ag), Gold (Au) | CE, CSA, UR, VDE | General Purpose | - | - |
|
|
RR2P-ULAC24VRELAY GEN PURPOSE DPDT 10A 24V |
93 |
|
برگه مشخصات |
RR | Bulk | Active | Socketable | 24VAC | DPDT (2 Form C) | 10 A | 240VAC, 30VDC - Max | 2400VA, 300W | 105 mA | Non Latching | Lighted Indicator | Plug In, 8 Pin (Octal) | - | - | 19.2 VAC | 7.2 VAC | 25 ms | 25 ms | -25°C ~ 40°C | Silver (Ag) | CE, CSA, cURus, TUV | General Purpose | - | - |
|
|
KUP-5D55-12RELAY GEN PURPOSE SPDT 10A 12V |
77 |
|
برگه مشخصات |
KUP | Bulk | Active | Chassis Mount | 12VDC | SPDT (1 Form C) | 10 A | 240VAC - Max | 2400VA | 100 mA | Non Latching | - | Quick Connect - 0.187" (4.7mm) | - | Class B | 9 VDC | - | 15 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
KRPA-11AN-240RELAY GEN PURPOSE DPDT 10A 240V |
96 |
|
برگه مشخصات |
KRPA | Tray | Active | Socketable | 240VAC | DPDT (2 Form C) | 10 A | 240VAC - Max | 2400VA | 8.8 mA | Non Latching | Lighted Indicator | Plug In, 8 Pin (Octal) | - | Class B | 204 VAC | - | - | - | -45°C ~ 55°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
