رله های برق، بیش از 2 آمپر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | ولتاژ سیم پیچ | فرم تماس | رتبه بندی تماس (جاری) | ولتاژ سوئیچینگ | بار - حداکثر سوئیچینگ | جریان سیم پیچ | نوع کویل | ویژگی ها | سبک خاتمه | رتبه بندی مهر و موم | عایق کویل | ولتاژ باید کار کند | ولتاژ باید آزاد شود | زمان عملیات | زمان انتشار | دمای عملیاتی | مواد تماس | آژانس تایید | نوع رله | درجه | صلاحیت |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RR3B-UAC110VRELAY GEN PURPOSE 3PDT 10A 110V |
95 |
|
برگه مشخصات |
RR | Bulk | Active | Socketable | 110VAC | 3PDT (3 Form C) | 10 A | 240VAC, 30VDC - Max | 2400VA, 300W | 23 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 88 VAC | 33 VAC | 25 ms | 25 ms | -25°C ~ 40°C | Silver (Ag) | CE, CSA, cURus, TUV | General Purpose | - | - |
.jpg)
|
MY4IN DC12 (S)RELAY GEN PURPOSE 4PDT 3A 12V |
21 |
|
برگه مشخصات |
MY | Bulk | Last Time Buy | Socketable | 12VDC | 4PDT (4 Form C) | 3 A | 250VAC, 125VDC - Max | 750VA, 375W | 72.7 mA | Non Latching | Latching Lever, Lighted Indicator, Test Button | Plug In | - | - | 9.6 VDC | 1.2 VDC | 20 ms | 20 ms | -55°C ~ 70°C | Silver (Ag), Gold (Au) | CE, CSA, UR, VDE | General Purpose | - | - |
|
RR1BA-UAC24VRELAY GEN PURPOSE SPDT 10A 24V |
10 |
|
برگه مشخصات |
RR | Bulk | Active | Socketable | 24VAC | SPDT (1 Form C) | 10 A | 240VAC, 30VDC - Max | 2400VA, 300W | 105 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 19.2 VAC | 7.2 VAC | 25 ms | 25 ms | -25°C ~ 40°C | Silver (Ag) | CE, CSA, cURus, TUV | General Purpose | - | - |
|
RV8H-1S1-D9RELAY GEN PURPOSE SPDT 12A 9V |
6 |
|
برگه مشخصات |
RV8 | Bulk | Active | DIN Rail | 9VDC | SPDT (1 Form C) | 12 A | 250VAC - Nom | - | 44 mA | Non Latching | Socket Included | Spring Terminal | - | - | 7.2 VDC | 0.63 VDC | 15 ms | 15 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CE, cULus | General Purpose | - | - |
|
G2R-2 AC110RELAY GEN PURPOSE DPDT 5A 110V |
58 |
|
برگه مشخصات |
G2R | Tray | Active | Through Hole | 110VAC | DPDT (2 Form C) | 5 A | 380VAC, 125VDC - Max | 1900VA, 625W | 10.6 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 88 VAC | 33 VAC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Alloy | CSA, TUV, UR, VDE | General Purpose | - | - |
|
55.32.9.024.0070RELAY GEN PURPOSE DPDT 10A 24V |
9 |
|
برگه مشخصات |
55 | Bulk | Active | Socketable | 24VDC | DPDT (2 Form C) | 10 A | 400VAC - Max | 4000VA | 40 mA | Non Latching | Lighted Indicator, Test Button | Plug In | - | - | 19.2 VDC | 4.8 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CCC, CE, CSA, cURus, EAC, ENEC, RINA, UKCA, VDE | General Purpose | - | - |
|
55.32.8.024.0050RELAY GEN PURPOSE DPDT 10A 24V |
7 |
|
برگه مشخصات |
55 | Bulk | Active | Socketable | 24VAC | DPDT (2 Form C) | 10 A | 400VAC - Max | 4000VA | 53 mA | Non Latching | Lighted Indicator, Test Button | Plug In | - | - | 19.2 VAC | 4.8 VAC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CCC, CE, CSA, cURus, EAC, ENEC, RINA, UKCA, VDE | General Purpose | - | - |
|
G9TA-U1ATH DC12RELAY GEN PURPOSE SPST 60A 12V |
73 |
|
برگه مشخصات |
G9TA | Tray | Active | Free Hanging | 12VDC | SPST-NO (1 Form A) | 60 A | 250VAC - Max | 15000VA | 83 mA | Latching, Single Coil | - | Square Lug | Sealed - Flux Protection | - | 9.6 VDC | - | 30 ms | 30 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | UL | General Purpose | - | - |
|
RR2P-UAC6VRELAY GEN PURPOSE DPDT 10A 6V |
74 |
|
برگه مشخصات |
RR | Bulk | Active | Socketable | 6VAC | DPDT (2 Form C) | 10 A | 240VAC, 30VDC - Max | 2400VA, 300W | 420 mA | Non Latching | - | Plug In, 8 Pin (Octal) | - | - | 4.8 VAC | 1.8 VAC | 25 ms | 25 ms | -25°C ~ 40°C | Silver (Ag) | CE, CSA, cURus, TUV | General Purpose | - | - |
|
46.52.8.024.0054RELAY GEN PURPOSE DPDT 8A 24V |
10 |
|
برگه مشخصات |
46 | Bulk | Active | Socketable | 24VAC | DPDT (2 Form C) | 8 A | 440VAC - Max | 3520VA | 45 mA | Non Latching | Lighted Indicator, Mechanical Indicator, Test Button | Plug In, Quick Connect - 0.110" (2.8mm) | - | - | 19.2 VAC | 4.8 VAC | 10 ms | 3 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CCC, CE, CSA, cURus, EAC, ENEC, RINA, UKCA, VDE | General Purpose | - | - |
|
RPYA002A120LTRELAY GEN PURPOSE DPDT 10A 120V |
20 |
|
برگه مشخصات |
RPY | Bulk | Not For New Designs | Socketable | 120VAC | DPDT (2 Form C) | 10 A | 250VAC - Max | 2500VA | 10 mA | Non Latching | Lighted Indicator, Test Button | Plug In | - | - | 96 VAC | 36 VAC | 20 ms | 20 ms | -25°C ~ 55°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | CE, CSA, TUV, UR | General Purpose | - | - |
|
RXM4AB2GDHARMONY, MINIATURE PLUG-IN RELAY |
6 |
|
برگه مشخصات |
Harmony | Box | Active | Socketable | 125VDC | 4PDT (4 Form C) | 6 A | 250VAC, 28VDC - Max | 1500VA, 168W | 7.2 mA | Non Latching | Lighted Indicator, Test Button | Plug In | - | - | 100 VDC | 12.5 VDC | 20 ms | 20 ms | -40°C ~ 55°C | Silver Nickel (AgNi) | CE, CSA, IECEE, GOST, Lloyd's, UL | General Purpose | - | - |
|
RH2V2-UDC12VRELAY GEN PURPOSE DPDT 10A 12V |
12 |
|
برگه مشخصات |
RH | Bulk | Active | Through Hole | 12VDC | DPDT (2 Form C) | 10 A | 240VAC, 30VDC - Max | 2400VA, 300W | 75 mA | Non Latching | - | PC Pin | - | - | 9.6 VDC | 1.2 VDC | 20 ms | 20 ms | -25°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CE, CSA, cURus, TUV | General Purpose | - | - |
|
|
G7L-1A-TUB-CB DC12RELAY GEN PURPOSE SPST 30A 12V |
63 |
|
برگه مشخصات |
G7L | Bulk | Active | Chassis Mount | 12VDC | SPST-NO (1 Form A) | 30 A | 250VAC - Max | 7500VA | 158 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class B | 9 VDC | 1.8 VDC | 30 ms | 30 ms | -25°C ~ 60°C | Silver Alloy | CSA, TUV, UR | General Purpose | - | - |
|
|
G7L-1A-TUB-J-CB DC24RELAY GEN PURPOSE SPST 30A 24V |
31 |
|
برگه مشخصات |
G7L | Bulk | Active | Chassis Mount | 24VDC | SPST-NO (1 Form A) | 30 A | 250VAC - Max | 7500VA | 79 mA | Non Latching | Test Button | Quick Connect - 0.250" (6.3mm) | - | Class B | 18 VDC | 3.6 VDC | 30 ms | 30 ms | -25°C ~ 60°C | Silver Alloy | CSA, TUV, UR | General Purpose | - | - |
|
|
G7L-1A-T-CB DC12RELAY GEN PURPOSE SPST 30A 12V |
19 |
|
برگه مشخصات |
G7L | Bulk | Active | Chassis Mount | 12VDC | SPST-NO (1 Form A) | 30 A | 250VAC - Max | 7500VA | 158 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class B | 9 VDC | 1.8 VDC | 30 ms | 30 ms | -25°C ~ 60°C | Silver Alloy | CSA, TUV, UR | General Purpose | - | - |
|
|
G7L-2A-T-J-CB DC48RELAY GEN PURPOSE DPST 25A 48V |
18 |
|
برگه مشخصات |
G7L | Bulk | Active | Chassis Mount | 48VDC | DPST-NO (2 Form A) | 25 A | 250VAC - Max | 6250VA | 40 mA | Non Latching | Test Button | Quick Connect - 0.250" (6.3mm) | - | Class B | 36 VDC | 7.2 VDC | 30 ms | 30 ms | -25°C ~ 60°C | Silver Alloy | CSA, TUV, UR | General Purpose | - | - |
|

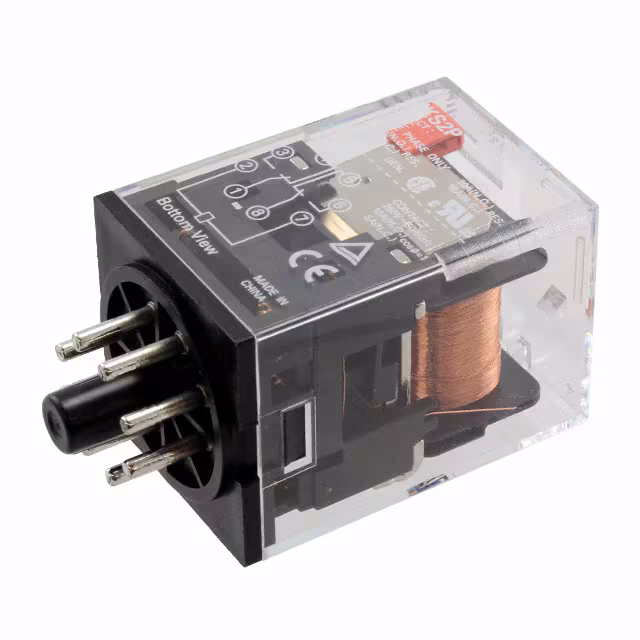

MKS2P AC110RELAY GEN PURPOSE DPDT 10A 110V |
12 |
|
برگه مشخصات |
MK-S | Bulk | Active | Socketable | 110VAC | DPDT (2 Form C) | 10 A | 250VAC, 30VDC - Max | 2500VA, 300W | 21 mA | Non Latching | Mechanical Indicator | Plug In, 8 Pin (Octal) | - | - | 88 VAC | 33 VAC | 20 ms | 20 ms | -40°C ~ 60°C | Silver Tin Indium (AgSnIn) | CSA, cURus, TUV | General Purpose | - | - |
|
|
RV8H-2S-AD60RELAY GEN PURPOSE DPDT 6A 60V |
7 |
|
برگه مشخصات |
RV8 | Bulk | Active | DIN Rail | 60VAC/DC | DPDT (2 Form C) | 6 A | 250VAC - Nom | - | 9 mA | Non Latching | Socket Included | Spring Terminal | - | - | 48 VAC/DC | 4.2 VAC/DC | 15 ms | 15 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | CE, cULus | General Purpose | - | - |
|
PT570T30RELAY GEN PURPOSE 4PDT 6A 230V |
13 |
|
برگه مشخصات |
PT, SCHRACK | Tray | Active | Socketable | 230VAC | 4PDT (4 Form C) | 6 A | 240VAC - Max | 1440VA | 11.8 mA | Non Latching | Lighted Indicator, Mechanical Indicator, Test Button | Plug In, Quick Connect - 0.110" (2.8mm) | - | Class F | 184 VAC | 69 VAC | - | - | -40°C ~ 70°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
