رله های برق، بیش از 2 آمپر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | ولتاژ سیم پیچ | فرم تماس | رتبه بندی تماس (جاری) | ولتاژ سوئیچینگ | بار - حداکثر سوئیچینگ | جریان سیم پیچ | نوع کویل | ویژگی ها | سبک خاتمه | رتبه بندی مهر و موم | عایق کویل | ولتاژ باید کار کند | ولتاژ باید آزاد شود | زمان عملیات | زمان انتشار | دمای عملیاتی | مواد تماس | آژانس تایید | نوع رله | درجه | صلاحیت |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RR2P-UAC50VRELAY GEN PURPOSE DPDT 10A 50V |
11 |
|
برگه مشخصات |
RR | Bulk | Active | Socketable | 50VAC | DPDT (2 Form C) | 10 A | 240VAC, 30VDC - Max | 2400VA, 300W | 50 mA | Non Latching | - | Plug In, 8 Pin (Octal) | - | - | 40 VAC | 15 VAC | 25 ms | 25 ms | -25°C ~ 40°C | Silver (Ag) | CE, CSA, cURus, TUV | General Purpose | - | - |
|
MJN2CF-AC24RELAY GEN PURPOSE DPDT 10A 24V |
18 |
|
برگه مشخصات |
MJN | Bulk | Active | Chassis Mount | 24VAC | DPDT (2 Form C) | 10 A | 600VAC, 28VDC - Max | 6000VA, 280W | 70.8 mA | Non Latching | - | Quick Connect - 0.187" (4.7mm) | - | - | 20.4 VAC | - | 20 ms | 10 ms | -45°C ~ 60°C | Silver Alloy | CSA, UR | General Purpose | - | - |
|
RH4B-ULAC24VRELAY GEN PURPOSE 4PDT 10A 24V |
20 |
|
برگه مشخصات |
RH | Bulk | Active | Socketable | 24VAC | 4PDT (4 Form C) | 10 A | 120VAC, 28VDC - Max | 1200VA, 280W | 83 mA | Non Latching | Lighted Indicator | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 19.2 VAC | 7.2 VAC | 25 ms | 25 ms | -25°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CE, CSA, cURus, TUV | General Purpose | - | - |
|
SP2-P-DC48VRELAY GEN PURPOSE DPDT 15A 48V |
55 |
|
برگه مشخصات |
SP | Box | Active | Through Hole | 48VDC | DPDT (2 Form C) | 15 A | 250VAC, 30VDC - Max | 3750VA, 450W | 6.2 mA | Non Latching | - | PC Pin | - | - | 33.6 VDC | 4.8 VDC | 30 ms | 20 ms | -50°C ~ 60°C | Silver Tin Oxide (AgSnO) | CSA, UR, VDE | General Purpose | - | - |
|
HE1AN-Q-AC12VRELAY GEN PURPOSE SPST 30A 12V |
26 |
|
برگه مشخصات |
HE | Bulk | Active | Chassis Mount | 12VAC | SPST-NO (1 Form A) | 30 A | 277VAC, 30VDC - Max | 8310VA, 900W | 138 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | - | 8.4 VAC | 1.8 VAC | 30 ms | 30 ms | -50°C ~ 55°C | Silver Tin Oxide (AgSnO) | CSA, TUV, VDE, UR | General Purpose | - | - |
|
8881580000RELAY GEN PURPOSE SPDT 16A 24V |
11 |
|
برگه مشخصات |
RCI KIT | Bulk | Active | DIN Rail | 24VDC | SPDT (1 Form C) | 16 A | 250VAC - Max | 4000VA | 16.7 mA | Non Latching | Lighted Indicator, Socket Included, Varistor | Screw Terminal | - | - | 16.8 VDC | 2.4 VDC | 7 ms | 3 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CE, GL | General Purpose | - | - |
|
AZDC105-1AH-24DTRELAY GEN PURPOSE SPST 150A 24V |
76 |
|
برگه مشخصات |
AZDC105 | Tray | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 150 A | 60VDC - Max | 9000W | 133.3 mA | Non Latching | - | PC Pin | - | Class F | 18 VDC | 1.2 VDC | 30 ms | 10 ms | -40°C ~ 65°C | Silver Tin Oxide (AgSnO) | TUV, UL | General Purpose | - | - |
|
|
RR2P-UAC240VRELAY GEN PURPOSE DPDT 10A 240V |
7 |
|
برگه مشخصات |
RR | Bulk | Active | Socketable | 240VAC | DPDT (2 Form C) | 10 A | 240VAC, 30VDC - Max | 2400VA, 300W | 10.5 mA | Non Latching | - | Plug In, 8 Pin (Octal) | - | - | 192 VAC | 72 VAC | 25 ms | 25 ms | -25°C ~ 40°C | Silver (Ag) | CE, CSA, cURus, TUV | General Purpose | - | - |
|

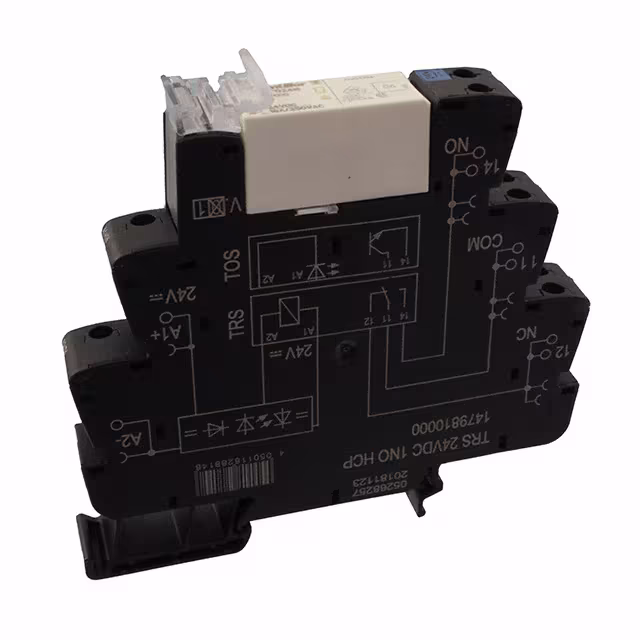

1479810000RELAY GEN PURPOSE SPST 16A 24V |
6 |
|
برگه مشخصات |
TERMSERIES | Bulk | Active | DIN Rail | 24VDC | SPST-NO (1 Form A) | 16 A | 250VAC, 250VDC - Max | - | 21 mA | Non Latching | Diode, Lighted Indicator, Socket Included | Screw Terminal | - | - | 18 VDC | 4 VDC | 7 ms | 16 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO), Tungsten (W) | CE, cULus, EAC | General Purpose | - | - |
|
HE2AN-Q-AC240VRELAY GEN PURPOSE DPST 25A 240V |
8 |
|
برگه مشخصات |
HE | Bulk | Active | Chassis Mount | 240VAC | DPST-NO (2 Form A) | 25 A | 277VAC, 30VDC - Max | 6925VA, 750W | 9.1 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | - | 168 VAC | 36 VAC | 30 ms | 30 ms | -50°C ~ 55°C | Silver Tin Oxide (AgSnO) | CSA, TUV, VDE, UR | General Purpose | - | - |
|

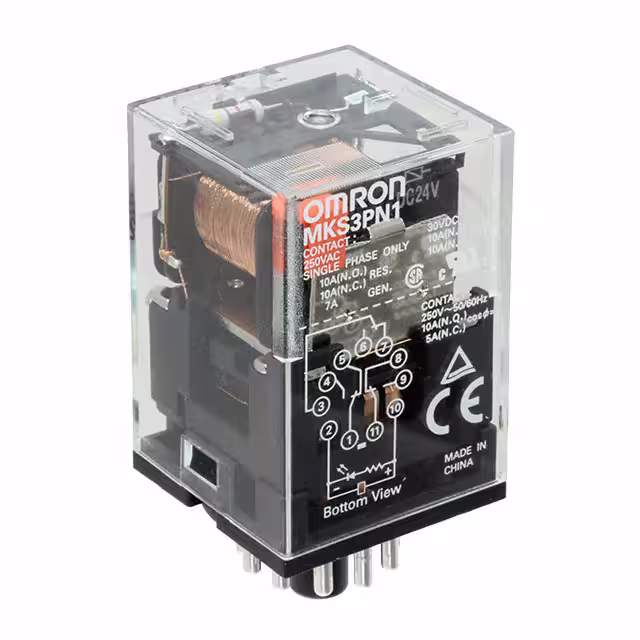

MKS3PN DC24RELAY GEN PURPOSE 3PDT 10A 24V |
8 |
|
برگه مشخصات |
MK-S | Bulk | Active | Socketable | 24VDC | 3PDT (3 Form C) | 10 A | 250VAC, 30VDC - Max | 2500VA, 300W | 55.8 mA | Non Latching | Lighted Indicator, Mechanical Indicator | Plug In, 11 Pin (Octal) | - | - | 19.2 VDC | 3.6 VDC | 30 ms | 20 ms | -25°C ~ 60°C | Silver Tin Indium (AgSnIn) | CSA, cURus, TUV | General Purpose | - | - |
|
|
39.61.3.125.0060RELAY GEN PURPOSE SPDT 6A 125V |
50 |
|
برگه مشخصات |
39 | Box | Active | DIN Rail | 125VAC/DC | SPDT (1 Form C) | 6 A | 400VAC - Max | 2400VA | 5.6 mA | Non Latching | - | Spring Terminal | - | - | 88 VAC | 37.5 VAC | 5 ms | 6 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CE, CSA, cURus, EAC, RINA, VDE | General Purpose | - | - |
|
|
58.P4.8.120.0060SPARELAY GEN PURPOSE 4PDT 7A 120V |
10 |
|
برگه مشخصات |
58 | Bulk | Active | DIN Rail | 120VAC | 4PDT (4 Form C) | 7 A | 250VAC - Max | 1750VA | 12 mA | Non Latching | Lighted Indicator, Varistor | Spring Terminal | - | - | 96 VAC | 24 VAC | 11 ms | 3 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CE, CSA, cURus, EAC, RINA, UKCA, VDE | General Purpose | - | - |
|
8881610000RELAY GEN PURPOSE DPDT 8A 24V |
20 |
|
برگه مشخصات |
RCI KIT | Bulk | Active | DIN Rail | 24VDC | DPDT (2 Form C) | 8 A | 250VAC - Max | 2000VA | 16.7 mA | Non Latching | Lighted Indicator, Socket Included, Varistor | Screw Terminal | - | - | 16.8 VDC | 2.4 VDC | 7 ms | 2 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CE, GL | General Purpose | - | - |
|
|
39.61.3.230.0060RELAY GEN PURPOSE SPDT 6A 230V |
15 |
|
برگه مشخصات |
39 | Box | Active | DIN Rail | 230VAC | SPDT (1 Form C) | 6 A | 400VAC - Max | 2400VA | 5.9 mA | Non Latching | - | Spring Terminal | - | - | 184 VAC | 72 VAC | 5 ms | 6 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CE, CSA, cURus, EAC, RINA, VDE | General Purpose | - | - |
|
T92P7D22-48RELAY GEN PURPOSE DPST 30A 48V |
95 |
|
برگه مشخصات |
T92 | Bulk | Active | Chassis Mount | 48VDC | DPST-NO (2 Form A) | 30 A | 600VAC - Max | 18000VA | 35.4 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class F | 36 VDC | 4.8 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | UR | General Purpose | - | - |
.jpg)
|
MY4ZN AC220/240 (S)RELAY GEN PURPOSE 4PDT 3A 240V |
68 |
|
برگه مشخصات |
MY | Bulk | Active | Socketable | 240VAC | 4PDT (4 Form C) | 3 A | 250VAC, 125VDC - Max | 750VA, 375W | 12.8 mA | Non Latching | Lighted Indicator | Plug In | - | - | 192 VAC | 72 VAC | 20 ms | 20 ms | -55°C ~ 70°C | Silver (Ag), Gold (Au) | CE, CSA, UR, VDE | General Purpose | - | - |
|
HE2AN-S-DC12VRELAY GEN PURPOSE DPST 25A 12V |
15 |
|
برگه مشخصات |
HE | Bulk | Active | Chassis Mount | 12VDC | DPST-NO (2 Form A) | 25 A | 277VAC, 30VDC - Max | 6925VA, 750W | 160 mA | Non Latching | - | Screw Terminal | - | - | 8.4 VDC | 1.2 VDC | 30 ms | 10 ms | -50°C ~ 55°C | Silver Tin Oxide (AgSnO) | CSA, TUV, VDE, UR | General Purpose | - | - |
|
MKS3PIN-5 DC24RELAY GEN PURPOSE 3PDT 10A 24V |
9 |
|
برگه مشخصات |
MK-S | Bulk | Active | Socketable | 24VDC | 3PDT (3 Form C) | 10 A | 250VAC, 30VDC - Max | 2500VA, 300W | 55.8 mA | Non Latching | Lighted Indicator, Mechanical Indicator, Test Button | Plug In, 11 Pin (Octal) | - | - | 19.2 VDC | 3.6 VDC | 30 ms | 20 ms | -25°C ~ 60°C | Silver Tin Indium (AgSnIn) | CSA, cURus, TUV | General Purpose | - | - |
|
|
G2RV-ST501 DC24RELAY GEN PURPOSE SPDT 6A 24V |
7 |
|
برگه مشخصات |
G2RV-ST | Box | Active | DIN Rail | 24VDC | SPDT (1 Form C) | 6 A | 440VAC, 125VDC - Max | 2640VA, 750W | 13.5 mA | Non Latching | Socket Included | Spring Terminal | - | - | 19.2 VDC | 2.4 VDC | 20 ms | 20 ms | -40°C ~ 55°C | Silver Alloy | CE, cULus, TUV | General Purpose | - | - |
