رله های برق، بیش از 2 آمپر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | ولتاژ سیم پیچ | فرم تماس | رتبه بندی تماس (جاری) | ولتاژ سوئیچینگ | بار - حداکثر سوئیچینگ | جریان سیم پیچ | نوع کویل | ویژگی ها | سبک خاتمه | رتبه بندی مهر و موم | عایق کویل | ولتاژ باید کار کند | ولتاژ باید آزاد شود | زمان عملیات | زمان انتشار | دمای عملیاتی | مواد تماس | آژانس تایید | نوع رله | درجه | صلاحیت |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G2R-1A-H DC5RELAY GEN PURPOSE SPST 5A 5V |
40 |
|
برگه مشخصات |
G2R | Tray | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 5 A | 380VAC, 125VDC - Max | 1900VA, 625W | 71.4 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 3.5 VDC | 0.75 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
AZ2850-2A-120AERELAY GEN PURPOSE DPST 40A 120V |
46 |
|
برگه مشخصات |
AZ2850 | Tray | Active | Through Hole | 120VAC | DPST-NO (2 Form A) | 40 A | 600VAC, 30VDC - Max | 11080VA, 1200W | 144.6 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 96 VAC | 24 VAC | 25 ms | 25 ms | -40°C ~ 65°C | Silver Cadmium Oxide (AgCdO) | CUR, UL, VDE | General Purpose | - | - |
|
G2R-2A-T130 DC24RELAY GEN PURPOSE DPST 5A 24V |
100 |
|
برگه مشخصات |
G2R | Tray | Active | Through Hole | 24VDC | DPST-NO (2 Form A) | 5 A | 380VAC, 125VDC - Max | 1900VA, 625W | 21.8 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 16.8 VDC | 3.6 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | CSA, TUV, UR, VDE | General Purpose | - | - |
|

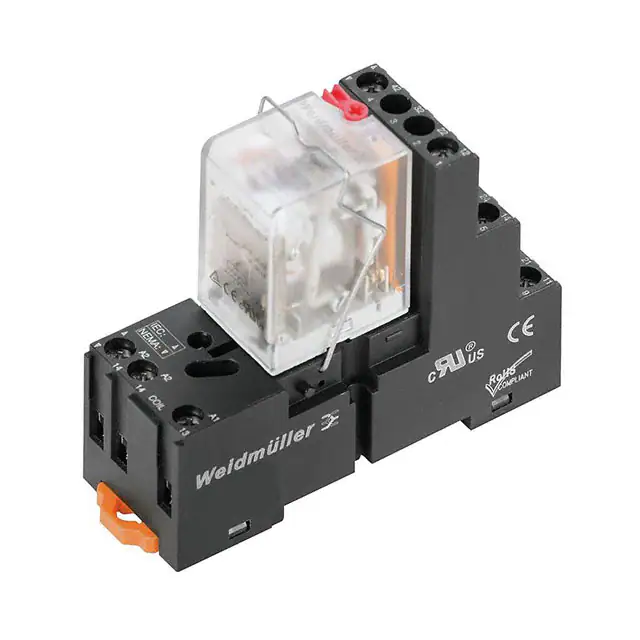

1542490000RELAY GEN PURPOSE DPDT 10A 230V |
24 |
|
برگه مشخصات |
DRM | Bulk | Active | DIN Rail | 230VAC | DPDT (2 Form C) | 10 A | 250VAC - Max | 2500VA | 14.3 mA | Non Latching | Lighted Indicator, Socket Included, Varistor | Screw Terminal | - | - | 184 VAC | 69 VAC | 20 ms | 20 ms | -40°C ~ 55°C | Silver Nickel (AgNi), Gold (Au) | CE | General Purpose | - | - |
|
V23061A1007A502RELAY GEN PURPOSE SPST 8A 24V |
44 |
|
برگه مشخصات |
MSR, SCHRACK | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 8 A | 400VAC - Max | 3200VA | 10.6 mA | Non Latching | - | PC Pin | Sealed - Fully | Class A | 16.3 VDC | 2.4 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
|
ALFG1PF091RELAY GEN PURPOSE SPST 22A 9V |
37 |
|
برگه مشخصات |
ALFG | Bulk | Active | Through Hole | 9VDC | SPST-NO (1 Form A) | 22 A | 250VAC - Max | 5500VA | 155 mA | Non Latching | - | PC Pin | - | Class F | 6.3 VDC | 0.9 VDC | 20 ms | 10 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) | cURus, VDE | General Purpose | - | - |
|
ADW1209WRELAY GEN PURPOSE SPST 8A 9V |
99 |
|
برگه مشخصات |
DW | Tray | Active | Through Hole | 9VDC | SPST-NO (1 Form A) | 8 A | 250VAC - Max | 2000VA | 44.4 mA | Latching, Dual Coil | - | PC Pin | Sealed - Flux Protection | Class F | 7.2 VDC | - | 15 ms | 15 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CQC, cURus, VDE | General Purpose | - | - |
|
ADW1112WRELAY GEN PURPOSE SPST 8A 12V |
43 |
|
برگه مشخصات |
DW | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 8 A | 250VAC - Max | 2000VA | 16.7 mA | Latching, Single Coil | - | PC Pin | Sealed - Flux Protection | Class F | 9.6 VDC | - | 15 ms | 15 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CQC, cURus, VDE | General Purpose | - | - |
|
G2R-14-T130 DC12RELAY GEN PURPOSE SPDT 8A 12V |
90 |
|
برگه مشخصات |
G2R | Tray | Active | Through Hole | 12VDC | SPDT (1 Form C) | 8 A | 380VAC, 125VDC - Max | 3040VA, 1000W | 43.6 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 8.4 VDC | 1.8 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | CSA, TUV, UR, VDE | General Purpose | - | - |
|
ADW1112TWRELAY GEN PURPOSE SPST 8A 12V |
76 |
|
برگه مشخصات |
DW | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 8 A | 250VAC - Max | 2000VA | 16.7 mA | Latching, Single Coil | IEC Compliant | PC Pin | Sealed - Flux Protection | Class F | 9.6 VDC | - | 15 ms | 15 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CQC, cURus, VDE | General Purpose | - | - |
|
ADY10003RELAY GEN PURPOSE SPST 10A 3V |
36 |
|
برگه مشخصات |
ADY | Box | Active | Through Hole | 3VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 125VDC - Max | 2500VA, 1250W | 66.6 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 2.1 VDC | 0.3 VDC | 10 ms | 8 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | CSA, UR, VDE | General Purpose | - | - |
|
T9GV2L14-110RELAY GEN PURPOSE SPST 20A 110V |
40 |
|
برگه مشخصات |
T9G | Bulk | Active | Through Hole | 110VDC | SPST-NC (1 Form B) | 20 A | 480VAC - Max | 9600VA | 8.2 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class B | 82.5 VDC | 11 VDC | 15 ms | 22 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | CQC, cURus, VDE | General Purpose | - | - |
|
G6BK-1114P-1-US DC5RELAY GEN PURPOSE SPST 5A 5V |
53 |
|
برگه مشخصات |
G6B | Bulk | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 5 A | 380VAC, 125VDC - Max | 1900VA, 625W | 56 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 3.5 VDC | - | 10 ms | 10 ms | -25°C ~ 70°C | Silver Alloy, Cadmium Free | CSA, TUV, UR | General Purpose | - | - |
|
T9GV1L24-110RELAY GEN PURPOSE SPST 30A 110V |
39 |
|
برگه مشخصات |
T9G | Tube | Active | Through Hole | 110VDC | SPST-NO (1 Form A) | 30 A | 480VAC - Max | 14400VA | 8.2 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Flux Protection | Class B | 82.5 VDC | 11 VDC | 15 ms | 22 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | CQC, cURus, VDE | General Purpose | - | - |
|
T9GS2L24-110RELAY GEN PURPOSE SPST 20A 110V |
42 |
|
برگه مشخصات |
T9G | Bulk | Active | Through Hole | 110VDC | SPST-NC (1 Form B) | 20 A | 480VAC - Max | 9600VA | 8.2 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 82.5 VDC | 11 VDC | 15 ms | 22 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | CQC, cURus, VDE | General Purpose | - | - |
|
|
ADW1106TWRELAY GEN PURPOSE SPST 8A 6V |
100 |
|
برگه مشخصات |
DW | Tray | Active | Through Hole | 6VDC | SPST-NO (1 Form A) | 8 A | 250VAC - Max | 2000VA | 33.3 mA | Latching, Single Coil | IEC Compliant | PC Pin | Sealed - Flux Protection | Class F | 4.8 VDC | - | 15 ms | 15 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CQC, cURus, VDE | General Purpose | - | - |
|
|
ADW1103TWRELAY GEN PURPOSE SPST 8A 3V |
88 |
|
برگه مشخصات |
DW | Tray | Active | Through Hole | 3VDC | SPST-NO (1 Form A) | 8 A | 250VAC - Max | 2000VA | 66.7 mA | Latching, Single Coil | IEC Compliant | PC Pin | Sealed - Flux Protection | Class F | 2.4 VDC | - | 15 ms | 15 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CQC, cURus, VDE | General Purpose | - | - |
|
|
ADW1105TWRELAY GEN PURPOSE SPST 8A 5V |
60 |
|
برگه مشخصات |
DW | Tray | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 8 A | 250VAC - Max | 2000VA | 40 mA | Latching, Single Coil | IEC Compliant | PC Pin | Sealed - Flux Protection | Class F | 4 VDC | - | 15 ms | 15 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CQC, cURus, VDE | General Purpose | - | - |
|
|
G2R-24 DC6RELAY GEN PURPOSE DPDT 4A 6V |
83 |
|
برگه مشخصات |
G2R | Tray | Active | Through Hole | 6VDC | DPDT (2 Form C) | 4 A | 380VAC, 125VDC - Max | 1520VA, 500W | 88.2 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 4.2 VDC | 0.9 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
G2R-14-DC48RELAY GEN PURPOSE SPDT 8A 48V |
85 |
|
برگه مشخصات |
G2R | Tray | Active | Through Hole | 48VDC | SPDT (1 Form C) | 8 A | 380VAC, 125VDC - Max | 3040VA, 1000W | 11.5 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 33.6 VDC | 7.2 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | CSA, TUV, UR, VDE | General Purpose | - | - |
