رله های برق، بیش از 2 آمپر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | ولتاژ سیم پیچ | فرم تماس | رتبه بندی تماس (جاری) | ولتاژ سوئیچینگ | بار - حداکثر سوئیچینگ | جریان سیم پیچ | نوع کویل | ویژگی ها | سبک خاتمه | رتبه بندی مهر و موم | عایق کویل | ولتاژ باید کار کند | ولتاژ باید آزاد شود | زمان عملیات | زمان انتشار | دمای عملیاتی | مواد تماس | آژانس تایید | نوع رله | درجه | صلاحیت |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G2R-1A-E DC18RELAY GEN PURPOSE SPST 16A 18V |
97 |
|
برگه مشخصات |
G2R | Bulk | Active | Through Hole | 18VDC | SPST-NO (1 Form A) | 16 A | 380VAC, 125VDC - Max | 6080VA, 2000W | 29.4 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | - | - | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy, Cadmium Free | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
G2R-24-T130 DC22RELAY GEN PURPOSE DPST 4A 22V |
84 |
|
برگه مشخصات |
G2R | Tray | Active | Chassis Mount | 22VDC | DPST-NO/NC (1 Form A, 1 Form B) | 4 A | 380VAC, 125VDC - Max | 1520VA, 500W | - | Non Latching | - | Quick Connect - 0.187" (4.7mm) | Sealed - Fully | - | - | - | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy, Cadmium Free | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
7760056334DRI424730L |
40 |
|
برگه مشخصات |
DRI | Box | Active | Socketable | 230VAC | DPDT (2 Form C) | 5 A | 250VAC, 250VDC - Max | 1250VA, 150W | 4.9 mA | Non Latching | Lighted Indicator | Plug In, Quick Connect - 0.102" (2.6mm) | - | - | - | - | 15 ms | 10 ms | -40°C ~ 55°C | Silver Tin Oxide (AgSnO) | cURus | General Purpose | - | - |
|
G6D-1A-ASI DC6RELAY GENERAL PURPOSE SPST 5A 6V |
100 |
|
برگه مشخصات |
G6D | Bulk | Active | Through Hole | 6VDC | SPST-NO (1 Form A) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 33.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 4.2 VDC | 0.6 VDC | 10 ms | 5 ms | -25°C ~ 70°C | Silver Alloy | CSA, TUV, UR | General Purpose | - | - |
|
7760056079RELAY GEN PURPOSE 4PDT 10A 24V |
37 |
|
برگه مشخصات |
DRM | Bulk | Active | Socketable | 24VDC | 4PDT (4 Form C) | 10 A | 250VAC - Max | 2500VA | 36.9 mA | Non Latching | - | Plug In | - | - | 18 VDC | 2.4 VDC | 20 ms | 20 ms | -40°C ~ 60°C | Silver Alloy | cURus | General Purpose | - | - |
|
|
AZ2900-1CE-24AP125 AMP POWER RELAY |
100 |
|
برگه مشخصات |
AZ2900 | Tray | Active | Chassis Mount | 24VAC | SPDT (1 Form C) | 25 A | 277VAC - Max | 6925VA | 167 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class F | 20.4 VAC | 4.8 VAC | 25 ms | 25 ms | -40°C ~ 65°C | Silver Cerium (AgCe) | cURus | General Purpose | - | - |
|
|
AZ2900-1C-24A25 AMP POWER RELAY |
98 |
|
برگه مشخصات |
AZ2900 | Tray | Active | Chassis Mount | 24VAC | SPDT (1 Form C) | 25 A | 277VAC - Max | 6925VA | 167 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class F | 20.4 VAC | 4.8 VAC | 25 ms | 25 ms | -40°C ~ 65°C | Silver Cadmium Oxide (AgCdO) | cURus | General Purpose | - | - |
|
|
AZ2900-1AB-24AP25 AMP POWER RELAY |
79 |
|
برگه مشخصات |
AZ2900 | Tray | Active | Chassis Mount | 24VAC | DPST-NO/NC (1 Form A, 1 Form B) | 25 A | 277VAC - Max | 6925VA | 167 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class F | 20.4 VAC | 4.8 VAC | 25 ms | 25 ms | -40°C ~ 65°C | Silver Cadmium Oxide (AgCdO) | cURus | General Purpose | - | - |
|
|
2903684RELAY GEN PURPOSE 4PDT 6A 120V |
27 |
|
برگه مشخصات |
REL-IR | Bulk | Active | Socketable | 120VAC | 4PDT (4 Form C) | 6 A | 250VAC, 250VDC - Max | - | 13 mA | Non Latching | Lighted Indicator, Mechanical Indicator, Test Button | Plug In | - | - | - | - | 15 ms | 20 ms | -40°C ~ 55°C | Silver Nickel (AgNi), Gold (Au) | cULus, EAC, UL, VDE | General Purpose | - | - |
|
G2R-1A4-ASI-DC24RELAY GEN PURPOSE SPST 8A 24V |
93 |
|
برگه مشخصات |
G2R | Tray | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 8 A | 380VAC, 125VDC - Max | 3040VA, 1000W | 21.8 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 16.8 VDC | 3.6 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
G6B-1114P-US-SV DC24RELAY GEN PURPOSE SPST 5A 24V |
77 |
|
برگه مشخصات |
G6B | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 5 A | 380VAC, 125VDC - Max | 1900VA, 625W | 8.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 16.8 VDC | 2.4 VDC | 10 ms | 10 ms | -25°C ~ 70°C | Silver Alloy, Cadmium Free | CSA, TUV, UR | General Purpose | - | - |
|
G2R-1A-E-T130 DC18RELAY GEN PURPOSE SPST 16A 18V |
98 |
|
برگه مشخصات |
G2R | Tray | Active | Through Hole | 18VDC | SPST-NO (1 Form A) | 16 A | 380VAC, 125VDC - Max | 6080VA, 2000W | 29.4 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 12.6 VDC | 2.7 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
AZ2800-2AE-120A5ERELAY GEN PURPOSE DPST 40A 120V |
90 |
|
برگه مشخصات |
AZ2800 | Box | Active | Chassis Mount | 120VAC | DPST-NO (2 Form A) | 40 A | 600VAC, 30VDC - Max | 11080VA, 1200W | 33.3 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 96 VAC | 24 VAC | - | - | -40°C ~ 65°C | Silver Tin Oxide (AgSnO) | cURus, VDE | General Purpose | - | - |
|
G2R-1-E-T130 DC12RELAY GEN PURPOSE SPDT 16A 12V |
63 |
|
برگه مشخصات |
G2R | Tray | Active | Through Hole | 12VDC | SPDT (1 Form C) | 16 A | 380VAC, 125VDC - Max | 6080VA, 2000W | 43.6 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 8.4 VDC | 1.8 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
J1671AC240VACQRELAY GEN PURPOSE SPST |
50 |
|
برگه مشخصات |
J167 | Tray | Active | Socketable | 240VAC | SPST-NO (1 Form A) | 30 A | 277VAC, 30VDC - Max | 6600VA | 11.4 mA | Non Latching | - | Plug In, Quick Connect - 0.250" (6.3mm) | - | Class F | 168 VAC | 24 VAC | 30 ms | 30 ms | -40°C ~ 85°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | cURus, TUV | General Purpose | - | - |
|
7760056096RELAY GEN PURPOSE 4PDT 10A 12V |
35 |
|
برگه مشخصات |
DRM | Bulk | Active | Socketable | 12VDC | 4PDT (4 Form C) | 10 A | 250VAC - Max | 2500VA | 75 mA | Non Latching | Lighted Indicator, Test Button | Plug In | - | - | 9 VDC | 1.2 VDC | 20 ms | 20 ms | -40°C ~ 60°C | Silver Alloy | cURus | General Purpose | - | - |
|
|
7760056105RELAY GEN PURPOSE 4PDT 10A 24V |
34 |
|
برگه مشخصات |
DRM | Bulk | Active | Socketable | 24VDC | 4PDT (4 Form C) | 10 A | 250VAC - Max | 2500VA | 36.9 mA | Non Latching | Diode, Lighted Indicator | Plug In | - | - | 18 VDC | 2.4 VDC | 20 ms | 20 ms | -40°C ~ 60°C | Silver Alloy | cURus | General Purpose | - | - |
|
|
7760056345DRI424730LT |
53 |
|
برگه مشخصات |
DRI | Box | Active | Socketable | 230VAC | DPDT (2 Form C) | 5 A | 250VAC, 250VDC - Max | 1250VA, 150W | 4.9 mA | Non Latching | Lighted Indicator, Test Button | Plug In, Quick Connect - 0.102" (2.6mm) | - | - | - | - | 15 ms | 10 ms | -40°C ~ 55°C | Silver Tin Oxide (AgSnO) | cURus | General Purpose | - | - |
|
|
AZ2900-1ABE-24AP25 AMP POWER RELAY |
100 |
|
برگه مشخصات |
AZ2900 | Tray | Active | Chassis Mount | 24VAC | DPST-NO/NC (1 Form A, 1 Form B) | 25 A | 277VAC - Max | 6925VA | 167 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class F | 20.4 VAC | 4.8 VAC | 25 ms | 25 ms | -40°C ~ 65°C | Silver Cerium (AgCe) | cURus | General Purpose | - | - |
|

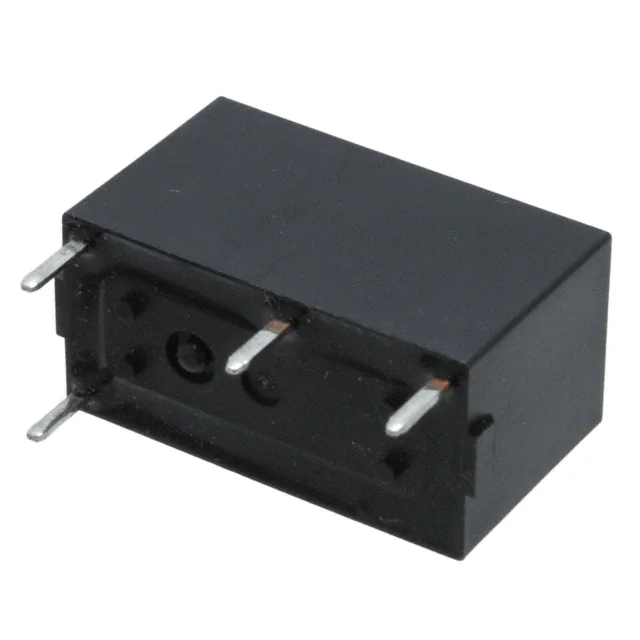

G6B-1174P-US DC3RELAY GEN PURPOSE SPST 8A 3V |
55 |
|
برگه مشخصات |
G6B | Bulk | Active | Through Hole | 3VDC | SPST-NO (1 Form A) | 8 A | 380VAC, 125VDC - Max | 3040VA, 1000W | 66.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 2.1 VDC | 0.3 VDC | 10 ms | 10 ms | -25°C ~ 70°C | Silver Alloy, Cadmium Free | CSA, TUV, UR | General Purpose | - | - |
