رله های برق، بیش از 2 آمپر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | ولتاژ سیم پیچ | فرم تماس | رتبه بندی تماس (جاری) | ولتاژ سوئیچینگ | بار - حداکثر سوئیچینگ | جریان سیم پیچ | نوع کویل | ویژگی ها | سبک خاتمه | رتبه بندی مهر و موم | عایق کویل | ولتاژ باید کار کند | ولتاژ باید آزاد شود | زمان عملیات | زمان انتشار | دمای عملیاتی | مواد تماس | آژانس تایید | نوع رله | درجه | صلاحیت |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
90295RELAY GEN PURPOSE SPDT 18A 240V |
23 |
|
برگه مشخصات |
HCR-5 | Box | Active | Chassis Mount | 240VAC | SPDT (1 Form C) | 18 A | - | - | - | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | - | 176 VAC | 48 VAC | - | - | -40°C ~ 65°C | - | - | General Purpose | - | - |
|
KUP-5AT5-24RELAY GEN PURPOSE SPDT 10A 24V |
0 |
|
برگه مشخصات |
KUP | Bulk | Obsolete | Chassis Mount | 24VAC | SPDT (1 Form C) | 10 A | 240VAC - Max | 2400VA | 84 mA | Non Latching | - | Quick Connect - 0.187" (4.7mm) | - | Class B | 20.4 VAC | - | 15 ms | 10 ms | -45°C ~ 55°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
MKS2XTIN-11 DC12RELAY GEN PURPOSE DPST 5A 12V |
10 |
|
برگه مشخصات |
MKS-X | Bulk | Obsolete | Socketable | 12VDC | DPST-NO/NC (1 Form A, 1 Form B) | 5 A | 220VDC - Max | 1100W | 126 mA | Non Latching | Lighted Indicator, Test Button | Plug In | - | - | 9.6 VDC | 1.8 VDC | 30 ms | 20 ms | -25°C ~ 60°C | Silver Tin Indium (AgSnIn) | cURus, TUV | General Purpose | - | - |
|
|
58.32.8.120.0049SMAATEX/C1D2 INTERFACE MODULE, DPDT |
8 |
|
برگه مشخصات |
58 | Bulk | Active | DIN Rail | 120VAC | DPDT (2 Form C) | 10 A | 400VAC - Max | 4000VA | 97 mA | Non Latching | Lighted Indicator, Mechanical Indicator | Screw Terminal | - | - | 9.6 VAC | 24 VAC | 10 ms | 5 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CE, CSA, cURus, EAC, RINA, UKCA, VDE | General Purpose | - | - |
|
KUMP-11A18-240RELAY GEN PURPOSE DPDT 15A 240V |
0 |
|
برگه مشخصات |
KUMP | Bulk | Active | Socketable | 240VAC | DPDT (2 Form C) | 15 A | 277VAC - Max | 4155VA | 12 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class B | 204 VAC | - | 15 ms | 10 ms | -45°C ~ 55°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
KUP-14D15-6RELAY GEN PURPOSE 3PDT 10A 6V |
7 |
|
برگه مشخصات |
KUP | Bulk | Obsolete | Socketable | 6VDC | 3PDT (3 Form C) | 10 A | 240VAC - Max | 2400VA | 187 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class B | 4.5 VDC | - | 15 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
90342RELAY GEN PURPOSE DPDT 15A 240V |
25 |
|
برگه مشخصات |
HCR-6 | Box | Active | Chassis Mount | 240VAC | DPDT (2 Form C) | 15 A | - | - | - | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | - | 176 VAC | 48 VAC | - | - | -40°C ~ 65°C | - | - | General Purpose | - | - |
|
KUP93-14A13-24RELAY GEN PURPOSE 3PDT 10A 24V |
0 |
|
برگه مشخصات |
KUP93 | Bulk | Obsolete | Socketable | 24VAC | 3PDT (3 Form C) | 10 A | 240VAC, 28VDC - Max | 2400VA, 280W | 115 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 20.4 VAC | - | 15 ms | 10 ms | -45°C ~ 45°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
R10-E2Y4-S1.8KRELAY GEN PURPOSE 4PDT 3A 24V |
0 |
|
برگه مشخصات |
R10 | Bulk | Active | Through Hole | 24VDC | 4PDT (4 Form C) | 3 A | 120VAC - Nom | - | 13.3 mA | Non Latching | - | PC Pin | - | - | 18 VDC | - | - | - | -55°C ~ 75°C | Silver (Ag) | CSA, UR | General Purpose | - | - |
|
R10-E1X2-S3.2KRELAY GEN PURPOSE DPDT 5A 24V |
0 |
|
برگه مشخصات |
R10 | Bulk | Active | Socketable | 24VDC | DPDT (2 Form C) | 5 A | 120VAC - Nom | - | 7.5 mA | Non Latching | - | Plug In | - | - | 18 VDC | - | - | - | -55°C ~ 75°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
8501KUDR12V53PLUG IN RELAY, TYPE KU, BLADE, 0 |
6 |
|
برگه مشخصات |
Square D 8501K | Box | Obsolete | Socketable | 24VDC | DPDT (2 Form C) | 10 A | 300VAC, 30VDC - Max | 3000VA, 300W | - | Non Latching | - | Plug In | - | - | - | - | 20 ms | 20 ms | -40°C ~ 55°C | Silver Nickel (AgNi) | - | General Purpose | - | - |
|
8501KUR12V20PLUG IN RELAY, TYPE KU, BLADE, 0 |
10 |
|
برگه مشخصات |
Square D 8501K | Box | Active | Socketable | 120VAC | DPDT (2 Form C) | 10 A | 300VAC, 30VDC - Max | 3000VA, 300W | - | Non Latching | - | Plug In | - | - | - | - | 20 ms | 20 ms | -40°C ~ 55°C | Silver Nickel (AgNi) | - | General Purpose | - | - |
|
KUP-17D55-24RELAY GEN PURPOSE 4PDT 10A 24V |
20 |
|
برگه مشخصات |
KUP | Bulk | Obsolete | Chassis Mount | 24VDC | 4PDT (4 Form C) | 10 A | 240VAC - Max | 2400VA | 75 mA | Non Latching | - | Quick Connect - 0.187" (4.7mm) | - | Class B | 18 VDC | - | 15 ms | 10 ms | -45°C ~ 50°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
|
KUEP-3D17-48RELAY GEN PURPOSE SPST 10A 48V |
0 |
|
برگه مشخصات |
KUEP | Bulk | Obsolete | Through Hole | 48VDC | SPST-NO (DM) (1 Form X) | 10 A | 150VDC - Max | 1500VA | 26.7 mA | Non Latching | - | PC Pin | - | Class B | 36 VDC | - | 15 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
|
R10S-E1Y1-J2.5KRELAY GEN PURPOSE SPDT 3A 12V |
0 |
|
برگه مشخصات |
R10 | Bulk | Obsolete | Socketable | 12VDC | SPDT (1 Form C) | 3 A | 120VAC - Nom | - | 2 mA | Non Latching | - | Plug In | - | - | 5 VDC | - | - | - | -55°C ~ 75°C | Silver (Ag) | CSA, UR | General Purpose | - | - |
|
|
KUP93-14A53-240RELAY GEN PURPOSE 3PDT 10A 240V |
0 |
|
برگه مشخصات |
KUP93 | Bulk | Obsolete | Chassis Mount | 240VAC | 3PDT (3 Form C) | 10 A | 240VAC, 28VDC - Max | 2400VA, 280W | 12 mA | Non Latching | - | Quick Connect - 0.187" (4.7mm) | - | - | 204 VAC | - | 15 ms | 10 ms | -45°C ~ 45°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
|
KUP-11AE5-24RELAY GEN PURP |
0 |
|
- |
KUP | Bulk | Obsolete | Chassis Mount | 24VDC | DPDT (2 Form C) | 10 A | 240VAC - Max | 2400VA | 50.8 mA | Non Latching | - | Quick Connect - 0.187" (4.7mm) | - | Class B | 18 VDC | - | 15 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
|
KUP93-14D13-24RELAY GEN PURPOSE 3PDT 10A 24V |
0 |
|
برگه مشخصات |
KUP93 | Bulk | Active | Socketable | 24VDC | 3PDT (3 Form C) | 10 A | 240VAC, 28VDC - Max | 2400VA, 280W | 51 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 18 VDC | - | 15 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
KHAE-17D12-6RELAY GENERAL PURPOSE 4PDT 5A 6V |
0 |
|
برگه مشخصات |
KHA | Bulk | Obsolete | Through Hole | 6VDC | 4PDT (4 Form C) | 5 A | 240VAC - Nom | - | 150 mA | Non Latching | - | PC Pin | - | Class B | 4.5 VDC | - | 13 ms | 6 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|

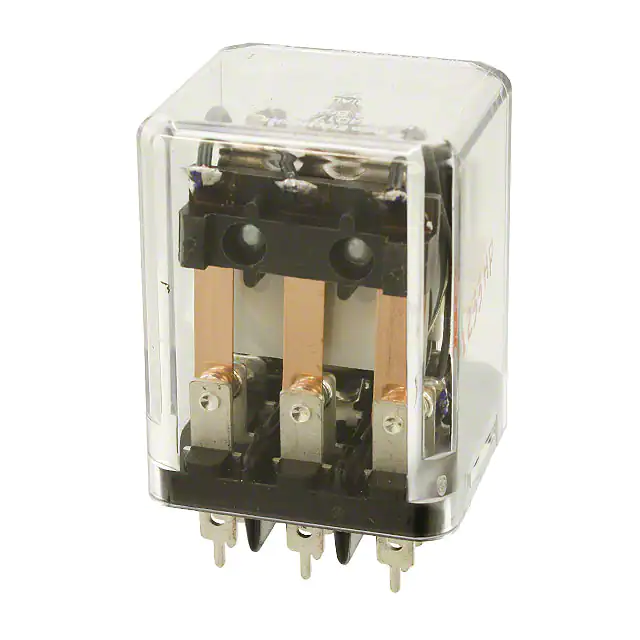

KUP-14D17-24RELAY GEN PURPOSE 3PDT 10A 24V |
38 |
|
برگه مشخصات |
KUP | Bulk | Obsolete | Through Hole | 24VDC | 3PDT (3 Form C) | 10 A | 240VAC - Max | 2400VA | 51 mA | Non Latching | - | PC Pin | - | Class B | 18 VDC | - | 15 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
