رله های برق، بیش از 2 آمپر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | ولتاژ سیم پیچ | فرم تماس | رتبه بندی تماس (جاری) | ولتاژ سوئیچینگ | بار - حداکثر سوئیچینگ | جریان سیم پیچ | نوع کویل | ویژگی ها | سبک خاتمه | رتبه بندی مهر و موم | عایق کویل | ولتاژ باید کار کند | ولتاژ باید آزاد شود | زمان عملیات | زمان انتشار | دمای عملیاتی | مواد تماس | آژانس تایید | نوع رله | درجه | صلاحیت |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AZ733-2AE-24DERELAY GEN PURPOSE DPST 12A 24V |
807 |
|
برگه مشخصات |
AZ733 | Tray | Active | Through Hole | 24VDC | DPST-NO (2 Form A) | 12 A | 400VAC, 250VDC - Max | 3324VA, 360W | 21.8 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 16.8 VDC | 2.4 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CUR, TUV, UL | General Purpose | - | - |
|
G5PZ-1A DC12RELAY GEN PURPOSE SPST 16A 12V |
2,465 |
|
برگه مشخصات |
G5PZ | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 16 A | 250VAC - Max | 4000VA | 44.1 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 9 VDC | 1.2 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy, Cadmium Free | CQC, CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
G5PZ-1A DC5RELAY GEN PURPOSE SPST 16A 5V |
1,502 |
|
برگه مشخصات |
G5PZ | Tray | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 16 A | 250VAC - Max | 4000VA | 106 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 3.8 VDC | 0.5 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy, Cadmium Free | CQC, CSA, TUV, UR, VDE | General Purpose | - | - |
|
PTRH-1A-12SF-XRELAY GEN PURPOSE SPST 30A 12V |
1,256 |
|
برگه مشخصات |
PTRH | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 30 A | 300VAC, 110VDC - Max | 9000VA, 3300W | 80 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -40°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | CUL, cURus, UL | General Purpose | - | - |
|
RZ03-1C4-D009RELAY GEN PURPOSE SPDT 16A 9V |
4,416 |
|
برگه مشخصات |
RZ, SCHRACK | Tube | Active | Through Hole | 9VDC | SPDT (1 Form C) | 16 A | 400VAC - Max | 6400VA | 44.4 mA | Non Latching | - | PC Pin | - | Class F | 6.3 VDC | 0.9 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CQC, cURus, VDE | General Purpose | - | - |
|
|
AZ733-2AE-12DERELAY GEN PURPOSE DPST 12A 12V |
617 |
|
برگه مشخصات |
AZ733 | Box | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 12 A | 400VAC, 250VDC - Max | 3324VA, 360W | 43.6 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 8.4 VDC | 1.2 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CUR, TUV, UL | General Purpose | - | - |
|
|
AZ733-2AE-5DERELAY GEN PURPOSE DPST 12A 5V |
495 |
|
برگه مشخصات |
AZ733 | Tray | Active | Through Hole | 5VDC | DPST-NO (2 Form A) | 12 A | 400VAC, 250VDC - Max | 3324VA, 360W | 106.4 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 3.5 VDC | 0.5 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CUR, TUV, UL | General Purpose | - | - |
|
|
G5NB-1A-E-HA DC12 (N)(A)RELAY GEN PURPOSE SPST 5A 12V |
1,375 |
|
برگه مشخصات |
G5NB | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 16.7 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class B | 9 VDC | 1.2 VDC | 10 ms | 10 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | CQC, CSA, UR, VDE | General Purpose | - | - |
|
5-1415899-0RELAY GEN PURPOSE SPST 16A 24V |
22,923 |
|
برگه مشخصات |
RZ, SCHRACK | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 16 A | 400VAC - Max | 6400VA | 16.7 mA | Non Latching | - | PC Pin | - | Class F | 16.8 VDC | 2.4 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CQC, cURus, VDE | General Purpose | - | - |
|
ALDP124RELAY GEN PURPOSE SPST 5A 24V |
2,892 |
|
برگه مشخصات |
ALDP | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 5 A | 277VAC - Max | 1385VA | 8.3 mA | Non Latching | - | PC Pin | - | Class E | 18 VDC | 1.2 VDC | 10 ms | 10 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CQC, cURuus, VDE | General Purpose | - | - |
|
OJS-SH-112HEF, 00000RELAY GEN PURPOSE SPST 16A 12V |
740 |
|
برگه مشخصات |
OJS, OEG | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 16 A | 250VAC - Max | 4000VA | 37.5 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9 VDC | 0.6 VDC | 15 ms | 4 ms | -40°C ~ 85°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | CQC, cURus, TUV | General Purpose | - | - |
|
RZ01-1C4-D024RELAY GEN PURPOSE SPDT 12A 24V |
4,329 |
|
برگه مشخصات |
RZ, SCHRACK | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 12 A | 400VAC - Max | 4800VA | 16.7 mA | Non Latching | - | PC Pin | - | Class F | 16.8 VDC | 2.4 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CQC, cURus, VDE | General Purpose | - | - |
|
RZ01-1A4-D005-RRELAY GEN PURPOSE SPST 12A 5V |
4,136 |
|
برگه مشخصات |
RZ, SCHRACK | Bulk | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 12 A | 400VAC - Max | 4800VA | 83.3 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 3.5 VDC | 0.5 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CQC, cURus, VDE | General Purpose | - | - |
|
J114FL1CS165VDC.41RELAY GEN PURPOSE SPDT 16A 5V |
917 |
|
برگه مشخصات |
J114FL | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 16 A | 380VAC, 110VDC - Max | 6080VA, 1760W | 80.6 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.75 VDC | 0.5 VDC | 10 ms | 5 ms | -55°C ~ 105°C | Silver Tin Oxide (AgSnO) | cURus | General Purpose | - | - |
|
G6DN-1A-SL DC5RELAY GEN PURPOSE SPST 5A 5V |
8,373 |
|
برگه مشخصات |
G6DN | Tray | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 5 A | 277VAC, 125VDC - Max | 1385VA, 625W | 22 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 3.5 VDC | 0.25 VDC | 10 ms | 5 ms | -40°C ~ 90°C | Silver Alloy | cURus, TUV, VDE | General Purpose | - | - |
|
PB134012RELAY GEN PURPOSE SPST 10A 12V |
3,851 |
|
برگه مشخصات |
PB, SCHRACK | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 10 A | 400VAC - Max | 4000VA | 30 mA | Non Latching | - | PC Pin | - | Class F | 9 VDC | 1.2 VDC | 10 ms | 20 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
|

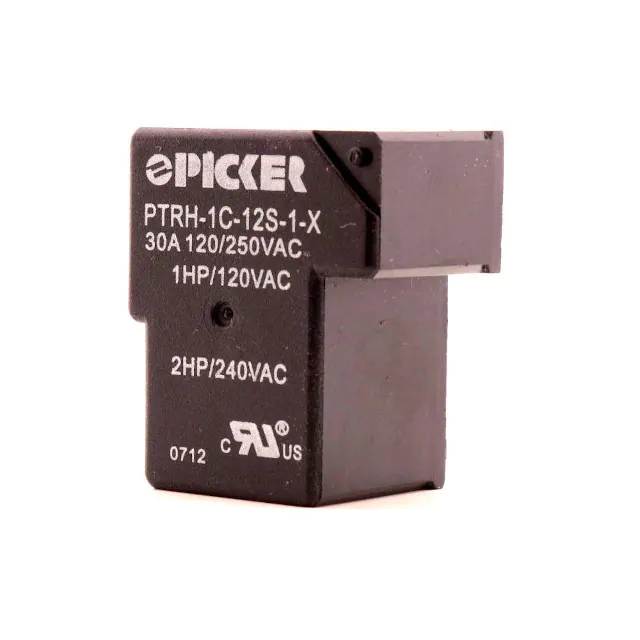

PTRH-1C-12S-1-XRELAY GEN PURPOSE SPDT 30A 12V |
830 |
|
برگه مشخصات |
PTRH | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 30 A | 300VAC, 110VDC - Max | 9000VA, 3300W | 80 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -40°C ~ 100°C | Silver Cadmium Oxide (AgCdO) | CUL, cURus, UL | General Purpose | - | - |
|

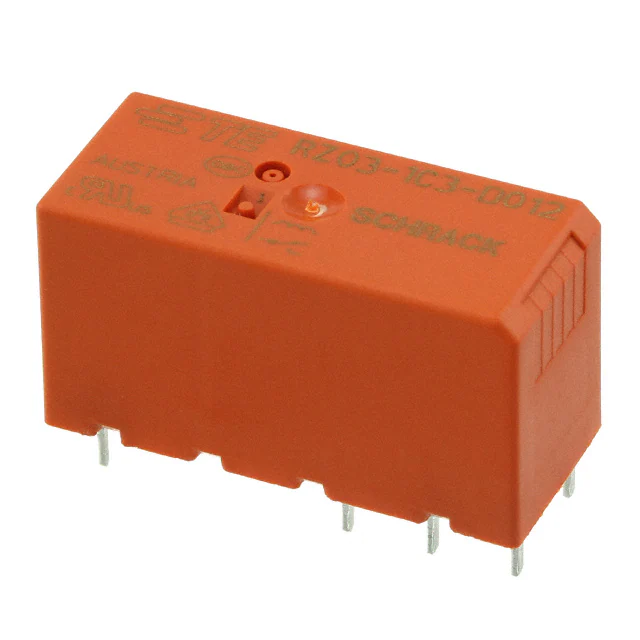

5-1415899-5RELAY GEN PURPOSE SPDT 16A 24V |
15,222 |
|
برگه مشخصات |
RZ, SCHRACK | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 16 A | 400VAC - Max | 6400VA | 16.7 mA | Non Latching | - | PC Pin | - | Class F | 16.8 VDC | 2.4 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CQC, cURus, VDE | General Purpose | - | - |
|
|
G6DN-1A-SL DC12RELAY GEN PURPOSE SPST 5A 12V |
4,363 |
|
برگه مشخصات |
G6DN | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 5 A | 277VAC, 125VDC - Max | 1385VA, 625W | 9.2 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 8.4 VDC | 0.6 VDC | 10 ms | 5 ms | -40°C ~ 90°C | Silver Alloy | cURus, TUV, VDE | General Purpose | - | - |
|
|
5-1415899-4RELAY GEN PURPOSE SPDT 16A 12V |
3,852 |
|
برگه مشخصات |
RZ, SCHRACK | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 16 A | 400VAC - Max | 6400VA | 33.3 mA | Non Latching | - | PC Pin | - | Class F | 8.4 VDC | 1.2 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CQC, cURus, VDE | General Purpose | - | - |
