رله های برق، بیش از 2 آمپر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | ولتاژ سیم پیچ | فرم تماس | رتبه بندی تماس (جاری) | ولتاژ سوئیچینگ | بار - حداکثر سوئیچینگ | جریان سیم پیچ | نوع کویل | ویژگی ها | سبک خاتمه | رتبه بندی مهر و موم | عایق کویل | ولتاژ باید کار کند | ولتاژ باید آزاد شود | زمان عملیات | زمان انتشار | دمای عملیاتی | مواد تماس | آژانس تایید | نوع رله | درجه | صلاحیت |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OJ-SH-105LM,000RELAY GEN PURPOSE SPST 3A 5V |
0 |
|
برگه مشخصات |
OJ, OEG | Bulk | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 3 A | 277VAC, 30VDC - Max | 831VA, 90W | 40 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 3.75 VDC | 0.25 VDC | 15 ms | 4 ms | -30°C ~ 90°C | Silver (Ag) | CQC, cULus, TUV, VDE | General Purpose | - | - |
|
G5NB-1A-E DC24RELAY GEN PURPOSE SPST 5A 24V |
0 |
|
برگه مشخصات |
G5NB | Tray | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 8.3 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 18 VDC | 2.4 VDC | 10 ms | 10 ms | -40°C ~ 70°C | - | CQC, CSA, UR, VDE | General Purpose | - | - |
|
G5NB1A4EDC24NARELAY GEN PURPOSE SPST 5A 24V |
0 |
|
برگه مشخصات |
G5NB | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 8.3 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class A | 18 VDC | 2.4 VDC | 10 ms | 10 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | CQC, CSA, UR, VDE | General Purpose | - | - |
|
AZ576-1A-24DERELAY GEN PURPOSE SPST 20A 24V |
0 |
|
برگه مشخصات |
AZ576 | Tray | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 20 A | 480VAC, 30VDC - Max | 5540VA, 510W | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 15 ms | 8 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | CUR, TUV, UL | General Purpose | - | - |
|
G5LE-1A-E-36 DC24RELAY GEN PURPOSE SPST 16A 24V |
0 |
|
برگه مشخصات |
G5LE-E | Tray | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 16 A | 250VAC - Max | 4000VA | 15 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 18 VDC | 2.4 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Tin Indium (AgSnIn) | CSA, UR, VDE | General Purpose | - | - |
|
ALQ306RELAY GEN PURPOSE SPST 10A 6V |
0 |
|
برگه مشخصات |
ALQ | Box | Active | Through Hole | 6VDC | SPST-NO (1 Form A) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 33.3 mA | Non Latching | - | PC Pin | - | Class B | 4.5 VDC | 0.3 VDC | 20 ms | 20 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CQC, cURuus, VDE | General Purpose | - | - |
|
|
AZ576-1C-12DERELAY GEN PURPOSE SPDT 20A 12V |
0 |
|
برگه مشخصات |
AZ576 | Tray | Active | Through Hole | 12VDC | SPDT (1 Form C) | 20 A | 480VAC, 30VDC - Max | 5540VA, 510W | 33.3 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 15 ms | 8 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | CUR, TUV, UL | General Purpose | - | - |
|
G2RL-1 DC5RELAY GEN PURPOSE SPDT 12A 5V |
8 |
|
برگه مشخصات |
G2RL | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 12 A | 440VAC, 300VDC - Max | 5280VA, 3600W | 80 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 3.5 VDC | 0.5 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | CQC, CSA, UR, VDE | General Purpose | - | - |
|
ALZN1B24WRELAY GEN PURPOSE SPDT 16A 24V |
0 |
|
برگه مشخصات |
ALZN | Tray | Last Time Buy | Through Hole | 24VDC | SPDT (1 Form C) | 16 A | 440VAC - Max | 7040VA | 16.7 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class B | 16.8 VDC | 2.4 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | cURus, VDE | General Purpose | - | - |
|
AZ2100-1C-24DEFRELAY GEN PURPOSE SPDT 30A 24V |
0 |
|
برگه مشخصات |
AZ2100 | Tray | Active | Through Hole | 24VDC | SPDT (1 Form C) | 40 A | 277VAC, 30VDC - Max | 12000VA, 1200W | 36.4 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus, VDE | General Purpose | - | - |
|
J116F11A5VDCS.9RELAY GEN PURPOSE SPST 50A 5V |
0 |
|
برگه مشخصات |
J116F1 | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 50 A | 277VAC - Max | 13850VA | 178.6 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.75 VDC | 0.5 VDC | 15 ms | 10 ms | -40°C ~ 125°C | Silver Tin Oxide (AgSnO) | cURus | General Purpose | - | - |
|
J115F31AL24VACSRELAY GEN PURPOSE SPST 40A 24V |
0 |
|
برگه مشخصات |
J115F3 | Tray | Active | Chassis Mount | 24VAC | SPST-NO (1 Form A) | 40 A | 277VAC, 110VDC - Max | 11080VA, 4400W | 200 mA | Non Latching | - | Quick Connect - 0.187"/0.250" | Sealed - Fully | Class F | 18 VAC | 7.2 VAC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | cURus, TUV | General Purpose | - | - |
|
J115F11AH12VDCS61.5RELAY GEN PURPOSE SPST 50A 12V |
0 |
|
برگه مشخصات |
J115F | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 50 A | 277VAC, 110VDC - Max | 13850VA, 5500W | 125 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | cURus | General Purpose | - | - |
|
|
G6RN-17-E-ASI-CF-HA DC121FORMC 10A, 250VAC PCB RELAY |
16 |
|
برگه مشخصات |
G6RN | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 10 A | 250VAC, 30VDC - Max | - | 18.3 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 8.4 VDC | 1.2 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Tin Indium (AgSnIn) | CSA, UR, VDE | General Purpose | - | - |
|

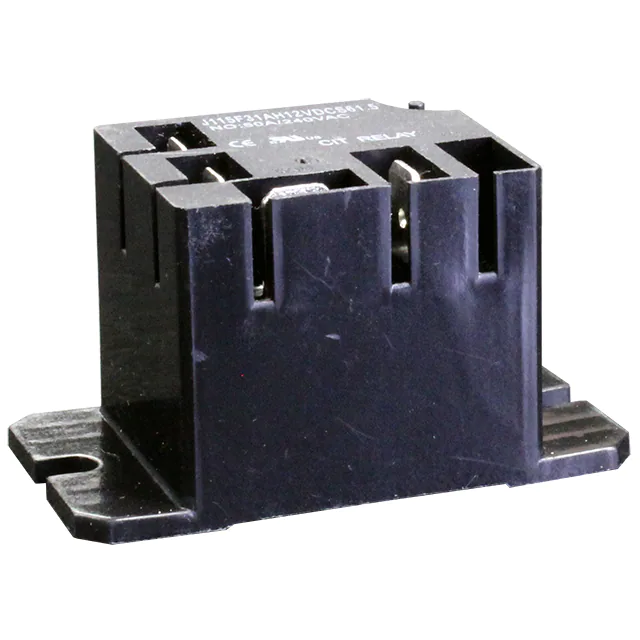

J115F31AH12VDCS61.5URELAY GEN PURPOSE SPST 50A 12V |
0 |
|
برگه مشخصات |
J115F | Tray | Active | Chassis Mount | 12VDC | SPST-NO (1 Form A) | 50 A | 277VAC, 110VDC - Max | 13850VA, 5500W | 125 mA | Non Latching | - | Quick Connect - 0.187"/0.250" | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | cURus | General Purpose | - | - |
|
|
J115F31CL24VACSRELAY GEN PURPOSE SPDT 40A 24V |
0 |
|
برگه مشخصات |
J115F3 | Tray | Active | Chassis Mount | 24VAC | SPDT (1 Form C) | 40 A | 277VAC, 110VDC - Max | 11080VA, 4400W | 200 mA | Non Latching | - | Quick Connect - 0.187"/0.250" | Sealed - Fully | Class F | 18 VAC | 7.2 VAC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | cURus, TUV | General Purpose | - | - |
|
JW1FSN-DC48VRELAY GEN PURPOSE SPDT 10A 48V |
0 |
|
برگه مشخصات |
JW | Bulk | Active | Through Hole | 48VDC | SPDT (1 Form C) | 10 A | 250VAC, 30VDC - Max | 2500VA, 300W | 11 mA | Non Latching | - | PC Pin | Sealed - Fully | Class E | 33.6 VDC | 4.8 VDC | 15 ms | 5 ms | -40°C ~ 60°C | Silver Alloy | CQC, CSA, UR, VDE | General Purpose | - | - |
|
PTRA-1C-24C-T5-XRELAY GEN PURPOSE SPDT 40A 24V |
0 |
|
برگه مشخصات |
PTRA | Tube | Active | Chassis Mount | 24VDC | SPDT (1 Form C) | 40 A | 300VAC, 110VDC - Max | 12000VA, 4400W | 83.3 mA | Non Latching | - | Quick Connect - 0.187"/0.250" | - | Class F | 18 VDC | 7.2 VDC | 15 ms | 10 ms | -55°C ~ 100°C | Silver Cadmium Oxide (AgCdO) | CUL, cURus, UL | General Purpose | - | - |
|
|
JW2SN-DC6VRELAY GEN PURPOSE DPDT 5A 6V |
0 |
|
برگه مشخصات |
JW | Bulk | Active | Through Hole | 6VDC | DPDT (2 Form C) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 88 mA | Non Latching | - | PC Pin | Sealed - Fully | Class E | 4.2 VDC | 0.6 VDC | 15 ms | 5 ms | -40°C ~ 60°C | Silver Alloy | CQC, CSA, UR, VDE | General Purpose | - | - |
|
J1512CT24VDC.9RELAY GEN PURPOSE DPDT 20A 24V |
14 |
|
برگه مشخصات |
J151 | Tray | Active | Socketable | 24VDC | DPDT (2 Form C) | 12 A | 300VAC - Max | 6000VA | 36.9 mA | Non Latching | - | Plug In | - | - | 18 VDC | 2.4 VDC | 25 ms | 25 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus | General Purpose | - | - |
