رله های برق، بیش از 2 آمپر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | ولتاژ سیم پیچ | فرم تماس | رتبه بندی تماس (جاری) | ولتاژ سوئیچینگ | بار - حداکثر سوئیچینگ | جریان سیم پیچ | نوع کویل | ویژگی ها | سبک خاتمه | رتبه بندی مهر و موم | عایق کویل | ولتاژ باید کار کند | ولتاژ باید آزاد شود | زمان عملیات | زمان انتشار | دمای عملیاتی | مواد تماس | آژانس تایید | نوع رله | درجه | صلاحیت |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MJN2C-E-AC24RELAY GEN PURPOSE DPDT 20A 24V |
3 |
|
برگه مشخصات |
MJN | Bulk | Active | Chassis Mount | 24VAC | DPDT (2 Form C) | 20 A | 600VAC, 28VDC - Max | 12000VA, 560W | 70.8 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | - | 20.4 VAC | - | 20 ms | 10 ms | -45°C ~ 60°C | Silver Alloy | CSA, UR | General Purpose | - | - |
|
RV8H-1L1-D12-C1D2RELAY GEN PURPOSE SPDT 16A 12V |
0 |
|
برگه مشخصات |
RV8 | Bulk | Active | DIN Rail | 12VDC | SPDT (1 Form C) | 16 A | 250VAC - Nom | - | 32 mA | Non Latching | Socket Included | Screw Terminal | - | - | 9.6 VDC | 0.84 VDC | 15 ms | 15 ms | -40°C ~ 55°C | Silver Nickel (AgNi) | CE, cULus | General Purpose | - | - |
|
2909520RELAY GEN PURPOSE SPDT 10A 120V |
0 |
|
برگه مشخصات |
PLC-RSC | Bulk | Active | DIN Rail | 120VAC/DC | SPDT (1 Form C) | 10 A | 250VAC, 250VDC - Max | - | 4.5 mA | Non Latching | Lighted Indicator, Socket Included | Screw Terminal | - | - | - | - | 7 ms | 10 ms | -40°C ~ 60°C | Silver Nickel (AgNi) | CE, UKCA | General Purpose | - | - |
|
20.21.9.012.4000RELAY IMPULSE SPST 16A 12V |
3 |
|
برگه مشخصات |
20 | Box | Active | DIN Rail | 12VDC | SPST-NO (1 Form A) | 16 A | 400VAC - Max | 6400VA | 440 mA | Latching, Single Coil | Mechanical Indicator, Test Button | Screw Terminal | - | - | 10.8 VDC | - | - | - | -40°C ~ 40°C | Silver Tin Oxide (AgSnO) | CE, cULus, EAC, RINA, UKCA | Impulse | - | - |
|
|
RV8H-2L-AD12-C1D2RELAY GEN PURPOSE DPDT 8A 12V |
4 |
|
برگه مشخصات |
RV8 | Bulk | Active | DIN Rail | 12VAC/DC | DPDT (2 Form C) | 8 A | 250VAC - Nom | - | 29 mA | Non Latching | Socket Included | Screw Terminal | - | - | 9.6 VAC/DC | 0.84 VAC/DC | 15 ms | 15 ms | -40°C ~ 55°C | Silver Nickel (AgNi), Gold (Au) | CE, cULus | General Purpose | - | - |
|
|
RV8H-2L-AD18-C1D2RELAY GEN PURPOSE DPDT 8A 18V |
3 |
|
برگه مشخصات |
RV8 | Bulk | Active | DIN Rail | 18VAC/DC | DPDT (2 Form C) | 8 A | 250VAC - Nom | - | 24 mA | Non Latching | Socket Included | Screw Terminal | - | - | 14.4 VAC/DC | 1.26 VAC/DC | 15 ms | 15 ms | -40°C ~ 55°C | Silver Nickel (AgNi), Gold (Au) | CE, cULus | General Purpose | - | - |
|
|
MJN2C-AC120RELAY GEN PURPOSE DPDT 10A 120V |
3 |
|
برگه مشخصات |
MJN | Bulk | Active | Socketable | 120VAC | DPDT (2 Form C) | 10 A | 600VAC, 28VDC - Max | 6000VA, 280W | 14.2 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 102 VAC | - | 20 ms | 10 ms | -45°C ~ 60°C | Silver Alloy | CSA, UR | General Purpose | - | - |
|
|
MJN1Z-E-RP-DC12RELAY GEN PURPOSE SPDT 30A 12V |
3 |
|
برگه مشخصات |
MJN | Bulk | Active | Chassis Mount | 12VDC | SPDT (1 Form C) | 30 A | 600VAC, 28VDC - Max | 18000VA, 840W | 100 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | - | 9 VDC | - | 20 ms | 10 ms | -45°C ~ 70°C | Silver Alloy | CSA, UR | General Purpose | - | - |
|
RSL1PRJUHARMONY, SLIM INTERFACE RELAY PR |
0 |
|
برگه مشخصات |
Harmony | Box | Active | DIN Rail | 12VDC | SPDT (1 Form C) | 6 A | 277VAC - Max | 1662VA | 14.2 mA | Non Latching | Lighted Indicator | Screw Terminal | - | - | - | 0.6 VDC | 5 ms | 12 ms | -40°C ~ 55°C | Silver Tin Oxide (AgSnO) | CSA, GOST, UL | General Purpose | - | - |
|
RR3P-ULDC12VRELAY GEN PURPOSE 3PDT 10A 12V |
1 |
|
برگه مشخصات |
RR | Bulk | Active | Socketable | 12VDC | 3PDT (3 Form C) | 10 A | 240VAC, 30VDC - Max | 2400VA, 300W | 120 mA | Non Latching | Lighted Indicator | Plug In, 11 Pin (Octal) | - | - | 9.6 VDC | 1.2 VDC | 25 ms | 25 ms | -25°C ~ 40°C | Silver (Ag) | CE, CSA, cURus, TUV | General Purpose | - | - |
|
|
MJN3C-N-AC24RELAY GEN PURPOSE 3PDT 10A 24V |
0 |
|
برگه مشخصات |
MJN | Bulk | Active | Socketable | 24VAC | 3PDT (3 Form C) | 10 A | 600VAC, 28VDC - Max | 6000VA, 280W | 83.3 mA | Non Latching | Lighted Indicator | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 20.4 VAC | - | 20 ms | 10 ms | -45°C ~ 45°C | Silver Alloy | CSA, UR | General Purpose | - | - |
|

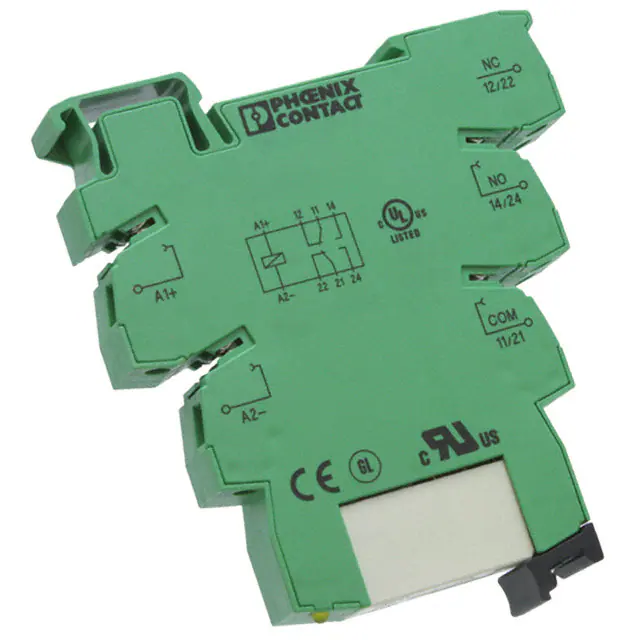

2967248RELAY GEN PURPOSE DPDT 6A 48V |
0 |
|
برگه مشخصات |
PLC-RSC | Bulk | Active | DIN Rail | 48VDC | DPDT (2 Form C) | 6 A | 250VAC, 250VDC - Max | - | 20 mA | Non Latching | Lighted Indicator, Socket Included | Screw Terminal | - | - | - | - | 8 ms | 10 ms | -25°C ~ 60°C | Silver Nickel (AgNi) | CE, UKCA | General Purpose | - | - |
|
|
RV8H-1L1-AD12-C1D2RELAY GEN PURPOSE SPDT 16A 12V |
5 |
|
برگه مشخصات |
RV8 | Bulk | Active | DIN Rail | 12VAC/DC | SPDT (1 Form C) | 16 A | 250VAC - Nom | - | 29 mA | Non Latching | Socket Included | Screw Terminal | - | - | 9.6 VAC/DC | 0.84 VAC/DC | 15 ms | 15 ms | -40°C ~ 55°C | Silver Nickel (AgNi) | CE, cULus | General Purpose | - | - |
|
LY4N-D2 DC12RELAY GEN PURPOSE 4PDT 10A 12V |
1 |
|
برگه مشخصات |
LY | Bulk | Active | Socketable | 12VDC | 4PDT (4 Form C) | 10 A | 250VAC, 125VDC - Max | 2500VA, 1250W | 120 mA | Non Latching | Lighted Indicator | Plug In | - | - | 9.6 VDC | 1.2 VDC | 25 ms | 25 ms | -25°C ~ 40°C | Silver Alloy | CE, CSA, TUV, UR | General Purpose | - | - |
|
|
RR3PA-ULAC220VRELAY GEN PURPOSE 3PDT 10A 220V |
0 |
|
برگه مشخصات |
RR | Bulk | Active | Socketable | 220VAC | 3PDT (3 Form C) | 10 A | 240VAC, 30VDC - Max | 2400VA, 300W | 11.5 mA | Non Latching | Lighted Indicator | Plug In, 11 Pin (Octal) | - | - | 176 VAC | 66 VAC | 25 ms | 25 ms | -25°C ~ 40°C | Silver (Ag) | CE, CSA, cURus, TUV | General Purpose | - | - |
|
G2R-2-SNI AC230(S)RELAY GEN PURPOSE DPDT 5A 230V |
5 |
|
برگه مشخصات |
G2RS | Bulk | Active | Socketable | 230VAC | DPDT (2 Form C) | 5 A | 380VAC, 125VDC - Max | 1900VA, 625W | 3.8 mA | Non Latching | Lighted Indicator, Test Button | Plug In | - | - | 184 VAC | 69 VAC | 15 ms | 15 ms | -40°C ~ 70°C | - | CE, CSA, LR, UR, VDE | General Purpose | - | - |
|
|
MJN2C-N-AC120RELAY GEN PURPOSE DPDT 10A 120V |
4 |
|
برگه مشخصات |
MJN | Bulk | Active | Socketable | 120VAC | DPDT (2 Form C) | 10 A | 600VAC, 28VDC - Max | 6000VA, 280W | 14.2 mA | Non Latching | Lighted Indicator | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 102 VAC | - | 20 ms | 10 ms | -45°C ~ 60°C | Silver Alloy | CSA, UR | General Purpose | - | - |
|
MKS3P AC220RELAY GEN PURPOSE 3PDT 10A 220V |
0 |
|
برگه مشخصات |
MK-S | Bulk | Active | Socketable | 220VAC | 3PDT (3 Form C) | 10 A | 250VAC, 30VDC - Max | 2500VA, 300W | 10.5 mA | Non Latching | Mechanical Indicator | Plug In, 11 Pin (Octal) | - | - | 176 VAC | 66 VAC | 20 ms | 20 ms | -40°C ~ 60°C | Silver Tin Indium (AgSnIn) | CSA, cURus, TUV | General Purpose | - | - |
|
|
RR3P-ULAC110VRELAY GEN PURPOSE 3PDT 10A 110V |
3 |
|
برگه مشخصات |
RR | Bulk | Active | Socketable | 110VAC | 3PDT (3 Form C) | 10 A | 240VAC, 30VDC - Max | 2400VA, 300W | 23 mA | Non Latching | Lighted Indicator | Plug In, 11 Pin (Octal) | - | - | 88 VAC | 33 VAC | 25 ms | 25 ms | -25°C ~ 40°C | Silver (Ag) | CE, CSA, cURus, TUV | General Purpose | - | - |
|
|
RR3PA-ULCAC120VRELAY GEN PURPOSE 3PDT 10A 120V |
5 |
|
برگه مشخصات |
RR | Bulk | Active | Socketable | 120VAC | 3PDT (3 Form C) | 10 A | 240VAC, 30VDC - Max | 2400VA, 300W | 20.5 mA | Non Latching | Lighted Indicator, Test Button | Plug In, 11 Pin (Octal) | - | - | 96 VAC | 36 VAC | 25 ms | 25 ms | -25°C ~ 40°C | Silver (Ag) | CE, CSA, cURus, TUV | General Purpose | - | - |
