رله های برق، بیش از 2 آمپر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | ولتاژ سیم پیچ | فرم تماس | رتبه بندی تماس (جاری) | ولتاژ سوئیچینگ | بار - حداکثر سوئیچینگ | جریان سیم پیچ | نوع کویل | ویژگی ها | سبک خاتمه | رتبه بندی مهر و موم | عایق کویل | ولتاژ باید کار کند | ولتاژ باید آزاد شود | زمان عملیات | زمان انتشار | دمای عملیاتی | مواد تماس | آژانس تایید | نوع رله | درجه | صلاحیت |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G7L-1A-TUB-CB DC48RELAY GEN PURPOSE SPST 30A 48V |
11 |
|
برگه مشخصات |
G7L | Bulk | Active | Chassis Mount | 48VDC | SPST-NO (1 Form A) | 30 A | 250VAC - Max | 7500VA | 40 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class B | 36 VDC | 7.2 VDC | 30 ms | 30 ms | -25°C ~ 60°C | Silver Alloy | CSA, TUV, UR | General Purpose | - | - |
|
|
AZ2850-2C-277AERELAY GEN PURPOSE DPDT 40A 277V |
16 |
|
برگه مشخصات |
AZ2850 | Tray | Active | Through Hole | 277VAC | DPDT (2 Form C) | 40 A | 600VAC, 30VDC - Max | 11080VA, 1200W | 58.9 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 221.6 VAC | 55.4 VAC | 25 ms | 25 ms | -40°C ~ 65°C | Silver Cadmium Oxide (AgCdO) | CUR, UL, VDE | General Purpose | - | - |
|
RXM4AB1U7HARMONY, MINIATURE PLUG-IN RELAY |
9 |
|
برگه مشخصات |
Harmony | Box | Active | Socketable | 240VAC | 4PDT (4 Form C) | 6 A | 250VAC, 28VDC - Max | 1500VA, 168W | 13.5 mA | Non Latching | Test Button | Plug In | - | - | 192 VAC | 36 VAC | 20 ms | 20 ms | -40°C ~ 55°C | Silver Nickel (AgNi) | CE, CSA, IECEE, GOST, Lloyd's, UL | General Purpose | - | - |
|
|
RT134730RELAY GEN PURPOSE SPST 12A 230V |
19 |
|
برگه مشخصات |
RT1, SCHRACK | Tube | Active | Through Hole | 230VAC | SPST-NO (1 Form A) | 12 A | 400VAC - Max | 4800VA | 14.2 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 172.5 VAC | 34.5 VAC | 8 ms | 6 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CQC, CSA, cURus, VDE | General Purpose | - | - |
|
V23092-A1024-A302RELAY GEN PURPOSE SPST 6A 24V |
0 |
|
برگه مشخصات |
SNR, SCHRACK | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 6 A | 400VAC - Max | 2400VA | 7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 16.8 VDC | 1.2 VDC | 12 ms | 5 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | cURus, VDE | General Purpose | - | - |
|
RSB2A080E7HARMONY, INTERFACE PLUG-IN RELAY |
10 |
|
برگه مشخصات |
Harmony | Box | Active | Socketable | 48VAC | DPDT (2 Form C) | 8 A | 250VAC, 300VDC - Max | 2000VA, 2240W | 31.2 mA | Non Latching | - | Plug In | - | - | 38.4 VAC | 7.2 VAC | 20 ms | 20 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CSA, EAC, UL | General Purpose | - | - |
|
RSB1A160P7HARMONY, INTERFACE PLUG-IN RELAY |
6 |
|
برگه مشخصات |
Harmony | Box | Active | Socketable | 230VAC | SPDT (1 Form C) | 16 A | 250VAC, 300VDC - Max | 4000VA, 4800W | 7 mA | Non Latching | - | Plug In | - | - | 184 VAC | 34.5 VAC | 20 ms | 20 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CSA, EAC, UL | General Purpose | - | - |
|
|
RSB2A080FDHARMONY, INTERFACE PLUG-IN RELAY |
5 |
|
برگه مشخصات |
Harmony | Box | Active | Socketable | 110VDC | DPDT (2 Form C) | 8 A | 250VAC, 300VDC - Max | 2000VA, 2240W | 3.6 mA | Non Latching | - | Plug In | - | - | 88 VDC | 11 VDC | 20 ms | 20 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CSA, EAC, UL | General Purpose | - | - |
|
|
RSB2A080M7HARMONY, INTERFACE PLUG-IN RELAY |
2 |
|
برگه مشخصات |
Harmony | Box | Active | Socketable | 220VAC | DPDT (2 Form C) | 8 A | 250VAC, 300VDC - Max | 2000VA, 2240W | 6.7 mA | Non Latching | - | Plug In | - | - | 176 VAC | 33 VAC | 20 ms | 20 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CSA, EAC, UL | General Purpose | - | - |
|
7760056103RELAY GEN PURPOSE 4PDT 10A 115V |
0 |
|
برگه مشخصات |
DRM | Bulk | Active | Socketable | 115VAC | 4PDT (4 Form C) | 10 A | 250VAC - Max | 2500VA | 26.49 mA | Non Latching | Lighted Indicator, Test Button | Plug In | - | - | 92 VAC | 34.5 VAC | 20 ms | 20 ms | -40°C ~ 55°C | Silver Alloy | cURus | General Purpose | - | - |
|

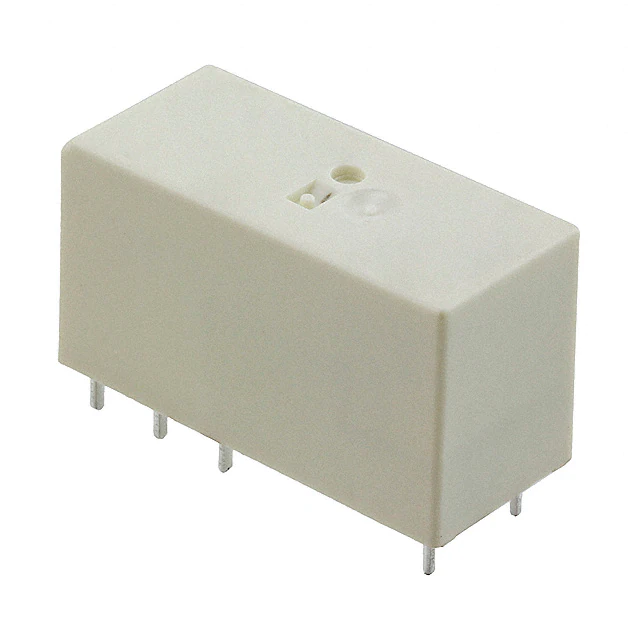

2961532RELAY GEN PURPOSE SPDT 16A 12V |
10 |
|
برگه مشخصات |
REL-MR | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 16 A | 250VAC, 250VDC - Max | - | 33 mA | Non Latching | - | PC Pin | - | - | - | - | 7 ms | 3 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | cULus, EAC, UR | General Purpose | - | - |
|
RH2V2-UDC100-110VRELAY GEN PURPOSE DPDT 10A 110V |
24 |
|
برگه مشخصات |
RH | Bulk | Active | Through Hole | 110VDC | DPDT (2 Form C) | 10 A | 240VAC, 30VDC - Max | 2400VA, 300W | 9 mA | Non Latching | - | PC Pin | - | - | 88 VDC | 11 VDC | 20 ms | 20 ms | -25°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CE, CSA, cURus, TUV | General Purpose | - | - |
|
|
G7L-1A-TUB-CB DC100RELAY GEN PURPOSE SPST 30A 100V |
17 |
|
برگه مشخصات |
G7L | Bulk | Active | Chassis Mount | 100VDC | SPST-NO (1 Form A) | 30 A | 250VAC - Max | 7500VA | 19 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class B | 75 VDC | 15 VDC | 30 ms | 30 ms | -25°C ~ 60°C | Silver Alloy | CSA, TUV, UR | General Purpose | - | - |
|
2476720000RELAY GEN PURPOSE SPDT 10A 115V |
0 |
|
برگه مشخصات |
DRI | Bulk | Active | DIN Rail | 115VAC | SPDT (1 Form C) | 10 A | 250VAC, 250VDC - Max | 2500VA, 2500W | 9.3 mA | Non Latching | Lighted Indicator, Socket Included | Screw Terminal | - | - | 92 VAC | 34.5 VAC | 15 ms | 10 ms | -40°C ~ 55°C | Silver Nickel (AgNi) | - | General Purpose | - | - |
|
ADJ24012RELAY GEN PURPOSE SPST 16A 12V |
0 |
|
برگه مشخصات |
ADJ | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 16 A | 250VAC - Max | 4000VA | 20.8 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 8.4 VDC | - | 20 ms | 20 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | CQC, cURus, VDE | General Purpose | - | - |
|
|
G2R-1 AC6RELAY GEN PURPOSE SPDT 10A 6V |
0 |
|
برگه مشخصات |
G2R | Tray | Active | Through Hole | 6VAC | SPDT (1 Form C) | 10 A | 380VAC, 125VDC - Max | 3800VA, 1250W | 150 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 4.8 VAC | 1.8 VAC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Alloy | CSA, TUV, UR, VDE | General Purpose | - | - |
|
ADJH22112RELAY GEN PURPOSE SPST 50A 12V |
0 |
|
برگه مشخصات |
ADJH | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 50 A | 480VAC - Max | 24000VA | 83.3 mA | Latching, Single Coil | Test Button | PC Pin | Sealed - Flux Protection | Class F | 9 VDC | - | 20 ms | 20 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | cURus, VDE | General Purpose | - | - |
|
|
ADJH21112RELAY GEN PURPOSE SPST 50A 12V |
0 |
|
برگه مشخصات |
ADJH | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 50 A | 480VAC - Max | 24000VA | 83.3 mA | Latching, Single Coil | Test Button | PC Pin | Sealed - Flux Protection | Class F | 9 VDC | - | 20 ms | 20 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | cURus, VDE | General Purpose | - | - |
|
|
ADJH22124RELAY GEN PURPOSE SPST 50A 24V |
0 |
|
برگه مشخصات |
ADJH | Tray | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 50 A | 480VAC - Max | 24000VA | 41.7 mA | Latching, Single Coil | Test Button | PC Pin | Sealed - Flux Protection | Class F | 18 VDC | - | 20 ms | 20 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | cURus, VDE | General Purpose | - | - |
|
2476910000RELAY GEN PURPOSE DPDT 5A 110V |
0 |
|
برگه مشخصات |
DRI | Bulk | Active | DIN Rail | 110VDC | DPDT (2 Form C) | 5 A | 250VAC, 250VDC - Max | 1250VA | 4.8 mA | Non Latching | Diode, Lighted Indicator, Socket Included, Test Button | Screw Terminal | - | - | 82.5 VDC | 16.5 VDC | 15 ms | 10 ms | -40°C ~ 55°C | Silver Nickel (AgNi) | - | General Purpose | - | - |
