رله های برق، بیش از 2 آمپر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | ولتاژ سیم پیچ | فرم تماس | رتبه بندی تماس (جاری) | ولتاژ سوئیچینگ | بار - حداکثر سوئیچینگ | جریان سیم پیچ | نوع کویل | ویژگی ها | سبک خاتمه | رتبه بندی مهر و موم | عایق کویل | ولتاژ باید کار کند | ولتاژ باید آزاد شود | زمان عملیات | زمان انتشار | دمای عملیاتی | مواد تماس | آژانس تایید | نوع رله | درجه | صلاحیت |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
J109F1AS125VDC.50RELAY GEN PURPOSE SPST 12A 5V |
0 |
|
برگه مشخصات |
J109F | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 12 A | 380VAC, 110VDC - Max | 4560VA, 1320W | 100 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 3.75 VDC | 0.5 VDC | 7 ms | 4 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | cURus | General Purpose | - | - |
|
|
J109F1AS1012VDC.45RELAY GEN PURPOSE SPST 10A 12V |
0 |
|
برگه مشخصات |
J109F | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 10 A | 380VAC, 110VDC - Max | 3800VA, 1100W | 37.5 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 7 ms | 4 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | cURus | General Purpose | - | - |
|
AZ673-1A-12DSRELAY GEN PURPOSE SPST 10A 12V |
0 |
|
برگه مشخصات |
AZ673 | Box | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 150VDC - Max | 2500VA, 300W | 20.9 mA | Non Latching | - | PC Pin | - | Class B | 9 VDC | 0.6 VDC | 15 ms | 5 ms | -40°C ~ 105°C | Silver Cadmium Oxide (AgCdO) | CUR, TUV, UL | General Purpose | - | - |
|
|
AZ673-1A-12DSERELAY GEN PURPOSE SPST 10A 12V |
0 |
|
برگه مشخصات |
AZ673 | Box | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 150VDC - Max | 2500VA, 300W | 20.9 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 9 VDC | 0.6 VDC | 15 ms | 5 ms | -40°C ~ 105°C | Silver Cadmium Oxide (AgCdO) | CUR, TUV, UL | General Purpose | - | - |
|
|
AZ9405-1A-12DSEFRELAY GEN PURPOSE SPST 10A 12V |
0 |
|
- |
AZ9405 | Box | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 10 A | 277VAC, 30VDC - Max | 1400VA, 150W | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 15 ms | 5 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | CSA, UL | General Purpose | - | - |
|
|
AZ943W-1CH-24DFRELAY GEN PURPOSE SPDT 10A 24V |
0 |
|
برگه مشخصات |
AZ943W | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 10 A | 277VAC, 30VDC - Max | 2770VA, 300W | 22.4 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 18 VDC | 2.4 VDC | 10 ms | 5 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | CUR, TUV, UL, VDE | General Purpose | - | - |
|
J1001AS6VDC.45RELAY GEN PURPOSE SPST 10A 6V |
0 |
|
برگه مشخصات |
J100 | Tray | Active | Through Hole | 6VDC | SPST-NO (1 Form A) | 10 A | 277VAC - Max | 2770VA | 75 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 4.5 VDC | 0.6 VDC | 10 ms | 10 ms | -55°C ~ 85°C | Silver Tin Oxide (AgSnO) | cURus | General Purpose | - | - |
|
|
AZ7705T-1A-5DEFRELAY GEN PURPOSE SPST 10A 5V |
0 |
|
- |
AZ7705 | Box | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 10 A | 277VAC, 30VDC - Max | 1250VA, 150W | 90.9 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 3.5 VDC | 0.5 VDC | 15 ms | 4 ms | -30°C ~ 85°C | Silver Alloy, Cadmium Free | CUR, UL | General Purpose | - | - |
|
|
AZ7705T-1A-9DEFRELAY GEN PURPOSE SPST 10A 9V |
0 |
|
- |
AZ7705 | Box | Active | Through Hole | 9VDC | SPST-NO (1 Form A) | 10 A | 277VAC, 30VDC - Max | 1250VA, 150W | 50 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 6.3 VDC | 0.9 VDC | 15 ms | 4 ms | -30°C ~ 85°C | Silver Alloy, Cadmium Free | CUR, UL | General Purpose | - | - |
|

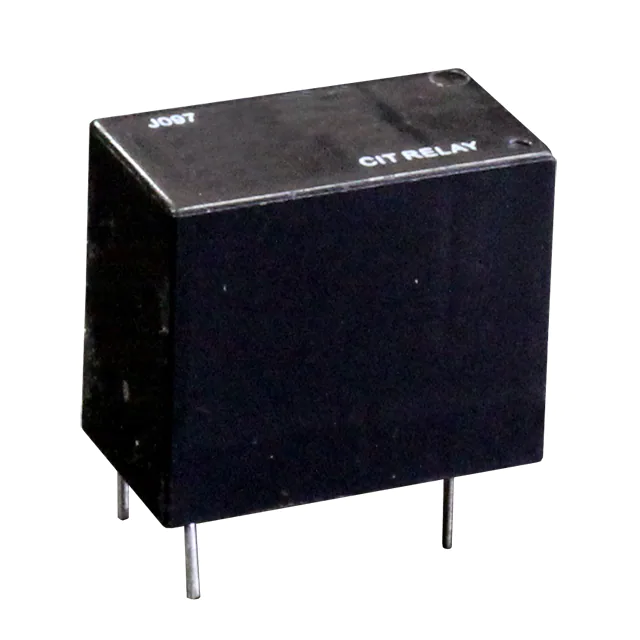

J0971CS9VDC.45RELAY GEN PURPOSE SPDT 10A 9V |
0 |
|
برگه مشخصات |
J097 | Tray | Active | Through Hole | 9VDC | SPDT (1 Form C) | 10 A | 277VAC - Max | 2770VA | 50 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 6.75 VDC | 0.9 VDC | 10 ms | 10 ms | -55°C ~ 85°C | Silver Nickel (AgNi) | cURus | General Purpose | - | - |
|
|
J0971CS6VDC.45RELAY GEN PURPOSE SPDT 10A 6V |
0 |
|
برگه مشخصات |
J097 | Tray | Active | Through Hole | 6VDC | SPDT (1 Form C) | 10 A | 277VAC - Max | 2770VA | 75 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 4.5 VDC | 0.6 VDC | 10 ms | 10 ms | -55°C ~ 85°C | Silver Nickel (AgNi) | cURus | General Purpose | - | - |
|
|
J0971CS3VDC.45RELAY GEN PURPOSE SPDT 10A 3V |
0 |
|
برگه مشخصات |
J097 | Tray | Active | Through Hole | 3VDC | SPDT (1 Form C) | 10 A | 277VAC - Max | 2770VA | 150 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 2.25 VDC | 0.3 VDC | 10 ms | 10 ms | -55°C ~ 85°C | Silver Nickel (AgNi) | cURus | General Purpose | - | - |
|
|
AZ943-1CH-5DEGRELAY GEN PURPOSE SPDT 10A 5V |
0 |
|
- |
AZ943 | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 10 A | 277VAC, 30VDC - Max | 2770VA, 300W | 71.4 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 3.8 VDC | 0.5 VDC | 10 ms | 5 ms | -40°C ~ 90°C | Silver Tin Oxide (AgSnO), Gold (Au) | CUR, TUV, UL, VDE | General Purpose | - | - |
|
|
AZ9405-1A-5DSERELAY GEN PURPOSE SPST 10A 5V |
0 |
|
- |
AZ9405 | Box | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 10 A | 277VAC, 30VDC - Max | 1400VA, 150W | 40 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 3.75 VDC | 0.5 VDC | 15 ms | 5 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | CSA, UL | General Purpose | - | - |
|
|
AZ9375-1A-9DEFRELAY GEN PURPOSE SPST 10A 9V |
0 |
|
- |
AZ9375 | Box | Active | Through Hole | 9VDC | SPST-NO (1 Form A) | 10 A | 277VAC, 30VDC - Max | 1250VA, 150W | 22.2 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 6.75 VDC | 0.9 VDC | 10 ms | 4 ms | -40°C ~ 90°C | Silver Nickel (AgNi) | CSA, TUV, UL | General Purpose | - | - |
|
|
AZ9375-1A-6DEFRELAY GEN PURPOSE SPST 10A 6V |
0 |
|
- |
AZ9375 | Box | Active | Through Hole | 6VDC | SPST-NO (1 Form A) | 10 A | 277VAC, 30VDC - Max | 1250VA, 150W | 33.3 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 4.5 VDC | 0.6 VDC | 10 ms | 4 ms | -40°C ~ 90°C | Silver Nickel (AgNi) | CSA, TUV, UL | General Purpose | - | - |
|
|
AZ673-1A-12DSARELAY GEN PURPOSE SPST 10A 12V |
0 |
|
برگه مشخصات |
AZ673 | Box | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 150VDC - Max | 2500VA, 300W | 20.9 mA | Non Latching | - | PC Pin | - | Class B | 9 VDC | 0.6 VDC | 15 ms | 5 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | CUR, TUV, UL | General Purpose | - | - |
|
|
AZ673-1A-12DRELAY GEN PURPOSE SPST 10A 12V |
0 |
|
برگه مشخصات |
AZ673 | Box | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 150VDC - Max | 2500VA, 300W | 44.4 mA | Non Latching | - | PC Pin | - | Class B | 9 VDC | 0.6 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CUR, TUV, UL | General Purpose | - | - |
|
|
AZ9405-1C-12DERELAY GEN PURPOSE SPDT 10A 12V |
0 |
|
- |
AZ9405 | Box | Active | Through Hole | 12VDC | SPDT (1 Form C) | 10 A | 277VAC, 30VDC - Max | 1400VA, 150W | 33.3 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | CSA, UL | General Purpose | - | - |
|
|
AZ9405-1A-5DSEFRELAY GEN PURPOSE SPST 10A 5V |
0 |
|
- |
AZ9405 | Box | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 10 A | 277VAC, 30VDC - Max | 1400VA, 150W | 40 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 3.75 VDC | 0.5 VDC | 15 ms | 5 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | CSA, UL | General Purpose | - | - |
