رله های برق، بیش از 2 آمپر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | ولتاژ سیم پیچ | فرم تماس | رتبه بندی تماس (جاری) | ولتاژ سوئیچینگ | بار - حداکثر سوئیچینگ | جریان سیم پیچ | نوع کویل | ویژگی ها | سبک خاتمه | رتبه بندی مهر و موم | عایق کویل | ولتاژ باید کار کند | ولتاژ باید آزاد شود | زمان عملیات | زمان انتشار | دمای عملیاتی | مواد تماس | آژانس تایید | نوع رله | درجه | صلاحیت |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PR26-5V-S-900-1A31.8 X 26.9 X 19.1 MM, 5 V, 40 A |
0 |
|
برگه مشخصات |
PR26 | Box | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 40 A | 300VAC, 30VDC - Max | 10000VA, 900W | 185.2 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class B | 3.75 VDC | 0.5 VDC | 12 ms | 5 ms | -55°C ~ 85°C | Silver Tin Oxide (AgSnO) | cURus | General Purpose | - | - |
|
|
AZ21501-1CEH-24DERELAY GEN PURPOSE SPDT 30A 24V |
0 |
|
برگه مشخصات |
AZ21501 | Box | Active | Through Hole | 24VDC | SPDT (1 Form C) | 50 A | 300VAC, 110VDC - Max | 7200VA, 1200W | 38 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -55°C ~ 100°C | Silver Tin Oxide (AgSnO) | CUR, UL, TUV | General Purpose | - | - |
|
|
AZ21501-1AEH-48DEFRELAY GEN PURPOSE SPST 30A 48V |
0 |
|
برگه مشخصات |
AZ21501 | Box | Active | Through Hole | 48VDC | SPST-NO (1 Form A) | 50 A | 300VAC, 110VDC - Max | 7200VA, 1200W | 19 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 36 VDC | 4.8 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | CUR, UL, TUV | General Purpose | - | - |
|
|
AZ21501-1CEH-12DEFRELAY GEN PURPOSE SPDT 30A 12V |
0 |
|
برگه مشخصات |
AZ21501 | Box | Active | Through Hole | 12VDC | SPDT (1 Form C) | 50 A | 300VAC, 110VDC - Max | 7200VA, 1200W | 75 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | CUR, UL, TUV | General Purpose | - | - |
|
|
AZ21501-1CH-24DEFRELAY GEN PURPOSE SPDT 30A 24V |
0 |
|
برگه مشخصات |
AZ21501 | Box | Active | Through Hole | 24VDC | SPDT (1 Form C) | 50 A | 300VAC, 110VDC - Max | 7200VA, 1200W | 38 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | CUR, UL, TUV | General Purpose | - | - |
|
|
JVN1AF-12VRELAY GEN PURPOSE SPST 16A 12V |
0 |
|
برگه مشخصات |
JV-N | Bulk | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 16 A | 277VAC, 30VDC - Max | 4432VA, 480W | 16.7 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 9 VDC | 0.6 VDC | 12 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | CSA, UR, VDE | General Purpose | - | - |
|
|
J115F1E1AS9DSX.9FCRELAY GEN PURPOSE SPST N.O. 30A |
0 |
|
- |
* | Tube | Active | Through Hole | 9VDC | SPST-NO (1 Form A) | 30 A | 277VAC, 110VDC - Max | 7200VA, 840W | 100 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 6.75 VDC | 0.9 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | cURus, TUV | General Purpose | - | - |
|
|
J115F1E1AS5DSX.9FCRELAY GEN PURPOSE SPST N.O. 30A |
0 |
|
- |
* | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 30 A | 277VAC, 110VDC - Max | 7200VA, 840W | 178.6 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 3.75 VDC | 0.5 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | cURus, TUV | General Purpose | - | - |
|
G5LE-1-SDC24RELAY GEN PURPOSE SPDT 10A 24V |
0 |
|
برگه مشخصات |
G5LE | Tray | Active | Through Hole | 24VDC | SPDT (1 Form C) | 10 A | 250VAC, 125VDC - Max | - | 16.7 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class B | 18 VDC | 2.4 VDC | 10 ms | 5 ms | -25°C ~ 85°C | Silver Tin Oxide (AgSnO) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
PCD-112D1M,000RELAY GEN PURPOSE SPST 15A 12V |
0 |
|
- |
PCD, OEG | Tray | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 15 A | 250VAC - Max | 3750VA | 16.7 mA | Non Latching | - | PC Pin | - | Class F | 9 VDC | 0.6 VDC | 15 ms | 8 ms | -30°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CQC, cURus, TUV | General Purpose | - | - |
|
|
AZ6962-1A-5DERELAY GEN PURPOSE SPST 10A 5V |
0 |
|
برگه مشخصات |
AZ6962 | Box | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 10 A | 440VAC, 125VDC - Max | 2500VA, 300W | 44.2 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 3.5 VDC | 0.5 VDC | 7 ms | 3 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CUR, UL, VDE | General Purpose | - | - |
|
|
AZ6962-1A-12DERELAY GEN PURPOSE SPST 10A 12V |
0 |
|
برگه مشخصات |
AZ6962 | Box | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 10 A | 440VAC, 125VDC - Max | 2500VA, 300W | 19.4 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 8.4 VDC | 1.2 VDC | 7 ms | 3 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CUR, UL, VDE | General Purpose | - | - |
|
|
AZ8-1C-48DRELAY GEN PURPOSE SPDT 3A 48V |
0 |
|
برگه مشخصات |
AZ8 | Box | Active | Through Hole | 48VDC | SPDT (1 Form C) | 3 A | 300VAC, 150VDC - Max | 6000VA, 100W | 12.6 mA | Non Latching | - | PC Pin | - | Class B | 36 VDC | 2.4 VDC | 5 ms | 2 ms | -55°C ~ 90°C | Silver (Ag) | CUR, UL, VDE | General Purpose | - | - |
|
PCH-105D2H,000RELAY GEN PURPOSE SPDT 5A 5V |
0 |
|
برگه مشخصات |
PCH, OEG | Bulk | Obsolete | Through Hole | 5VDC | SPDT (1 Form C) | 5 A | 277VAC, 30VDC - Max | 1385VA, 150W | 80 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 3.5 VDC | 0.25 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CQC, cURus, VDE | General Purpose | - | - |
|

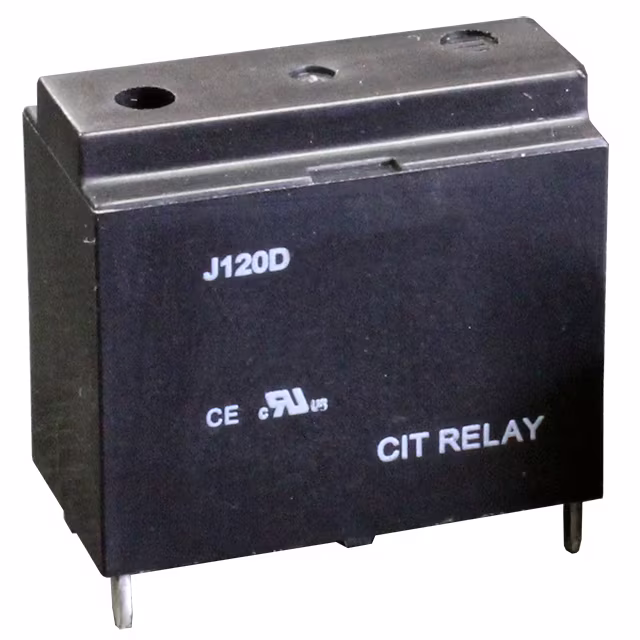

J120D1AS5VDCPRELAY GEN PURPOSE SPST 20A 5V |
0 |
|
برگه مشخصات |
J120D | Tray | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 20 A | 300VAC - Max | 6000VA | 178.6 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.75 VDC | 0.5 VDC | 20 ms | 10 ms | -30°C ~ 55°C | Silver Tin Oxide (AgSnO) | cURus | General Purpose | - | - |
|
|
J120D1AS6VDCPRELAY GEN PURPOSE SPST 20A 6V |
0 |
|
برگه مشخصات |
J120D | Tray | Active | Through Hole | 6VDC | SPST-NO (1 Form A) | 20 A | 300VAC - Max | 6000VA | 150 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 4.5 VDC | 0.6 VDC | 20 ms | 10 ms | -30°C ~ 55°C | Silver Tin Oxide (AgSnO) | cURus | General Purpose | - | - |
|
J115F21AL12VDCS.6RELAY GEN PURPOSE SPST 40A 12V |
0 |
|
برگه مشخصات |
J115F2 | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 40 A | 277VAC, 110VDC - Max | 11080VA, 4400W | 50 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | cURus, TUV | General Purpose | - | - |
|
|
J115F21AL9VDCS.6RELAY GEN PURPOSE SPST 40A 9V |
0 |
|
برگه مشخصات |
J115F2 | Tube | Active | Through Hole | 9VDC | SPST-NO (1 Form A) | 40 A | 277VAC, 110VDC - Max | 11080VA, 4400W | 66.7 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 6.75 VDC | 0.9 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | cURus, TUV | General Purpose | - | - |
|
J115F21A9VDCS.6RELAY GEN PURPOSE SPST 40A 9V |
0 |
|
برگه مشخصات |
J115F2 | Tube | Active | Through Hole | 9VDC | SPST-NO (1 Form A) | 40 A | 277VAC, 110VDC - Max | 11080VA, 4400W | 66.7 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 6.75 VDC | 0.9 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | cURus, TUV | General Purpose | - | - |
|
G5LB-1-DC5RELAY GEN PURPOSE SPDT 10A 5V |
0 |
|
برگه مشخصات |
G5LB | Bulk | Obsolete | Through Hole | 5VDC | SPDT (1 Form C) | 10 A | 250VAC, 125VDC - Max | 2500VA, 1250W | 72 mA | Non Latching | - | PC Pin | - | Class B | 3.75 VDC | 0.5 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CSA, UR, VDE | General Purpose | - | - |
