رله های برق، بیش از 2 آمپر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | ولتاژ سیم پیچ | فرم تماس | رتبه بندی تماس (جاری) | ولتاژ سوئیچینگ | بار - حداکثر سوئیچینگ | جریان سیم پیچ | نوع کویل | ویژگی ها | سبک خاتمه | رتبه بندی مهر و موم | عایق کویل | ولتاژ باید کار کند | ولتاژ باید آزاد شود | زمان عملیات | زمان انتشار | دمای عملیاتی | مواد تماس | آژانس تایید | نوع رله | درجه | صلاحیت |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AZ2151-1CE-24DERELAY GEN PURPOSE SPDT 40A 24V |
0 |
|
برگه مشخصات |
AZ2151 | Box | Active | Through Hole | 24VDC | SPDT (1 Form C) | 40 A | 300VAC, 30VDC - Max | 10000VA, 900W | 36.4 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 18 VDC | 2.4 VDC | 12 ms | 5 ms | -55°C ~ 85°C | Silver Tin Oxide (AgSnO) | cURus, UL, VDE | General Purpose | - | - |
|
|
AZ2151-1C-5DERELAY GEN PURPOSE SPDT 40A 5V |
0 |
|
برگه مشخصات |
AZ2151 | Box | Active | Through Hole | 5VDC | SPDT (1 Form C) | 40 A | 300VAC, 30VDC - Max | 10000VA, 900W | 185.2 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 3.75 VDC | 0.5 VDC | 12 ms | 5 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus, UL, VDE | General Purpose | - | - |
|
|
AZ743-2AB-110DERELAY GEN PURPOSE DPST 10A 110V |
0 |
|
برگه مشخصات |
AZ743 | Box | Active | Through Hole | 110VDC | DPST-NO (2 Form A) | 10 A | 400VAC, 150VDC - Max | 2770VA, 240W | 4.4 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 77 VDC | 11 VDC | 7 ms | 4 ms | -40°C ~ 100°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
|
|
AZ2151-1CE-12DEFRELAY GEN PURPOSE SPDT 40A 12V |
0 |
|
برگه مشخصات |
AZ2151 | Box | Active | Through Hole | 12VDC | SPDT (1 Form C) | 40 A | 300VAC, 30VDC - Max | 10000VA, 900W | 77.4 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 12 ms | 5 ms | -55°C ~ 105°C | Silver Tin Oxide (AgSnO) | cURus, UL, VDE | General Purpose | - | - |
|
|
AZ2151-1C-9DERELAY GEN PURPOSE SPDT 40A 9V |
0 |
|
برگه مشخصات |
AZ2151 | Box | Active | Through Hole | 9VDC | SPDT (1 Form C) | 40 A | 300VAC, 30VDC - Max | 10000VA, 900W | 92.8 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 6.75 VDC | 0.9 VDC | 12 ms | 5 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus, UL, VDE | General Purpose | - | - |
|
|
AZ2151-1CE-12DERELAY GEN PURPOSE SPDT 40A 12V |
0 |
|
برگه مشخصات |
AZ2151 | Box | Active | Through Hole | 12VDC | SPDT (1 Form C) | 40 A | 300VAC, 30VDC - Max | 10000VA, 900W | 77.4 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 9 VDC | 1.2 VDC | 12 ms | 5 ms | -55°C ~ 85°C | Silver Tin Oxide (AgSnO) | cURus, UL, VDE | General Purpose | - | - |
|
|
AZ2151-1CE-15DERELAY GEN PURPOSE SPDT 40A 15V |
0 |
|
برگه مشخصات |
AZ2151 | Box | Active | Through Hole | 15VDC | SPDT (1 Form C) | 40 A | 300VAC, 30VDC - Max | 10000VA, 900W | 58.6 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 11.25 VDC | 1.5 VDC | 12 ms | 5 ms | -55°C ~ 85°C | Silver Tin Oxide (AgSnO) | cURus, UL, VDE | General Purpose | - | - |
|
|
J115F1E1CS110DSX.6FZRELAY GEN PURPOSE SPDT 30A 110VD |
0 |
|
- |
* | Tube | Active | Through Hole | 110VDC | SPDT (1 Form C) | 30 A | 277VAC, 110VDC - Max | 7200VA, 840W | 5.5 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 82.5 VDC | 11 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | cURus, TUV | General Purpose | - | - |
|
|
PR27-70V-S-900-1C32.23 X 27.4 X 27.92 MM, 70 V, 4 |
0 |
|
برگه مشخصات |
PR27 | Box | Active | Through Hole | 70VDC | SPDT (1 Form C) | 40 A | 300VAC, 30VDC - Max | 10000VA, 900W | 12.7 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Flux Protection | Class B | 52.5 VDC | 7 VDC | 15 ms | 10 ms | -55°C ~ 85°C | Silver Tin Oxide (AgSnO) | cURus | General Purpose | - | - |
|
|
PR27-48V-S-900-1C-E32.23 X 27.4 X 27.92 MM, 48 V, 4 |
0 |
|
برگه مشخصات |
PR27 | Box | Active | Through Hole | 48VDC | SPDT (1 Form C) | 40 A | 300VAC, 30VDC - Max | 10000VA, 900W | 18.8 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class B | 36 VDC | 4.8 VDC | 15 ms | 10 ms | -55°C ~ 85°C | Silver Tin Oxide (AgSnO) | cURus | General Purpose | - | - |
|
|
PR27-48V-S-900-1C-F32.23 X 27.4 X 27.92 MM, 48 V, 4 |
0 |
|
برگه مشخصات |
PR27 | Box | Active | Through Hole | 48VDC | SPDT (1 Form C) | 40 A | 300VAC, 30VDC - Max | 10000VA, 900W | 18.8 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Flux Protection | Class F | 36 VDC | 4.8 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Tin Oxide (AgSnO) | cURus | General Purpose | - | - |
|
|
PR27-48V-S-900-1C32.23 X 27.4 X 27.92 MM, 48 V, 4 |
0 |
|
برگه مشخصات |
PR27 | Box | Active | Through Hole | 48VDC | SPDT (1 Form C) | 40 A | 300VAC, 30VDC - Max | 10000VA, 900W | 18.8 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Flux Protection | Class B | 36 VDC | 4.8 VDC | 15 ms | 10 ms | -55°C ~ 85°C | Silver Tin Oxide (AgSnO) | cURus | General Purpose | - | - |
|
|
PR27-48V-S-900-1C-EF32.23 X 27.4 X 27.92 MM, 48 V, 4 |
0 |
|
برگه مشخصات |
PR27 | Box | Active | Through Hole | 48VDC | SPDT (1 Form C) | 40 A | 300VAC, 30VDC - Max | 10000VA, 900W | 18.8 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 36 VDC | 4.8 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Tin Oxide (AgSnO) | cURus | General Purpose | - | - |
|
|
PR27-70V-S-900-1C-E32.23 X 27.4 X 27.92 MM, 70 V, 4 |
0 |
|
برگه مشخصات |
PR27 | Box | Active | Through Hole | 70VDC | SPDT (1 Form C) | 40 A | 300VAC, 30VDC - Max | 10000VA, 900W | 12.7 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class B | 52.5 VDC | 7 VDC | 15 ms | 10 ms | -55°C ~ 85°C | Silver Tin Oxide (AgSnO) | cURus | General Purpose | - | - |
|

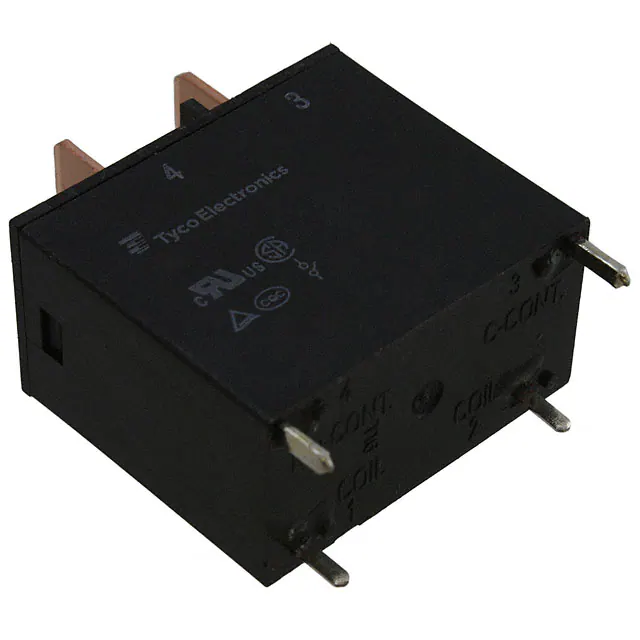

PCF-112D2M,000RELAY GEN PURPOSE SPST 25A 12V |
0 |
|
برگه مشخصات |
PCF, OEG | Tray | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 25 A | 277VAC, 24VDC - Max | 6925VA, 600W | 75 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | - | - | 9 VDC | 0.6 VDC | 20 ms | 10 ms | -30°C ~ 55°C | Silver Tin Oxide (AgSnO) | CSA, cURus, TUV | General Purpose | - | - |
|
JW1AFSN-B-DC6V-FRELAY GEN PURPOSE SPST 10A 6V |
0 |
|
برگه مشخصات |
JW | Tray | Active | Through Hole | 6VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 30VDC - Max | 2500VA, 300W | 88 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 4.2 VDC | 0.6 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CQC, CSA, UR, VDE | General Purpose | - | - |
|
|
JW1AFSN-B-DC9V-FRELAY GEN PURPOSE SPST 10A 9V |
0 |
|
برگه مشخصات |
JW | Tray | Active | Through Hole | 9VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 30VDC - Max | 2500VA, 300W | 58 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 6.3 VDC | 0.9 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CQC, CSA, UR, VDE | General Purpose | - | - |
|
ALZ51F09WRELAY GEN PURPOSE SPST 16A 9V |
0 |
|
برگه مشخصات |
ALZ | Bulk | Active | Through Hole | 9VDC | SPST-NO (1 Form A) | 16 A | 440VAC - Max | 7040VA | 44.4 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 6.3 VDC | 0.9 VDC | 15 ms | 5 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | cURus, VDE | General Purpose | - | - |
|
ALZN5F24WRELAY GEN PURPOSE SPST 16A 24V |
0 |
|
برگه مشخصات |
ALZN | Tray | Last Time Buy | Through Hole | 24VDC | SPST-NO (1 Form A) | 16 A | 440VAC - Max | 7040VA | 16.7 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 16.8 VDC | 2.4 VDC | 15 ms | 5 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | cURus, VDE | General Purpose | - | - |
|
JW1ASN-B-DC6V-FRELAY GEN PURPOSE SPST 5A 6V |
0 |
|
برگه مشخصات |
JW | Bulk | Active | Through Hole | 6VDC | SPST-NO (1 Form A) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 88 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 4.2 VDC | 0.6 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CQC, CSA, UR, VDE | General Purpose | - | - |
