رله های برق، بیش از 2 آمپر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | ولتاژ سیم پیچ | فرم تماس | رتبه بندی تماس (جاری) | ولتاژ سوئیچینگ | بار - حداکثر سوئیچینگ | جریان سیم پیچ | نوع کویل | ویژگی ها | سبک خاتمه | رتبه بندی مهر و موم | عایق کویل | ولتاژ باید کار کند | ولتاژ باید آزاد شود | زمان عملیات | زمان انتشار | دمای عملیاتی | مواد تماس | آژانس تایید | نوع رله | درجه | صلاحیت |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G8P-1C4TP DC110RELAY GEN PURPOSE SPDT 10A 110V |
0 |
|
برگه مشخصات |
G8P | Bulk | Obsolete | Through Hole | 110VDC | SPDT (1 Form C) | 10 A | 250VAC, 28VDC - Max | 2500VA, 280W | 9 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 82.5 VDC | 11 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Alloy, Cadmium Free | CSA, UR | General Purpose | - | - |
|
G5PA-1-M-EDC12BYOMZ(PF)RELAY GEN PURPOSE SPST 10A 12V |
0 |
|
برگه مشخصات |
G5PA-1 | Bulk | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 10 A | 277VAC, 30VDC - Max | 2770VA, 300 W | 20.8 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 9.6 VDC | 1.2 VDC | 15 ms | 5 ms | -40°C ~ 70°C | - | CSA, IEC, SEMKO, UL, VDE | General Purpose | - | - |
|
|
AZ2270-1CT-120AEFRELAY GEN PURPOSE SPDT 30A 120V |
0 |
|
برگه مشخصات |
AZ2270 | Box | Active | Through Hole | 120VAC | SPDT (1 Form C) | 30 A | 277VAC, 28VDC - Max | 8310VA, 840W | 48 mA | Non Latching | - | PC Pin, Quick Connect | Sealed - Fully | Class F | 102 VAC | 24 VAC | 15 ms | 10 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | CUR, UL, VDE | General Purpose | - | - |
|
|
4-1415543-6RELAY GEN PURPOSE SPDT 16A 12V |
0 |
|
برگه مشخصات |
RT1, SCHRACK | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 16 A | 400VAC - Max | 6400VA | 33.3 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 8.4 VDC | 1.2 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CQC, CSA, cURus, VDE | General Purpose | - | - |
|
|
43.41.7.024.2000RELAY GEN PURPOSE SPDT 10A 24V |
0 |
|
برگه مشخصات |
43 | Bulk | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 10 A | 400VAC - Max | 4000VA | 10.9 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 16.8 VDC | - | 6 ms | 4 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus, EAC, ENEC, VDE | General Purpose | - | - |
|
|
ALZ12F24TRELAYS |
0 |
|
برگه مشخصات |
ALZ | Bulk | Active | Through Hole | 24VDC | SPDT (1 Form C) | 16 A | 440VAC - Max | 7040VA | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 16.8 VDC | 2.4 VDC | 15 ms | 5 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | cURus, VDE | General Purpose | - | - |
|

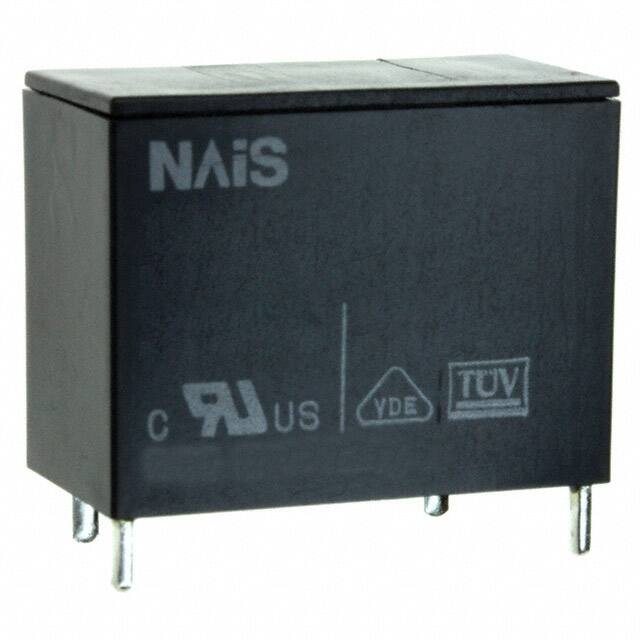

ALF1P18RELAY GEN PURPOSE SPST 20A 18V |
0 |
|
برگه مشخصات |
ALF | Box | Active | Through Hole | 18VDC | SPST-NO (1 Form A) | 20 A | 250VAC - Max | 5000VA | 50 mA | Non Latching | - | PC Pin | - | - | 12.6 VDC | 1.8 VDC | 20 ms | 15 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) | cURus, VDE | General Purpose | - | - |
|
|
AZ762H-1CB-24DEFRELAY GEN PURPOSE SPDT 16A 24V |
0 |
|
برگه مشخصات |
AZ762H | Box | Active | Through Hole | 24VDC | SPDT (1 Form C) | 16 A | 440VAC, 125VDC - Max | 4600VA | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 16.8 VDC | 2.4 VDC | 7 ms | 3 ms | -40°C ~ 105°C | Silver Nickel (AgNi), Gold (Au) | CUR, UL, VDE | General Purpose | - | - |
|
G8P-1A4P-AS DC24RELAY GEN PURPOSE SPST 30A 24V |
0 |
|
برگه مشخصات |
G8P | Bulk | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 30 A | 250VAC, 28VDC - Max | 7500VA, 840W | 36 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Alloy, Cadmium Free | CSA, UR | General Purpose | - | - |
|
T9AV1D22-18RELAY GEN PURPOSE SPST 30A 18V |
0 |
|
برگه مشخصات |
T9A | Bulk | Obsolete | Through Hole | 18VDC | SPST-NO (1 Form A) | 30 A | 277VAC - Max | 8310VA | 55.6 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Flux Protection | Class F | 13.5 VDC | 1.8 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus | General Purpose | - | - |
|
|
T9AV1D22-24RELAY GEN PURPOSE SPST 30A 24V |
0 |
|
برگه مشخصات |
T9A | Bulk | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 30 A | 277VAC - Max | 8310VA | 41.7 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Flux Protection | Class F | 18 VDC | 2.4 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus | General Purpose | - | - |
|
|
T9AS2D22-22RELAY GEN PURPOSE SPST 15A 22V |
0 |
|
برگه مشخصات |
T9A | Bulk | Obsolete | Through Hole | 22VDC | SPST-NC (1 Form B) | 15 A | 277VAC - Max | 4155VA | - | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 16.5 VDC | 2.2 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus | General Purpose | - | - |
|
|
T9AV1D22-22-02RELAY GEN PURP |
0 |
|
- |
T9A | Bulk | Obsolete | Through Hole | - | SPST-NO (1 Form A) | 30 A | 277VAC - Max | 8310VA | - | Non Latching | - | PC Pin | - | - | - | - | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus | General Purpose | - | - |
|
|
AZ21501-1CE-240AEFRELAY GEN PURPOSE SPDT 50A 240V |
0 |
|
برگه مشخصات |
AZ21501 | Box | Active | Through Hole | 240VAC | SPDT (1 Form C) | 50 A | 300VAC, 110VDC - Max | 7200VA, 1200W | 15.2 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 180 VAC | 72 VAC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | CUR, UL, TUV | General Purpose | - | - |
|
|
OZ-SH-105D,294RELAY GEN PURPOSE SPDT 16A 5V |
0 |
|
برگه مشخصات |
OZ, OEG | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 16 A | 240VAC, 24VDC - Max | 3840VA, 380W | 138.9 mA | Non Latching | - | PC Pin | Sealed - Fully | Class A | 3.5 VDC | 0.25 VDC | 15 ms | 8 ms | -30°C ~ 60°C | Silver Cadmium Oxide (AgCdO) | CQC, CSA, TUV, UR | General Purpose | - | - |
|
|
G5PA-28-MC DC24 BY OMZ (PF)RELAY GEN PURPOSE DPST 5A 24V |
0 |
|
برگه مشخصات |
G5PA-2 | Bulk | Obsolete | Through Hole | 24VDC | DPST-NO (2 Form A) | 5 A | 250VAC, 24VDC - Max | 1250VA, 120W | 22.1 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 16.8 VDC | 2.4 VDC | 15 ms | 5 ms | -25°C ~ 70°C | - | CSA, EN, SEMKO, TUV | General Purpose | - | - |
|
JW2HN-DC12VRELAY GEN PURPOSE DPDT 5A 12V |
0 |
|
برگه مشخصات |
JW | Bulk | Active | Through Hole | 12VDC | DPDT (2 Form C) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 44 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class E | 8.4 VDC | 1.2 VDC | 15 ms | 5 ms | -40°C ~ 60°C | Silver Alloy | CQC, CSA, UR, VDE | General Purpose | - | - |
|
G2RL-1-E-CF DC48RELAY GEN PURPOSE SPDT 16A 48V |
0 |
|
برگه مشخصات |
G2RL | Tube | Obsolete | Through Hole | 48VDC | SPDT (1 Form C) | 16 A | 440VAC, 300VDC - Max | 7040VA, 4800W | 9 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 33.6 VDC | 4.8 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | CQC, CSA, UR, VDE | General Purpose | - | - |
|
|
TS2SA-LT-6V-TH-ZTX SIGNAL RELAY |
0 |
|
- |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
ALZ51F48TWRELAY GEN PURPOSE SPST 16A 48V |
0 |
|
برگه مشخصات |
ALZ | Box | Active | Through Hole | 48VDC | SPST-NO (1 Form A) | 16 A | 440VAC - Max | 7040VA | 8.3 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 33.6 VDC | 4.8 VDC | 15 ms | 5 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | cURus, VDE | General Purpose | - | - |
