رله های برق، بیش از 2 آمپر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | ولتاژ سیم پیچ | فرم تماس | رتبه بندی تماس (جاری) | ولتاژ سوئیچینگ | بار - حداکثر سوئیچینگ | جریان سیم پیچ | نوع کویل | ویژگی ها | سبک خاتمه | رتبه بندی مهر و موم | عایق کویل | ولتاژ باید کار کند | ولتاژ باید آزاد شود | زمان عملیات | زمان انتشار | دمای عملیاتی | مواد تماس | آژانس تایید | نوع رله | درجه | صلاحیت |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AZ165-4C-24ARELAY GEN PURPOSE 4PDT 5A 24V |
0 |
|
برگه مشخصات |
AZ165 | Box | Active | Socketable | 24VAC | 4PDT (4 Form C) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 50 mA | Non Latching | - | Plug In | - | - | 19.2 VAC | 7.2 VAC | 25 ms | 25 ms | -55°C ~ 70°C | Silver Cerium (AgCe) | CE, CUR, TUV, UL | General Purpose | - | - |
|
|
AZ165-4C-12ARELAY GEN PURPOSE 4PDT 5A 12V |
0 |
|
برگه مشخصات |
AZ165 | Box | Active | Socketable | 12VAC | 4PDT (4 Form C) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 100 mA | Non Latching | - | Plug In | - | - | 9.6 VAC | 3.6 VAC | 25 ms | 25 ms | -55°C ~ 70°C | Silver Cerium (AgCe) | CE, CUR, TUV, UL | General Purpose | - | - |
|
J1511CF220VAC1.2RELAY GEN PURPOSE SPDT 20A 220V |
0 |
|
برگه مشخصات |
J151 | Tray | Active | Chassis Mount | 220VAC | SPDT (1 Form C) | 12 A | 300VAC - Max | 6000VA | 15.3 mA | Non Latching | - | Plug In | - | - | 176 VAC | 66 VAC | 25 ms | 25 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus | General Purpose | - | - |
|
|
J1512CF220VAC1.2RELAY GEN PURPOSE DPDT 20A 220V |
0 |
|
برگه مشخصات |
J151 | Tray | Active | Chassis Mount | 220VAC | DPDT (2 Form C) | 12 A | 300VAC - Max | 6000VA | 15.3 mA | Non Latching | - | Plug In | - | - | 176 VAC | 66 VAC | 25 ms | 25 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus | General Purpose | - | - |
|
G8P1A4PVASDC12RELAY GEN PURPOSE SPST 30A 12V |
0 |
|
برگه مشخصات |
G8P | Bulk | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 30 A | 250VAC, 28VDC - Max | 7500VA, 840W | 77 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
G2R-1A-E-DC6RELAY GEN PURPOSE SPST 16A 6V |
0 |
|
برگه مشخصات |
G2R | Tray | Active | Through Hole | 6VDC | SPST-NO (1 Form A) | 16 A | 380VAC, 125VDC - Max | 6080VA, 2000W | 88.2 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 4.2 VDC | 0.9 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | CSA, TUV, UR, VDE | General Purpose | - | - |
|
J1522CF110VACRELAY GEN PURPOSE DPDT 10A 110V |
0 |
|
برگه مشخصات |
J152 | Tray | Active | Chassis Mount | 110VAC | DPDT (2 Form C) | 10 A | 300VAC - Max | 3000VA | 29.3 mA | Non Latching | - | Plug In | - | - | 88 VAC | 33 VAC | 25 ms | 25 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus, TUV | General Purpose | - | - |
|
|
RY212006RELAY GEN PURPOSE SPDT 8A 6V |
0 |
|
برگه مشخصات |
RY, SCHRACK | Tube | Active | Through Hole | 6VDC | SPDT (1 Form C) | 8 A | 400VAC - Max | 3200VA | 37 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 4.2 VDC | 0.6 VDC | 9 ms | 5 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | cURus, VDE | General Purpose | - | - |
|
PC113-2C-120A-XRELAY GEN PURPOSE DPDT 12A 120V |
0 |
|
برگه مشخصات |
PC113 | Tray | Active | Socketable | 120VAC | DPDT (2 Form C) | 12 A | 250VAC, 28VDC - Max | 3000VA, 336W | 26.4 mA | Non Latching | - | Solder Lug | - | Class F | 96 VAC | 36 VAC | 25 ms | 25 ms | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | cURus | General Purpose | - | - |
|
G6RL-14-SR-ASI DC12RELAY GEN PURPOSE SPDT 8A 12V |
0 |
|
برگه مشخصات |
G6RL | Bulk | Active | Through Hole | 12VDC | SPDT (1 Form C) | 8 A | 250VAC - Nom | 2000VA | 25.2 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9.6 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Tin Indium (AgSnIn) | cURus, VDE | General Purpose | - | - |
|

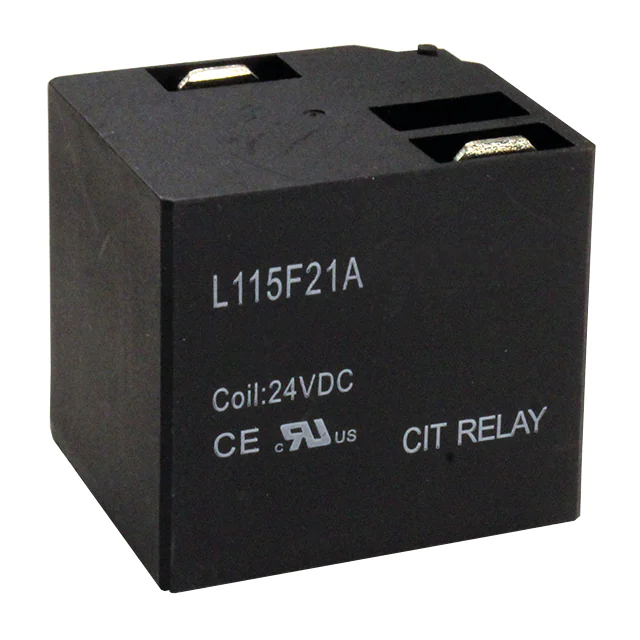

L115F21AH24VDCS1.5URELAY GEN PURPOSE SPST 50A 24V |
0 |
|
برگه مشخصات |
L115F2 | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 50 A | 277VAC, 110VDC - Max | 13850VA, 5500W | 62.5 mA | Latching, Single Coil | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 19.2 VDC | - | 15 ms | 15 ms | -55°C ~ 125°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | cURus | General Purpose | - | - |
|
G2R-1A4-T130 DC12RELAY GEN PURPOSE SPST 8A 12V |
0 |
|
برگه مشخصات |
G2R | Tray | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 8 A | 380VAC, 125VDC - Max | 3040VA, 1000W | 43.6 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 8.4 VDC | 1.8 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
J1512CF110VAC1.2DRELAY GEN PURPOSE DPDT 20A 110V |
0 |
|
برگه مشخصات |
J151 | Tray | Active | Chassis Mount | 110VAC | DPDT (2 Form C) | 12 A | 300VAC - Max | 6000VA | 28.2 mA | Non Latching | Lighted Indicator | Plug In | - | - | 88 VAC | 33 VAC | 25 ms | 25 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus | General Purpose | - | - |
|
|
J1511CF110VAC1.2DRELAY GEN PURPOSE SPDT 20A 110V |
0 |
|
برگه مشخصات |
J151 | Tray | Active | Chassis Mount | 110VAC | SPDT (1 Form C) | 12 A | 300VAC - Max | 6000VA | 28.2 mA | Non Latching | Lighted Indicator | Plug In | - | - | 88 VAC | 33 VAC | 25 ms | 25 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus | General Purpose | - | - |
|
G6RL-1-SR-ASI DC5RELAY GEN PURPOSE SPDT 8A 5V |
0 |
|
برگه مشخصات |
G6RL | Bulk | Active | Through Hole | 5VDC | SPDT (1 Form C) | 8 A | 250VAC - Nom | 2000VA | 60.2 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 4 VDC | 0.5 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Tin Indium (AgSnIn) | cURus, VDE | General Purpose | - | - |
|
|
RT444730RELAY GEN PURPOSE DPST 8A 230V |
0 |
|
برگه مشخصات |
RT2, SCHRACK | Tube | Active | Through Hole | 230VAC | DPST-NO (2 Form A) | 8 A | 400VAC - Max | 3200VA | 14.2 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 172.5 VAC | 34.5 VAC | 8 ms | 6 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CQC, CSA, cURus, VDE | General Purpose | - | - |
|
|
G6RL-14-SR-ASI DC3RELAY GENERAL PURPOSE SPDT 8A 3V |
0 |
|
برگه مشخصات |
G6RL | Bulk | Active | Through Hole | 3VDC | SPDT (1 Form C) | 8 A | 250VAC - Nom | 2000VA | 101 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 2.4 VDC | 0.3 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Tin Indium (AgSnIn) | cURus, VDE | General Purpose | - | - |
|
T90N1D42-24-01RELAY GEN PURPOSE SPST 30A 24V |
0 |
|
برگه مشخصات |
T90 | Bulk | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 30 A | 277VAC - Max | 4155VA | 36 mA | Non Latching | - | PC Pin | - | Class F | 18 VDC | 2.4 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
|
AZ21501P-1AJ-12DERELAY GEN PURPOSE SPST 40A 12V |
0 |
|
برگه مشخصات |
AZ21501P | Box | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 50 A | 277VAC, 110VDC - Max | 13850VA, 1200W | 75 mA | Latching, Single Coil | - | PC Pin | Sealed - Fully | Class F | 9.6 VDC | - | 15 ms | 15 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CUR, UL | General Purpose | - | - |
|
|
T9ES1D12-18=T9ERELAY |
0 |
|
- |
T9E | Bulk | Active | Through Hole | 18VDC | SPST-NO (1 Form A) | 30 A | 250VAC - Max | 7500VA | 55.6 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 13.5 VDC | 1.8 VDC | 15 ms | 15 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | UR, VDE | General Purpose | - | - |
