رله های برق، بیش از 2 آمپر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | ولتاژ سیم پیچ | فرم تماس | رتبه بندی تماس (جاری) | ولتاژ سوئیچینگ | بار - حداکثر سوئیچینگ | جریان سیم پیچ | نوع کویل | ویژگی ها | سبک خاتمه | رتبه بندی مهر و موم | عایق کویل | ولتاژ باید کار کند | ولتاژ باید آزاد شود | زمان عملیات | زمان انتشار | دمای عملیاتی | مواد تماس | آژانس تایید | نوع رله | درجه | صلاحیت |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AZEV140-1AE-24DRELAY EV CHARGING SPST 50A 24V |
0 |
|
برگه مشخصات |
AZEV140 | Tray | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 50 A | 440VAC - Max | 22000VA | 87.6 mA | Non Latching | - | PC Pin, Quick Connect - 0.187" (4.7mm) | - | Class F | 18 VDC | 1.2 VDC | 30 ms | 10 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CQC, cURus, TUV | EV Charging | - | - |
|
|
AZEV140-1AE1BG-9DRELAY EV CHARGING DPST 50A 9V |
0 |
|
برگه مشخصات |
AZEV140 | Tray | Active | Through Hole | 9VDC | DPST-NO/NC (1 Form A, 1 Form B) | 50 A | 440VAC - Max | 22000VA | 234.4 mA | Non Latching | - | PC Pin, Quick Connect - 0.187" (4.7mm) | - | Class F | 6.75 VDC | 0.45 VDC | 30 ms | 10 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO); Silver Nickel (AgNi), Gold (Au) | CQC, cURus, TUV | EV Charging | - | - |
|
|
AZ2501P2-1C-12DERELAY GEN PURPOSE SPDT 50A 12V |
0 |
|
برگه مشخصات |
AZ2501 | Box | Active | Through Hole | 12VDC | SPDT (1 Form C) | 50 A | 440VAC - Max | 13850VA | 250 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 9.6 VDC | - | 15 ms | 15 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | CUR, UL | General Purpose | - | - |
|

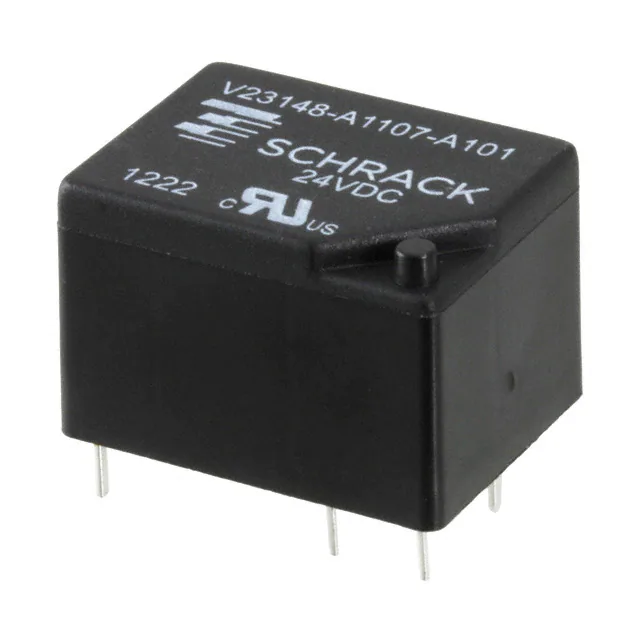

V23148A1107A101RELAY GEN PURPOSE SPDT 5A 24V |
0 |
|
برگه مشخصات |
V23148, SCHRACK | Tray | Discontinued | Through Hole | 24VDC | SPDT (1 Form C) | 5 A | 400VAC - Max | 2000VA | 16.7 mA | Non Latching | - | PC Pin | - | - | 17.5 VDC | 2.4 VDC | 7 ms | 3 ms | -25°C ~ 70°C | Silver Nickel (AgNi) | cURus | General Purpose | - | - |
|
DSP1A-L2-DC12V-RRELAY GEN PURPOSE SPST 8A 12V |
0 |
|
برگه مشخصات |
DSP | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 8 A | 250VAC, 125VDC - Max | 2000VA, 1000W | 25 mA | Latching, Dual Coil | Reverse Coil Polarity | PC Pin | Sealed - Fully | - | 9.6 VDC | - | 10 ms | 5 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) | cURus, VDE | General Purpose | - | - |
|
|
RM87N-2011-35-5012RELAY GEN PURPOSE SPDT 12A 12V |
0 |
|
- |
RM87N | Bulk | Active | Through Hole | 12VAC | SPDT (1 Form C) | 12 A | 440VAC - Max | 5280VA | 120 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 9.6 VAC | - | 7 ms | 3 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CCC, CE, CSA, UR, VDE | General Purpose | - | - |
|
|
40.61.7.012.4000PCB/PLUG-IN RELAY, SPDT 16A, 12V |
0 |
|
برگه مشخصات |
40 | Bulk | Active | Socketable | 12VDC | SPDT (1 Form C) | 16 A | 400VAC - Max | 6400VA | 42 mA | Non Latching | - | Plug In | Sealed - Flux Protection | - | 8.8 VDC | 2.4 VDC | 10 ms | 3 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | CCC, CSA, cURus, EAC, ENEC, RINA, VDE | General Purpose | - | - |
|
8693340000RELAY GEN PURPOSE DPDT 8A 48V |
0 |
|
برگه مشخصات |
RCL | Bulk | Active | Through Hole | 48VAC | DPDT (2 Form C) | 8 A | 250VAC - Max | 2000VA | 15.6 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 36 VAC | 7.2 VAC | 7 ms | 2 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CE | General Purpose | - | - |
|
4058760000RELAY GEN PURPOSE DPDT 8A 60V |
0 |
|
برگه مشخصات |
RIDER | Bulk | Active | Through Hole | 60VDC | DPDT (2 Form C) | 8 A | 250VAC - Max | 2000VA | 7 mA | Non Latching | - | PC Pin | - | - | 45 VDC | 6 VDC | 8 ms | 6 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | - | General Purpose | - | - |
|
|
RQ1V-CH-D12RELAY PCB SPDT 16A 12VDC |
0 |
|
- |
RQ | Bulk | Active | Through Hole | 12VDC | SPDT (1 Form C) | 16 A | - | - | 33.3 mA | Non Latching | - | PC Pin | - | - | 9.6 VDC | 0.6 VDC | 12 ms | 8 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CE, cURus, TUV | General Purpose | - | - |
|
|
RQ1V-CH-D5RELAY PCB SPDT 16A 5VDC |
0 |
|
- |
RQ | Bulk | Active | Through Hole | 5VDC | SPDT (1 Form C) | 16 A | - | - | 80 mA | Non Latching | - | PC Pin | - | - | 4 VDC | 0.25 VDC | 12 ms | 8 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CE, cURus, TUV | General Purpose | - | - |
|
|
RQ1V-CH-D24RELAY PCB SPDT 16A 24VDC |
0 |
|
- |
RQ | Bulk | Active | Through Hole | 24VDC | SPDT (1 Form C) | 16 A | - | - | 16.7 mA | Non Latching | - | PC Pin | - | - | 19.2 VDC | 1.2 VDC | 12 ms | 8 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CE, cURus, TUV | General Purpose | - | - |
|
|
4-1415541-8RT115048 |
0 |
|
برگه مشخصات |
RT, SCHRACK | Tube | Active | Through Hole | 48VDC | SPDT (1 Form C) | 12 A | 400VAC - Max | 4800VA | 8.7 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 33.6 VDC | 4.8 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | CQC, CSA, cURus, VDE | General Purpose | - | - |
|
|
G6CK-2117P-US DC6RELAY GEN PURPOSE DPST 8A 6V |
0 |
|
برگه مشخصات |
G6C | Bulk | Active | Through Hole | 6VDC | DPST-NO/NC (1 Form A, 1 Form B) | 8 A | 380VAC, 125VDC - Max | 3040VA, 1000W | 46.7 mA | Latching, Dual Coil | - | PC Pin | Sealed - Flux Protection | - | 4.2 VDC | - | 10 ms | 10 ms | -25°C ~ 70°C | Silver Alloy, Cadmium Free | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
AZ2700-1A-48DRELAY GEN PURPOSE SPST 30A 48V |
0 |
|
برگه مشخصات |
AZ2700 | Box | Active | Chassis Mount | 48VDC | SPST-NO (1 Form A) | 30 A | 400VAC, 150VDC - Max | 8310VA, 840W | 40 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class B | 36 VDC | 2.4 VDC | 30 ms | 30 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | CUR, TUV, UL | General Purpose | - | - |
|
|
T9AS1D14-12RELAY GEN PURPOSE SPST 30A 12V |
0 |
|
برگه مشخصات |
T9A | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 30 A | 277VAC - Max | 8310VA | 83.3 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | cURus | General Purpose | - | - |
|
|
40.51.9.060.0000RELAY GEN PURPOSE SPDT 10A 60V |
0 |
|
برگه مشخصات |
40 | Bulk | Active | Socketable | 60VDC | SPDT (1 Form C) | 10 A | 400VAC - Max | 4000VA | 11 mA | Non Latching | - | Plug In | Sealed - Flux Protection | - | 43.8 VDC | 12 VDC | 7 ms | 3 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CCC, CSA, cURus, EAC, ENEC, RINA, VDE | General Purpose | - | - |
|
|
AZ2704-1A-12DWRELAY GEN PURPOSE SPST 30A 12V |
0 |
|
برگه مشخصات |
AZ2704 | Box | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 30 A | 400VAC, 150VDC - Max | 8310VA, 840W | 160 mA | Non Latching | - | PC Pin | - | Class B | 9 VDC | 0.6 VDC | 30 ms | 30 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | CUR, TUV, UL | General Purpose | - | - |
|
|
AZ2704-1A-24DWRELAY GEN PURPOSE SPST 30A 24V |
0 |
|
برگه مشخصات |
AZ2704 | Box | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 30 A | 400VAC, 150VDC - Max | 8310VA, 840W | 80 mA | Non Latching | - | PC Pin | - | Class B | 18 VDC | 1.2 VDC | 30 ms | 30 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | CUR, TUV, UL | General Purpose | - | - |
|
|
AZ2700-1A-24DTFRELAY GEN PURPOSE SPST 30A 24V |
0 |
|
برگه مشخصات |
AZ2700 | Box | Active | Chassis Mount | 24VDC | SPST-NO (1 Form A) | 30 A | 400VAC, 150VDC - Max | 8310VA, 840W | 80 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class F | 18 VDC | 1.2 VDC | 30 ms | 30 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | CUR, TUV, UL | General Purpose | - | - |
