رله های برق، بیش از 2 آمپر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | ولتاژ سیم پیچ | فرم تماس | رتبه بندی تماس (جاری) | ولتاژ سوئیچینگ | بار - حداکثر سوئیچینگ | جریان سیم پیچ | نوع کویل | ویژگی ها | سبک خاتمه | رتبه بندی مهر و موم | عایق کویل | ولتاژ باید کار کند | ولتاژ باید آزاد شود | زمان عملیات | زمان انتشار | دمای عملیاتی | مواد تماس | آژانس تایید | نوع رله | درجه | صلاحیت |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7-1415525-1RELAY GEN PURP |
0 |
|
برگه مشخصات |
RT, SCHRACK | Bulk | Active | Through Hole | 3VDC | DPDT (2 Form C) | 8 A | 400VAC - Max | 3200VA | - | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 2.1 VDC | 0.3 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | CQC, CSA, cURus, VDE | General Purpose | - | - |
|
|
G4A-1A-E-CF DC12 BY OMZRELAY GEN PURPOSE SPST 20A 12V |
0 |
|
- |
G4A | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 20 A | 250VAC - Max | 5000VA | 75 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Flux Protection | - | 8.4 VDC | 1.2 VDC | 20 ms | 10 ms | -20°C ~ 60°C | Silver Alloy, Cadmium Free | CQC, CSA, UR, VDE | General Purpose | - | - |
|
|
G4A-1A-PE-CF DC12 BY OMZRELAY GEN PURPOSE SPST 20A 12V |
0 |
|
- |
G4A | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 20 A | 250VAC - Max | 5000VA | 75 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 8.4 VDC | 1.2 VDC | 20 ms | 10 ms | -20°C ~ 60°C | Silver Alloy, Cadmium Free | CQC, CSA, UR, VDE | General Purpose | - | - |
|
|
AZ2704-2A-48DWRELAY GEN PURPOSE DPST 30A 48V |
0 |
|
برگه مشخصات |
AZ2704 | Box | Active | Through Hole | 48VDC | DPST-NO (2 Form A) | 30 A | 400VAC, 150VDC - Max | 8310VA, 840W | 40 mA | Non Latching | - | PC Pin | - | Class B | 36 VDC | 2.4 VDC | 30 ms | 30 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | CUR, TUV, UL | General Purpose | - | - |
|
|
AZ2703-1A-24ATFRELAY GEN PURPOSE SPST 30A 24V |
0 |
|
برگه مشخصات |
AZ2703 | Box | Active | Chassis Mount | 24VAC | SPST-NO (1 Form A) | 30 A | 400VAC, 150VDC - Max | 8310VA, 840W | 80 mA | Non Latching | - | Plug In, Quick Connect - 0.110" (2.8mm) | - | Class F | 19.2 VAC | 3.6 VAC | 30 ms | 30 ms | -40°C ~ 105°C | Silver Cadmium Oxide (AgCdO) | CUR, TUV, UL | General Purpose | - | - |
|
|
RM85-2011-35-1110RELAY GEN PURPOSE SPDT 16A 110V |
0 |
|
- |
RM85 | Bulk | Active | Through Hole | 110VDC | SPDT (1 Form C) | 16 A | 440VAC - Max | 7040VA | 4.4 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 77 VDC | - | 7 ms | 3 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CCC, CE, CSA, UR, VDE | General Purpose | - | - |
|
RSB1A160NDHARMONY, INTERFACE PLUG-IN RELAY |
10 |
|
برگه مشخصات |
Harmony | Box | Obsolete | Socketable | 60VDC | SPDT (1 Form C) | 16 A | 250VAC, 300VDC - Max | 4000VA, 4800W | 6.7 mA | Non Latching | - | Plug In | - | - | 42 VDC | 6 VDC | 20 ms | 20 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CSA, EAC, UL | General Purpose | - | - |
|

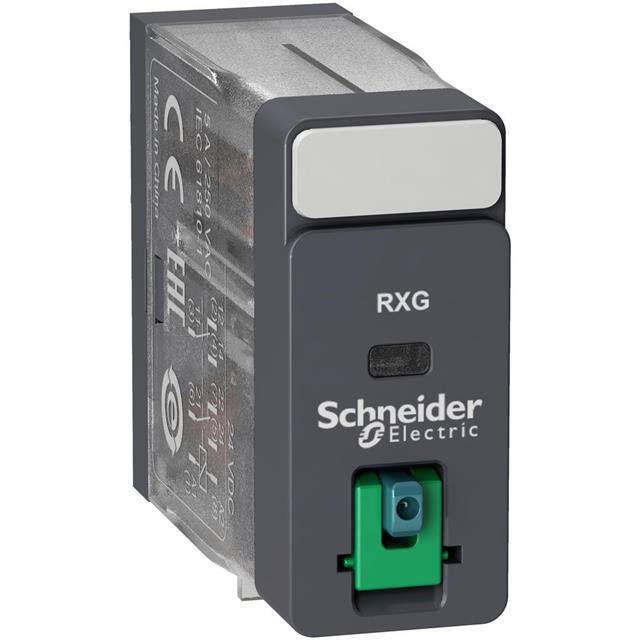

RXG21BDHARMONY, INTERFACE PLUG-IN RELAY |
10 |
|
برگه مشخصات |
Harmony | Box | Active | Socketable | 24VDC | DPDT (2 Form C) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | - | Non Latching | Lighted Indicator | Plug In | - | - | - | 2.4 VDC | 20 ms | 20 ms | -40°C ~ 70°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | CE, CSA, DNV-GL, EAC, UL | General Purpose | - | - |
|
|
AZ2701-1A-48AWRELAY GEN PURPOSE SPST 30A 48V |
0 |
|
برگه مشخصات |
AZ2701 | Box | Active | Chassis Mount | 48VAC | SPST-NO (1 Form A) | 30 A | 400VAC, 150VDC - Max | 8310VA, 840W | 40 mA | Non Latching | - | Plug In, Quick Connect - 0.250" (6.3mm) | - | Class B | 38.4 VAC | 7.2 VAC | 30 ms | 30 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | CUR, TUV, UL | General Purpose | - | - |
|
|
AZ2701-1A-24AWRELAY GEN PURPOSE SPST 30A 24V |
0 |
|
برگه مشخصات |
AZ2701 | Box | Active | Chassis Mount | 24VAC | SPST-NO (1 Form A) | 30 A | 400VAC, 150VDC - Max | 8310VA, 840W | 80 mA | Non Latching | - | Plug In, Quick Connect - 0.250" (6.3mm) | - | Class B | 19.2 VAC | 3.6 VAC | 30 ms | 30 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | CUR, TUV, UL | General Purpose | - | - |
|
G2RV-1-S DC11RELAY GEN PURPOSE SPDT 6A 12V |
0 |
|
برگه مشخصات |
G2RV | Bulk | Obsolete | Socketable | 12VDC | SPDT (1 Form C) | 6 A | 440VAC, 125VDC - Max | 2640VA, 750W | 27.2 mA | Non Latching | - | Plug In | - | - | 9.6 VDC | 1.2 VDC | 20 ms | 40 ms | -40°C ~ 55°C | Silver Tin Indium (AgSnIn) | CE, cULus, TUV | General Purpose | - | - |
|

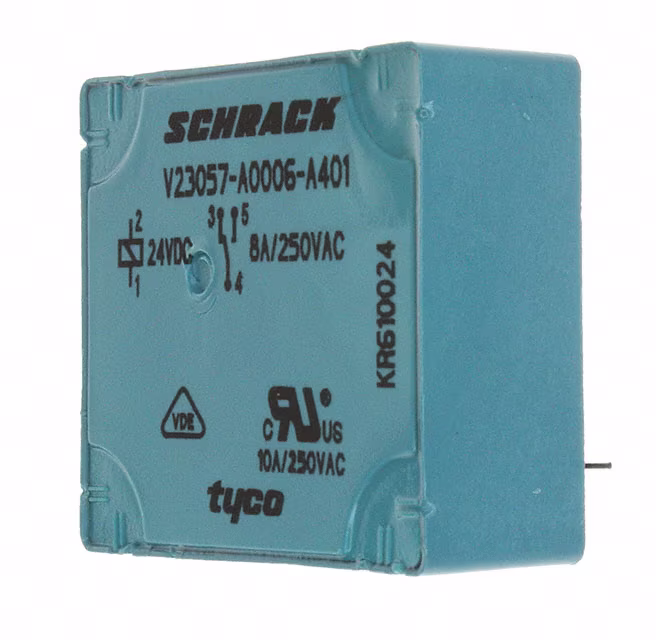

V23057-A0006-A401RELAY GEN PURPOSE SPDT 8A 24V |
0 |
|
برگه مشخصات |
V23057, SCHRACK | Tube | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 8 A | 400VAC - Max | 3200VA | 20 mA | Non Latching | - | PC Pin | - | - | 16 VDC | 2.4 VDC | 7 ms | 3 ms | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | cURus, VDE | General Purpose | - | - |
|
|
AZ2700-2A-48DWRELAY GEN PURPOSE DPST 30A 48V |
0 |
|
برگه مشخصات |
AZ2700 | Box | Active | Chassis Mount | 48VDC | DPST-NO (2 Form A) | 30 A | 400VAC, 150VDC - Max | 8310VA, 840W | 40 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class B | 36 VDC | 2.4 VDC | 30 ms | 30 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | CUR, TUV, UL | General Purpose | - | - |
|
|
AZ2704-2A-48DRELAY GEN PURPOSE DPST 30A 48V |
0 |
|
برگه مشخصات |
AZ2704 | Box | Active | Through Hole | 48VDC | DPST-NO (2 Form A) | 30 A | 400VAC, 150VDC - Max | 8310VA, 840W | 40 mA | Non Latching | - | PC Pin | - | Class B | 36 VDC | 2.4 VDC | 30 ms | 30 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | CUR, TUV, UL | General Purpose | - | - |
|
RSB2A080JDHARMONY, INTERFACE PLUG-IN RELAY |
7 |
|
برگه مشخصات |
Harmony | Box | Active | Socketable | 12VDC | DPDT (2 Form C) | 8 A | 300VDC - Max | 2400VA | 33.3 mA | Non Latching | - | Plug In | - | - | - | 1.2 VDC | 20 ms | 20 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CSA, EAC, UL | General Purpose | - | - |
|
AHN210X1RELAY GEN PURPOSE DPDT 5A 120V |
4 |
|
برگه مشخصات |
AHN | Tube | Obsolete | Socketable | 120VAC | DPDT (2 Form C) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 9.7 mA | Non Latching | - | Plug In | - | - | 96 VAC | 36 VAC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
|
|
G6D-1A-ASI DC18RELAY GEN PURPOSE SPST 5A 18V |
0 |
|
- |
G6D | Bulk | Active | Through Hole | 18VDC | SPST-NO (1 Form A) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | - | Non Latching | - | PC Pin | Sealed - Fully | - | - | - | 10 ms | 5 ms | -25°C ~ 70°C | Silver Alloy, Cadmium Free | CSA, TUV, UR | General Purpose | - | - |
|
HR705-4PL-24VDCRELAY GEN PURPOSE 4PDT 3A 24V |
18 |
|
برگه مشخصات |
HR705 | Bag | Active | Socketable | 24VDC | 4PDT (4 Form C) | 3 A | 250VAC, 125VDC - Max | - | 37.5 mA | - | Lighted Indicator | Plug In | - | - | - | - | 20 ms | 20 ms | -40°C ~ 55°C | Silver (Ag), Gold (Au) | - | General Purpose | - | - |
|
RV2H-2G-D9-C1D2RELAY GENERAL PURPOSE DPDT 8A 9V |
13 |
|
برگه مشخصات |
RV8 | Bulk | Obsolete | Through Hole | 9VDC | DPDT (2 Form C) | 8 A | 250VAC - Nom | - | 44 mA | Non Latching | - | PC Pin | - | - | 7.2 VDC | 0.63 VDC | 15 ms | 15 ms | -40°C ~ 55°C | Silver Nickel (AgNi), Gold (Au) | CE, cULus | General Purpose | - | - |
|
|
HR705-4PL-110VACRELAY GEN PURPOSE 4PDT 3A 110V |
10 |
|
برگه مشخصات |
HR705 | Bag | Active | Socketable | 110VAC | 4PDT (4 Form C) | 3 A | 250VAC, 125VDC - Max | - | 8.2 mA | - | Lighted Indicator | Plug In | - | - | - | - | 20 ms | 20 ms | -40°C ~ 55°C | Silver (Ag), Gold (Au) | - | General Purpose | - | - |
