رله های برق، بیش از 2 آمپر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | ولتاژ سیم پیچ | فرم تماس | رتبه بندی تماس (جاری) | ولتاژ سوئیچینگ | بار - حداکثر سوئیچینگ | جریان سیم پیچ | نوع کویل | ویژگی ها | سبک خاتمه | رتبه بندی مهر و موم | عایق کویل | ولتاژ باید کار کند | ولتاژ باید آزاد شود | زمان عملیات | زمان انتشار | دمای عملیاتی | مواد تماس | آژانس تایید | نوع رله | درجه | صلاحیت |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R4N-2014-23-1110-WTRELAY GEN PURPOSE 4PDT 6A 110V |
0 |
|
- |
R4 | Bulk | Active | Socketable | 110VDC | 4PDT (4 Form C) | 6 A | 250VAC - Max | 1500VA | 8.1 mA | Non Latching | - | Plug In, 14 Pin | - | - | - | - | 13 ms | 3 ms | -40° ~ 70°C | Silver Nickel (AgNi) | CCC, CE, CSA, TUV, UR | General Purpose | - | - |
|
RXG22JDHARMONY, INTERFACE PLUG-IN RELAY |
0 |
|
برگه مشخصات |
Harmony | Box | Active | Socketable | 12VDC | DPDT (2 Form C) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | - | Non Latching | Lighted Indicator, Test Button | Plug In | - | - | - | 1.2 VDC | 20 ms | 20 ms | -40°C ~ 70°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | CE, CSA, DNV-GL, EAC, UL | General Purpose | - | - |
|
RXG12JDHARMONY, INTERFACE PLUG-IN RELAY |
0 |
|
برگه مشخصات |
Harmony | Box | Active | Socketable | 12VDC | SPDT (1 Form C) | 10 A | 250VAC, 30VDC - Max | 2500VA, 300W | - | Non Latching | Lighted Indicator, Test Button | Plug In | - | - | - | 1.2 VDC | 20 ms | 20 ms | -40°C ~ 70°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | CE, CSA, DNV-GL, EAC, UL | General Purpose | - | - |
|
|
AZ2704-2A-48AWRELAY GEN PURPOSE DPST 30A 48V |
0 |
|
برگه مشخصات |
AZ2704 | Box | Active | Through Hole | 48VAC | DPST-NO (2 Form A) | 30 A | 400VAC, 150VDC - Max | 8310VA, 840W | 40 mA | Non Latching | - | PC Pin | - | Class B | 38.4 VAC | 7.2 VAC | 30 ms | 30 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | CUR, TUV, UL | General Purpose | - | - |
|
|
AZ2704-2A-48ARELAY GEN PURPOSE DPST 30A 48V |
0 |
|
برگه مشخصات |
AZ2704 | Box | Active | Through Hole | 48VAC | DPST-NO (2 Form A) | 30 A | 400VAC, 150VDC - Max | 8310VA, 840W | 40 mA | Non Latching | - | PC Pin | - | Class B | 38.4 VAC | 7.2 VAC | 30 ms | 30 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | CUR, TUV, UL | General Purpose | - | - |
|
|
8550510000RELAY GEN PURPOSE SPDT 16A 24V |
0 |
|
برگه مشخصات |
MCZ | Bulk | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 16 A | 250VAC - Max | 4000VA | - | Non Latching | Test Button | PC Pin | - | - | - | - | 10 ms | 3 ms | -25°C ~ 70°C | Silver Copper Nickel (AgCuNi) | CE | General Purpose | - | - |
|

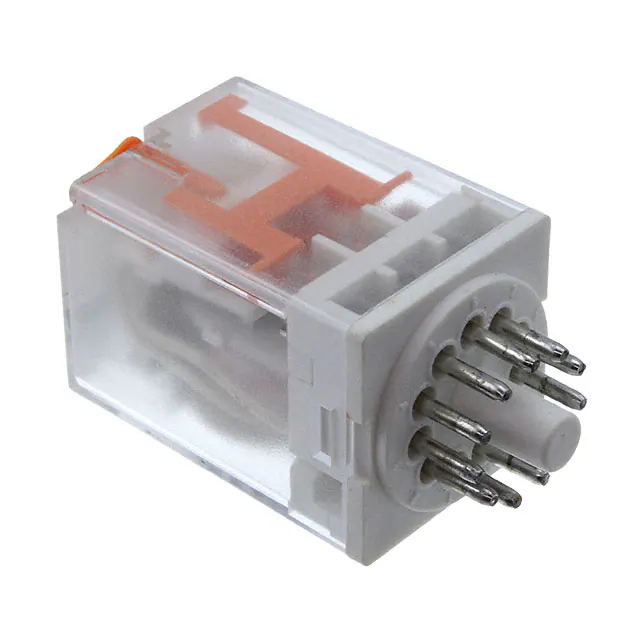

RCI002A24VRELAY GEN PURPOSE DPDT 10A 24V |
1 |
|
برگه مشخصات |
RCI | Bulk | Obsolete | Socketable | 24VAC | DPDT (2 Form C) | 10 A | 250VAC, 30VDC - Max | - | 333 mA | Non Latching | Lighted Indicator, Mechanical Indicator, Test Button | Plug In, 8 Pin (Octal) | - | - | 19.2 VAC | 7.2 VAC | 20 ms | 20 ms | -40°C ~ 55°C | Silver Tin Oxide (AgSnO) | CE, CSA, UR | General Purpose | - | - |
|

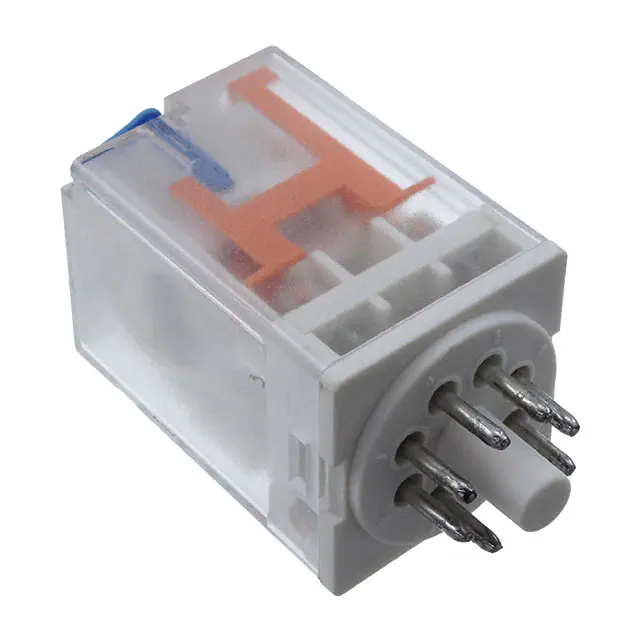

RCI002D5VRELAY GEN PURPOSE DPDT 10A 5V |
0 |
|
برگه مشخصات |
RCI | Bulk | Obsolete | Socketable | 5VDC | DPDT (2 Form C) | 10 A | 250VAC, 30VDC - Max | - | 320 mA | Non Latching | Lighted Indicator, Mechanical Indicator, Test Button | Plug In, 8 Pin (Octal) | - | - | 4 VDC | 0.5 VDC | 20 ms | 20 ms | -40°C ~ 55°C | Silver Tin Oxide (AgSnO) | CE, CSA, UR | General Purpose | - | - |
|
|
RCP8002115/120VACRELAY GEN PURPOSE DPDT 10A 120V |
0 |
|
برگه مشخصات |
RCP | Bulk | Active | Socketable | 120VAC | DPDT (2 Form C) | 10 A | 250VAC, 30VDC - Max | 2500VA, 300W | 21 mA | Non Latching | Lighted Indicator | Plug In, 8 Pin (Octal) | - | - | 95 VAC | 38.8 VAC | 30 ms | 20 ms | -40°C ~ 50°C | Silver Alloy | CE, CSA, TUV, UR | General Purpose | - | - |
|
|
RCP8002230VACRELAY GEN PURPOSE DPDT 10A 230V |
0 |
|
برگه مشخصات |
RCP | Bulk | Active | Socketable | 230VAC | DPDT (2 Form C) | 10 A | 250VAC, 30VDC - Max | 2500VA, 300W | 21 mA | Non Latching | Lighted Indicator | Plug In, 8 Pin (Octal) | - | - | 190 VAC | 77.7 VAC | 30 ms | 20 ms | -40°C ~ 50°C | Silver Alloy | CE, CSA, TUV, UR | General Purpose | - | - |
|
|
RCP800224VACRELAY GEN PURPOSE DPDT 10A 24V |
0 |
|
برگه مشخصات |
RCP | Bulk | Active | Socketable | 24VAC | DPDT (2 Form C) | 10 A | 250VAC, 30VDC - Max | 2500VA, 300W | 36.9 mA | Non Latching | Lighted Indicator, Mechanical Indicator, Test Button | Plug In, 8 Pin (Octal) | - | - | 19.2 VAC | 7.2 VAC | 30 ms | 20 ms | -40°C ~ 55°C | Silver Alloy | CE, CSA, TUV, UR | General Purpose | - | - |
|
|
RCP800224VDCRELAY GEN PURPOSE DPDT 10A 24V |
0 |
|
برگه مشخصات |
RCP | Bulk | Active | Socketable | 24VDC | DPDT (2 Form C) | 10 A | 250VAC, 30VDC - Max | 2500VA, 300W | 55.8 mA | Non Latching | Lighted Indicator, Mechanical Indicator, Test Button | Plug In, 8 Pin (Octal) | - | - | 19.2 VDC | 2.4 VDC | 30 ms | 20 ms | -40°C ~ 55°C | Silver Alloy | CE, CSA, TUV, UR | General Purpose | - | - |
|
|
15557.2RELAY GEN PURPOSE SPDT 6A 5V |
0 |
|
برگه مشخصات |
PRC | Box | Active | Socketable | 5VDC | SPDT (1 Form C) | 6 A | 400VAC - Max | 2400VA | 34 mA | Non Latching | - | Plug In | - | - | 3.5 VDC | 0.25 VDC | 12 ms | 5 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | - | General Purpose | - | - |
|
|
15558.2RELAY GEN PURPOSE SPDT 6A 12V |
0 |
|
برگه مشخصات |
PRC | Box | Active | Socketable | 12VDC | SPDT (1 Form C) | 6 A | 400VAC - Max | 2400VA | 14.2 mA | Non Latching | - | Plug In | - | - | 8.4 VDC | 0.6 VDC | 12 ms | 5 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | - | General Purpose | - | - |
|
|
15559.2RELAY GEN PURPOSE SPDT 6A 24V |
0 |
|
برگه مشخصات |
PRC | Box | Active | Socketable | 24VDC | SPDT (1 Form C) | 6 A | 400VAC - Max | 2400VA | 7.1 mA | Non Latching | - | Plug In | - | - | 16.8 VDC | 1.2 VDC | 12 ms | 5 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | - | General Purpose | - | - |
|
|
AZ2704-2A-24ATWFRELAY GEN PURPOSE DPST 30A 24V |
0 |
|
برگه مشخصات |
AZ2704 | Box | Active | Through Hole | 24VAC | DPST-NO (2 Form A) | 30 A | 400VAC, 150VDC - Max | 8310VA, 840W | 80 mA | Non Latching | - | PC Pin | - | Class F | 19.2 VAC | 3.6 VAC | 30 ms | 30 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | CUR, TUV, UL | General Purpose | - | - |
|
|
AZ2705-1A-120ATRELAY GEN PURPOSE SPST 30A 120V |
0 |
|
برگه مشخصات |
AZ2705 | Box | Active | Chassis Mount | 120VAC | SPST-NO (1 Form A) | 30 A | 277VAC, 150VDC - Max | 8310VA, 840W | 23 mA | Non Latching | - | Screw Terminal | - | Class B | 96 VAC | 18 VAC | 30 ms | 30 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | CUR, TUV, UL | General Purpose | - | - |
|
|
AZ2704-2A-24ATFRELAY GEN PURPOSE DPST 30A 24V |
0 |
|
برگه مشخصات |
AZ2704 | Box | Active | Through Hole | 24VAC | DPST-NO (2 Form A) | 30 A | 400VAC, 150VDC - Max | 8310VA, 840W | 80 mA | Non Latching | - | PC Pin | - | Class F | 19.2 VAC | 3.6 VAC | 30 ms | 30 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | CUR, TUV, UL | General Purpose | - | - |
|
|
RM85-2011-35-5240RELAY GEN PURPOSE SPDT 16A 240V |
0 |
|
- |
RM85 | Bulk | Active | Through Hole | 240VAC | SPDT (1 Form C) | 16 A | 440VAC - Max | 7040VA | 5.6 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 192 VAC | - | 7 ms | 3 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CCC, CE, CSA, UR, VDE | General Purpose | - | - |
|
|
40.52.8.230.0300RELAY GEN PURPOSE DPST 8A 230V |
0 |
|
برگه مشخصات |
40 | Bulk | Active | Socketable | 230VAC | DPST-NO (2 Form A) | 8 A | 400VAC - Max | 3200VA | 5 mA | Non Latching | - | Plug In | Sealed - Flux Protection | - | 184 VAC | 46 VAC | 7 ms | 3 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CCC, CSA, cURus, EAC, ENEC, RINA, VDE | General Purpose | - | - |
