رله های برق، بیش از 2 آمپر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | ولتاژ سیم پیچ | فرم تماس | رتبه بندی تماس (جاری) | ولتاژ سوئیچینگ | بار - حداکثر سوئیچینگ | جریان سیم پیچ | نوع کویل | ویژگی ها | سبک خاتمه | رتبه بندی مهر و موم | عایق کویل | ولتاژ باید کار کند | ولتاژ باید آزاد شود | زمان عملیات | زمان انتشار | دمای عملیاتی | مواد تماس | آژانس تایید | نوع رله | درجه | صلاحیت |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

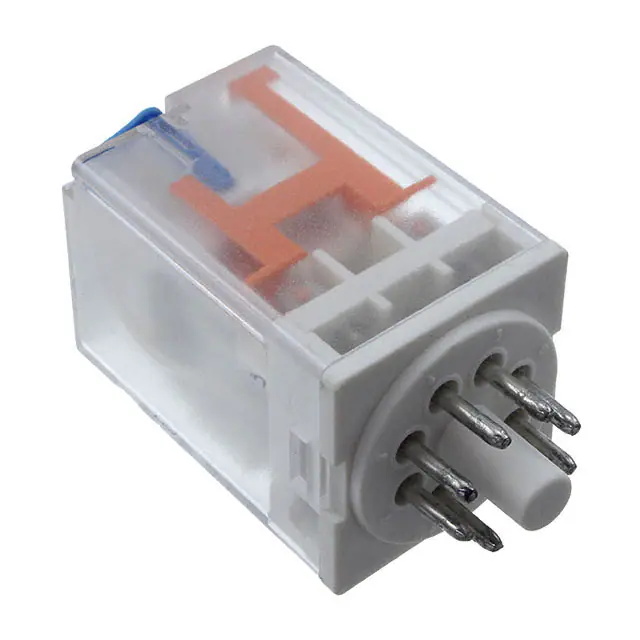

RCI002D24VRELAY GEN PURPOSE DPDT 10A 24V |
0 |
|
برگه مشخصات |
RCI | Bulk | Obsolete | Socketable | 24VDC | DPDT (2 Form C) | 10 A | 250VAC, 30VDC - Max | - | 66.7 mA | Non Latching | Lighted Indicator, Mechanical Indicator, Test Button | Plug In, 8 Pin (Octal) | - | - | 19.2 VDC | 2.4 VDC | 20 ms | 20 ms | -40°C ~ 55°C | Silver Tin Oxide (AgSnO) | CE, CSA, UR | General Purpose | - | - |
|
15334.2RELAY GEN PURPOSE DPDT 8A 48V |
0 |
|
برگه مشخصات |
PRS | Box | Active | Socketable | 48VDC | DPDT (2 Form C) | 8 A | 400VAC - Max | 3200VA | 8.7 mA | Non Latching | - | Plug In | - | - | 33.6 VDC | 4.8 VDC | 8 ms | 6 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | - | General Purpose | - | - |
|
RM205012RELAY GEN PURPOSE DPDT 16A 12V |
0 |
|
برگه مشخصات |
RM, SCHRACK | Bulk | Obsolete | Chassis Mount | 12VDC | DPDT (2 Form C) | 16 A | 440VAC - Max | 7040VA | 109 mA | Non Latching | Mechanical Indicator | Quick Connect - 0.250" (6.3mm) | - | - | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | cURus, VDE | General Purpose | - | - |
|
|
R2N-2012-23-1024-WTRELAY GEN PURPOSE DPDT 12A 24V |
0 |
|
- |
R2 | Bulk | Active | Socketable | 24VDC | DPDT (2 Form C) | 12 A | 440VAC - Max | 5280VA | 37.5 mA | Non Latching | - | Plug In, 8 Pin | - | - | - | - | 13 ms | 3 ms | -40° ~ 70°C | Silver Nickel (AgNi) | CCC, CE, CSA, TUV, UR | General Purpose | - | - |
|
|
RM85-2011-35-5230RELAY GEN PURPOSE SPDT 16A 230V |
0 |
|
- |
RM85 | Bulk | Active | Through Hole | 230VAC | SPDT (1 Form C) | 16 A | 440VAC - Max | 7040VA | 6 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 184 VAC | - | 7 ms | 3 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CCC, CE, CSA, UR, VDE | General Purpose | - | - |
|
|
AZ2800-2C-240A6ERELAY GEN PURPOSE DPDT 40A 240V |
0 |
|
برگه مشخصات |
AZ2800 | Box | Active | Chassis Mount | 240VAC | DPDT (2 Form C) | 40 A | 600VAC, 30VDC - Max | 11080VA, 1200W | 16.7 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 192 VAC | 48 VAC | 25 ms | 25 ms | -40°C ~ 65°C | Silver Cadmium Oxide (AgCdO) | CUR, UL, VDE | General Purpose | - | - |
|
8870040000RELAY GEN PURPOSE DPDT 8A 48V |
0 |
|
برگه مشخصات |
RCI | Bulk | Active | Through Hole | 48VDC | DPDT (2 Form C) | 8 A | 250VAC - Max | 2000VA | 8.7 mA | Non Latching | Test Button | PC Pin | - | - | 33.6 VDC | 4.8 VDC | 10 ms | 4 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CSA, cULus, VDE | General Purpose | - | - |
|
DK1A1B-L2-DC6VRELAY GEN PURPOSE DPST 8A 6V |
0 |
|
برگه مشخصات |
DK | Tube | Active | Through Hole | 6VDC | DPST-NO/NC (1 Form A, 1 Form B) | 8 A | 250VAC, 125VDC - Max | 2000VA, 1000W | 33.3 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 4.2 VDC | - | 10 ms | 8 ms | -40°C ~ 65°C | Silver Nickel (AgNi) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
RM202615RELAY GEN PURPOSE DPDT 16A 115V |
0 |
|
برگه مشخصات |
RM, SCHRACK | Bulk | Obsolete | Socketable | 115VAC | DPDT (2 Form C) | 16 A | 440VAC - Max | 7040VA | 57.5 mA | Non Latching | Mechanical Indicator | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 92 VAC | 34.5 VAC | 15 ms | 10 ms | -45°C ~ 60°C | Silver Cadmium Oxide (AgCdO) | cURus, VDE | General Purpose | - | - |
|
|
AZ2700-2A-220ATFRELAY GEN PURPOSE DPST 30A 220V |
0 |
|
برگه مشخصات |
AZ2700 | Box | Active | Chassis Mount | 220VAC | DPST-NO (2 Form A) | 30 A | 400VAC, 150VDC - Max | 8310VA, 840W | 10 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class F | 176 VAC | 33 VAC | 30 ms | 30 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | CUR, TUV, UL | General Purpose | - | - |
|
|
AZ2701-2A-48ATFRELAY GEN PURPOSE DPST 30A 48V |
0 |
|
برگه مشخصات |
AZ2701 | Box | Active | Chassis Mount | 48VAC | DPST-NO (2 Form A) | 30 A | 400VAC, 150VDC - Max | 8310VA, 840W | 40 mA | Non Latching | - | Plug In, Quick Connect - 0.250" (6.3mm) | - | Class F | 38.4 VAC | 7.2 VAC | 30 ms | 30 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | CUR, TUV, UL | General Purpose | - | - |
|
|
3-1415074-1RT3SKLC4 |
0 |
|
برگه مشخصات |
RT, SCHRACK | Bulk | Active | DIN Rail | 24VDC | SPDT (1 Form C) | 16 A | 400VAC - Max | 6400VA | 16.7 mA | Non Latching | Lighted Indicator, Socket Included | Screw Terminal | - | Class F | 16.8 VDC | 2.4 VDC | - | - | -20°C ~ 85°C | - | CQC, CSA, cURus, VDE | General Purpose | - | - |
|
|
MY2-GS-R DC100/110RELAY GEN PURPOSE DPDT 5A 110V |
0 |
|
برگه مشخصات |
MY | Bulk | Active | Socketable | 110VDC | DPDT (2 Form C) | 7 A | 250VAC, 220VDC - Max | 1750VA, 1540W | 9.6 mA | Non Latching | Mechanical Indicator | Plug In, Quick Connect - 0.110" (2.8mm) | - | - | 88 VDC | 11 VDC | 20 ms | 20 ms | -55°C ~ 70°C | Silver (Ag) | CE, CSA, UR, VDE | General Purpose | - | - |
|
RP414012RELAY GEN PURPOSE SPDT 12A 12V |
0 |
|
برگه مشخصات |
RP II/1, SCHRACK | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 12 A | 400VAC - Max | 4800VA | 44.4 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 8.4 VDC | 1.2 VDC | 8 ms | 2 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
|
|
AZ2800-2C-240A6EKRELAY GEN PURPOSE DPDT 40A 240V |
0 |
|
برگه مشخصات |
AZ2800 | Box | Active | Chassis Mount | 240VAC | DPDT (2 Form C) | 40 A | 600VAC, 30VDC - Max | 11080VA, 1200W | 16.7 mA | Non Latching | - | Quick Connect - 0.187"/0.250" | Sealed - Fully | Class F | 192 VAC | 48 VAC | 25 ms | 25 ms | -40°C ~ 65°C | Silver Cadmium Oxide (AgCdO) | CUR, UL, VDE | General Purpose | - | - |
|
|
AZ2800-2CE-240A6EKRELAY GEN PURPOSE DPDT 40A 240V |
0 |
|
برگه مشخصات |
AZ2800 | Box | Active | Chassis Mount | 240VAC | DPDT (2 Form C) | 40 A | 600VAC, 30VDC - Max | 11080VA, 1200W | 16.7 mA | Non Latching | - | Quick Connect - 0.187"/0.250" | Sealed - Fully | Class F | 192 VAC | 48 VAC | 25 ms | 25 ms | -40°C ~ 65°C | Silver Tin Oxide (AgSnO) | CUR, UL, VDE | General Purpose | - | - |
|
ADJ44048RELAY GEN PURPOSE DPST 10A 48V |
0 |
|
برگه مشخصات |
ADJ | Box | Active | Through Hole | 48VDC | DPST-NO/NC (1 Form A, 1 Form B) | 10 A | 250VAC - Max | 2500VA | 5.2 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 33.6 VDC | - | 20 ms | 20 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO), Gold (Au) | CQC, cURus, VDE | General Purpose | - | - |
|
|
AZ2704-2A-120ATWFRELAY GEN PURPOSE DPST 30A 120V |
0 |
|
برگه مشخصات |
AZ2704 | Box | Active | Through Hole | 120VAC | DPST-NO (2 Form A) | 30 A | 400VAC, 150VDC - Max | 8310VA, 840W | 23 mA | Non Latching | - | PC Pin | - | Class F | 96 VAC | 18 VAC | 30 ms | 30 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | CUR, TUV, UL | General Purpose | - | - |
|
APF1034HRELAY GEN PURPOSE SPST 6A 4.5V |
0 |
|
برگه مشخصات |
APF | Tube | Active | Through Hole | 4.5VDC | SPST-NO (1 Form A) | 6 A | 250VAC - Max | - | 37.8 mA | Non Latching | - | PC Pin | - | - | 3.15 VDC | 0.225 VDC | 8 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | - | General Purpose | - | - |
|
|
APF10306RELAY GEN PURPOSE SPST 6A 6V |
0 |
|
برگه مشخصات |
APF | Tube | Active | Through Hole | 6VDC | SPST-NO (1 Form A) | 6 A | 250VAC - Max | - | 28.3 mA | Non Latching | - | PC Pin | - | - | 4.2 VDC | 0.3 VDC | 8 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | - | General Purpose | - | - |
