رله های برق، بیش از 2 آمپر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | ولتاژ سیم پیچ | فرم تماس | رتبه بندی تماس (جاری) | ولتاژ سوئیچینگ | بار - حداکثر سوئیچینگ | جریان سیم پیچ | نوع کویل | ویژگی ها | سبک خاتمه | رتبه بندی مهر و موم | عایق کویل | ولتاژ باید کار کند | ولتاژ باید آزاد شود | زمان عملیات | زمان انتشار | دمای عملیاتی | مواد تماس | آژانس تایید | نوع رله | درجه | صلاحیت |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LY1I4 AC110/120RELAY GEN PURPOSE SPDT 15A 120V |
0 |
|
برگه مشخصات |
LY | Bulk | Obsolete | Socketable | 120VAC | SPDT (1 Form C) | 15 A | 250VAC, 125VDC - Max | 3750VA, 1875W | 9.2 mA | Non Latching | Test Button | Plug In | - | - | 96 VAC | 36 VAC | 25 ms | 25 ms | -25°C ~ 55°C | Silver Alloy | CE, CSA, TUV, UR | General Purpose | - | - |
|
|
LY1I4 AC24RELAY GEN PURPOSE SPDT 15A 24V |
0 |
|
برگه مشخصات |
LY | Bulk | Obsolete | Socketable | 24VAC | SPDT (1 Form C) | 15 A | 250VAC, 125VDC - Max | 3750VA, 1875W | 46 mA | Non Latching | Test Button | Plug In | - | - | 19.2 VAC | 7.2 VAC | 25 ms | 25 ms | -25°C ~ 55°C | Silver Alloy | CE, CSA, TUV, UR | General Purpose | - | - |
|
|
55.32.8.012.0040IND. PLUG-IN RELAY, DPDT 10A, 12 |
0 |
|
برگه مشخصات |
55 | Bulk | Active | Socketable | 12VAC | DPDT (2 Form C) | 10 A | 400VAC - Max | 4000VA | 97 mA | Non Latching | Mechanical Indicator, Test Button | Plug In | - | - | 9.6 VAC | 2.4 VAC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CCC, CE, CSA, cURus, EAC, ENEC, RINA, UKCA, VDE | General Purpose | - | - |
|
|
AZ2850-2CE-24ARELAY GEN PURPOSE DPDT 40A 24V |
0 |
|
برگه مشخصات |
AZ2850 | Box | Active | Through Hole | 24VAC | DPDT (2 Form C) | 40 A | 600VAC, 30VDC - Max | 11080VA, 1200W | 166 mA | Non Latching | - | PC Pin | - | Class F | 19.2 VAC | 4.8 VAC | 25 ms | 25 ms | -40°C ~ 65°C | Silver Tin Oxide (AgSnO) | CUR, UL, VDE | General Purpose | - | - |
|
|
AZ2850-2CE-240A5ERELAY GEN PURPOSE DPDT 40A 240V |
0 |
|
برگه مشخصات |
AZ2850 | Box | Active | Through Hole | 240VAC | DPDT (2 Form C) | 40 A | 600VAC, 30VDC - Max | 11080VA, 1200W | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 192 VAC | 48 VAC | 25 ms | 25 ms | -40°C ~ 65°C | Silver Tin Oxide (AgSnO) | CUR, UL, VDE | General Purpose | - | - |
|
|
15812T2T0RELAY GEN PURP |
0 |
|
- |
158, CII | Bulk | Obsolete | Socketable | 120VAC | DPDT (2 Form C) | 10 A | 120VAC, 28VDC - Nom | 1200VA, 280W | 30.8 mA | Non Latching | - | Plug In | - | - | 102 VAC | - | 13 ms | 10 ms | - | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
|
RPYA002A120LRELAY GEN PURPOSE DPDT 10A 120V |
0 |
|
برگه مشخصات |
RPY | Box | Not For New Designs | Socketable | 120VAC | DPDT (2 Form C) | 10 A | 250VAC - Max | 2500VA | 10 mA | Non Latching | - | Plug In | - | - | 96 VAC | 36 VAC | 20 ms | 20 ms | -25°C ~ 55°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | CE, CSA, TUV, UR | General Purpose | - | - |
|

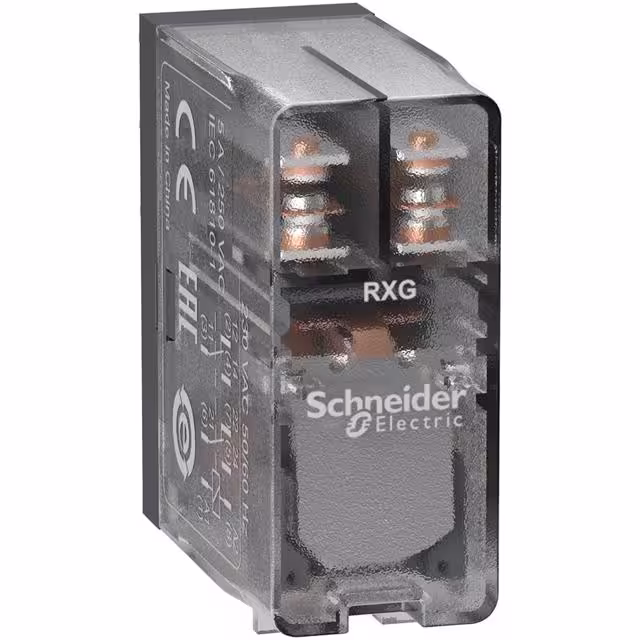

RXG25B7HARMONY, INTERFACE PLUG-IN RELAY |
0 |
|
برگه مشخصات |
Harmony | Box | Active | Socketable | 24VAC | DPDT (2 Form C) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | - | Non Latching | - | Plug In | - | - | - | 7.2 VAC | 20 ms | 20 ms | -40°C ~ 70°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | CE, CSA, DNV-GL, EAC, UL | General Purpose | - | - |
|
|
G7L-2A-T-CB DC48RELAY GEN PURPOSE DPST 25A 48V |
0 |
|
برگه مشخصات |
G7L | Bulk | Active | Chassis Mount | 48VDC | DPST-NO (2 Form A) | 25 A | 250VAC - Max | 6250VA | 40 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class B | 36 VDC | 7.2 VDC | 30 ms | 30 ms | -25°C ~ 60°C | Silver Alloy | CSA, TUV, UR | General Purpose | - | - |
|
|
G7L-2A-TUB-CB DC48RELAY GEN PURPOSE DPST 25A 48V |
0 |
|
برگه مشخصات |
G7L | Bulk | Active | Chassis Mount | 48VDC | DPST-NO (2 Form A) | 25 A | 250VAC - Max | 6250VA | 40 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class B | 36 VDC | 7.2 VDC | 30 ms | 30 ms | -25°C ~ 60°C | Silver Alloy | CSA, TUV, UR | General Purpose | - | - |
|
|
G7L-1A-TUB DC48RELAY GEN PURPOSE SPST 30A 48V |
0 |
|
- |
G7L | Bulk | Active | Chassis Mount | 48VDC | SPST-NO (1 Form A) | 30 A | 250VAC - Max | 7500VA | 40 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | - | 36 VDC | 7.2 VDC | 30 ms | 30 ms | -25°C ~ 60°C | Silver Alloy | CSA, TUV, UR | General Purpose | - | - |
|
8689840000RELAY GEN PURPOSE DPDT 12A 12V |
0 |
|
برگه مشخصات |
RCM | Bulk | Active | Socketable | 12VDC | DPDT (2 Form C) | 12 A | 400VAC - Max | 4800VA | 62.5 mA | Non Latching | Test Button | Plug In, Quick Connect - 0.110" (2.8mm) | - | - | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CSA, cURus, UKCA, VDE | General Purpose | - | - |
|
8689760000RELAY GEN PURPOSE DPDT 12A 24V |
0 |
|
برگه مشخصات |
RCM | Bulk | Active | Socketable | 24VAC | DPDT (2 Form C) | 12 A | 400VAC - Max | 4800VA | 41.6 mA | Non Latching | Test Button | Plug In, Quick Connect - 0.110" (2.8mm) | - | - | 19.2 VAC | 7.2 VAC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CSA, cURus, UKCA, VDE | General Purpose | - | - |
|
|
R4N-2014-23-5230-WTRELAY GEN PURPOSE 4PDT 6A 230V |
0 |
|
- |
R4 | Bulk | Active | Socketable | 230VAC | 4PDT (4 Form C) | 6 A | 250VAC - Max | 1500VA | 14.3 mA | Non Latching | - | Plug In, 14 Pin | - | - | - | - | 10 ms | 8 ms | -40°C ~ 55°C | Silver Nickel (AgNi) | CCC, CE, CSA, TUV, UR | General Purpose | - | - |
|
|
40.52.9.012.5000RELAY GEN PURPOSE DPDT 8A 12V |
0 |
|
برگه مشخصات |
40 | Bulk | Active | Socketable | 12VDC | DPDT (2 Form C) | 8 A | 400VAC - Max | 3200VA | 55 mA | Non Latching | - | Plug In | Sealed - Flux Protection | - | 8.8 VDC | 2.4 VDC | 7 ms | 3 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CCC, CSA, cURus, EAC, ENEC, RINA, VDE | General Purpose | - | - |
|
|
40.52.9.024.5000RELAY GEN PURPOSE DPDT 8A 24V |
0 |
|
برگه مشخصات |
40 | Bulk | Active | Socketable | 24VDC | DPDT (2 Form C) | 8 A | 400VAC - Max | 3200VA | 27 mA | Non Latching | - | Plug In | Sealed - Flux Protection | - | 17.5 VDC | 4.8 VDC | 7 ms | 3 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CCC, CSA, cURus, EAC, ENEC, RINA, VDE | General Purpose | - | - |
|
|
40.52.7.024.5000RELAY GEN PURPOSE DPDT 8A 24V |
0 |
|
برگه مشخصات |
40 | Bulk | Active | Socketable | 24VDC | DPDT (2 Form C) | 8 A | 400VAC - Max | 3200VA | 21 mA | Non Latching | - | Plug In | Sealed - Flux Protection | - | 17.5 VDC | 4.8 VDC | 12 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CCC, CSA, cURus, EAC, ENEC, RINA, VDE | General Purpose | - | - |
|
|
J1672AF110VDCQTRELAY GEN PURPOSE DPST |
0 |
|
برگه مشخصات |
J167 | Tray | Active | Chassis Mount | 110VDC | DPST-NO (2 Form A) | 30 A | 277VAC, 30VDC - Max | 5500VA | 17.3 mA | Non Latching | Test Button | Quick Connect - 0.250" (6.3mm) | - | Class F | 77 VDC | 11 VDC | 30 ms | 30 ms | -40°C ~ 85°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | cURus, TUV | General Purpose | - | - |
|
|
J1672AC220VDCPTRELAY GEN PURPOSE DPST |
0 |
|
برگه مشخصات |
J167 | Tray | Active | Through Hole | 220VDC | DPST-NO (2 Form A) | 30 A | 277VAC, 30VDC - Max | 5500VA | 8.6 mA | Non Latching | Test Button | PC Pin | - | Class F | 154 VDC | 22 VDC | 30 ms | 30 ms | -40°C ~ 85°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | cURus, TUV | General Purpose | - | - |
|
|
J1672AF12VACQTRELAY GEN PURPOSE DPST |
0 |
|
برگه مشخصات |
J167 | Tray | Active | Chassis Mount | 12VAC | DPST-NO (2 Form A) | 30 A | 277VAC, 30VDC - Max | 5500VA | 218.2 mA | Non Latching | Test Button | Quick Connect - 0.250" (6.3mm) | - | Class F | 8.4 VAC | 1.2 VAC | 30 ms | 30 ms | -40°C ~ 85°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | cURus, TUV | General Purpose | - | - |
