رله های برق، بیش از 2 آمپر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | ولتاژ سیم پیچ | فرم تماس | رتبه بندی تماس (جاری) | ولتاژ سوئیچینگ | بار - حداکثر سوئیچینگ | جریان سیم پیچ | نوع کویل | ویژگی ها | سبک خاتمه | رتبه بندی مهر و موم | عایق کویل | ولتاژ باید کار کند | ولتاژ باید آزاد شود | زمان عملیات | زمان انتشار | دمای عملیاتی | مواد تماس | آژانس تایید | نوع رله | درجه | صلاحیت |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RY4V-UDC12V4PDT PCB RELAY |
0 |
|
- |
RY | Bulk | Obsolete | Socketable | 12VDC | 4PDT (4 Form C) | 5 A | 240VAC, 30VDC - Max | 1200VA, 150W | 75 mA | Non Latching | - | Plug In | - | - | 9.6 VDC | 1.2 VDC | 20 ms | 20 ms | -25°C ~ 55°C | Silver (Ag), Gold (Au) | CE, CSA, TUV, UR | General Purpose | - | - |
|
2575990000RELAY GEN PURPOSE DPDT 10A 115V |
0 |
|
برگه مشخصات |
DRM | Bulk | Active | DIN Rail | 115VAC | DPDT (2 Form C) | 10 A | 250VAC - Max | 2500VA | 288 mA | Non Latching | Lighted Indicator, Socket Included | Spring Terminal | - | - | 92 VAC | 34.5 VAC | 20 ms | 20 ms | -40°C ~ 55°C | Silver Nickel (AgNi), Gold (Au) | CE | General Purpose | - | - |
|
|
276XAXH-24DPRINTED CIRCUIT BOARD RELAY |
0 |
|
برگه مشخصات |
- | Box | Active | Through Hole | 24VDC | SPDT (1 Form C) | 10 A | 240VAC, 30VDC - Max | - | 8.3 mA | Non Latching | - | PC Pin | Sealed - Fully | Class E | 19.2 VDC | 2.4 VDC | 10 ms | - | -40°C ~ 70°C | Silver (Ag), Gold (Au) | UL | General Purpose | - | - |
|
|
J1672AF24VDCZDRELAY GEN PURPOSE DPST |
0 |
|
برگه مشخصات |
J167 | Tray | Active | Chassis Mount | 24VDC | DPST-NO (2 Form A) | 30 A | 277VAC, 30VDC - Max | 5500VA | 79.2 mA | Non Latching | Lighted Indicator | Screw Terminal | - | Class F | 16.8 VDC | 2.4 VDC | 30 ms | 30 ms | -40°C ~ 85°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | cURus, TUV | General Purpose | - | - |
|
|
J1672AF240VACZDRELAY GEN PURPOSE DPST |
0 |
|
برگه مشخصات |
J167 | Tray | Active | Chassis Mount | 240VAC | DPST-NO (2 Form A) | 30 A | 277VAC, 30VDC - Max | 5500VA | 11.4 mA | Non Latching | Lighted Indicator | Screw Terminal | - | Class F | 168 VAC | 24 VAC | 30 ms | 30 ms | -40°C ~ 85°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | cURus, TUV | General Purpose | - | - |
|
|
J1671AF110VDCZDTRELAY GEN PURPOSE SPST |
0 |
|
برگه مشخصات |
J167 | Tray | Active | Chassis Mount | 110VDC | SPST-NO (1 Form A) | 30 A | 277VAC, 30VDC - Max | 6600VA | 17.3 mA | Non Latching | Lighted Indicator, Test Button | Screw Terminal | - | Class F | 77 VDC | 11 VDC | 30 ms | 30 ms | -40°C ~ 85°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | cURus, TUV | General Purpose | - | - |
|
|
J1671AF220VDCZDTRELAY GEN PURPOSE SPST |
0 |
|
برگه مشخصات |
J167 | Tray | Active | Chassis Mount | 220VDC | SPST-NO (1 Form A) | 30 A | 277VAC, 30VDC - Max | 6600VA | 8.6 mA | Non Latching | Lighted Indicator, Test Button | Screw Terminal | - | Class F | 154 VDC | 22 VDC | 30 ms | 30 ms | -40°C ~ 85°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | cURus, TUV | General Purpose | - | - |
|
|
J1671AF12VACZDTRELAY GEN PURPOSE SPST |
0 |
|
برگه مشخصات |
J167 | Tray | Active | Chassis Mount | 12VAC | SPST-NO (1 Form A) | 30 A | 277VAC, 30VDC - Max | 6600VA | 218.2 mA | Non Latching | Lighted Indicator, Test Button | Screw Terminal | - | Class F | 8.4 VAC | 1.2 VAC | 30 ms | 30 ms | -40°C ~ 85°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | cURus, TUV | General Purpose | - | - |
, G2R-1-S-DC12S, G2R-1-S-DC24S, G2R-1-S-DC48(S).jpg)
|
G2R-1-S DC5(S)RELAY GEN PURPOSE SPDT 10A 5V |
0 |
|
برگه مشخصات |
G2RS | Bulk | Obsolete | Socketable | 5VDC | SPDT (1 Form C) | 10 A | 440VAC, 125VDC - Max | 4400VA, 1250W | 106 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 3.5 VDC | 0.75 VDC | 15 ms | 10 ms | -40°C ~ 70°C | - | CE, CSA, LR, UR, VDE | General Purpose | - | - |
|
|
MY2F-AC220/240RELAY GEN PURPOSE DPDT 5A 240V |
0 |
|
برگه مشخصات |
MY | Bulk | Active | Chassis Mount | 240VAC | DPDT (2 Form C) | 5 A | 250VAC, 125VDC - Max | 1250VA, 625W | 12.8 mA | Non Latching | - | Solder Lug | - | - | 192 VAC | 72 VAC | 20 ms | 20 ms | -55°C ~ 70°C | Silver (Ag) | CE, CSA, UR, VDE | General Purpose | - | - |
|

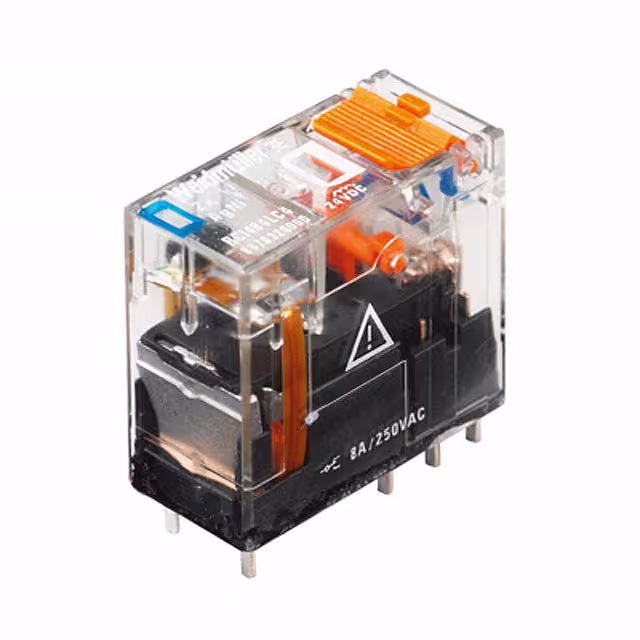

8869980000RELAY GEN PURPOSE SPDT 16A 110V |
0 |
|
برگه مشخصات |
RCI | Bulk | Obsolete | Through Hole | 110VDC | SPDT (1 Form C) | 16 A | 250VAC - Max | 4000VA | 4.1 mA | Non Latching | Test Button | PC Pin | - | - | 77 VDC | 11 VDC | 8 ms | 6 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CSA, cULus, VDE | General Purpose | - | - |
|
G6B-1177P-FD-ND-USDC24RELAY GEN PURPOSE SPST 8A 24V |
0 |
|
برگه مشخصات |
G6B | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 8 A | 380VAC, 125VDC - Max | 3040VA, 1000W | 8.3 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 16.8 VDC | 2.4 VDC | 10 ms | 10 ms | -25°C ~ 70°C | Silver Indium Tin (AgInSn) | CSA, TUV, UR | General Purpose | - | - |
|
|
8530700000RELAY GEN PURPOSE DPDT 10A 24V |
0 |
|
- |
PRZ | Bulk | Obsolete | DIN Rail | 24VDC | DPDT (2 Form C) | 10 A | 250VAC - Max | 2500VA | 16.7 mA | Non Latching | Lighted Indicator, Socket Included | Spring Terminal | - | - | 16.8 VDC | 2.4 VDC | - | - | -40°C ~ 50°C | - | CE, cURus | General Purpose | - | - |
|
|
55.32.9.125.0040RELAY GEN PURPOSE DPDT 10A 125V |
0 |
|
برگه مشخصات |
55 | Bulk | Active | Socketable | 125VDC | DPDT (2 Form C) | 10 A | 400VAC - Max | 4000VA | 7.2 mA | Non Latching | Mechanical Indicator, Test Button | Plug In | - | - | 100 VDC | 25 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CCC, CE, CSA, cURus, EAC, ENEC, RINA, UKCA, VDE | General Purpose | - | - |
|
|
56.32.8.120.0030RELAY GEN PURPOSE DPDT 12A 120V |
0 |
|
برگه مشخصات |
56 | Bulk | Active | Socketable | 120VAC | DPDT (2 Form C) | 12 A | 400VAC - Max | 4800VA | 12 mA | Non Latching | Lighted Indicator | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 96 VAC | 24 VAC | 9 ms | 6 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CCC, CE, CSA, cURus, EAC, ENEC, RINA, UKCA, VDE | General Purpose | - | - |
|
|
55.32.8.110.0050RELAY GEN PURPOSE DPDT 10A 110V |
0 |
|
برگه مشخصات |
55 | Bulk | Active | Socketable | 110VAC | DPDT (2 Form C) | 10 A | 400VAC - Max | 4000VA | 12.5 mA | Non Latching | Lighted Indicator, Test Button | Plug In | - | - | 88 VAC | 22 VAC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CCC, CE, CSA, cURus, EAC, ENEC, RINA, UKCA, VDE | General Purpose | - | - |
|
|
56.32.9.024.0094RELAY GEN PURPOSE DPDT 12A 24V |
0 |
|
برگه مشخصات |
56 | Bulk | Active | Socketable | 24VDC | DPDT (2 Form C) | 12 A | 400VAC - Max | 4800VA | 40 mA | Non Latching | Diode, Lighted Indicator, Mechanical Indicator, Test Button | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 19.2 VDC | 4.8 VDC | 9 ms | 6 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CCC, CE, CSA, cURus, EAC, ENEC, RINA, UKCA, VDE | General Purpose | - | - |
|
|
56.32.9.024.0090RELAY GEN PURPOSE DPDT 12A 24V |
0 |
|
برگه مشخصات |
56 | Bulk | Active | Socketable | 24VDC | DPDT (2 Form C) | 12 A | 400VAC - Max | 4800VA | 40 mA | Non Latching | Diode, Lighted Indicator, Test Button | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 19.2 VDC | 4.8 VDC | 9 ms | 6 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CCC, CE, CSA, cURus, EAC, ENEC, RINA, UKCA, VDE | General Purpose | - | - |
|
|
56.32.9.012.0070RELAY GEN PURPOSE DPDT 12A 12V |
0 |
|
برگه مشخصات |
56 | Bulk | Active | Socketable | 12VDC | DPDT (2 Form C) | 12 A | 400VAC - Max | 4800VA | 86 mA | Non Latching | Lighted Indicator, Test Button | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 9.6 VDC | 2.4 VDC | 9 ms | 6 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CCC, CE, CSA, cURus, EAC, ENEC, RINA, UKCA, VDE | General Purpose | - | - |
|
|
56.32.9.024.0060RELAY GEN PURPOSE DPDT 12A 24V |
0 |
|
برگه مشخصات |
56 | Bulk | Active | Socketable | 24VDC | DPDT (2 Form C) | 12 A | 400VAC - Max | 4800VA | 40 mA | Non Latching | Lighted Indicator | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 19.2 VDC | 4.8 VDC | 9 ms | 6 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CCC, CE, CSA, cURus, EAC, ENEC, RINA, UKCA, VDE | General Purpose | - | - |
