رله های برق، بیش از 2 آمپر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | ولتاژ سیم پیچ | فرم تماس | رتبه بندی تماس (جاری) | ولتاژ سوئیچینگ | بار - حداکثر سوئیچینگ | جریان سیم پیچ | نوع کویل | ویژگی ها | سبک خاتمه | رتبه بندی مهر و موم | عایق کویل | ولتاژ باید کار کند | ولتاژ باید آزاد شود | زمان عملیات | زمان انتشار | دمای عملیاتی | مواد تماس | آژانس تایید | نوع رله | درجه | صلاحیت |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
8690450000RELAY GEN PURPOSE 3PDT 10A 24V |
0 |
|
برگه مشخصات |
RRD | Bulk | Obsolete | Socketable | 24VAC | 3PDT (3 Form C) | 10 A | 400VAC - Max | 4000VA | 94.2 mA | Non Latching | Test Button | Plug In, 11 Pin (Octal) | - | - | 19.2 VAC | 7.2 VAC | 15 ms | 10 ms | -40°C ~ 60°C | Silver Nickel (AgNi) | CSA, cURus, VDE | General Purpose | - | - |
|
1-1415074-1RELAY GEN PURPOSE DPDT 8A 24V |
0 |
|
برگه مشخصات |
RT, SCHRACK | Bulk | Active | DIN Rail | 24VAC | DPDT (2 Form C) | 8 A | 400VAC - Max | 3200VA | 31.6 mA | Non Latching | Lighted Indicator, Socket Included | Screw Terminal | - | Class F | 18 VAC | 3.6 VAC | - | - | -20°C ~ 70°C | Silver Nickel (AgNi) | CQC, CSA, cURus, VDE | General Purpose | - | - |
|
R2M-2012-23-5012RELAY GEN PURPOSE DPDT 5A 12V |
0 |
|
- |
R2M | Bulk | Active | Socketable | 12VAC | DPDT (2 Form C) | 5 A | 250VAC - Max | 1250VA | - | Non Latching | - | Plug In, 8 Pin | - | - | - | - | 8 ms | 7 ms | -40°C ~ 55°C | Silver Nickel (AgNi) | CCC, CE, CSA, TUV, UR | General Purpose | - | - |
|
|
16076.2RELAY GEN PURPOSE SPDT 12A 5V |
0 |
|
برگه مشخصات |
PRS | Box | Active | Through Hole | 5VDC | SPDT (1 Form C) | 12 A | 400VAC - Max | 4800VA | 80.6 mA | Non Latching | - | PC Pin | - | - | 3.5 VDC | 0.5 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | - | General Purpose | - | - |
|
1123780000RELAY GEN PURPOSE DPDT 8A 120V |
0 |
|
برگه مشخصات |
TERMSERIES | Bulk | Active | DIN Rail | 120VAC/DC | DPDT (2 Form C) | 8 A | 250VAC, 250VDC - Max | - | 3.5 mA | Non Latching | - | Screw Terminal | - | - | - | - | 9 ms | 12 ms | -40°C ~ 60°C | Silver Nickel (AgNi) | CE, cULus, EAC | General Purpose | - | - |
|
NC2EBD-P-DC3VRELAY GEN PURPOSE DPDT 5A 3V |
0 |
|
برگه مشخصات |
NC | Box | Active | Through Hole | 3VDC | DPDT (2 Form C) | 5 A | 250VAC - Max | 1250VA | 120 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 2.4 VDC | 0.3 VDC | 20 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | CSA, UR | General Purpose | - | - |
|
|
NC2EBD-P-DC6VRELAY GEN PURPOSE DPDT 5A 6V |
0 |
|
برگه مشخصات |
NC | Box | Active | Through Hole | 6VDC | DPDT (2 Form C) | 5 A | 250VAC - Max | 1250VA | 60 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 4.8 VDC | 0.6 VDC | 20 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | CSA, UR | General Purpose | - | - |
|
G2R-14 DC100 BY OMIRELAY GEN PURPOSE SPDT 8A 100V |
0 |
|
برگه مشخصات |
G2R | Tray | Active | Through Hole | 100VDC | SPDT (1 Form C) | 8 A | 380VAC, 125VDC - Max | 3040VA, 1000W | 5.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 70 VDC | 15 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | CSA, TUV, UR, VDE | General Purpose | - | - |
|
8690330000RELAY GEN PURPOSE DPDT 10A 230V |
0 |
|
برگه مشخصات |
RRD | Bulk | Obsolete | Socketable | 230VAC | DPDT (2 Form C) | 10 A | 400VAC - Max | 4000VA | 10.1 mA | Non Latching | Test Button | Plug In, 8 Pin (Octal) | - | - | 184 VAC | 92 VAC | 15 ms | 10 ms | -40°C ~ 50°C | Silver Nickel (AgNi) | CSA, cURus, VDE | General Purpose | - | - |
|
MK3P5-S-AC24RELAY GEN PURPOSE 3PDT 10A 24V |
0 |
|
برگه مشخصات |
MK | Bulk | Obsolete | Socketable | 24VAC | 3PDT (3 Form C) | 10 A | 250VAC, 250VDC - Max | 2500VA, 280W | 88 mA | Non Latching | Mechanical Indicator, Test Button | Plug In, 11 Pin (Octal) | - | - | 19.2 VAC | 7.2 VAC | 20 ms | 20 ms | -10°C ~ 40°C | Silver (Ag) | DEMKO, SEV, TUV, UL | General Purpose | - | - |
|

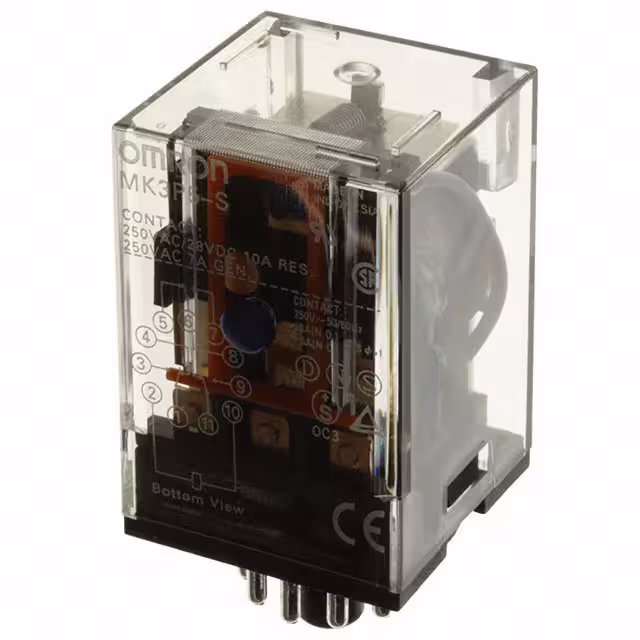

MK3P5-S-DC12RELAY GEN PURPOSE 3PDT 10A 12V |
0 |
|
برگه مشخصات |
MK | Bulk | Obsolete | Socketable | 12VDC | 3PDT (3 Form C) | 10 A | 250VAC, 250VDC - Max | 2500VA, 280W | 126 mA | Non Latching | Mechanical Indicator, Test Button | Plug In, 11 Pin (Octal) | - | - | 9.6 VDC | 1.8 VDC | 30 ms | 20 ms | -10°C ~ 40°C | Silver (Ag) | DEMKO, SEV, TUV, UL | General Purpose | - | - |
|
8870270000RELAY GEN PURPOSE SPDT 16A 110V |
0 |
|
برگه مشخصات |
RCI | Bulk | Active | Through Hole | 110VDC | SPDT (1 Form C) | 16 A | 250VAC - Max | 4000VA | 4.1 mA | Non Latching | Diode, Lighted Indicator, Test Button | PC Pin | - | - | 77 VDC | 11 VDC | 8 ms | 6 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CSA, cULus, VDE | General Purpose | - | - |
|
S3EB-9VRELAY GEN PURPOSE 4PST 4A 9V |
0 |
|
برگه مشخصات |
S | Box | Active | Through Hole | 9VDC | 4PST-3NO/1NC (3 Form A, 1 Form B) | 4 A | 250VAC, 48VDC - Max | 1000VA, 192W | 22.2 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 6.3 VDC | 0.9 VDC | 15 ms | 10 ms | -55°C ~ 65°C | Silver Alloy, Cadmium Free | CSA, UR | General Purpose | - | - |
|
LY1-0-T130 DC24RELAY GEN PURPOSE SPDT 15A 24V |
0 |
|
برگه مشخصات |
LY | Bulk | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 15 A | 250VAC, 125VDC - Max | 3750VA, 1875W | 36.9 mA | Non Latching | - | PC Pin | - | - | 19.2 VDC | 2.4 VDC | 25 ms | 25 ms | -25°C ~ 55°C | Silver Alloy | CE, CSA, TUV, UR | General Purpose | - | - |
|
|
J1672AF120VACZDTRELAY GEN PURPOSE DPST |
0 |
|
برگه مشخصات |
J167 | Tray | Active | Chassis Mount | 120VAC | DPST-NO (2 Form A) | 30 A | 277VAC, 30VDC - Max | 5500VA | 23.1 mA | Non Latching | Lighted Indicator, Test Button | Screw Terminal | - | Class F | 84 VAC | 12 VAC | 30 ms | 30 ms | -40°C ~ 85°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | cURus, TUV | General Purpose | - | - |
|
|
J1672AF12VDCZDTRELAY GEN PURPOSE DPST |
0 |
|
برگه مشخصات |
J167 | Tray | Active | Chassis Mount | 12VDC | DPST-NO (2 Form A) | 30 A | 277VAC, 30VDC - Max | 5500VA | 160 mA | Non Latching | Lighted Indicator, Test Button | Screw Terminal | - | Class F | 8.4 VDC | 1.2 VDC | 30 ms | 30 ms | -40°C ~ 85°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | cURus, TUV | General Purpose | - | - |
|
|
J1672AF48VACZDTRELAY GEN PURPOSE DPST |
0 |
|
برگه مشخصات |
J167 | Tray | Active | Chassis Mount | 48VAC | DPST-NO (2 Form A) | 30 A | 277VAC, 30VDC - Max | 5500VA | 43.6 mA | Non Latching | Lighted Indicator, Test Button | Screw Terminal | - | Class F | 33.6 VAC | 4.8 VAC | 30 ms | 30 ms | -40°C ~ 85°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | cURus, TUV | General Purpose | - | - |
|
|
J1672AF6VDCZDTRELAY GEN PURPOSE DPST |
0 |
|
برگه مشخصات |
J167 | Tray | Active | Chassis Mount | 6VDC | DPST-NO (2 Form A) | 30 A | 277VAC, 30VDC - Max | 5500VA | 315.8 mA | Non Latching | Lighted Indicator, Test Button | Screw Terminal | - | Class F | 4.2 VDC | 0.6 VDC | 30 ms | 30 ms | -40°C ~ 85°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | cURus, TUV | General Purpose | - | - |
|
|
J1672AF48VDCZDTRELAY GEN PURPOSE DPST |
0 |
|
برگه مشخصات |
J167 | Tray | Active | Chassis Mount | 48VDC | DPST-NO (2 Form A) | 30 A | 277VAC, 30VDC - Max | 5500VA | 39.3 mA | Non Latching | Lighted Indicator, Test Button | Screw Terminal | - | Class F | 33.6 VDC | 4.8 VDC | 30 ms | 30 ms | -40°C ~ 85°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | cURus, TUV | General Purpose | - | - |
|
|
J1672AF24VACZDTRELAY GEN PURPOSE DPST |
0 |
|
برگه مشخصات |
J167 | Tray | Active | Chassis Mount | 24VAC | DPST-NO (2 Form A) | 30 A | 277VAC, 30VDC - Max | 5500VA | 87.3 mA | Non Latching | Lighted Indicator, Test Button | Screw Terminal | - | Class F | 16.8 VAC | 2.4 VAC | 30 ms | 30 ms | -40°C ~ 85°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | cURus, TUV | General Purpose | - | - |
