رله های برق، بیش از 2 آمپر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | ولتاژ سیم پیچ | فرم تماس | رتبه بندی تماس (جاری) | ولتاژ سوئیچینگ | بار - حداکثر سوئیچینگ | جریان سیم پیچ | نوع کویل | ویژگی ها | سبک خاتمه | رتبه بندی مهر و موم | عایق کویل | ولتاژ باید کار کند | ولتاژ باید آزاد شود | زمان عملیات | زمان انتشار | دمای عملیاتی | مواد تماس | آژانس تایید | نوع رله | درجه | صلاحیت |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RH1V2-UDC48VRELAY PCB SPDT 10A 48VDC |
0 |
|
برگه مشخصات |
RH | Bulk | Active | Through Hole | 48VDC | SPDT (1 Form C) | 10 A | 240VAC, 30VDC - Max | 2400VA, 300W | 18 mA | Non Latching | - | PC Pin | - | - | 38.4 VDC | 4.8 VDC | 20 ms | 20 ms | -25°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CE, CSA, cURus, TUV | General Purpose | - | - |
|
|
RH1B-UDC6VRELAY PLUG-IN SPDT 10A 6VDC |
0 |
|
برگه مشخصات |
RH | Bulk | Active | Socketable | 6VDC | SPDT (1 Form C) | 10 A | 240VAC, 30VDC - Max | 2400VA, 300W | 128 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 4.8 VDC | 0.6 VDC | 20 ms | 20 ms | -25°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CE, CSA, cURus, TUV | General Purpose | - | - |
|
|
RH1V2-UDC6VRELAY PCB SPDT 10A 6VDC |
0 |
|
برگه مشخصات |
RH | Bulk | Active | Through Hole | 6VDC | SPDT (1 Form C) | 10 A | 240VAC, 30VDC - Max | 2400VA, 300W | 128 mA | Non Latching | - | PC Pin | - | - | 4.8 VDC | 0.6 VDC | 20 ms | 20 ms | -25°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CE, CSA, cURus, TUV | General Purpose | - | - |
|
|
56.32.8.240.0050RELAY GEN PURPOSE DPDT 12A 240V |
0 |
|
برگه مشخصات |
56 | Bulk | Active | Socketable | 240VAC | DPDT (2 Form C) | 12 A | 400VAC - Max | 4800VA | 5.3 mA | Non Latching | Lighted Indicator, Test Button | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 192 VAC | 48 VAC | 9 ms | 6 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CCC, CE, CSA, cURus, EAC, ENEC, RINA, UKCA, VDE | General Purpose | - | - |
|
|
56.32.8.240.0030RELAY GEN PURPOSE DPDT 12A 240V |
0 |
|
برگه مشخصات |
56 | Bulk | Active | Socketable | 240VAC | DPDT (2 Form C) | 12 A | 400VAC - Max | 4800VA | 5.3 mA | Non Latching | Lighted Indicator | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 192 VAC | 48 VAC | 9 ms | 6 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CCC, CE, CSA, cURus, EAC, ENEC, RINA, UKCA, VDE | General Purpose | - | - |
|
|
5-1415008-1RELAY GEN PURP |
0 |
|
برگه مشخصات |
RM, SCHRACK | Bulk | Obsolete | Through Hole | 24VAC | DPST-NO (2 Form A) | 16 A | 440VAC - Max | 7040VA | 300 mA | Non Latching | - | PC Pin | - | Class B | 20.4 VAC | 7.2 VAC | 20 ms | 5 ms | -40°C ~ 50°C | Silver Cadmium Oxide (AgCdO) | cURus, VDE | General Purpose | - | - |
|
|
RY4S-UDC100-110V4PDT RELAY |
0 |
|
- |
RY | Bulk | Obsolete | Socketable | 100 ~ 110VDC | 4PDT (4 Form C) | 5 A | 240VAC, 30VDC - Max | 1200VA, 150W | 8.2 mA | Non Latching | - | Plug In | - | - | - | - | 20 ms | 20 ms | -25°C ~ 55°C | Silver (Ag), Gold (Au) | CE, CSA, TUV, UR | General Purpose | - | - |
|
|
RY4V-UDC100-110V4PDT RELAY |
0 |
|
- |
RY | Bulk | Obsolete | Socketable | 100 ~ 110VDC | 4PDT (4 Form C) | 5 A | 240VAC, 30VDC - Max | 1200VA, 150W | - | Non Latching | - | Plug In | - | - | - | - | 20 ms | 20 ms | -25°C ~ 55°C | Silver (Ag), Gold (Au) | CE, CSA, TUV, UR | General Purpose | - | - |
|
|
RU2S-C-A24RELAY PLUG-IN DPDT 10A 24VAC |
0 |
|
- |
RU | Bulk | Active | Socketable | 24VAC | DPDT (2 Form C) | 10 A | 250VAC, 30VDC - Max | 2500VA, 300W | 42.5 mA | Non Latching | Lighted Indicator, Mechanical Indicator | Plug In, 8 Pin | - | - | 19.2 VAC | 7.2 VAC | 20 ms | 20 ms | -55°C ~ 60°C | Silver Alloy | CE, CSA, cURus, TUV | General Purpose | - | - |
|
8690180000RELAY GEN PURPOSE 4PDT 6A 12V |
0 |
|
برگه مشخصات |
RCM | Bulk | Active | Socketable | 12VDC | 4PDT (4 Form C) | 6 A | 240VAC - Max | 1440VA | 62.5 mA | Non Latching | Lighted Indicator, Test Button | Plug In, Quick Connect - 0.110" (2.8mm) | - | - | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CSA, cURus, UKCA, VDE | General Purpose | - | - |
|
|
CIMRE1SS2/24/OM/WRRELAY MODULE, DIN RAIL SOCKET WI |
0 |
|
- |
CIMRE | Bulk | Active | DIN Rail | 24VDC | SPDT (1 Form C) | 12 A | 250VAC, 24VDC - Max | - | 16.7 mA | Non Latching | Diode, Lighted Indicator | Screw Terminal | - | - | 16.8 VDC | 2.4 VDC | 15 ms | 5 ms | -20°C ~ 50°C | Silver Alloy, Cadmium Free | cCSAus, CQC, cURus, VDE | General Purpose | - | - |
, G2R-1-S-DC12S, G2R-1-S-DC24S, G2R-1-S-DC48(S).jpg)
|
G2R-1-SN-DC12RELAY GEN PURPOSE SPDT 10A 12V |
0 |
|
برگه مشخصات |
G2RS | Bulk | Obsolete | Socketable | 12VDC | SPDT (1 Form C) | 10 A | 440VAC, 125VDC - Max | 4400VA, 1250W | 43.2 mA | Non Latching | Lighted Indicator | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 8.4 VDC | 1.8 VDC | 15 ms | 5 ms | -40°C ~ 70°C | - | CE, CSA, LR, UR, VDE | General Purpose | - | - |
|
|
G2R-1-SN-DC24RELAY GEN PURPOSE SPDT 10A 24V |
0 |
|
برگه مشخصات |
G2RS | Bulk | Obsolete | Socketable | 24VDC | SPDT (1 Form C) | 10 A | 440VAC, 125VDC - Max | 4400VA, 1250W | 21.6 mA | Non Latching | Lighted Indicator | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 16.8 VDC | 3.6 VDC | 15 ms | 5 ms | -40°C ~ 70°C | - | CE, CSA, LR, UR, VDE | General Purpose | - | - |
|

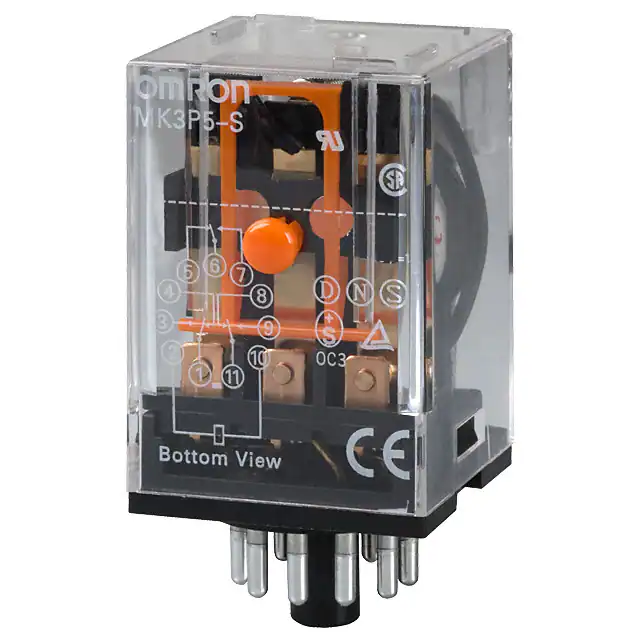

MK3P5-S-AC120RELAY GEN PURPOSE 3PDT 10A 120V |
0 |
|
برگه مشخصات |
MK | Bulk | Obsolete | Socketable | 120VAC | 3PDT (3 Form C) | 10 A | 250VAC, 250VDC - Max | 2500VA, 280W | 18 mA | Non Latching | Mechanical Indicator, Test Button | Plug In, 11 Pin (Octal) | - | - | 96 VAC | 36 VAC | 20 ms | 20 ms | -10°C ~ 40°C | Silver (Ag) | DEMKO, SEV, TUV, UL | General Purpose | - | - |
|
|
46.61.9.024.5074RELAY GEN PURPOSE SPDT 16A 24V |
0 |
|
برگه مشخصات |
46 | Bulk | Active | Socketable | 24VDC | SPDT (1 Form C) | 16 A | 440VAC - Max | 7040VA | 20 mA | Non Latching | Lighted Indicator, Mechanical Indicator, Test Button | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 17.5 VDC | 4.8 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | CCC, CE, CSA, cURus, EAC, ENEC, RINA, UKCA, VDE | General Purpose | - | - |
|
|
26.01.8.024.0000RELAY IMPULSE SPST 10A 24V |
0 |
|
- |
26 | Bulk | Active | Chassis Mount | 24VAC | SPST-NO (1 Form A) | 10 A | 400VAC - Max | 4000VA | 180 mA | Non Latching | - | Screw Terminal | - | - | 19.2 VAC | - | - | - | -40°C ~ 40°C | Silver Nickel (AgNi) | CE, EAC, UKCA | Impulse | - | - |
|
RM739012RELAY GEN PURPOSE 3PDT 16A 12V |
0 |
|
برگه مشخصات |
RM, SCHRACK | Tray | Obsolete | DIN Rail | 12VDC | 3PDT (3 Form C) | 16 A | 440VAC - Max | 7040VA | 140 mA | Non Latching | Mechanical Indicator, Test Button | Quick Connect - 0.250" (6.3mm) | - | - | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -45°C ~ 60°C | Silver Cadmium Oxide (AgCdO) | cURus, VDE | General Purpose | - | - |
|
|
MY4IN DC100/110 (S)RELAY GEN PURPOSE 4PDT 3A 110V |
0 |
|
برگه مشخصات |
MY | Bulk | Last Time Buy | Socketable | 110VDC | 4PDT (4 Form C) | 3 A | 250VAC, 125VDC - Max | 750VA, 375W | 9.6 mA | Non Latching | Latching Lever, Lighted Indicator, Test Button | Plug In | - | - | 88 VDC | 11 VDC | 20 ms | 20 ms | -55°C ~ 70°C | Silver (Ag), Gold (Au) | CE, CSA, UR, VDE | General Purpose | - | - |
|
|
MY4IN1 DC100/110 (S)RELAY GEN PURPOSE 4PDT 3A 110V |
0 |
|
برگه مشخصات |
MY | Bulk | Last Time Buy | Socketable | 110VDC | 4PDT (4 Form C) | 3 A | 250VAC, 125VDC - Max | 750VA, 375W | 9.6 mA | Non Latching | Latching Lever, Lighted Indicator, Reverse Coil Polarity, Test Button | Plug In | - | - | 88 VDC | 11 VDC | 20 ms | 20 ms | -55°C ~ 70°C | Silver (Ag), Gold (Au) | CE, CSA, UR, VDE | General Purpose | - | - |
|
|
LY2S-AC24RELAY GEN PURPOSE DPDT 10A 24V |
0 |
|
برگه مشخصات |
LY | Bulk | Obsolete | Socketable | 24VAC | DPDT (2 Form C) | 10 A | 250VAC, 125VDC - Max | 2500VA, 1250W | 46 mA | Non Latching | - | Plug In | - | - | 19.2 VAC | 7.2 VAC | 25 ms | 25 ms | -25°C ~ 55°C | Silver Alloy | CE, CSA, TUV, UR | General Purpose | - | - |
