رله های برق، بیش از 2 آمپر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | ولتاژ سیم پیچ | فرم تماس | رتبه بندی تماس (جاری) | ولتاژ سوئیچینگ | بار - حداکثر سوئیچینگ | جریان سیم پیچ | نوع کویل | ویژگی ها | سبک خاتمه | رتبه بندی مهر و موم | عایق کویل | ولتاژ باید کار کند | ولتاژ باید آزاد شود | زمان عملیات | زمان انتشار | دمای عملیاتی | مواد تماس | آژانس تایید | نوع رله | درجه | صلاحیت |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADJ63012RELAY GEN PURPOSE DPST 10A 12V |
0 |
|
برگه مشخصات |
ADJ | Box | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 10 A | 250VAC - Max | 2500VA | 20.8 mA | Latching, Dual Coil | - | PC Pin | Sealed - Flux Protection | - | 8.4 VDC | - | 20 ms | 20 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO), Gold (Au) | CQC, cURus, VDE | General Purpose | - | - |
|
|
ADJ63024RELAY GEN PURPOSE DPST 10A 24V |
0 |
|
برگه مشخصات |
ADJ | Box | Active | Through Hole | 24VDC | DPST-NO (2 Form A) | 10 A | 250VAC - Max | 2500VA | 10.4 mA | Latching, Dual Coil | - | PC Pin | Sealed - Flux Protection | - | 16.8 VDC | - | 20 ms | 20 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO), Gold (Au) | CQC, cURus, VDE | General Purpose | - | - |
|
|
ADJ64006RELAY GEN PURPOSE DPST 10A 6V |
0 |
|
برگه مشخصات |
ADJ | Box | Active | Through Hole | 6VDC | DPST-NO (2 Form A) | 10 A | 250VAC - Max | 2500VA | 41.7 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 4.2 VDC | 4.2 VDC | 20 ms | 20 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO), Gold (Au) | CQC, cURus, VDE | General Purpose | - | - |
|
RJ1S-CL-A110RELAY SPDT 12A 110VACRC |
0 |
|
- |
RJ | Bulk | Active | Socketable | 110VAC | SPDT (1 Form C) | 12 A | 250VAC, 125VDC - Nom | - | 8.1 mA | Non Latching | Lighted Indicator | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 88 VAC | 33 VAC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CE, CSA, cURus, VDE | General Purpose | - | - |
|
|
RJ1S-CL-D100RELAY PLUG-IN SPDT 12A 110VDC |
0 |
|
- |
RJ | Bulk | Active | Socketable | 100 ~ 110VDC | SPDT (1 Form C) | 12 A | 250VAC, 125VDC - Nom | - | 5.2 mA | Non Latching | Lighted Indicator | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | - | - | 15 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CE, CSA, cURus, VDE | General Purpose | - | - |
|
|
RY4S-ULDC6V4PDT W/LITE |
0 |
|
- |
RY | Bulk | Obsolete | Socketable | 6VDC | 4PDT (4 Form C) | 5 A | 240VAC, 30VDC - Max | 1200VA, 150W | 150 mA | Non Latching | Lighted Indicator | Plug In | - | - | 4.8 VDC | 0.6 VDC | 20 ms | 20 ms | -25°C ~ 55°C | Silver (Ag), Gold (Au) | CE, CSA, TUV, UR | General Purpose | - | - |
|
|
RY4V-ULDC24V4PDT W/LITE |
0 |
|
- |
RY | Bulk | Obsolete | Socketable | 24VDC | 4PDT (4 Form C) | 5 A | 240VAC, 30VDC - Max | 1200VA, 150W | 36.9 mA | Non Latching | Lighted Indicator | Plug In | - | - | 19.2 VDC | 2.4 VDC | 20 ms | 20 ms | -25°C ~ 55°C | Silver (Ag), Gold (Au) | CE, CSA, TUV, UR | General Purpose | - | - |
|
|
781XAXRC-12DPOWER RELAY |
0 |
|
برگه مشخصات |
Legacy | Box | Active | Socketable | 12VDC | SPDT (1 Form C) | 15 A | 300VAC, 28VDC - Max | - | 104.3 mA | Non Latching | - | Plug In | - | - | 9.6 VDC | 1.2 VDC | 25 ms | 20 ms | -40°C ~ 55°C | Silver (Ag), Gold (Au) | CE, CSA, UL | General Purpose | - | - |
|

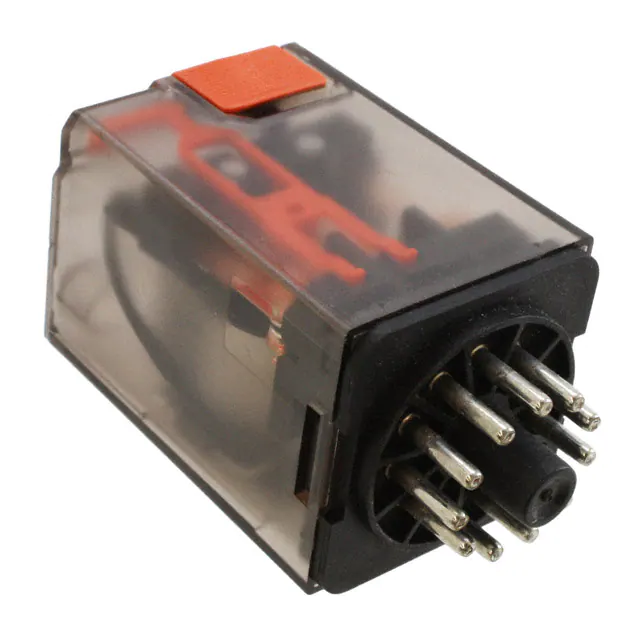

MT3210C4RELAY GEN PURPOSE 3PDT 10A 24V |
0 |
|
برگه مشخصات |
MT, SCHRACK | Tray | Obsolete | Socketable | 24VDC | 3PDT (3 Form C) | 10 A | 400VAC - Max | 2500VA | 50.5 mA | Non Latching | Diode, Test Button | Plug In, 11 Pin (Octal) | - | Class B | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -40°C ~ 60°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
|
8689970000RELAY GEN PURPOSE 3PDT 10A 48V |
0 |
|
برگه مشخصات |
RCM | Bulk | Active | Socketable | 48VAC | 3PDT (3 Form C) | 10 A | 400VAC - Max | 4000VA | 21.3 mA | Non Latching | Lighted Indicator, Test Button | Plug In, Quick Connect - 0.110" (2.8mm) | - | - | 38.4 VAC | 14.4 VAC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CSA, cURus, UKCA, VDE | General Purpose | - | - |
|
LY4F-AC240RELAY GEN PURPOSE 4PDT 10A 240V |
2 |
|
برگه مشخصات |
LY | Bulk | Obsolete | Chassis Mount | 240VAC | 4PDT (4 Form C) | 10 A | 250VAC, 125VDC - Max | 2500VA, 1250W | 9.5 mA | Non Latching | - | Plug In | - | - | 192 VAC | 72 VAC | 25 ms | 25 ms | -25°C ~ 40°C | Silver Alloy | CE, CSA, TUV, UR | General Purpose | - | - |
|
|
62.82.8.240.0000RELAY GEN PURPOSE DPDT 16A 240V |
0 |
|
برگه مشخصات |
62 | Bulk | Obsolete | Chassis Mount | 240VAC | DPDT (2 Form C) | 16 A | 400VAC - Max | 6400VA | 9.2 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | - | 192 VAC | 48 VAC | 11 ms | 4 ms | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CCC, CE, CSA, cURus, EAC, ENEC, RINA, UKCA, VDE | General Purpose | - | - |
|
|
62.82.8.230.0040RELAY GEN PURPOSE DPDT 16A 230V |
0 |
|
برگه مشخصات |
62 | Bulk | Obsolete | Chassis Mount | 230VAC | DPDT (2 Form C) | 16 A | 400VAC - Max | 6400VA | 10.5 mA | Non Latching | Mechanical Indicator, Test Button | Quick Connect - 0.250" (6.3mm) | - | - | 184 VAC | 46 VAC | 11 ms | 4 ms | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CCC, CE, CSA, cURus, EAC, ENEC, RINA, UKCA, VDE | General Purpose | - | - |
|
|
62.82.8.230.0000RELAY GEN PURPOSE DPDT 16A 230V |
0 |
|
برگه مشخصات |
62 | Bulk | Obsolete | Chassis Mount | 230VAC | DPDT (2 Form C) | 16 A | 400VAC - Max | 6400VA | 10.5 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | - | 184 VAC | 46 VAC | 11 ms | 4 ms | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CCC, CE, CSA, cURus, EAC, ENEC, RINA, UKCA, VDE | General Purpose | - | - |
|
|
62.23.9.024.0000RELAY GEN PURPOSE 3PDT 16A 24V |
0 |
|
برگه مشخصات |
62 | Bulk | Obsolete | Through Hole | 24VDC | 3PDT (3 Form C) | 16 A | 400VAC - Max | 6400VA | 54 mA | Non Latching | - | PC Pin | - | - | 19.2 VDC | 4.8 VDC | 11 ms | 4 ms | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CCC, CSA, cURus, EAC, ENEC, RINA, VDE | General Purpose | - | - |
|
|
62.23.9.012.0000RELAY GEN PURPOSE 3PDT 16A 12V |
0 |
|
برگه مشخصات |
62 | Bulk | Obsolete | Through Hole | 12VDC | 3PDT (3 Form C) | 16 A | 400VAC - Max | 6400VA | 109 mA | Non Latching | - | PC Pin | - | - | 9.6 VDC | 2.4 VDC | 11 ms | 4 ms | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CCC, CSA, cURus, EAC, ENEC, RINA, VDE | General Purpose | - | - |
|
|
RY2S-UTDC12VRELAY TOP MOUNT DPDT 3A 12VDC |
4 |
|
- |
RY | Bulk | Active | Chassis Mount | 12VDC | DPDT (2 Form C) | 3 A | 240VAC, 30VDC - Max | 720VA, 90W | 64 mA | Non Latching | - | Quick Connect - 0.110" (2.8mm) | - | - | 9.6 VDC | 1.2 VDC | 20 ms | 20 ms | -25°C ~ 55°C | Silver (Ag), Gold (Au) | CE, CSA, TUV, UR | General Purpose | - | - |
|
|
RY2S-UDC60VRELAY PLUG-IN DPDT 3A 60VDC |
0 |
|
- |
RY | Bulk | Active | Socketable | 60VDC | DPDT (2 Form C) | 3 A | 240VAC, 30VDC - Max | 720VA, 90W | 13.3 mA | Non Latching | - | Plug In | - | - | 48 VDC | 6 VDC | 20 ms | 20 ms | -25°C ~ 55°C | Silver (Ag), Gold (Au) | CE, CSA, TUV, UR | General Purpose | - | - |
|
|
RY2S-UTDC48VRELAY TOP MOUNT DPDT 3A 48VDC |
0 |
|
- |
RY | Bulk | Active | Chassis Mount | 48VDC | DPDT (2 Form C) | 3 A | 240VAC, 30VDC - Max | 720VA, 90W | 18 mA | Non Latching | - | Quick Connect - 0.110" (2.8mm) | - | - | 38.4 VDC | 4.8 VDC | 20 ms | 20 ms | -25°C ~ 55°C | Silver (Ag), Gold (Au) | CE, CSA, TUV, UR | General Purpose | - | - |
|
|
RY2S-UTDC6VRELAY TOP MOUNT DPDT 3A 6VDC |
0 |
|
- |
RY | Bulk | Active | Chassis Mount | 6VDC | DPDT (2 Form C) | 3 A | 240VAC, 30VDC - Max | 720VA, 90W | 128 mA | Non Latching | - | Quick Connect - 0.110" (2.8mm) | - | - | 4.8 VDC | 0.6 VDC | 20 ms | 20 ms | -25°C ~ 55°C | Silver (Ag), Gold (Au) | CE, CSA, TUV, UR | General Purpose | - | - |
