رله های برق، بیش از 2 آمپر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | ولتاژ سیم پیچ | فرم تماس | رتبه بندی تماس (جاری) | ولتاژ سوئیچینگ | بار - حداکثر سوئیچینگ | جریان سیم پیچ | نوع کویل | ویژگی ها | سبک خاتمه | رتبه بندی مهر و موم | عایق کویل | ولتاژ باید کار کند | ولتاژ باید آزاد شود | زمان عملیات | زمان انتشار | دمای عملیاتی | مواد تماس | آژانس تایید | نوع رله | درجه | صلاحیت |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
18722C200RELAY GEN PURPOSE DPDT 20A 24V |
0 |
|
برگه مشخصات |
187 | Bulk | Active | Socketable | 24VDC | DPDT (2 Form C) | 20 A | 240VAC, 28VDC - Max | 4800VA, 560W | 51.1 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class B | 18 VDC | - | 20 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|

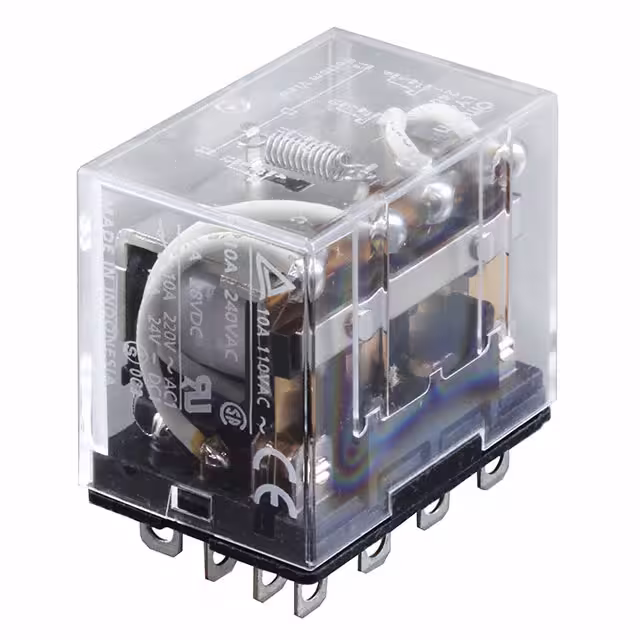

LY4-AC240RELAY GEN PURPOSE 4PDT 10A 240V |
2 |
|
برگه مشخصات |
LY | Bulk | Obsolete | Socketable | 240VAC | 4PDT (4 Form C) | 10 A | 250VAC, 125VDC - Max | 2500VA, 1250W | 9.5 mA | Non Latching | - | Plug In | - | - | 192 VAC | 72 VAC | 25 ms | 25 ms | -25°C ~ 40°C | Silver Alloy | CE, CSA, TUV, UR | General Purpose | - | - |
|
MY3N-AC200/220RELAY GEN PURPOSE 3PDT 5A 220V |
0 |
|
برگه مشخصات |
MY | Bulk | Active | Socketable | 220VAC | 3PDT (3 Form C) | 5 A | 250VAC, 125VDC - Max | 1250VA, 625W | 17 mA | Non Latching | Lighted Indicator | Plug In | - | - | 176 VAC | 66 VAC | 20 ms | 20 ms | -55°C ~ 70°C | Silver (Ag) | CE, CSA, UR, VDE | General Purpose | - | - |
|
|
RY2V-ULCDC6VRELAY PCB DPDT 3A 6VDC |
0 |
|
- |
RY | Bulk | Active | Through Hole | 6VDC | DPDT (2 Form C) | 3 A | 240VAC, 30VDC - Max | 720VA, 90W | 128 mA | Non Latching | Lighted Indicator, Test Button | PC Pin | - | - | 4.8 VDC | 0.6 VDC | 20 ms | 20 ms | -25°C ~ 55°C | Silver (Ag), Gold (Au) | CE, CSA, TUV, UR | General Purpose | - | - |
|
|
RH2B-ULCDC6VRELAY PLUG-IN DPDT 10A 6VDC |
0 |
|
برگه مشخصات |
RH | Bulk | Active | Socketable | 6VDC | DPDT (2 Form C) | 10 A | 240VAC, 30VDC - Max | 2400VA, 300W | 150 mA | Non Latching | Lighted Indicator, Test Button | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 4.8 VDC | 0.6 VDC | 20 ms | 20 ms | -25°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CE, CSA, cURus, TUV | General Purpose | - | - |
|
|
RY2S-ULCDC24VRELAY PLUG-IN DPDT 3A 24VDC |
0 |
|
- |
RY | Bulk | Active | Socketable | 24VDC | DPDT (2 Form C) | 3 A | 240VAC, 30VDC - Max | 720VA, 90W | 32 mA | Non Latching | Lighted Indicator, Test Button | Plug In | - | - | 19.2 VDC | 2.4 VDC | 20 ms | 20 ms | -25°C ~ 55°C | Silver (Ag), Gold (Au) | CE, CSA, TUV, UR | General Purpose | - | - |
|
|
RY2V-ULCDC12VRELAY PCB DPDT 3A 12VDC |
0 |
|
- |
RY | Bulk | Active | Through Hole | 12VDC | DPDT (2 Form C) | 3 A | 240VAC, 30VDC - Max | 720VA, 90W | 64 mA | Non Latching | Lighted Indicator, Test Button | PC Pin | - | - | 9.6 VDC | 1.2 VDC | 20 ms | 20 ms | -25°C ~ 55°C | Silver (Ag), Gold (Au) | CE, CSA, TUV, UR | General Purpose | - | - |
|
|
RY2S-ULCDC6VRELAY PLUG-IN DPDT 3A 6VDC |
0 |
|
- |
RY | Bulk | Active | Socketable | 6VDC | DPDT (2 Form C) | 3 A | 240VAC, 30VDC - Max | 720VA, 90W | 128 mA | Non Latching | Lighted Indicator, Test Button | Plug In | - | - | 4.8 VDC | 0.6 VDC | 20 ms | 20 ms | -25°C ~ 55°C | Silver (Ag), Gold (Au) | CE, CSA, TUV, UR | General Purpose | - | - |
|
|
RY2S-ULCDC48VRELAY PLUG-IN DPDT 3A 48VDC |
0 |
|
- |
RY | Bulk | Active | Socketable | 48VDC | DPDT (2 Form C) | 3 A | 240VAC, 30VDC - Max | 720VA, 90W | 18 mA | Non Latching | Lighted Indicator, Test Button | Plug In | - | - | 38.4 VDC | 4.8 VDC | 20 ms | 20 ms | -25°C ~ 55°C | Silver (Ag), Gold (Au) | CE, CSA, TUV, UR | General Purpose | - | - |
|
|
RY2V-ULCDC48VRELAY PCB DPDT 3A 48VDC |
0 |
|
- |
RY | Bulk | Active | Through Hole | 48VDC | DPDT (2 Form C) | 3 A | 240VAC, 30VDC - Max | 720VA, 90W | 18 mA | Non Latching | Lighted Indicator, Test Button | PC Pin | - | - | 38.4 VDC | 4.8 VDC | 20 ms | 20 ms | -25°C ~ 55°C | Silver (Ag), Gold (Au) | CE, CSA, TUV, UR | General Purpose | - | - |
|
|
RY2S-ULCDC12VRELAY PLUG-IN DPDT 3A 12VDC |
0 |
|
- |
RY | Bulk | Active | Socketable | 12VDC | DPDT (2 Form C) | 3 A | 240VAC, 30VDC - Max | 720VA, 90W | 64 mA | Non Latching | Lighted Indicator, Test Button | Plug In | - | - | 9.6 VDC | 1.2 VDC | 20 ms | 20 ms | -25°C ~ 55°C | Silver (Ag), Gold (Au) | CE, CSA, TUV, UR | General Purpose | - | - |
|
|
RH2B-ULCDC48VRELAY PLUG-IN DPDT 10A 48VDC |
0 |
|
برگه مشخصات |
RH | Bulk | Active | Socketable | 48VDC | DPDT (2 Form C) | 10 A | 240VAC, 30VDC - Max | 2400VA, 300W | 18.8 mA | Non Latching | Lighted Indicator, Test Button | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 38.4 VDC | 4.8 VDC | 20 ms | 20 ms | -25°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CE, CSA, cURus, TUV | General Purpose | - | - |
|
|
RY2V-ULCDC24VRELAY PCB DPDT 3A 24VDC |
0 |
|
- |
RY | Bulk | Active | Through Hole | 24VDC | DPDT (2 Form C) | 3 A | 240VAC, 30VDC - Max | 720VA, 90W | 32 mA | Non Latching | Lighted Indicator, Test Button | PC Pin | - | - | 19.2 VDC | 2.4 VDC | 20 ms | 20 ms | -25°C ~ 55°C | Silver (Ag), Gold (Au) | CE, CSA, TUV, UR | General Purpose | - | - |
|
|
15169.2RELAY GEN PURPOSE SPDT 12A 24V |
0 |
|
برگه مشخصات |
PRSU | Box | Active | DIN Rail | 24VDC | SPDT (1 Form C) | 12 A | 400VAC - Max | 4800VA | 16.7 mA | Non Latching | - | Screw Terminal | - | - | 16.8 VDC | 2.4 VDC | 8 ms | 6 ms | -25°C ~ 70°C | Silver Nickel (AgNi) | CE | General Purpose | - | - |
|
|
66.82.8.024.0301POWER RELAY, DPST-NO 30A , 24V A |
0 |
|
برگه مشخصات |
66 | Bulk | Obsolete | Chassis Mount | 24VAC | DPST-NO (2 Form A) | 30 A | 440VAC - Max | 13200VA | 150 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | - | 19.2 VAC | 4.8 VAC | 8 ms | 10 ms | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CE, CSA, cURus, EAC, RINA, UKCA, VDE | General Purpose | - | - |
|
|
55.33.9.220.0010IND. PLUG-IN RELAY, 3PDT 10A, 22 |
0 |
|
برگه مشخصات |
55 | Bulk | Active | Socketable | 220VDC | 3PDT (3 Form C) | 10 A | 400VAC - Max | 4000VA | 4 mA | Non Latching | Test Button | Plug In | - | - | 176 VDC | 44 VDC | 9 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CCC, CE, CSA, cURus, EAC, ENEC, RINA, UKCA, VDE | General Purpose | - | - |
|
|
66.82.9.024.0303C1D2 / ATEX POWER RELAY, DPST-NO |
0 |
|
برگه مشخصات |
66 | Bulk | Obsolete | Chassis Mount | 24VDC | DPST-NO (2 Form A) | 30 A | 440VAC - Max | 13200VA | 70.5 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | - | 19.2 VDC | 4.8 VDC | 8 ms | 10 ms | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CE, CSA, cURus, EAC, RINA, UKCA, VDE | General Purpose | - | - |
|
|
RU42S-C-D6RELAY PLUG-IN 4PDT 3A 6VDC |
0 |
|
- |
RU | Bulk | Active | Socketable | 6VDC | 4PDT (4 Form C) | 3 A | 250VAC, 30VDC - Max | 2500VA, 300W | 155 mA | Non Latching | Lighted Indicator, Mechanical Indicator | Plug In, 14 Pin | - | - | 4.8 VDC | 0.6 VDC | 20 ms | 20 ms | -55°C ~ 60°C | Silver Nickel (AgNi), Gold (Au) | CE, CSA, cURus, TUV | General Purpose | - | - |
|
|
RU42V-NF-D24RELAY 4PDT BIF 24VDC |
0 |
|
- |
RU | Bulk | Active | Through Hole | 24VDC | 4PDT (4 Form C) | 3 A | 250VAC, 30VDC - Max | 2500VA, 300W | 44.7 mA | Non Latching | Lighted Indicator, Mechanical Indicator | PC Pin | - | - | 19.2 VDC | 2.4 VDC | 20 ms | 20 ms | -55°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | CE, CSA, cURus, TUV | General Purpose | - | - |
|
|
RU42S-C-D48RELAY PLUG-IN 4PDT 3A 48VDC |
0 |
|
- |
RU | Bulk | Active | Socketable | 48VDC | 4PDT (4 Form C) | 3 A | 250VAC, 30VDC - Max | 2500VA, 300W | 18 mA | Non Latching | Lighted Indicator, Mechanical Indicator | Plug In, 14 Pin | - | - | 38.4 VDC | 4.8 VDC | 20 ms | 20 ms | -55°C ~ 60°C | Silver Nickel (AgNi), Gold (Au) | CE, CSA, cURus, TUV | General Purpose | - | - |
