رله های برق، بیش از 2 آمپر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | ولتاژ سیم پیچ | فرم تماس | رتبه بندی تماس (جاری) | ولتاژ سوئیچینگ | بار - حداکثر سوئیچینگ | جریان سیم پیچ | نوع کویل | ویژگی ها | سبک خاتمه | رتبه بندی مهر و موم | عایق کویل | ولتاژ باید کار کند | ولتاژ باید آزاد شود | زمان عملیات | زمان انتشار | دمای عملیاتی | مواد تماس | آژانس تایید | نوع رله | درجه | صلاحیت |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KR-3DH-12RELAY GEN PURPOSE SPST 20A 12V |
0 |
|
- |
KR-3 | Bulk | Obsolete | Chassis Mount | 12VDC | SPST-NO (DM) (1 Form X) | 20 A | 240VAC - Max | 4800VA | 100 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | - | 9 VDC | - | 15 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | - | General Purpose | - | - |
|
KUP-14D11F-24RELAY GEN PURPOSE 3PDT 5A 24V |
0 |
|
برگه مشخصات |
KUP | Bulk | Active | Socketable | 24VDC | 3PDT (3 Form C) | 5 A | 240VAC - Max | 1200VA | 51 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class B | 18 VDC | - | 15 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO), Gold (Au) | CSA, UR | General Purpose | - | - |
|
|
MY4ZIN-D2 DC48 (S)RELAY GEN PURPOSE 48V |
0 |
|
- |
MY | Bulk | Active | Socketable | 48VDC | 4PDT (4 Form C) | 3 A | 250VAC, 125VDC - Max | 750VA, 375W | 17.6 mA | Non Latching | - | Plug In | - | - | 38.4 VDC | 4.8 VDC | 20 ms | 20 ms | -55°C ~ 70°C | Silver (Ag), Gold (Au) | CE, CSA, UR, VDE | General Purpose | - | - |
|
KRPA-14AN-12RELAY GEN PURPOSE 3PDT 10A 12V |
0 |
|
برگه مشخصات |
KRPA | Bulk | Obsolete | Socketable | 12VAC | 3PDT (3 Form C) | 10 A | 240VAC - Max | 2400VA | 168 mA | Non Latching | Lighted Indicator | Plug In, 11 Pin (Octal) | - | Class B | 10.2 VAC | - | - | - | -45°C ~ 55°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
KHAU-17A18N-120RELAY GEN PURPOSE 4PDT 3A 120V |
0 |
|
برگه مشخصات |
KHA | Bulk | Obsolete | Socketable | 120VAC | 4PDT (4 Form C) | 3 A | 240VAC - Nom | - | 11 mA | Non Latching | Lighted Indicator | Plug In | - | Class B | 102 VAC | - | 13 ms | 6 ms | -45°C ~ 70°C | Silver (Ag) | CSA, UR | General Purpose | - | - |
|
9454910000RELAY GEN PURPOSE SPDT 6A 24V |
0 |
|
برگه مشخصات |
DK | Bulk | Obsolete | DIN Rail | 24VAC/DC | SPDT (1 Form C) | 6 A | 250VAC - Max | 1500VA | 7 mA | Non Latching | Socket Included | Screw Terminal | - | - | - | - | 6 ms | 15 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) | CE | General Purpose | - | - |
|
|
RY2S-UCAC240VRELAY PLUG-IN DPDT 3A 240VAC |
0 |
|
- |
RY | Bulk | Active | Socketable | 240VAC | DPDT (2 Form C) | 3 A | 240VAC, 30VDC - Max | 720VA, 90W | 4.3 mA | Non Latching | Test Button | Plug In | - | - | 192 VAC | 72 VAC | 20 ms | 20 ms | -25°C ~ 55°C | Silver (Ag), Gold (Au) | CE, CSA, TUV, UR | General Purpose | - | - |
|
|
RY2V-UCAC240VRELAY PCB DPDT 3A 240VAC |
0 |
|
- |
RY | Bulk | Active | Through Hole | 240VAC | DPDT (2 Form C) | 3 A | 240VAC, 30VDC - Max | 720VA, 90W | 4.3 mA | Non Latching | Test Button | PC Pin | - | - | 192 VAC | 72 VAC | 20 ms | 20 ms | -25°C ~ 55°C | Silver (Ag), Gold (Au) | CE, CSA, TUV, UR | General Purpose | - | - |
|

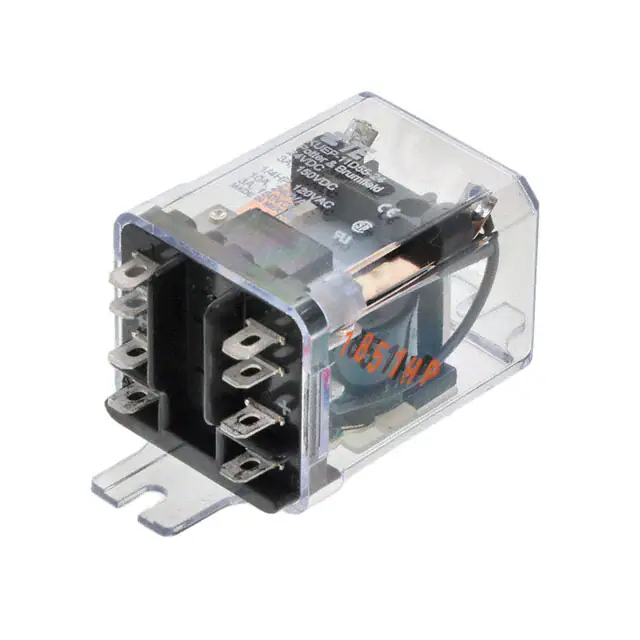

KUEP-11D55-24RELAY GEN PURPOSE DPDT 10A 24V |
0 |
|
برگه مشخصات |
KUEP | Bulk | Obsolete | Chassis Mount | 24VDC | DPDT (2 Form C) | 10 A | 150VDC - Max | 1500VA | 75 mA | Non Latching | - | Quick Connect - 0.187" (4.7mm) | - | Class B | 18 VDC | - | 15 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
|
RSB2A080B7PVHARMONY, INTERFACE PLUG-IN RELAY |
0 |
|
برگه مشخصات |
Harmony | Bulk | Active | DIN Rail | 24VAC | DPDT (2 Form C) | 8 A | 250VAC, 28VDC - Max | 2000VA, 224W | 68.6 mA | Non Latching | Lighted Indicator | Screw Terminal | - | - | 19.2 VAC | 3.6 VAC | 20 ms | 20 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | - | General Purpose | - | - |
|
|
RH2B-LRAC110VDPDT BLADE RELAY |
0 |
|
برگه مشخصات |
RH | Bulk | Active | Socketable | 110VAC | DPDT (2 Form C) | 10 A | 240VAC, 30VDC - Max | 2400VA, 300W | - | Non Latching | Lighted Indicator, Resistor | Plug In, 8 Pin | - | - | 88 VAC | 33 VAC | 20 ms | 20 ms | -25°C ~ 40°C | Silver Cadmium Oxide (AgCdO) | CE, CSA, cURus, TUV | General Purpose | - | - |
|
ABR7S33PLUG-IN ELECTROMECHANICAL RELAY |
0 |
|
برگه مشخصات |
Modicon ABE7 | Box | Active | Socketable | 24VDC | SPDT (1 Form C) | 10 A | 264VAC, 130VDC - Max | 2640VA, 1300W | - | Non Latching | - | Plug In | - | - | - | 3.6 VDC | - | - | - | - | CSA, DNV, EAC, GL, UL | General Purpose | - | - |
|
|
RMIA210115ACRELAY GEN PURPOSE DPDT 10A 115V |
0 |
|
برگه مشخصات |
RMI | Bulk | Obsolete | Socketable | 115VAC | DPDT (2 Form C) | 10 A | 250VAC, 30VDC - Max | 2500VA, 300W | 10.5 mA | Non Latching | Lighted Indicator | Plug In | - | - | 96 VAC | 36 VAC | 20 ms | 20 ms | -55°C ~ 70°C | Silver Copper (AgCu3) | CE, CSA, TUV, UR | General Purpose | - | - |
|
|
MK3PND-5-I-DC12RELAY GEN PURPOSE 3PDT 10A 12V |
0 |
|
برگه مشخصات |
MK | Bulk | Obsolete | Socketable | 12VDC | 3PDT (3 Form C) | 10 A | 250VAC, 250VDC - Max | 2500VA, 280W | 126 mA | Non Latching | Diode, Lighted Indicator, Mechanical Indicator | Plug In, 11 Pin (Octal) | - | - | 9.6 VDC | 1.8 VDC | 30 ms | 20 ms | -10°C ~ 40°C | Silver (Ag) | DEMKO, SEV, TUV, UL | General Purpose | - | - |
|
|
MY4IN-CR-GS-R AC220/240RELAY GEN PURPOSE |
0 |
|
برگه مشخصات |
MY | Bulk | Active | Socketable | 240VAC | 4PDT (4 Form C) | 6 A | 250VAC, 220VDC - Max | 1500VA, 1320W | 15.1 mA | Non Latching | Latching Lever, Lighted Indicator, Mechanical Indicator, RC Circuit | Plug In, Quick Connect - 0.110" (2.8mm) | - | - | 192 VAC | 72 VAC | 20 ms | 20 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | CE, CSA, UR, VDE | General Purpose | - | - |
|
|
MY4IN-CR-GS-R AC110/120RELAY GEN PURPOSE |
0 |
|
برگه مشخصات |
MY | Bulk | Active | Socketable | 120VAC | 4PDT (4 Form C) | 6 A | 250VAC, 220VDC - Max | 1500VA, 1320W | 27.1 mA | Non Latching | Latching Lever, Lighted Indicator, Mechanical Indicator, RC Circuit | Plug In, Quick Connect - 0.110" (2.8mm) | - | - | 96 VAC | 36 VAC | 20 ms | 20 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | CE, CSA, UR, VDE | General Purpose | - | - |
|
|
MY2IN-CR-GS-R AC220/240RELAY GEN PURPOSE |
0 |
|
برگه مشخصات |
MY | Bulk | Active | Socketable | 240VAC | DPDT (2 Form C) | 7 A | 250VAC, 220VDC - Max | 1750VA, 1540W | 15.1 mA | Non Latching | Latching Lever, Lighted Indicator, Mechanical Indicator, RC Circuit | Plug In, Quick Connect - 0.110" (2.8mm) | - | - | 192 VAC | 72 VAC | 20 ms | 20 ms | -40°C ~ 70°C | Silver (Ag) | CE, CSA, UR, VDE | General Purpose | - | - |
|
|
MY4N-CR-GS-R AC220/240RELAY GEN PURPOSE 4PDT 3A 240V |
0 |
|
برگه مشخصات |
MY | Bulk | Active | Socketable | 240VAC | 4PDT (4 Form C) | 6 A | 250VAC, 220VDC - Max | 1500VA, 1320W | 15.1 mA | Non Latching | Lighted Indicator, Mechanical Indicator, RC Circuit | Plug In, Quick Connect - 0.110" (2.8mm) | - | - | 192 VAC | 72 VAC | 20 ms | 20 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | CE, CSA, UR, VDE | General Purpose | - | - |
|
|
MY4N-CR-GS-R AC200/220RELAY GEN PURPOSE 4PDT 3A 220V |
0 |
|
برگه مشخصات |
MY | Bulk | Active | Socketable | 220VAC | 4PDT (4 Form C) | 6 A | 250VAC, 220VDC - Max | 1500VA, 1320W | 17 mA | Non Latching | Lighted Indicator, Mechanical Indicator, RC Circuit | Plug In, Quick Connect - 0.110" (2.8mm) | - | - | 176 VAC | 66 VAC | 20 ms | 20 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | CE, CSA, UR, VDE | General Purpose | - | - |
|
|
MK3P-I DC12RELAY GEN PURPOSE 3PDT 10A 12V |
0 |
|
برگه مشخصات |
MK | Bulk | Obsolete | Socketable | 12VDC | 3PDT (3 Form C) | 10 A | 250VAC, 250VDC - Max | 2500VA, 280W | 126 mA | Non Latching | Mechanical Indicator | Plug In, 11 Pin (Octal) | - | - | 9.6 VDC | 1.8 VDC | 30 ms | 20 ms | -10°C ~ 40°C | Silver (Ag) | DEMKO, SEV, TUV, UL | General Purpose | - | - |
