رله های برق، بیش از 2 آمپر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | ولتاژ سیم پیچ | فرم تماس | رتبه بندی تماس (جاری) | ولتاژ سوئیچینگ | بار - حداکثر سوئیچینگ | جریان سیم پیچ | نوع کویل | ویژگی ها | سبک خاتمه | رتبه بندی مهر و موم | عایق کویل | ولتاژ باید کار کند | ولتاژ باید آزاد شود | زمان عملیات | زمان انتشار | دمای عملیاتی | مواد تماس | آژانس تایید | نوع رله | درجه | صلاحیت |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2910523PLC-RPT-230UC/21-21/MS |
0 |
|
برگه مشخصات |
PLC-RPT | Bulk | Active | DIN Rail | 230VAC/DC | DPDT (2 Form C) | 6 A | 250VAC, 250VDC - Max | - | 5 mA | Non Latching | Diode, Lighted Indicator, Socket Included, Test Button | Spring Terminal | - | - | 207 VAC/DC | - | 6 ms | 10 ms | -20°C ~ 50°C | Silver Nickel (AgNi) | CE, UKCA | General Purpose | - | - |
|
|
2910506PLC-RSC-230UC/21-21/MS |
0 |
|
برگه مشخصات |
PLC-RSC | Bulk | Active | DIN Rail | 230VAC/DC | DPDT (2 Form C) | 6 A | 250VAC, 250VDC - Max | - | 5 mA | Non Latching | Diode, Lighted Indicator, Socket Included, Test Button | Screw Terminal | - | - | 207 VAC/DC | - | 6 ms | 10 ms | -20°C ~ 50°C | Silver Nickel (AgNi) | CE, UKCA | General Purpose | - | - |
|
|
KA-5DG-24RELAY GEN PURPOSE SPDT 10A 24V |
0 |
|
برگه مشخصات |
KA | Bulk | Obsolete | Chassis Mount | 24VDC | SPDT (1 Form C) | 10 A | 240VAC - Nom | - | 51 mA | Non Latching | - | Solder Lug | - | Class B | 18 VDC | - | - | - | -45°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
|
750XBXRM4L120A750 OCTAL RY, DPDT, 10A,12VAC,OC |
0 |
|
- |
750R | Box | Obsolete | Socketable | 120VAC | DPDT (2 Form C) | 10 A | 300VAC, 30VDC - Max | 3000VA, 300W | 70.6 mA | Non Latching | Test Button | Plug In, 8 Pin (Octal) | - | - | 102 VAC | 18 VAC | 20 ms | - | -40°C ~ 55°C | Silver (Ag), Gold (Au) | CSA UL, UR | General Purpose | - | - |
|
|
RSB2A080F7PVHARMONY, INTERFACE PLUG-IN RELAY |
0 |
|
برگه مشخصات |
Harmony | Bulk | Active | DIN Rail | 230VAC | DPDT (2 Form C) | 8 A | 250VAC, 28VDC - Max | 2000VA, 224W | 26.1 mA | Non Latching | Lighted Indicator | Screw Terminal | - | - | 96 VAC | 34.5 VAC | 20 ms | 20 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | - | General Purpose | - | - |
|
MJN2C-IN-AC120RELAY GEN PURPOSE DPDT 10A 120V |
0 |
|
برگه مشخصات |
MJN | Bulk | Obsolete | Socketable | 120VAC | DPDT (2 Form C) | 10 A | 600VAC, 28VDC - Max | 6000VA, 280W | 14.2 mA | Non Latching | Lighted Indicator, Test Button | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 102 VAC | - | 20 ms | 10 ms | -45°C ~ 60°C | Silver Alloy | CSA, UR | General Purpose | - | - |
|
|
RMIA45024ACRELAY GEN PURPOSE 4PDT 5A 24V |
0 |
|
برگه مشخصات |
RMI | Bulk | Obsolete | Socketable | 24VAC | 4PDT (4 Form C) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 36.9 mA | Non Latching | Lighted Indicator, Mechanical Indicator, Test Button | Plug In | - | - | 19.2 VAC | 7.2 VAC | 25 ms | 25 ms | -55°C ~ 70°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | CE, CSA, TUV, UR | General Purpose | - | - |
|
|
RMIA45115ACRELAY GEN PURPOSE 4PDT 5A 115V |
0 |
|
برگه مشخصات |
RMI | Bulk | Obsolete | Socketable | 115VAC | 4PDT (4 Form C) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 10.5 mA | Non Latching | Lighted Indicator | Plug In | - | - | 96 VAC | 36 VAC | 25 ms | 25 ms | -55°C ~ 70°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | CE, CSA, TUV, UR | General Purpose | - | - |
|
PRD-7DH0-48RELAY GEN PURPOSE DPST 20A 48V |
0 |
|
برگه مشخصات |
PRD | Bulk | Obsolete | Chassis Mount | 48VDC | DPST-NO (2 Form A) | 20 A | 600VAC, 125VDC - Nom | - | 41.7 mA | Non Latching | - | Screw Terminal | - | Class B | 36 VDC | 4.8 VDC | 40 ms | 20 ms | -55°C ~ 80°C | Silver (Ag) | CSA, UL | General Purpose | - | - |
|

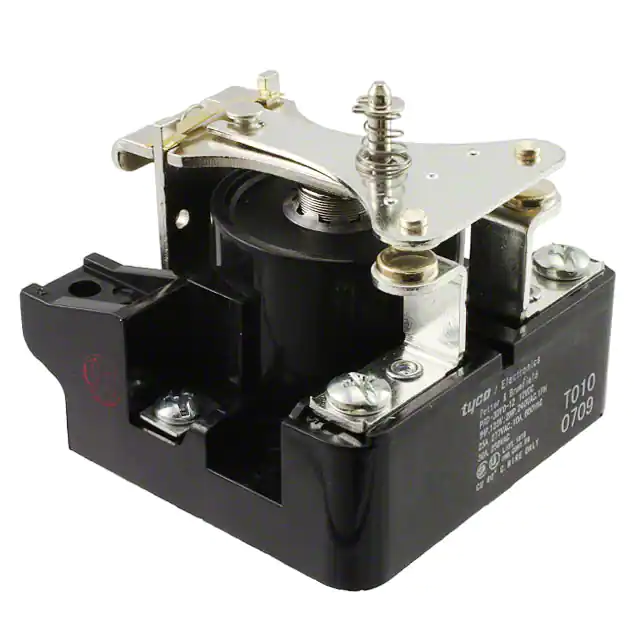

PRD-3DY0-12RELAY GEN PURPOSE SPST 25A 12V |
0 |
|
برگه مشخصات |
PRD | Bulk | Active | Chassis Mount | 12VDC | SPST-NO (DM) (1 Form X) | 25 A | 600VAC, 125VDC - Nom | - | 169 mA | Non Latching | - | Screw Terminal | - | Class B | 9 VDC | 1.2 VDC | 40 ms | 20 ms | -55°C ~ 80°C | Silver (Ag) | CSA, UL | General Purpose | - | - |
|
|
KHS-17D11-24RELAY GEN PURPOSE 4PDT 3A 24V |
0 |
|
برگه مشخصات |
KHS | Bulk | Obsolete | Socketable | 24VDC | 4PDT (4 Form C) | 3 A | 120VAC, 28VDC - Max | 360VA, 84W | 37.5 mA | Non Latching | - | Plug In | Sealed - Hermetically | - | 18 VDC | - | 13 ms | 6 ms | -45°C ~ 70°C | Silver (Ag) | CSA, UR | General Purpose | - | - |
|
|
RH1B-ULAC220VRELAY PLUG-IN SPDT 10A 220VAC |
0 |
|
برگه مشخصات |
RH | Bulk | Active | Socketable | 220VAC | SPDT (1 Form C) | 10 A | 240VAC, 30VDC - Max | 2400VA, 300W | 4.1 mA | Non Latching | Lighted Indicator | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 176 VAC | 66 VAC | 20 ms | 20 ms | -25°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CE, CSA, cURus, TUV | General Purpose | - | - |
|
|
RH1B-ULAC230VRELAY PLUG-IN SPDT 10A 230VAC |
0 |
|
برگه مشخصات |
RH | Bulk | Active | Socketable | 230VAC | SPDT (1 Form C) | 10 A | 240VAC, 30VDC - Max | 2400VA, 300W | - | Non Latching | Lighted Indicator | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 184 VAC | 69 VAC | 20 ms | 20 ms | -25°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CE, CSA, cURus, TUV | General Purpose | - | - |
|
MKS1XTN-10 DC12RELAY GEN PURPOSE SPST 10A 12V |
3 |
|
برگه مشخصات |
MKS-X | Tray | Obsolete | Socketable | 12VDC | SPST-NO (1 Form A) | 10 A | 220VDC - Max | 2200W | 126 mA | Non Latching | Mechanical Indicator | Plug In | - | - | 9.6 VDC | 1.8 VDC | 30 ms | 20 ms | -25°C ~ 60°C | Silver Tin Indium (AgSnIn) | cURus, TUV | General Purpose | - | - |
|
|
MKS1XTI-10 DC24RELAY GEN PURPOSE SPST 10A 24V |
0 |
|
برگه مشخصات |
MKS-X | Tray | Obsolete | Socketable | 24VDC | SPST-NO (1 Form A) | 10 A | 220VDC - Max | 2200W | 63.2 mA | Non Latching | Test Button | Plug In | - | - | 19.2 VDC | 3.6 VDC | 30 ms | 20 ms | -40°C ~ 60°C | Silver Tin Indium (AgSnIn) | cURus, TUV | General Purpose | - | - |
|

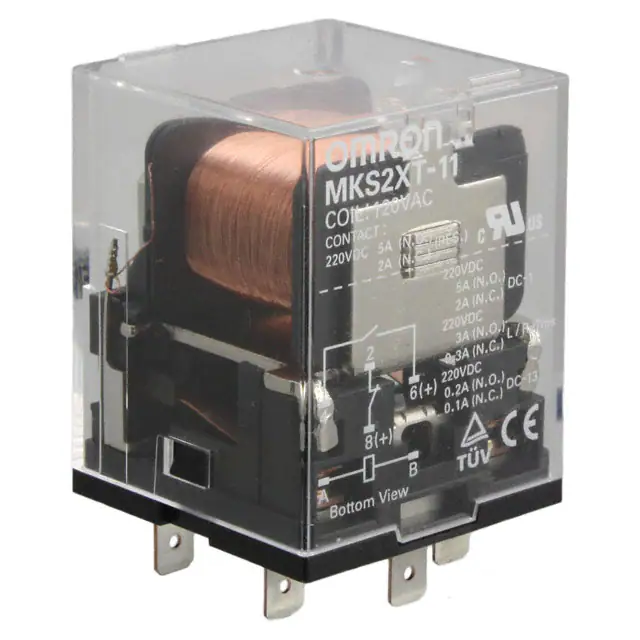

MKS2XT-11 AC120RELAY GEN PURPOSE DPST 5A 120V |
0 |
|
برگه مشخصات |
MKS-X | Tray | Obsolete | Socketable | 120VAC | DPST-NO/NC (1 Form A, 1 Form B) | 5 A | 220VDC - Max | 1100W | 19.3 mA | Non Latching | - | Plug In | - | - | 96 VAC | 36 VAC | 20 ms | 20 ms | -40°C ~ 60°C | Silver Tin Indium (AgSnIn) | cURus, TUV | General Purpose | - | - |
|

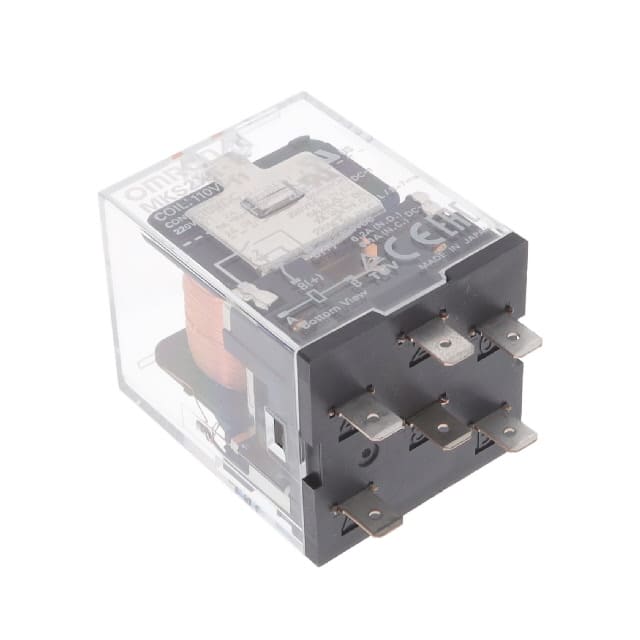

MKS2XT-11 DC110RELAY GEN PURPOSE DPST 5A 110V |
0 |
|
برگه مشخصات |
MKS-X | Bulk | Obsolete | Socketable | 110VDC | DPST-NO/NC (1 Form A, 1 Form B) | 5 A | 220VDC - Max | 1100W | 13.6 mA | Non Latching | - | Plug In | - | - | 88 VDC | 16.5 VDC | 30 ms | 20 ms | -40°C ~ 60°C | Silver Tin Indium (AgSnIn) | cURus, TUV | General Purpose | - | - |
|
|
RR3PA-ULAC240VRELAY PLUG-IN 3PDT 10A 240VAC |
0 |
|
- |
RR | Bulk | Active | Socketable | 240VAC | 3PDT (3 Form C) | 10 A | 240VAC, 30VDC - Max | 2400VA, 300W | 10.5 mA | Non Latching | Lighted Indicator | Plug In, 11 Pin (Octal) | - | - | 192 VAC | 72 VAC | 25 ms | 25 ms | -25°C ~ 40°C | Silver (Ag) | CE, CSA, cURus, TUV | General Purpose | - | - |
|
KUMP-14A38-120RELAY GEN PURPOSE 3PDT 15A 120V |
0 |
|
برگه مشخصات |
KUMP | Bulk | Obsolete | Socketable | 120VAC | 3PDT (3 Form C) | 15 A | 277VAC - Max | 4155VA | 24 mA | Non Latching | Lighted Indicator | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class B | 102 VAC | - | 15 ms | 10 ms | -45°C ~ 45°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
|
KAP-11DG-110RELAY GEN PURPOSE DPDT 10A 110V |
0 |
|
- |
KAP | Bulk | Obsolete | Socketable | 110VDC | DPDT (2 Form C) | 10 A | 240VAC - Max | 2400VA | 11.5 mA | Non Latching | - | Plug In, 8 Pin (Octal) | - | Class B | 82.5 VDC | - | - | - | -45°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | - | General Purpose | - | - |
