رله های برق، بیش از 2 آمپر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | ولتاژ سیم پیچ | فرم تماس | رتبه بندی تماس (جاری) | ولتاژ سوئیچینگ | بار - حداکثر سوئیچینگ | جریان سیم پیچ | نوع کویل | ویژگی ها | سبک خاتمه | رتبه بندی مهر و موم | عایق کویل | ولتاژ باید کار کند | ولتاژ باید آزاد شود | زمان عملیات | زمان انتشار | دمای عملیاتی | مواد تماس | آژانس تایید | نوع رله | درجه | صلاحیت |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

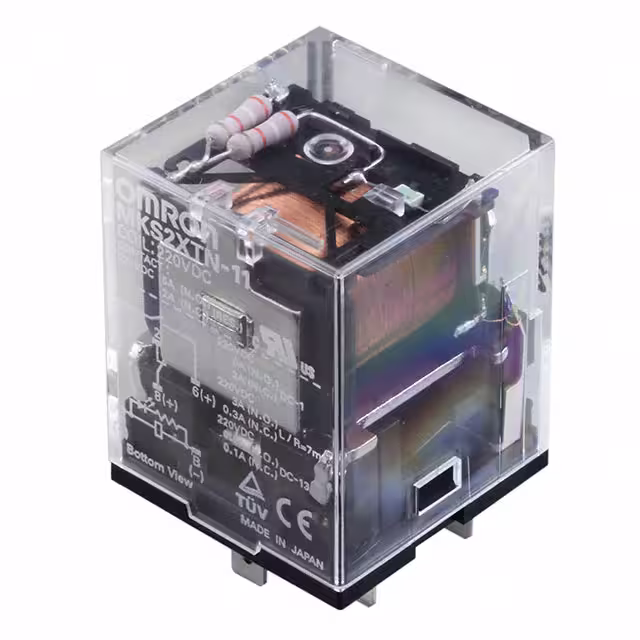

MKS2XTN-11 DC220RELAY GEN PURPOSE DPST 5A 220V |
0 |
|
برگه مشخصات |
MKS-X | Bulk | Obsolete | Socketable | 220VDC | DPST-NO/NC (1 Form A, 1 Form B) | 5 A | 220VDC - Max | 1100W | 6.8 mA | Non Latching | Mechanical Indicator | Plug In | - | - | 176 VDC | 33 VDC | 30 ms | 20 ms | -25°C ~ 60°C | Silver Tin Indium (AgSnIn) | cURus, TUV | General Purpose | - | - |
|

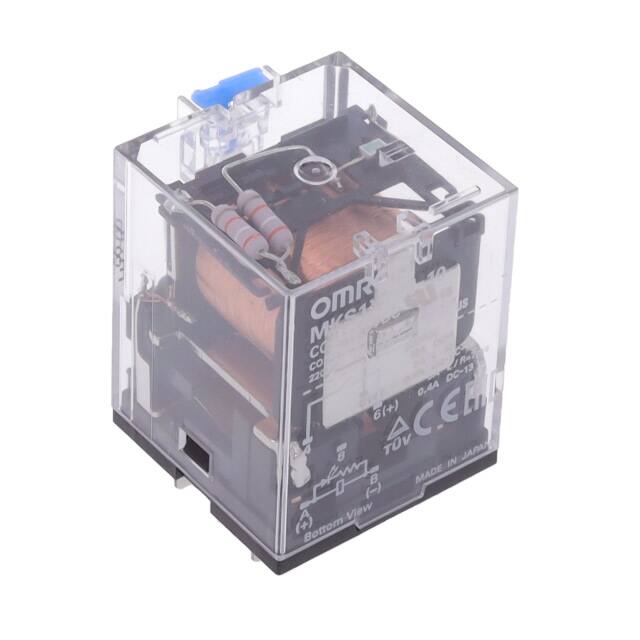

MKS1XTIN-10 DC220RELAY GEN PURPOSE SPST 10A 220V |
0 |
|
برگه مشخصات |
MKS-X | Bulk | Obsolete | Socketable | 220VDC | SPST-NO (1 Form A) | 10 A | 220VDC - Max | 2200W | 6.8 mA | Non Latching | Lighted Indicator, Test Button | Plug In | - | - | 176 VDC | 33 VDC | 30 ms | 20 ms | -25°C ~ 60°C | Silver Tin Indium (AgSnIn) | cURus, TUV | General Purpose | - | - |
|
KUP-14D45-125RELAY GEN PURPOSE 3PDT 10A 125V |
0 |
|
برگه مشخصات |
KUP | Bulk | Obsolete | Socketable | 125VDC | 3PDT (3 Form C) | 10 A | 240VAC - Max | 2400VA | 9.6 mA | Non Latching | Lighted Indicator, Test Button | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class B | 93.75 VDC | - | 15 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
1128311001RELAY GEN PURPOSE SPDT 16A 24V |
0 |
|
برگه مشخصات |
RS | Bulk | Obsolete | DIN Rail | 24VDC | SPDT (1 Form C) | 16 A | 250VAC - Max | 4000VA | 40 mA | Non Latching | Lighted Indicator, Socket Included | Screw Terminal | - | - | - | - | 9 ms | 10 ms | -25°C ~ 40°C | Silver Cadmium Oxide (AgCdO) | CE | General Purpose | - | - |
|
|
RV8H-S-AD60-C1D2RV 6MM 60VAC W/SPRNG SCKT C1D |
0 |
|
- |
RV8 | Bulk | Active | DIN Rail | 60VAC/DC | SPDT (1 Form C) | 6 A | 400VAC, 125VDC - Max | 2400VA, 750W | 3.4 mA | Non Latching | Socket Included | Spring Terminal | - | - | 54 VAC/DC | 4.2 VAC/DC | 15 ms | 20 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | CE, cULus | General Purpose | - | - |
|
|
RV8H-L-AD60-C1D2RV 6MM 60VAC W/SCREW SCKT C1D2 |
0 |
|
- |
RV8 | Bulk | Active | DIN Rail | 60VAC/DC | SPDT (1 Form C) | 6 A | 400VAC, 125VDC - Max | 2400VA, 750W | 3.4 mA | Non Latching | Socket Included | Screw Terminal | - | - | 54 VAC/DC | 4.2 VAC/DC | 15 ms | 20 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | CE, cULus | General Purpose | - | - |
|
R10-E1Y2-V28RELAY GEN PURPOSE DPDT 3A 5V |
0 |
|
برگه مشخصات |
R10 | Bulk | Active | Socketable | 5VDC | DPDT (2 Form C) | 3 A | 120VAC - Nom | - | 179 mA | Non Latching | - | Plug In | - | - | 3.75 VDC | - | - | - | -55°C ~ 75°C | Silver (Ag) | CSA, UR | General Purpose | - | - |
|
|
9100-233Q999RELAY GEN PURPOSE SPDT 15A 24V |
0 |
|
برگه مشخصات |
9100, Products Unlimited | Bulk | Obsolete | Chassis Mount | 24VAC | SPDT (1 Form C) | 15 A | 277VAC - Max | 4155VA | - | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class B | 20.4 VAC | - | - | - | -40°C ~ 65°C | Silver (Ag) | cURus | General Purpose | - | - |
|
|
LZX:RT314615RELAY,115VAC,1CO |
0 |
|
برگه مشخصات |
SIRIUS LZX | Box | Active | Socketable | 115VAC | SPDT (1 Form C) | 3 A | 250VAC - Max | 750VA | - | Non Latching | - | Plug In | - | - | 103.5 VAC | - | - | - | -40°C ~ 70°C | Silver Nickel (AgNi) | CE, CSA, EAC, UKCA, UR | General Purpose | - | - |
|
|
LZX:RT314730PLUG-IN RELAY |
0 |
|
- |
SIRIUS LZX | Box | Active | Socketable | 230VAC | SPDT (1 Form C) | 3 A | 250VAC - Max | 750VA | - | Non Latching | - | Plug In | - | - | 207 VAC | - | - | - | -40°C ~ 70°C | Silver Nickel (AgNi) | CE, EAC, UKCA, UR | General Purpose | - | - |
|
|
8575950000RELAY GEN PURPOSE DPDT 10A 230V |
0 |
|
برگه مشخصات |
PRZ | Bulk | Obsolete | DIN Rail | 230VAC | DPDT (2 Form C) | 10 A | 250VAC - Max | 2500VA | 4.2 mA | Non Latching | Lighted Indicator, Socket Included | Spring Terminal | - | - | 172.5 VAC | 34.5 VAC | - | - | -40°C ~ 50°C | - | CE, cURus | General Purpose | - | - |
|
1133910000RELAY GEN PURPOSE 3PDT 10A 24V |
0 |
|
- |
DRL | Bulk | Obsolete | Socketable | 24VAC | 3PDT (3 Form C) | 10 A | 250VAC - Max | 2500VA | 80 mA | Non Latching | Lighted Indicator, Mechanical Indicator | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 19.2 VAC | 7.2 VAC | 20 ms | 20 ms | -25°C ~ 55°C | Silver Cadmium Oxide (AgCdO) | cURus | General Purpose | - | - |
|
1219780000RELAY GEN PURPOSE 3PDT 16A 12V |
0 |
|
- |
DRW | Bulk | Obsolete | Socketable | 12VDC | 3PDT (3 Form C) | 16 A | 400VAC - Max | 6400VA | 120 mA | Non Latching | Lighted Indicator, Mechanical Indicator, Test Button | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 9 VDC | 1.2 VDC | 20 ms | 20 ms | -40°C ~ 60°C | Silver Cadmium Oxide (AgCdO) | cURus | General Purpose | - | - |
|
|
15551.2RELAY GEN PURPOSE SPDT 6A 125V |
0 |
|
برگه مشخصات |
ZPRCU LW | Box | Active | DIN Rail | 125VAC/DC | SPDT (1 Form C) | 6 A | 400VAC - Max | 2400VA | - | Non Latching | - | Spring Terminal | - | - | 100 VAC/DC | 12.5 VAC/DC | 5 ms | 6 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CSA, UL | General Purpose | - | - |
|
|
KUP-11A5K-24RELAY GEN PURPOSE DPDT 10A 24V |
0 |
|
برگه مشخصات |
KUP | Bulk | Obsolete | Chassis Mount | 24VAC | DPDT (2 Form C) | 10 A | 240VAC - Max | 2400VA | 282.4 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class B | 20.4 VAC | - | 15 ms | 10 ms | -45°C ~ 55°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
|
VS308U/whiteRELAY GEN PURP 3PDT 8A 12-240V |
1 |
|
برگه مشخصات |
VS | Bulk | Active | DIN Rail | 12 ~ 240VAC/DC | 3PDT (3 Form C) | 8 A | 250VAC, 24VDC - Max | 2000VA | - | Non Latching | LED Indicator | Screw Terminal | - | - | - | - | - | - | -20°C ~ 55°C | - | - | General Purpose | - | - |
|
|
RH4B-ULD-DC125V4PDT LIGHT W/ DIODE |
0 |
|
برگه مشخصات |
RH | Bulk | Active | Socketable | 125VDC | 4PDT (4 Form C) | 10 A | 240VAC, 30VDC - Max | 2400VA, 300W | 12 mA | Non Latching | Diode, Lighted Indicator | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 100 VDC | 12.5 VDC | 25 ms | 25 ms | -25°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CE, CSA, cURus, TUV | General Purpose | - | - |
|
|
RH4B-UD-DC125VW/DIODE 4PDT |
0 |
|
برگه مشخصات |
RH | Bulk | Active | Socketable | 125VDC | 4PDT (4 Form C) | 10 A | 240VAC, 30VDC - Max | 2400VA, 300W | 12 mA | Non Latching | Diode | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 100 VDC | 12.5 VDC | 25 ms | 25 ms | -25°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CE, CSA, cURus, TUV | General Purpose | - | - |
|
|
MK2EP-UA AC120RELAY |
0 |
|
- |
MK | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
858-308RELAY GEN PURPOSE 4PDT 5A 220V |
0 |
|
برگه مشخصات |
858 | Box | Active | DIN Rail | 220VDC | 4PDT (4 Form C) | 5 A | 250VAC - Max | 1250VA | 4.1 mA | Non Latching | Lighted Indicator | Spring Terminal | - | - | - | - | 25 ms | 25 ms | -25°C ~ 70°C | Silver Cerium (AgCe) | - | General Purpose | - | - |
