رله های برق، بیش از 2 آمپر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | ولتاژ سیم پیچ | فرم تماس | رتبه بندی تماس (جاری) | ولتاژ سوئیچینگ | بار - حداکثر سوئیچینگ | جریان سیم پیچ | نوع کویل | ویژگی ها | سبک خاتمه | رتبه بندی مهر و موم | عایق کویل | ولتاژ باید کار کند | ولتاژ باید آزاد شود | زمان عملیات | زمان انتشار | دمای عملیاتی | مواد تماس | آژانس تایید | نوع رله | درجه | صلاحیت |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LZS:RT4D4S15PLUG-IN RELAY COMPACT UNIT |
0 |
|
برگه مشخصات |
SIRIUS LZS | Box | Active | DIN Rail | 115VAC | DPDT (2 Form C) | - | - | - | - | Non Latching | Lighted Indicator | Spring Terminal | - | - | 103.5 VAC | - | - | - | -40°C ~ 70°C | Silver Nickel (AgNi) | CE, EAC, UKCA, VDE | General Purpose | - | - |
|
5520569RELAY GEN PURPOSE DPDT 5A 24V |
0 |
|
برگه مشخصات |
- | Bulk | Active | DIN Rail | 24VAC | DPDT (2 Form C) | 5 A | 250VAC, 30VDC - Max | - | - | Non Latching | Lighted Indicator, Socket Included | Screw Terminal | - | - | - | - | - | - | -20°C ~ 65°C | - | - | General Purpose | - | - |
|
KRP-11DG-110RELAY GEN PURPOSE DPDT 10A 110V |
0 |
|
برگه مشخصات |
KRP | Bulk | Obsolete | Socketable | 110VDC | DPDT (2 Form C) | 10 A | 240VAC - Max | 2400VA | 11.5 mA | Non Latching | - | Plug In, 8 Pin (Octal) | - | Class B | 82.5 VDC | - | - | - | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
MGN2A-AC240RELAY GEN PURPOSE DPST 30A 240V |
0 |
|
برگه مشخصات |
MGN | Bulk | Active | Chassis Mount | 240VAC | DPST-NO (2 Form A) | 30 A | 600VAC, 28VDC - Max | 18000VA, 840W | 40 mA | Non Latching | - | Screw Terminal | - | Class F | 204 VAC | - | 30 ms | 30 ms | -45°C ~ 80°C | - | cURus | General Purpose | - | - |
|
288-504RELAY GEN PURPOSE SPDT 6A 24V |
0 |
|
برگه مشخصات |
288 | Box | Active | DIN Rail | 24VAC/DC | SPDT (1 Form C) | 6 A | 250VAC - Max | 1500VA | 21.8 mA | Non Latching | - | Screw Terminal | - | - | - | - | 9 ms | 3 ms | -25°C ~ 40°C | Silver Nickel (AgNi) | EAC | General Purpose | - | - |
|
8501RS14P14V20PLUG IN RELAY, TYPE R, MINIATURE |
0 |
|
برگه مشخصات |
Square D 8501R | Box | Active | Socketable | 120VAC | 4PDT (4 Form C) | 8 A | 300VAC, 30VDC - Max | 2400VA, 240W | - | Non Latching | - | Plug In | - | - | - | - | 20 ms | 20 ms | -40°C ~ 55°C | Silver (Ag), Gold (Au) | - | General Purpose | - | - |
|
|
13.11.8.230.0000RELAY IMPULSE SPDT 12A 230-240V |
0 |
|
- |
13 | Bulk | Active | DIN Rail | 230 ~ 240VAC | SPDT (1 Form C) | 12 A | 400VAC - Max | 4800VA | - | Latching, Single Coil | - | Screw Terminal | - | - | - | - | - | - | -10°C ~ 60°C | Silver Cadmium Oxide (AgCdO) | CE | Impulse | - | - |
|

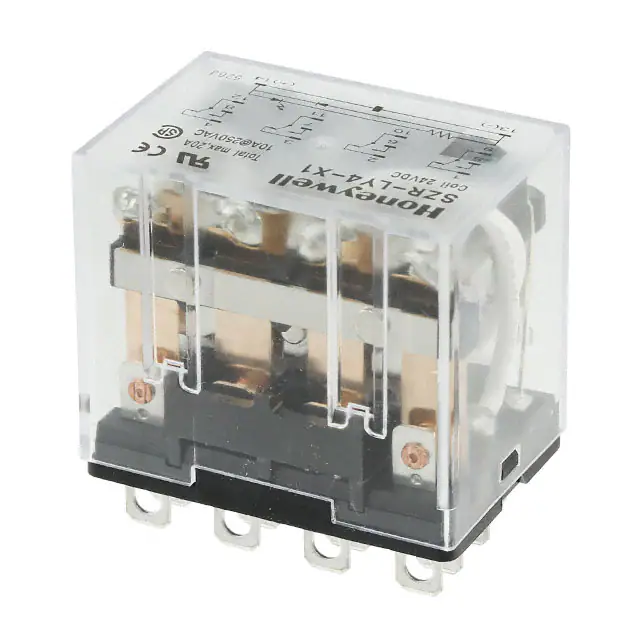

SZR-LY4-X1-DC24VRELAY GEN PURPOSE 4PDT 10A 24V |
0 |
|
- |
SZR-LY | Bulk | Active | Socketable | 24VDC | 4PDT (4 Form C) | 10 A | 250VAC, 125VDC - Max | 2500VA, 1250W | 73 mA | Non Latching | Diode, Lighted Indicator | Plug In | - | - | 19.2 VDC | 2.4 VDC | 25 ms | 25 ms | - | Silver Cadmium Oxide (AgCdO) | CE, CSA, UR | General Purpose | - | - |
|
R10S-E2Y1-J1.0KRELAY GEN PURPOSE SPDT 3A 5V |
0 |
|
برگه مشخصات |
R10 | Bulk | Active | Through Hole | 5VDC | SPDT (1 Form C) | 3 A | 120VAC - Nom | - | 3.2 mA | Non Latching | - | PC Pin | - | - | 3.25 VDC | - | - | - | -55°C ~ 75°C | Silver (Ag) | CSA, UR | General Purpose | - | - |
|
|
PRD-60941POWER RELAY ASSEMBLY |
0 |
|
- |
PRD | Bulk | Obsolete | Chassis Mount | - | - | 50 A | 600VAC, 125VDC - Nom | - | - | Non Latching | - | - | - | Class B | - | - | 40 ms | 20 ms | - | - | CSA, UL | General Purpose | - | - |
|
KUHP-11D51-48RELAY GEN PURPOSE DPDT 20A 48V |
0 |
|
برگه مشخصات |
KUHP | Bulk | Obsolete | Chassis Mount | 48VDC | DPDT (2 Form C) | 20 A | 240VAC - Max | 4800VA | 26.7 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class B | 36 VDC | - | 20 ms | 20 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
|
MYA-NB2 DC100/110RELAY 110V |
0 |
|
- |
MYA | Bulk | Active | - | 110VDC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CIMRE1SS8/24/OMRELAY MODULE, DIN RAIL MOUNT WIT |
0 |
|
- |
- | Bulk | Active | DIN Rail | 24VDC | SPDT (1 Form C) | 12 A | 440VAC, 30VDC - Max | - | 16.7 mA | Non Latching | Diode, Lighted Indicator | Screw Terminal | - | - | 16.8 VDC | 2.4 VDC | 15 ms | - | -20°C ~ 50°C | Silver Alloy, Cadmium Free | - | General Purpose | - | - |
|
|
KR-4077-2RELAY OPEN |
0 |
|
برگه مشخصات |
KR | Bulk | Obsolete | - | - | - | - | 240VAC - Max | - | - | Non Latching | - | - | - | - | - | - | - | - | - | - | UR | General Purpose | - | - |
|
KR-4539-1RELAY GEN PURPOSE DPDT 10A 48V |
0 |
|
برگه مشخصات |
KR | Bulk | Obsolete | Socketable | 48VDC | DPDT (2 Form C) | 10 A | 240VAC - Max | 2400VA | 26.7 mA | Non Latching | - | Plug In, 8 Pin (Octal) | - | Class B | 36 VDC | - | - | - | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | UR | General Purpose | - | - |
|
PRD-11DG1-12RELAY GEN PURPOSE DPDT 30A 12V |
0 |
|
برگه مشخصات |
PRD | Bulk | Obsolete | Chassis Mount | 12VDC | DPDT (2 Form C) | 30 A | 600VAC, 125VDC - Nom | - | 169 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class B | 9 VDC | 1.2 VDC | 40 ms | 20 ms | -55°C ~ 80°C | Silver Cadmium Oxide (AgCdO) | CSA, UL | General Purpose | - | - |
|
|
PRD-11DG1-6RELAY GEN PURPOSE DPDT 30A 6V |
0 |
|
برگه مشخصات |
PRD | Bulk | Obsolete | Chassis Mount | 6VDC | DPDT (2 Form C) | 30 A | 600VAC, 125VDC - Nom | - | 333 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class B | 4.5 VDC | 0.6 VDC | 40 ms | 20 ms | -55°C ~ 80°C | Silver Cadmium Oxide (AgCdO) | CSA, UL | General Purpose | - | - |
|
|
PRD-11DG1-24RELAY GEN PURPOSE DPDT 30A 24V |
0 |
|
برگه مشخصات |
PRD | Bulk | Obsolete | Chassis Mount | 24VDC | DPDT (2 Form C) | 30 A | 600VAC, 125VDC - Nom | - | 84 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class B | 18 VDC | 2.4 VDC | 40 ms | 20 ms | -55°C ~ 80°C | Silver Cadmium Oxide (AgCdO) | CSA, UL | General Purpose | - | - |
|
|
LZS:PT5D5L24PLUG-IN RELAY COMPACT UNIT, 24VD |
0 |
|
- |
SIRIUS LZS | Box | Active | DIN Rail | 24VDC | 4PDT (4 Form C) | 4 A | 250VAC, 24VDC - Max | 1000VA, 96W | - | Non Latching | Lighted Indicator | Spring Terminal | - | - | 21.6 VDC | - | 15 ms | 18 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CE, EAC, UKCA, VDE | General Purpose | - | - |
|
|
KRP-11DG-48RELAY GEN PURPOSE DPDT 10A 48V |
0 |
|
برگه مشخصات |
KRP | Bulk | Obsolete | Socketable | 48VDC | DPDT (2 Form C) | 10 A | 240VAC - Max | 2400VA | 26.7 mA | Non Latching | - | Plug In, 8 Pin (Octal) | - | Class B | 36 VDC | - | - | - | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
