رله های برق، بیش از 2 آمپر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | ولتاژ سیم پیچ | فرم تماس | رتبه بندی تماس (جاری) | ولتاژ سوئیچینگ | بار - حداکثر سوئیچینگ | جریان سیم پیچ | نوع کویل | ویژگی ها | سبک خاتمه | رتبه بندی مهر و موم | عایق کویل | ولتاژ باید کار کند | ولتاژ باید آزاد شود | زمان عملیات | زمان انتشار | دمای عملیاتی | مواد تماس | آژانس تایید | نوع رله | درجه | صلاحیت |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
789-570RELAY GEN PURPOSE SPST 16A 230V |
0 |
|
برگه مشخصات |
789 | Box | Active | DIN Rail | 230VAC | SPST-NO (1 Form A) | 16 A | 250VAC - Max | 4000VA | 10 mA | Non Latching | Lighted Indicator | Spring Terminal | - | - | - | - | - | - | -25°C ~ 40°C | Silver Tin Oxide (AgSnO) | EAC | General Purpose | - | - |
|
AEP51048RELAY AUTO SPST 10A 48V |
0 |
|
برگه مشخصات |
AEP | Bulk | Last Time Buy | Chassis Mount | 48VDC | SPST-NO (1 Form A) | 10 A | 277VAC, 400VDC - Nom | 2770VA | 26 mA | Non Latching | - | Quick Connect - 0.187" (4.7mm) | Sealed - Hermetically | - | 36 VDC | 3.84 VDC | 50 ms | 30 ms | -40°C ~ 80°C | - | cURus | General Purpose | - | - |
|
2946654RELAY GEN PURPOSE SPDT 6A 48V |
0 |
|
برگه مشخصات |
EMG17-REL | Bulk | Active | DIN Rail | 48VDC | SPDT (1 Form C) | 6 A | 250VAC, 250VDC - Max | 1500VA, 144W | 8.5 mA | Non Latching | Diode, Socket Included | Screw Terminal | - | - | - | - | 5 ms | 5 ms | -40°C ~ 50°C | Silver Tin Oxide (AgSnO) | cULus, EAC, UL | General Purpose | - | - |
|
ARA-120-ADADUPLEXOR |
0 |
|
- |
ARA | Box | Discontinued | Socketable | 120VAC/DC | DPDT (2 Form C) | 10 A | 240VAC - Nom | 2400VA | - | Non Latching | - | Plug In, 11 Pin (Octal) | - | - | - | - | - | - | -20°C ~ 55°C | - | CSA, cURus | General Purpose | - | - |
|
|
8501KPR12V36RELAY 2CO CYL PINS 10A@240V 12VA |
0 |
|
برگه مشخصات |
Square D 8501K | Box | Obsolete | Chassis Mount | 12VAC | DPDT (2 Form C) | 10 A | 300VAC, 30VDC - Max | 3000VA, 300W | - | Non Latching | - | Plug In, 8 Pin (Octal) | - | - | - | - | 20 ms | 20 ms | -40°C ~ 55°C | Silver Nickel (AgNi) | - | General Purpose | - | - |
|
KRP-14AG-24RELAY GEN PURPOSE 3PDT 10A 24V |
0 |
|
برگه مشخصات |
KRP | Bulk | Obsolete | Socketable | 24VAC | 3PDT (3 Form C) | 10 A | 240VAC - Max | 2400VA | 84 mA | Non Latching | - | Plug In, 11 Pin (Octal) | - | Class B | 20.4 VAC | - | - | - | -45°C ~ 55°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
789-1346RELAY GEN PURPOSE DPDT 8A 24V |
0 |
|
برگه مشخصات |
789 | Box | Active | DIN Rail | 24VDC | DPDT (2 Form C) | 8 A | 250VAC - Max | 2000VA | 17 mA | Non Latching | Lighted Indicator | Spring Terminal | - | - | - | - | 15 ms | 8 ms | -25°C ~ 50°C | Silver Nickel (AgNi) | EAC | General Purpose | - | - |
|
|
MM2XP-UA-DC24RELAY GEN PURPOSE DPDT 7A 24V |
0 |
|
برگه مشخصات |
MM | Bulk | Discontinued | Socketable | 24VDC | DPDT (2 Form C) | 7.5 A | 250VAC, 250VDC - Max | 20VA, 800W | 87 mA | Non Latching | - | Plug In, 8 Pin (Octal) | - | - | 16.8 VDC | 2.4 VDC | 50 ms | 30 ms | -10°C ~ 55°C | Silver (Ag) | - | General Purpose | - | - |
|
HEV2AN-P-DC15VRELAY GEN PURPOSE DPST 20A 15V |
0 |
|
برگه مشخصات |
HE-V | Tray | Active | Through Hole | 15VDC | DPST-NO (2 Form A) | 20 A | 1000VDC - Max | 20000W | 128 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 10.5 VDC | 0.75 VDC | 30 ms | 10 ms | -40°C ~ 55°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
|
|
HEV2AN-P-DC9VRELAY GEN PURPOSE DPST 20A 9V |
0 |
|
برگه مشخصات |
HE-V | Tray | Active | Through Hole | 9VDC | DPST-NO (2 Form A) | 20 A | 1000VDC - Max | 20000W | 213 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 6.3 VDC | 0.45 VDC | 30 ms | 10 ms | -40°C ~ 55°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
|
|
RR2KP-UCDC110VRELAY PLUG-IN DPDT 10A 110VDC |
0 |
|
- |
RR2KP | Bulk | Active | Socketable | 110VDC | DPDT (2 Form C) | 10 A | 240VAC, 30VDC - Max | 2400VA, 300W | 13.8 mA | Latching, Dual Coil | Test Button | Plug In, 11 Pin (Octal) | - | - | 88 VDC | - | 25 ms | - | -5°C ~ 40°C | Silver (Ag) | CSA, UR | General Purpose | - | - |
|
|
RR2KP-DC125VDPDT LATCH RELAY |
0 |
|
- |
RR2KP | Bulk | Active | Socketable | 125VDC | DPDT (2 Form C) | 10 A | 240VAC, 30VDC - Max | 2400VA, 300W | 12 mA | Latching, Dual Coil | - | Plug In, 11 Pin (Octal) | - | - | 100 VDC | - | 25 ms | - | -5°C ~ 40°C | Silver (Ag) | CSA, UR | General Purpose | - | - |
|
|
RR2KP-UAC220VRELAY PLUG-IN DPDT 10A 220VAC |
0 |
|
- |
RR2KP | Bulk | Active | Socketable | 220VAC | DPDT (2 Form C) | 10 A | 240VAC, 30VDC - Max | 2400VA, 300W | 10 mA | Latching, Dual Coil | - | Plug In, 11 Pin (Octal) | - | - | 176 VAC | - | 25 ms | - | -5°C ~ 40°C | Silver (Ag) | CSA, UR | General Purpose | - | - |
|
|
RR2KP-UCAC240VRELAY PLUG-IN DPDT 10A 240VAC |
0 |
|
- |
RR2KP | Bulk | Active | Socketable | 240VAC | DPDT (2 Form C) | 10 A | 240VAC, 30VDC - Max | 2400VA, 300W | 10.6 mA | Latching, Dual Coil | Test Button | Plug In, 11 Pin (Octal) | - | - | 192 VAC | - | 25 ms | - | -5°C ~ 40°C | Silver (Ag) | CSA, UR | General Purpose | - | - |
|
|
RR2KP-UAC230VRELAY PLUG-IN DPDT 10A 230VAC |
0 |
|
- |
RR2KP | Bulk | Active | Socketable | 230VAC | DPDT (2 Form C) | 10 A | 240VAC, 30VDC - Max | 2400VA, 300W | - | Latching, Dual Coil | - | Plug In, 11 Pin (Octal) | - | - | 184 VAC | - | 25 ms | - | -5°C ~ 40°C | Silver (Ag) | CSA, UR | General Purpose | - | - |
|
R10-E1M6-V430RELAY GEN PURPOSE 6PDT 5A 24V |
0 |
|
برگه مشخصات |
R10 | Bulk | Active | Socketable | 24VDC | 6PDT (6 Form C) | 5 A | 120VAC - Nom | - | 55.8 mA | Non Latching | - | Plug In | - | - | 18 VDC | - | - | - | -55°C ~ 75°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
|
199APX-34POWER RELAY |
0 |
|
برگه مشخصات |
- | Box | Active | Chassis Mount | 120VAC | DPST-NO (2 Form A) | 50 A | 600VAC, 28VDC - Max | - | 461.5 mA | Non Latching | - | Screw Terminal | - | - | 102 VAC | 12 VAC | - | - | -55°C ~ 55°C | - | CE, CSA, UL | General Purpose | - | - |
|

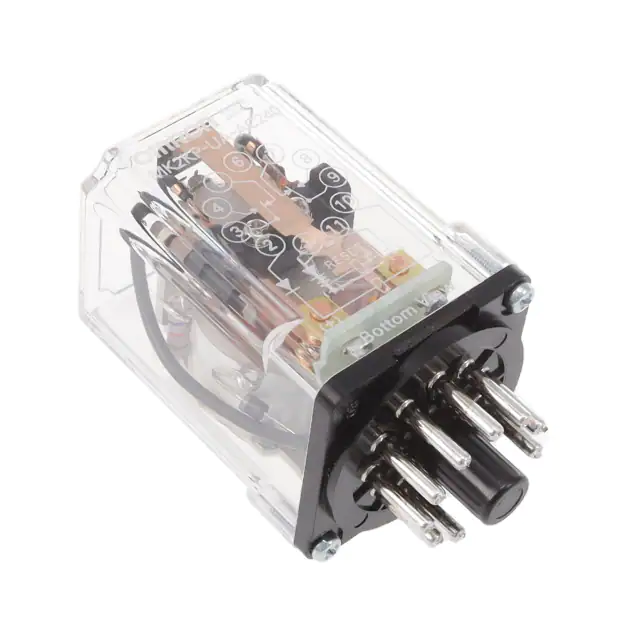

MK2KP-UA-AC240RELAY GEN PURPOSE DPDT 5A 240V |
0 |
|
برگه مشخصات |
MKK | Bulk | Obsolete | Socketable | 240VAC | DPDT (2 Form C) | 5 A | 250VAC, 250VDC - Max | 1100VA, 72W | 10.4 mA | Latching, Dual Coil | - | Plug In, 11 Pin (Octal) | - | - | 192 VAC | - | 30 ms | 30 ms | -10°C ~ 40°C | Silver (Ag) | - | General Purpose | - | - |
|
MY2K-US AC12RELAY GEN PURPOSE DPDT 3A 12V |
0 |
|
برگه مشخصات |
MYK | Bulk | Obsolete | Socketable | 12VAC | DPDT (2 Form C) | 3 A | 250VAC, 125VDC - Max | 750VA, 375W | 56 mA | Latching, Dual Coil | - | Plug In | - | - | 9.6 VAC | - | 30 ms | 30 ms | -55°C ~ 60°C | - | CE, CSA, LR, UR, TUV, VDE | General Purpose | - | - |
|
3RQ31182AF00RELAY GEN PURPOSE SPDT 3A 230V |
0 |
|
برگه مشخصات |
SIRIUS 3RQ3 | Box | Active | DIN Rail | 230VAC/DC | SPDT (1 Form C) | 3 A | 250VAC - Max | 750VA | - | Non Latching | Lighted Indicator | Spring Terminal | - | - | - | - | 9 ms | 19 ms | -25°C ~ 60°C | Silver Tin Oxide (AgSnO) | CCC, CSA, EAC, UL | General Purpose | - | - |
