رله های برق، بیش از 2 آمپر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | ولتاژ سیم پیچ | فرم تماس | رتبه بندی تماس (جاری) | ولتاژ سوئیچینگ | بار - حداکثر سوئیچینگ | جریان سیم پیچ | نوع کویل | ویژگی ها | سبک خاتمه | رتبه بندی مهر و موم | عایق کویل | ولتاژ باید کار کند | ولتاژ باید آزاد شود | زمان عملیات | زمان انتشار | دمای عملیاتی | مواد تماس | آژانس تایید | نوع رله | درجه | صلاحیت |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MK2KP AC120RELAY GEN PURPOSE DPDT 5A 120V |
0 |
|
- |
MKK | Bulk | Obsolete | Socketable | 120VAC | DPDT (2 Form C) | 5 A | 250VAC, 250VDC - Max | 1100VA, 72W | 19 mA | Latching, Dual Coil | - | Plug In, 11 Pin (Octal) | - | - | 96 VAC | - | 30 ms | 30 ms | -10°C ~ 40°C | Silver (Ag) | - | General Purpose | - | - |
|
|
3TX71300RC03OPEN RELAY, DPDT, MAG BLO, 40A, |
0 |
|
- |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
3TX71300RF03OPEN RELAY, DPDT, MAG BLO, 40A, |
0 |
|
- |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
3TX71300RF13OPEN RELAY, DPDT, MAG BLO, 40A, |
0 |
|
- |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
3TX71300RD03OPEN RELAY, DPDT, MAG BLO, 40A, |
0 |
|
- |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
3TX71300RB03OPEN RELAY, DPDT, MAG BLO, 40A, |
0 |
|
- |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

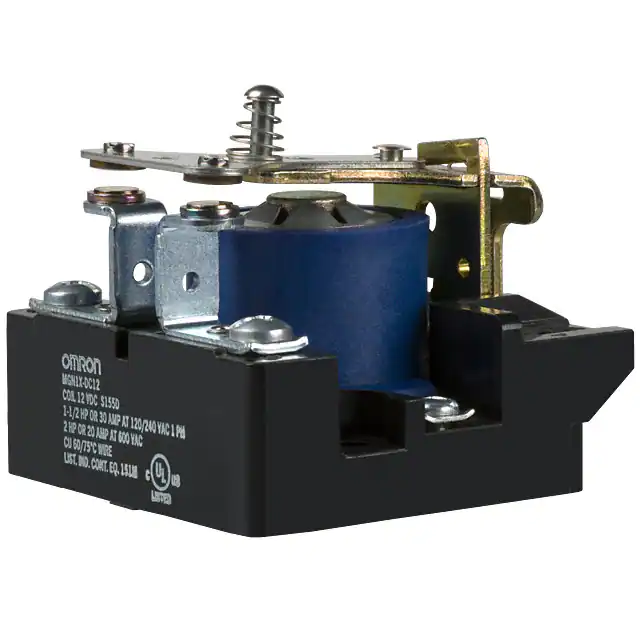

MGN1X-AC480RELAY GEN PURPOSE SPST 30A 480V |
0 |
|
برگه مشخصات |
MGN | Bulk | Active | Chassis Mount | 480VAC | SPST-NO (DM) (1 Form X) | 30 A | 600VAC, 28VDC - Max | 18000VA, 840W | 20 mA | Non Latching | - | Screw Terminal | - | Class F | 408 VAC | - | 30 ms | 30 ms | -45°C ~ 80°C | - | cURus | General Purpose | - | - |
|
MGN2AM-DC48RELAY GEN PURPOSE DPST 30A 48V |
0 |
|
برگه مشخصات |
MGN | Bulk | Active | Chassis Mount | 48VDC | DPST-NO (2 Form A) | 30 A | 600VAC, 28VDC - Max | 18000VA, 840W | 41.6 mA | Non Latching | - | Screw Terminal | - | Class F | 36 VDC | - | 30 ms | 30 ms | -40°C ~ 115°C | - | cURus | General Purpose | - | - |
|
ARA-24-ACARELAY GEN PURPOSE DPDT 10A 24V |
0 |
|
برگه مشخصات |
ARA | Box | Discontinued | Socketable | 24VAC/DC | DPDT (2 Form C) | 10 A | 240VAC - Nom | - | - | Non Latching | Lighted Indicator | Plug In, 8 Pin (Octal) | - | - | - | - | - | - | -20°C ~ 55°C | - | - | General Purpose | - | - |
|
|
3-1393806-4RELAY GEN PURPOSE DPST 5A 1.1V |
0 |
|
برگه مشخصات |
V23154, AXICOM | Bulk | Active | Socketable | 1.1VDC | DPST-NO/NC (1 Form A, 1 Form B) | 5 A | 250VAC, 250VDC - Max | - | 16.7 mA | Non Latching | - | Plug In | - | - | 0.4 VDC | - | 7.5 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | - | General Purpose | - | - |
|
|
ALT230-X-SWRELAY IMPULSE DPDT 230V |
0 |
|
برگه مشخصات |
- | Bulk | Active | Socketable | 230VAC | DPDT (2 Form C) | - | 240VAC - Nom | - | - | Latching, Single Coil | Debounce Delay | Plug In, 8 Pin (Octal) | - | - | - | - | - | - | -40°C ~ 50°C | - | - | Impulse | - | - |
|
|
MM3P DC125RELAY GEN PURPOSE 3PDT 7.5A 125V |
0 |
|
برگه مشخصات |
MM | Bulk | Active | Socketable | 125VDC | 3PDT (3 Form C) | 7.5 A | 250VAC, 250VDC - Max | 1700VA, 120W | 21.6 mA | Non Latching | - | Plug In, 15 Pin (Octal) | - | - | 87.5 VDC | 12.5 VDC | 50 ms | 30 ms | -10°C ~ 55°C | Silver (Ag) | - | General Purpose | - | - |
|
|
MM3XP DC48RELAY GEN PURPOSE 3PDT 7A 48V |
0 |
|
برگه مشخصات |
MM | Bulk | Active | Socketable | 48VDC | 3PDT (3 Form C) | 7.5 A | 250VAC, 250VDC - Max | 20VA, 800W | 52 mA | Non Latching | - | Plug In, 15 Pin (Octal) | - | - | 33.6 VDC | 4.8 VDC | 50 ms | 30 ms | -10°C ~ 55°C | Silver (Ag) | - | General Purpose | - | - |
|
|
MM2XPN AC200/(220)RELAY GEN PURPOSE DPDT 7A 220V |
0 |
|
برگه مشخصات |
MM | Bulk | Active | Socketable | 220VAC | DPDT (2 Form C) | 7.5 A | 250VAC, 250VDC - Max | 20VA, 800W | 17.5 mA | Non Latching | Lighted Indicator | Plug In, 8 Pin (Octal) | - | - | 176 VAC | 66 VAC | 25 ms | 30 ms | -10°C ~ 55°C | Silver (Ag) | - | General Purpose | - | - |
|
|
1447610000RSM-4 230VAC 1CO Z |
0 |
|
برگه مشخصات |
RSM | Box | Active | DIN Rail | 230VAC | SPDT (1 Form C) x 4 | 6 A | 250VAC - Max | 1500VA | 3.3 mA | Non Latching | Lighted Indicator | Spring Terminal | - | - | - | - | - | - | -25°C ~ 50°C | Silver Nickel (AgNi) | CE, UR | General Purpose | - | - |
|
|
S89R11DPP1-24RELAY IMPULSE SPDT 15A 24V |
0 |
|
برگه مشخصات |
S89R | Bulk | Obsolete | Socketable | 24VDC | SPDT (1 Form C) | 15 A | 277VAC - Max | 4155VA | 260.9 mA | Latching, Single Coil | - | Plug In, 8 Pin (Octal) | - | Class B | 18 VDC | - | - | - | -10°C ~ 60°C | - | CSA, UR | Impulse | - | - |
|
|
KB-17AY-120RELAY GEN PURPOSE 4PDT 5A 120V |
0 |
|
برگه مشخصات |
KB | Bulk | Obsolete | Chassis Mount | 120VAC | 4PDT (4 Form C) | 5 A | 120VAC - Nom | - | 44 mA | Latching, Dual Coil | - | Solder Lug | - | - | 102 VAC | - | - | - | -45°C ~ 85°C | Silver (Ag) | UR | General Purpose | - | - |
|
|
1457380000RSM-8 24V+ BASE Z |
0 |
|
برگه مشخصات |
RSM | Box | Active | DIN Rail | 24VDC | SPDT (1 Form C) x 8 | 6 A | 250VAC - Max | 1500VA | 16.7 mA | Non Latching | Lighted Indicator | Spring Terminal | - | - | - | - | - | - | -25°C ~ 50°C | Silver Nickel (AgNi) | CE, UR | General Purpose | - | - |
|
|
1447570000RSM-4 115VAC/DC 1CO S |
0 |
|
برگه مشخصات |
RSM | Box | Active | DIN Rail | 115VAC/DC | SPDT (1 Form C) x 4 | 6 A | 250VAC - Max | 1500VA | 3.3 mA | Non Latching | Lighted Indicator | Screw Terminal | - | - | - | - | - | - | -25°C ~ 50°C | Silver Nickel (AgNi) | CE, UR | General Purpose | - | - |
|
286-307/004-000RELAY GEN PURPOSE SPDT 3A 110V |
0 |
|
برگه مشخصات |
286 | Box | Active | Socketable | 110VDC | SPDT (1 Form C) | 3 A | 250VAC - Max | 750VA | 3.1 mA | Non Latching | Lighted Indicator | Plug In | - | - | - | - | 8 ms | 6 ms | -25°C ~ 70°C | Silver Nickel (AgNi) | EAC | General Purpose | - | - |
