رله های برق، بیش از 2 آمپر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | ولتاژ سیم پیچ | فرم تماس | رتبه بندی تماس (جاری) | ولتاژ سوئیچینگ | بار - حداکثر سوئیچینگ | جریان سیم پیچ | نوع کویل | ویژگی ها | سبک خاتمه | رتبه بندی مهر و موم | عایق کویل | ولتاژ باید کار کند | ولتاژ باید آزاد شود | زمان عملیات | زمان انتشار | دمای عملیاتی | مواد تماس | آژانس تایید | نوع رله | درجه | صلاحیت |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MM4KP DC24RELAY GEN PURPOSE 4PDT 5A 24V |
0 |
|
برگه مشخصات |
MMK | Bulk | Discontinued | Socketable | 24VDC | 4PDT (4 Form C) | 5 A | 250VAC, 250VDC - Max | 1100VA, 96W | 113 mA | Latching, Dual Coil | - | Plug In, 15 Pin (Octal) | - | - | 19.2 VDC | - | 60 ms | 30 ms | -10°C ~ 55°C | Silver (Ag) | - | General Purpose | - | - |
|
|
MM4XP-AC100/110RELAY GEN PURPOSE 4PDT 7A 110V |
0 |
|
برگه مشخصات |
MM | Bulk | Discontinued | Socketable | 110VAC | 4PDT (4 Form C) | 7.5 A | 250VAC, 250VDC - Max | 20VA, 800W | 51 mA | Non Latching | - | Plug In, 15 Pin (Octal) | - | - | 88 VAC | 33 VAC | 25 ms | 30 ms | -10°C ~ 55°C | Silver (Ag) | - | General Purpose | - | - |
|
|
MM2 AC200/(220)RELAY GEN PURPOSE DPDT 15A 220V |
0 |
|
برگه مشخصات |
MM | Bulk | Active | Chassis Mount | 220VAC | DPDT (2 Form C) | 15 A | 250VAC, 250VDC - Max | - | 19.5 mA | Non Latching | - | Solder Lug | - | - | 176 VAC | 66 VAC | 25 ms | 30 ms | -10°C ~ 55°C | Silver (Ag) | - | General Purpose | - | - |
|
|
MM3XP DC200/220RELAY GEN PURPOSE 3PDT 7A 220V |
0 |
|
برگه مشخصات |
MM | Bulk | Active | Socketable | 220VDC | 3PDT (3 Form C) | 7.5 A | 250VAC, 250VDC - Max | 20VA, 800W | 11 mA | Non Latching | - | Plug In, 15 Pin (Octal) | - | - | 154 VDC | 22 VDC | 50 ms | 30 ms | -10°C ~ 55°C | Silver (Ag) | - | General Purpose | - | - |
|
|
MM4XP-D DC100/110RELAY GEN PURPOSE 4PDT 7A 110V |
0 |
|
برگه مشخصات |
MM | Bulk | Active | Socketable | 110VDC | 4PDT (4 Form C) | 7.5 A | 250VAC, 250VDC - Max | 20VA, 800W | 22 mA | Non Latching | Diode | Plug In, 15 Pin (Octal) | - | - | 77 VDC | 11 VDC | 50 ms | 100 ms | -10°C ~ 55°C | Silver (Ag) | - | General Purpose | - | - |
|
|
MM4XP-JD DC125RELAY GEN PURPOSE 4PDT 7A 125V |
0 |
|
برگه مشخصات |
MM | Bulk | Active | Socketable | 125VDC | 4PDT (4 Form C) | 7.5 A | 250VAC, 250VDC - Max | 20VA, 800W | 21.6 mA | Non Latching | - | Plug In, 15 Pin (Octal) | - | - | 87.5 VDC | 12.5 VDC | 50 ms | 30 ms | -10°C ~ 55°C | Silver (Ag) | - | General Purpose | - | - |
|
|
MM3KP DC24RELAY GEN PURPOSE 3PDT 5A 24V |
0 |
|
- |
MMK | Bulk | Active | Socketable | 24VDC | 3PDT (3 Form C) | 5 A | 250VAC, 250VDC - Max | 1100VA, 96W | 94 mA | Latching, Dual Coil | - | Plug In, 15 Pin (Octal) | - | - | 19.2 VDC | - | 60 ms | 30 ms | -10°C ~ 55°C | Silver (Ag) | - | General Purpose | - | - |
|
ARA-24-ABADUPLEXOR |
0 |
|
برگه مشخصات |
ARA | Box | Active | Socketable | 24VAC/DC | SPDT (1 Form C) | 10 A | 240VAC - Nom | 2400VA | - | Non Latching | Lighted Indicator | Plug In, 8 Pin (Octal) | - | - | - | - | - | - | -20°C ~ 55°C | - | CSA, cURus | General Purpose | - | - |
|
|
ARA-24-ADADUPLEXOR |
0 |
|
برگه مشخصات |
ARA | Box | Active | Socketable | 24VAC/DC | DPDT (2 Form C) | 10 A | 240VAC - Nom | 2400VA | - | Non Latching | Lighted Indicator | Plug In, 11 Pin (Octal) | - | - | - | - | - | - | -20°C ~ 55°C | - | CSA, cURus | General Purpose | - | - |
|
|
8501XO00V02RELAY 600VAC 10AMP NEMA +OPTIONS |
0 |
|
برگه مشخصات |
Square D 8501X | Box | Active | Chassis Mount | 120VAC | - | 10 A | 600VAC - Max | 6000VA | - | Non Latching | - | Screw Terminal | - | - | 102 VAC | - | 15 ms | 16 ms | -40°C ~ 71°C | - | CSA, UL | General Purpose | - | - |
|

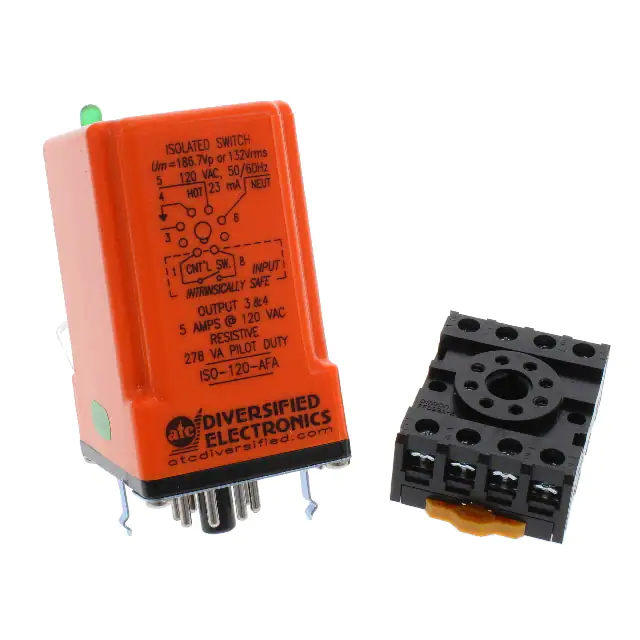

ISO-120-AFARELAY GEN PURPOSE SPST 5A 120V |
0 |
|
- |
ISO | Box | Discontinued | Socketable | 120VAC | SPST-NO (1 Form A) | 5 A | 120VAC - Nom | - | - | Non Latching | - | Plug In, 8 Pin (Octal) | - | - | - | - | 6 ms | 2.5 ms | -20°C ~ 55°C | - | UL | General Purpose | - | - |
|
|
CAD503BLRELAY GEN PURPOSE 5PST 10A 24V |
0 |
|
- |
TeSys | Box | Active | DIN Rail | 24VDC | 5PST-NO (5 Form A) | 10 A | 690VAC - Max | - | - | Non Latching | - | Spring Terminal | - | - | 16.8 VDC | 2.4 VDC | 88 ms | 25 ms | -40°C ~ 70°C | - | CB, CCC, CE, CSA, EAC, UKCA, UL | General Purpose | - | - |
|
|
1456580000RSMS-8H 24V- 1CO Z |
0 |
|
برگه مشخصات |
- | Box | Active | Chassis Mount | 24VDC | SPDT (1 Form C) x 8 | 4.5 A | 250VAC - Max | 1125VA | 7.1 mA | Non Latching | Lighted Indicator | Spring Terminal | - | - | - | - | - | - | -25°C ~ 50°C | Silver Nickel (AgNi), Gold (Au) | CE, UR | General Purpose | - | - |
|

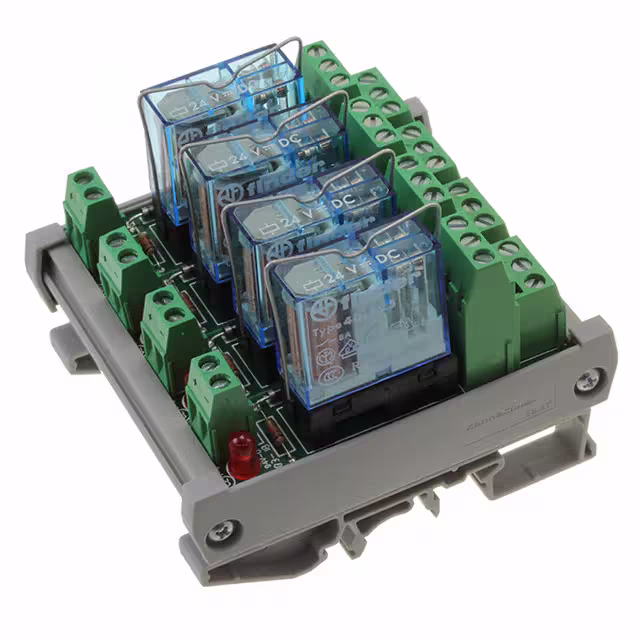

8956.2RELAY GEN PURPOSE DPDT 8A 24V |
0 |
|
برگه مشخصات |
RM2 | Bulk | Active | DIN Rail | 24VDC | DPDT (2 Form C) | 8 A | 250VAC, 24VDC - Max | 2000VA, 192W | 20 mA | Non Latching | Socket Included | Screw Terminal | - | - | 16.8 VDC | - | - | - | -40°C ~ 85°C | Silver Nickel (AgNi) | - | General Purpose | - | - |
|
|
EV200H2ANAEV200H2ANA=RELAY, SPST-NO W/AUX |
0 |
|
- |
EV200, KILOVAC | Bulk | Active | Chassis Mount | - | SPST-NO (DM) (1 Form X) | 500 A | 900VDC - Max | - | - | Non Latching | - | Stud | Sealed - Hermetically | - | - | - | 15 ms | 12 ms | -40°C ~ 85°C | Copper | CE, cURus, UL | General Purpose | - | - |
|
|
1-1618002-7EV200H3ANA=RELAY, SPST-NO WITH |
0 |
|
برگه مشخصات |
EV200, KILOVAC | Bulk | Active | Chassis Mount | 48 ~ 95VDC | SPST-NO (DM) (1 Form X) | 500 A | 900VDC - Max | - | - | Non Latching | - | Stud | Sealed - Hermetically | - | 48 VDC | 27 VDC | 15 ms | 12 ms | -40°C ~ 85°C | Copper | CE, cURus, UL | General Purpose | - | - |
|
|
KR-6654KR-6654=RELAY,10A,2C,AGCDO,32VDC |
0 |
|
- |
KR | Bulk | Obsolete | - | 32VDC | DPDT (2 Form C) | 10 A | 240VAC - Max | 2400VA | - | Non Latching | - | - | - | - | - | - | - | - | -45°C ~ 55°C | - | UR | General Purpose | - | - |
|
286-640RELAY GEN PURPOSE SPDT 5A 24V |
0 |
|
برگه مشخصات |
286 | Box | Active | Socketable | 24VDC | SPDT (1 Form C) | 5 A | 250VAC - Max | 1250VA | 24 mA | Non Latching | Lighted Indicator | Plug In | - | - | - | - | - | - | -25°C ~ 40°C | Silver Nickel (AgNi), Gold (Au) | EAC | General Purpose | - | - |
|
6-1393809-5RELAY GEN PURPOSE DPDT 5A 110V |
0 |
|
برگه مشخصات |
V23154, AXICOM | Bulk | Obsolete | Socketable | 110VDC | DPDT (2 Form C) | 5 A | 125VAC, 150VDC - Max | 625VA, 750W | 16.7 mA | Non Latching | - | Plug In | - | - | 65 VDC | - | 7.5 ms | 3 ms | -40°C ~ 70°C | Silver (Ag) | - | General Purpose | - | - |
|
|
1456830000RSMS-8 24VAC/DC 1CO S |
0 |
|
برگه مشخصات |
- | Box | Active | Chassis Mount | 24VAC/DC | SPDT (1 Form C) x 8 | 4.5 A | 250VAC - Max | 1125VA | 15.6 mA | Non Latching | Lighted Indicator | Screw Terminal | - | - | - | - | - | - | -25°C ~ 50°C | Silver Nickel (AgNi) | CE, UR | General Purpose | - | - |
