ترانسفورماتورهای قدرت
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | تایپ کنید | ولتاژ - اولیه | ولتاژ - ثانویه (بار کامل) | جریان - خروجی (حداکثر) | سیم پیچ (های) اولیه | سیم پیچ (های) ثانویه | وسط ضربه بزنید | قدرت - حداکثر | نوع نصب | سبک خاتمه | اندازه / ابعاد | ارتفاع - نشسته (حداکثر) | ولتاژ - جداسازی | وزن |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A41-130-24PWR XFMR LAMINATED 130VA CHAS MT |
247 |
|
برگه مشخصات |
All-4-One™ | Box | Active | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 10.8A, Series 5.4A | Dual | Dual | No | 130VA | Chassis Mount | Solder, Quick Connect | 71.40mm L x 76.20mm W | 85.70mm | 4000Vrms | 4.1 lbs (1.9 kg) |
|

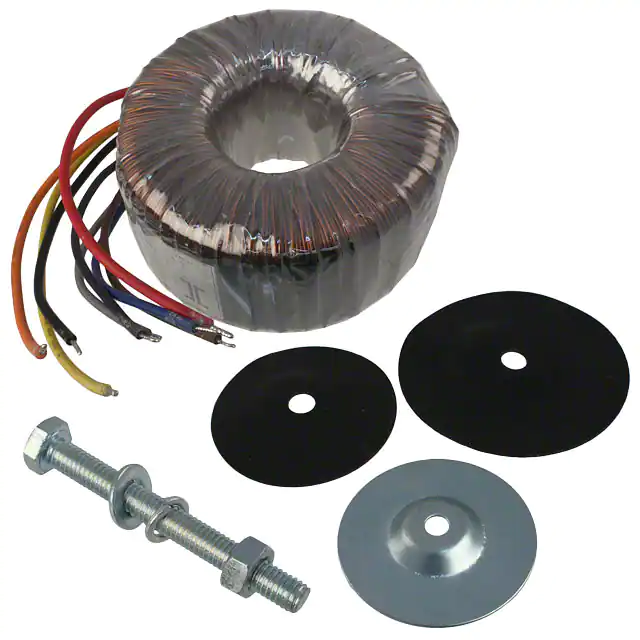

VPT24-4170PWR XFMR TOROIDAL 100VA CHAS MT |
146 |
|
برگه مشخصات |
Chassis Mount: World Series™ | Box | Active | Toroidal | 115V, 230V | Parallel 12V, Series 24V | Parallel 8.34A, Series 4.17A | Dual | Dual | No | 100VA | Chassis Mount | Wire Leads | 87.00mm Dia x 47.00mm W | 51.0mm | 4000Vrms | 2.2 lbs (997.9 g) |
|
|
A41-175-24PWR XFMR LAMINATED 175VA CHAS MT |
167 |
|
برگه مشخصات |
All-4-One™ | Box | Active | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 14.6A, Series 7.3A | Dual | Dual | No | 175VA | Chassis Mount | Solder, Quick Connect | 79.40mm L x 79.70mm W | 95.30mm | 4000Vrms | 5.5 lbs (2.5 kg) |
|

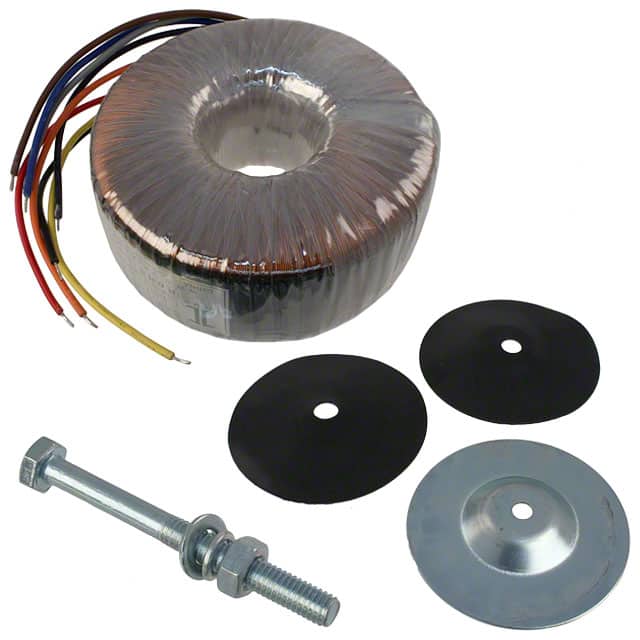

VPT230-700PWR XFMR TOROIDAL 160VA CHAS MT |
167 |
|
برگه مشخصات |
Chassis Mount: World Series™ | Box | Active | Toroidal | 115V, 230V | Parallel 115V, Series 230V | Parallel 1.4A, Series 700mA | Dual | Dual | No | 160VA | Chassis Mount | Wire Leads | 103.00mm Dia x 48.00mm W | 52.0mm | 4000Vrms | 3.6 lbs (1.6 kg) |
|
VPT48-5200PWR XFMR TOROIDAL 250VA CHAS MT |
92 |
|
برگه مشخصات |
Chassis Mount: World Series™ | Box | Active | Toroidal | 115V, 230V | Parallel 24V, Series 48V | Parallel 10.4A, Series 5.2A | Dual | Dual | No | 250VA | Chassis Mount | Wire Leads | 112.00mm Dia x 54.00mm W | 58.0mm | 4000Vrms | 4.9 lbs (2.2 kg) |
|

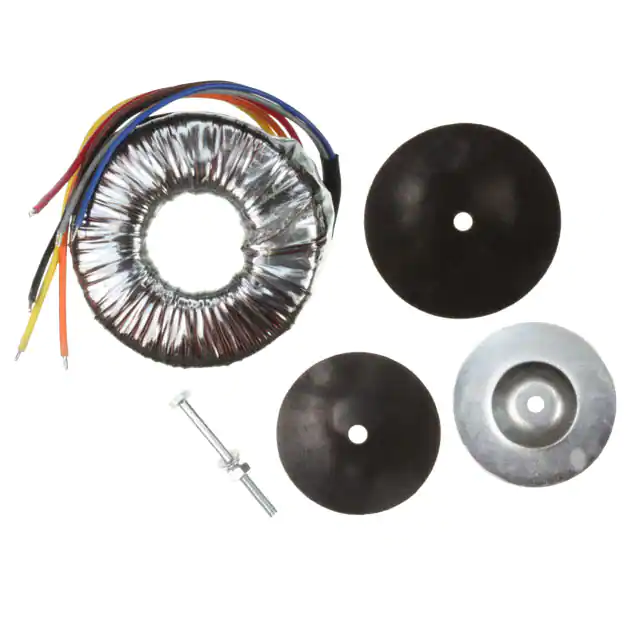

VPT24-10420PWR XFMR TOROIDAL 250VA CHAS MT |
46 |
|
برگه مشخصات |
Chassis Mount: World Series™ | Box | Active | Toroidal | 115V, 230V | Parallel 12V, Series 24V | Parallel 20.84A, Series 10.42A | Dual | Dual | No | 250VA | Chassis Mount | Wire Leads | 112.00mm Dia x 54.00mm W | 58.0mm | 4000Vrms | 4.9 lbs (2.2 kg) |
|

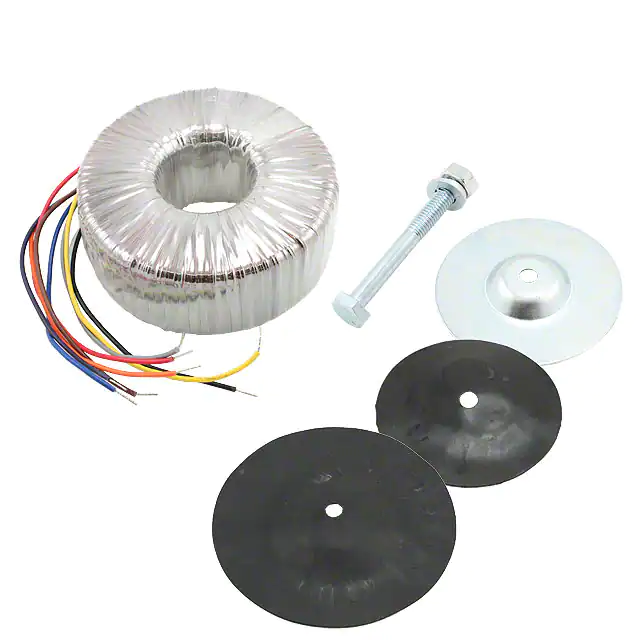

VPT230-2170PWR XFMR TOROIDAL 500VA CHAS MT |
161 |
|
برگه مشخصات |
Chassis Mount: World Series™ | Box | Active | Toroidal | 115V, 230V | Parallel 115V, Series 230V | Parallel 4.34A, Series 2.17A | Dual | Dual | No | 500VA | Chassis Mount | Wire Leads | 140.00mm Dia x 60.00mm W | 66.0mm | 4000Vrms | 9.3 lbs (4.2 kg) |
|

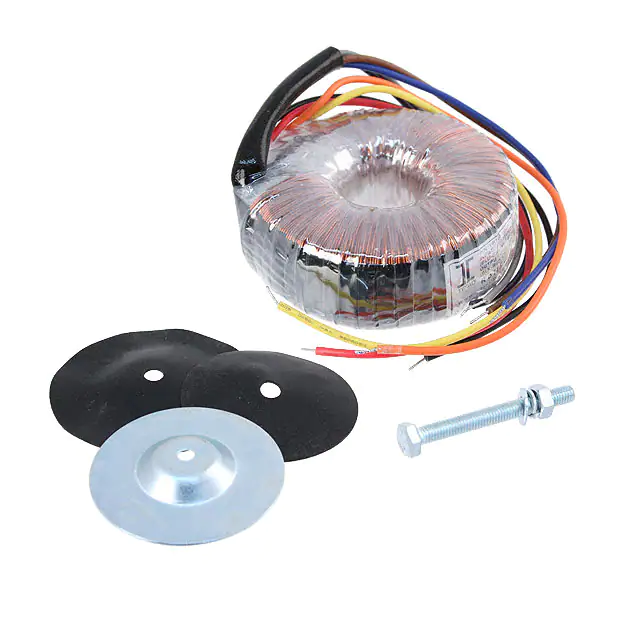

VPT48-10400PWR XFMR TOROIDAL 500VA CHAS MT |
149 |
|
برگه مشخصات |
Chassis Mount: World Series™ | Box | Active | Toroidal | 115V, 230V | Parallel 24V, Series 48V | Parallel 20.8A, Series 10.4A | Dual | Dual | No | 500VA | Chassis Mount | Wire Leads | 140.00mm Dia x 60.00mm W | 66.0mm | 4000Vrms | 9.3 lbs (4.2 kg) |
|

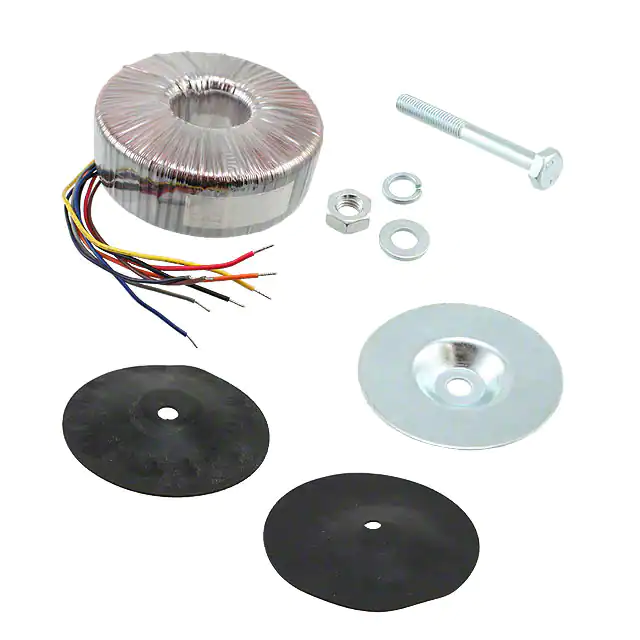

VPT230-4350PWR XFMR TOROIDAL 1000VA CHAS MT |
78 |
|
برگه مشخصات |
Chassis Mount: World Series™ | Box | Active | Toroidal | 115V, 230V | Parallel 115V, Series 230V | Parallel 8.7A, Series 4.35A | Dual | Dual | No | 1000VA | Chassis Mount | Wire Leads | 175.00mm Dia x 68.00mm W | 76.0mm | 4000Vrms | 18 lbs (8.2 kg) |
|
VPM240-4170PWR XFMR TOROIDAL 1000VA CHAS MT |
44 |
|
برگه مشخصات |
Toroidal Medical, VPM | Box | Active | Toroidal | 100V, 120V, 220V, 240V | Parallel 120V, Series 240V | Parallel 8.34A, Series 4.17A | Dual, Multiple Taps | Dual | No | 1000VA | Chassis Mount | Wire Leads | 183.00mm Dia | 74.00mm | 4000Vrms | 19 lbs (8.6 kg) |
|
HS1F1.5ASPWR XFMR LAMINATED 1500VA CHAS |
31 |
|
برگه مشخصات |
- | Bulk | Active | Laminated Core | 240V, 480V | 120V, 240V | 12.5A | Dual | Dual | No | 1500VA | Chassis Mount | Solder, Quick Connect | - | - | - | - |
|
HS1F2ASPWR XFMR LAMINATED 2000VA CHAS |
26 |
|
برگه مشخصات |
- | Bulk | Active | Laminated Core | 240V, 480V | 120V, 240V | 16.7A | Dual | Dual | No | 2000VA | Chassis Mount | Solder, Quick Connect | - | - | - | - |
|
HS5F3ASPWR XFMR LAMINATED 3000VA CHAS |
160 |
|
برگه مشخصات |
- | Bulk | Active | Laminated Core | 240V, 480V | 120V, 240V | 25A | Dual, Multiple Taps | Dual | No | 3000VA | Chassis Mount | Solder, Quick Connect | 254.00mm L x 177.80mm W | 304.80mm | - | - |
|
|
HS12F1.5ASPWR XFMR LAMINATED 1500VA CHAS |
91 |
|
برگه مشخصات |
- | Bulk | Active | Laminated Core | - | 120V, 240V | 12.5A | Dual, Multiple Taps | Dual | No | 1500VA | Chassis Mount | Solder, Quick Connect | - | - | - | - |
|
|
BV302S24010PWR XFMR 1VA TH |
861 |
|
برگه مشخصات |
EI30-10.5 | Tube | Active | - | 230V | 24V | 41mA | Single | Single | No | 1VA | Through Hole | PC Pin | 32.80mm L x 27.80mm W | 0.878" (22.30mm) | 4200Vrms | - |
|
|
BV301S12010PWR XFMR 1VA TH |
764 |
|
برگه مشخصات |
EI30-10.5 | Tube | Active | - | 115V | 12V | 83mA | Single | Single | No | 1VA | Through Hole | PC Pin | 32.80mm L x 27.80mm W | 0.878" (22.30mm) | 2800Vrms | - |
|
|
BV202S12006PWR XFMR 0.6VA TH |
1,050 |
|
برگه مشخصات |
EE20-10.5 | Tube | Active | - | 230V | 12V | 50mA | Single | Single | No | 0.6VA | Through Hole | PC Pin | 24.00mm L x 23.00mm W | 0.768" (19.50mm) | 4200Vrms | - |
|
|
BV301S24023PWR XFMR 2.3VA TH |
833 |
|
برگه مشخصات |
EI 30-18 | Tube | Active | - | 115V | 24V | 96mA | Single | Single | No | 2.3VA | Through Hole | PC Pin | 32.80mm L x 27.80mm W | 1.161" (29.50mm) | 4200Vrms | - |
|
|
BV301S06023PWR XFMR 2.3VA TH |
729 |
|
برگه مشخصات |
EI 30-18 | Tube | Active | - | 115V | 6V | 383mA | Single | Single | No | 2.3VA | Through Hole | PC Pin | 32.80mm L x 27.80mm W | 1.161" (29.50mm) | 4200Vrms | - |
|
|
BV301S12023PWR XFMR 2.3VA TH |
399 |
|
برگه مشخصات |
EI 30-18 | Tube | Active | - | 115V | 12V | 192mA | Single | Single | No | 2.3VA | Through Hole | PC Pin | 32.80mm L x 27.80mm W | 1.161" (29.50mm) | 4200Vrms | - |
