سنسور فشار، مبدل
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته / کیس | بسته بندی | وضعیت محصول | برنامه های کاربردی | نوع فشار | فشار عملیاتی | نوع خروجی | خروجی | دقت | ولتاژ - منبع تغذیه | اندازه پورت | سبک بندری | ویژگی ها | سبک خاتمه | حداکثر فشار | دمای عملیاتی | درجه | صلاحیت | نوع نصب | بسته دستگاه تامین کننده |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

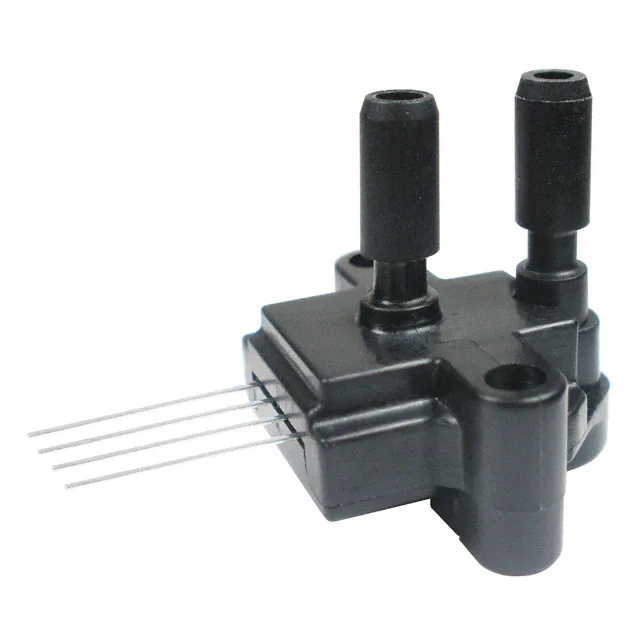

TSCSNBN005PDUCVSENSOR 5PSID 0.19" .05V 4SIP |
5,751 |
|
برگه مشخصات |
TruStability® TSC | 4-SIP, Dual Ports, Same Side | Tray | Active | Board Mount | Differential | ±5PSI (±34.47kPa) | Wheatstone Bridge | 0 mV ~ 50 mV (5V) | ±0.15% | 1.5V ~ 12V | Male - 0.19" (4.8mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | ±30PSI (±206.84kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
MPXV4006GC7USENSOR 0.87PSIG 0.13" 4.7V 8DIP |
274 |
|
برگه مشخصات |
MPXV4006G | 8-DIP (0.550", 13.97mm), Top Port | Tube | Active | Board Mount | Vented Gauge | 0.87PSI (6kPa) | Analog Voltage | 0.2 V ~ 4.7 V | ±5% | 4.75V ~ 5.25V | Male - 0.13" (3.17mm) Tube | Barbless | Temperature Compensated | PC Pin | 3.48PSI (24kPa) | -10°C ~ 60°C | - | - | Through Hole | 8-DIP |
|
SDP800-500PASENSOR 0.07PSID 0.2" 16BIT |
113 |
|
برگه مشخصات |
SDP800 | Module | Tray | Active | Board Mount | Differential | -0.07PSI ~ 0.07PSI (-0.5kPa ~ 0.5kPa) | I2C | 16 b | ±3% | 3V ~ 5.5V | Male - 0.2" (5.2mm) Tube, Dual | Barbless | Temperature Compensated | - | 14.5PSI (100kPa) | -20°C ~ 85°C | - | - | - | - |
|
NPA-300B-10WDSENSOR 0.36PSID 0.12" 3V |
807 |
|
برگه مشخصات |
NPA-300 | 14-SOIC Module, Top Port | Tape & Reel (TR) | Active | Board Mount | Differential | 0.36PSI (2.49kPa) | Analog Voltage | 0.5 V ~ 3 V | ±1.5% | 3.135V ~ 3.465V | Male - 0.12" (3mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | Gull Wing | 35PSI (241.32kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|
|
NPA-700B-030GSENSOR 30PSIG 0.12" 14BIT |
510 |
|
برگه مشخصات |
NPA-700 | 14-SOIC Module, Top Port | Tape & Reel (TR) | Active | Board Mount | Vented Gauge | 30PSI (206.84kPa) | I2C | 14 b | ±1.5% | 4.75V ~ 5.25V | Male - 0.12" (3mm) Tube, Dual | Barbed | Temperature Compensated | Gull Wing | 60PSI (413.69kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|
325407000-00SENSOR 101.53PSIA .392V |
377 |
|
برگه مشخصات |
- | 8-SMD Module | Tube | Active | Board Mount | Absolute | 101.53PSI (700kPa) | Wheatstone Bridge | 0 mV ~ 392 mV (5V) | ±0.4% | 20V | - | No Port | - | SMD (SMT) Tab | 304.58PSI (2100kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|
325534009-00SENSOR 15.95PSIA 16BIT |
153 |
|
برگه مشخصات |
- | 8-SMD Module | Tray | Active | Board Mount | Absolute | 0.15PSI ~ 15.95PSI (1kPa ~ 110kPa) | SPI | 16 b | - | 2.2V ~ 3.6V | - | No Port | - | SMD (SMT) Tab | 145.04PSI (1000kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|
ABPMANN004BGAA5SENSOR 58.02PSIG 0.08" 4.5V 6SMD |
242 |
|
برگه مشخصات |
ABP | 6-SMD Module | Tube | Active | Medical Ventilation | Vented Gauge | 58.02PSI (400kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 5V | Male - 0.08" (1.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | J Lead | 116.03PSI (800kPa) | -40°C ~ 85°C | - | - | Surface Mount | 6-SMD |
|
116CP31-M16S3-50SENSOR 230PSIS 1/4" 4.5V |
140 |
|
برگه مشخصات |
116CP | Module | Box | Active | Board Mount | Sealed Gauge | 230PSI (1585.79kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±1.5% | 5V | Male - 1/4" (6.35mm) BSPP | Threaded | - | Connector | 460PSI (3171.59kPa) | 2°C ~ 90°C | - | - | - | - |
|
SSCDRRN060MDAA5SENSOR 0.87PSID 0.08" 4.5V 8DIP |
1,631 |
|
برگه مشخصات |
TruStability® SSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±0.87PSI (±6kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | ±12.33PSI (±85kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
NPA-500B-015ASENSOR 15PSIA 0.12" 4.5V |
436 |
|
برگه مشخصات |
NPA-500 | 14-SOIC Module, Top Port | Tape & Reel (TR) | Active | Board Mount | Absolute | 15PSI (103.42kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±1.5% | 4.75V ~ 5.25V | Male - 0.12" (3mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | Gull Wing | 60PSI (413.69kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|
SSCDANN015PGAA5SENSOR 15PSIG 0.19" 4.5V 8DIP |
825 |
|
برگه مشخصات |
TruStability® SSC | 8-DIP (0.524", 13.30mm), Top Port | Bulk | Active | Board Mount | Vented Gauge | 15PSI (103.42kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 30PSI (206.84kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
NPA-730B-001GSENSOR 1PSIG 0.12" 14BIT 14SOIC |
250 |
|
برگه مشخصات |
NPA-730 | 14-SOIC Module, Dual Top Ports | Tape & Reel (TR) | Active | Board Mount | Vented Gauge | 1PSI (6.89kPa) | I2C | 14 b | ±1.5% | 3.135V ~ 3.465V | Male - 0.12" (3mm) Tube, Dual | Barbed | Temperature Compensated | Gull Wing | 5PSI (34.47kPa) | -40°C ~ 125°C | - | - | Surface Mount | 14-SOIC |
|
SDP32-125PA-TR-250PCSSENSOR 0.018PSID 0.08" 16BIT SMD |
1,669 |
|
برگه مشخصات |
SDP3x | 16-SMD Module, Dual Top Ports | Tape & Reel (TR) | Active | Board Mount | Differential | ±0.018PSI (± 0.125kPa) | I2C | 16 b | ±3% | 3V ~ 4V | Male - 0.08" (2.00mm) Tube, Dual | Barbless | Temperature Compensated | SMD (SMT) Tab | ±14.5PSI (±100kPa) | -40°C ~ 85°C | - | - | Surface Mount | 16-SMD |
|
SDP800-125PASENSOR 0.018PSID 0.2" 16BIT |
116 |
|
برگه مشخصات |
SDP800 | Module | Tray | Active | Board Mount | Differential | ±0.018PSI (± 0.125kPa) | I2C | 16 b | ±3% | 3V ~ 5.5V | Male - 0.2" (5.2mm) Tube, Dual | Barbless | Temperature Compensated | - | 14.5PSI (100kPa) | -20°C ~ 85°C | - | - | - | - |
|
ND015ASENSOR 15PSIA 0.08" 16BIT |
277 |
|
برگه مشخصات |
ND | 11-SMD, No Lead, Top Port | Tape & Reel (TR) | Active | Board Mount | Absolute | 15PSI (103.42kPa) | I2C, SPI | 16 b | ±0.25% | 2.8V ~ 3.5V | Male - 0.08" (2.13mm) Tube, Dual | Barbless | Temperature Compensated | SMD (SMT) Tab | 35PSI (241.32kPa) | -20°C ~ 85°C (TA) | - | - | Surface Mount | - |
|
|
NPA-700B-030DSENSOR 30PSID 0.12" 14BIT |
317 |
|
برگه مشخصات |
NPA-700 | 14-SOIC Module, Top Port | Tape & Reel (TR) | Active | Board Mount | Differential | 30PSI (206.84kPa) | I2C | 14 b | ±1.5% | 4.75V ~ 5.25V | Male - 0.12" (3mm) Tube, Dual | Barbed | Temperature Compensated | Gull Wing | 60PSI (413.69kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|
ABP2MDAN004ND2B3XXSENSOR 0.11" 14BIT 6SMD |
579 |
|
- |
ABP2 | 6-SMD, J-Lead, Dual Ports, Same Side | Tube | Active | - | Vented Gauge | - | I2C | 14 b | ±0.25% | 1.8V ~ 3.6V | Male - 0.11" (2.74mm) Tube | Barbed | Amplified Output, Temperature Compensated | J Lead | - | -40°C ~ 110°C | - | - | Surface Mount | 6-SMD |
|
ABPDJJT001PGAA5SENSOR 1PSIG 0.07" 4.5V 6DIP |
110 |
|
برگه مشخصات |
ABP | 6-DIP Module | Tray | Active | Medical Ventilation | Vented Gauge | 1PSI (6.89kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 5V | Male - 0.07" (1.88mm) Tube, Dual | Barbless | Amplified Output, Temperature Compensated | PC Pin | 30PSI (206.84kPa) | -40°C ~ 85°C | - | - | Through Hole | 6-DIP |
|
|
NPA-700B-10WDSENSOR 0.36PSID 0.12" 14BIT |
989 |
|
برگه مشخصات |
NPA-700 | 14-SOIC Module, Top Port | Tape & Reel (TR) | Active | Board Mount | Differential | 0.36PSI (2.49kPa) | I2C | 14 b | ±1.5% | 4.75V ~ 5.25V | Male - 0.12" (3mm) Tube, Dual | Barbed | Temperature Compensated | Gull Wing | 35PSI (241.32kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
