سنسور فشار، مبدل
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته / کیس | بسته بندی | وضعیت محصول | برنامه های کاربردی | نوع فشار | فشار عملیاتی | نوع خروجی | خروجی | دقت | ولتاژ - منبع تغذیه | اندازه پورت | سبک بندری | ویژگی ها | سبک خاتمه | حداکثر فشار | دمای عملیاتی | درجه | صلاحیت | نوع نصب | بسته دستگاه تامین کننده |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3110B-D-6-WP-1-HC-1SENSOR 1450.38PSID 1/4"NPT .02A |
5 |
|
برگه مشخصات |
- | Module | Box | Active | - | Differential | 1450.38PSI (10000kPa) | Analog Current | 4 ~ 20 mA | ±0.075% | 10.5V ~ 55V | Female - 1/4" (6.35mm) NPT | Threaded | Temperature Compensated | - | 3625.94PSI (25000kPa) | -40°C ~ 85°C | - | - | - | - |
|
|
3110B-D-1-WP-1-HC-1SENSOR 0.87PSID 1/4"NPT .02A |
5 |
|
برگه مشخصات |
- | Module | Box | Active | - | Differential | 0.87PSI (6kPa) | Analog Current | 4 ~ 20 mA | ±0.075% | 10.5V ~ 55V | Female - 1/4" (6.35mm) NPT | Threaded | Temperature Compensated | - | 3625.94PSI (25000kPa) | -40°C ~ 85°C | - | - | - | - |
|
|
3110B-D-6-CSA-1-HC-1SENSOR 1450.38PSID 1/4"NPT .02A |
5 |
|
برگه مشخصات |
- | Module | Box | Active | - | Differential | 1450.38PSI (10000kPa) | Analog Current | 4 ~ 20 mA | ±0.075% | 10.5V ~ 55V | Female - 1/4" (6.35mm) NPT | Threaded | Temperature Compensated | - | 3625.94PSI (25000kPa) | -40°C ~ 85°C | - | - | - | - |
|
|
3110B-D-2-CSA-1-HC-1SENSOR 5.8PSID 1/4"NPT .02A |
5 |
|
برگه مشخصات |
- | Module | Box | Active | - | Differential | 5.8PSI (40kPa) | Analog Current | 4 ~ 20 mA | ±0.075% | 10.5V ~ 55V | Female - 1/4" (6.35mm) NPT | Threaded | Temperature Compensated | - | 3625.94PSI (25000kPa) | -40°C ~ 85°C | - | - | - | - |
|
|
3110B-D-5-CSA-1-HC-1SENSOR 435.11PSID 1/4"NPT .02A |
5 |
|
برگه مشخصات |
- | Module | Box | Active | - | Differential | 435.11PSI (3000kPa) | Analog Current | 4 ~ 20 mA | ±0.075% | 10.5V ~ 55V | Female - 1/4" (6.35mm) NPT | Threaded | Temperature Compensated | - | 3625.94PSI (25000kPa) | -40°C ~ 85°C | - | - | - | - |
|
|
3110B-D-3-CSA-1-HC-1SENSOR 36.26PSID 1/4"NPT .02A |
5 |
|
برگه مشخصات |
- | Module | Box | Active | - | Differential | 36.26PSI (250kPa) | Analog Current | 4 ~ 20 mA | ±0.075% | 10.5V ~ 55V | Female - 1/4" (6.35mm) NPT | Threaded | Temperature Compensated | - | 3625.94PSI (25000kPa) | -40°C ~ 85°C | - | - | - | - |
|
|
3110B-D-4-CSA-1-HC-1SENSOR 145.04PSID 1/4"NPT .02A |
5 |
|
برگه مشخصات |
- | Module | Box | Active | - | Differential | 145.04PSI (1000kPa) | Analog Current | 4 ~ 20 mA | ±0.075% | 10.5V ~ 55V | Female - 1/4" (6.35mm) NPT | Threaded | Temperature Compensated | - | 3625.94PSI (25000kPa) | -40°C ~ 85°C | - | - | - | - |
|
PT41-23000PSIG-1-1-6-8High Pressure Fixed Range Pressu |
4 |
|
برگه مشخصات |
PT41 | Cylinder, Threaded | Bulk | Active | Industrial Automation | Gauge | 23000PSI (158579.42kPa) | Analog Current | 4 ~ 20 mA | ±0.5% | 10V ~ 30V | Male - 9/16" (14.29mm) UNF | Threaded | Temperature Compensated | Connector | - | -20°C ~ 80°C | - | - | - | - |
|
|
PT41-23000PSIG-1-1-6-14High Pressure Fixed Range Pressu |
4 |
|
برگه مشخصات |
PT41 | Cylinder, Threaded | Bulk | Active | Industrial Automation | Gauge | 23000PSI (158579.42kPa) | Analog Current | 4 ~ 20 mA | ±0.5% | 10V ~ 30V | Male - 9/16" (14.29mm) UNF | Threaded | Temperature Compensated | Connector | - | -20°C ~ 80°C | - | - | - | - |
|
|
PT41-23000PSIG-1-1-6-25High Pressure Fixed Range Pressu |
4 |
|
برگه مشخصات |
PT41 | Cylinder, Threaded | Bulk | Active | Industrial Automation | Gauge | 23000PSI (158579.42kPa) | Analog Current | 4 ~ 20 mA | ±0.5% | 10V ~ 30V | Male - 9/16" (14.29mm) UNF | Threaded | Temperature Compensated | Connector | - | -20°C ~ 80°C | - | - | - | - |
|
|
PT41-23000PSIG-1-1-6-3High Pressure Fixed Range Pressu |
4 |
|
برگه مشخصات |
PT41 | Cylinder, Threaded | Bulk | Active | Industrial Automation | Gauge | 23000PSI (158579.42kPa) | Analog Current | 4 ~ 20 mA | ±0.5% | 10V ~ 30V | Male - 9/16" (14.29mm) UNF | Threaded | Temperature Compensated | Connector | - | -20°C ~ 80°C | - | - | - | - |
|
|
PT41-23000PSIG-2-1-6-8High Pressure Fixed Range Pressu |
4 |
|
برگه مشخصات |
PT41 | Cylinder, Threaded | Bulk | Active | Industrial Automation | Gauge | 23000PSI (158579.42kPa) | Analog Current | 4 ~ 20 mA | ±0.25% | 10V ~ 30V | Male - 9/16" (14.29mm) UNF | Threaded | Temperature Compensated | Connector | - | -20°C ~ 80°C | - | - | - | - |
|
|
PT41-23000PSIG-2-1-6-14High Pressure Fixed Range Pressu |
4 |
|
برگه مشخصات |
PT41 | Cylinder, Threaded | Bulk | Active | Industrial Automation | Gauge | 23000PSI (158579.42kPa) | Analog Current | 4 ~ 20 mA | ±0.25% | 10V ~ 30V | Male - 9/16" (14.29mm) UNF | Threaded | Temperature Compensated | Connector | - | -20°C ~ 80°C | - | - | - | - |
|
|
PT41-23000PSIG-2-1-6-25High Pressure Fixed Range Pressu |
4 |
|
برگه مشخصات |
PT41 | Cylinder, Threaded | Bulk | Active | Industrial Automation | Gauge | 23000PSI (158579.42kPa) | Analog Current | 4 ~ 20 mA | ±0.25% | 10V ~ 30V | Male - 9/16" (14.29mm) UNF | Threaded | Temperature Compensated | Connector | - | -20°C ~ 80°C | - | - | - | - |
|
|
PT41-23000PSIG-2-1-6-3High Pressure Fixed Range Pressu |
4 |
|
برگه مشخصات |
PT41 | Cylinder, Threaded | Bulk | Active | Industrial Automation | Gauge | 23000PSI (158579.42kPa) | Analog Current | 4 ~ 20 mA | ±0.25% | 10V ~ 30V | Male - 9/16" (14.29mm) UNF | Threaded | Temperature Compensated | Connector | - | -20°C ~ 80°C | - | - | - | - |
|

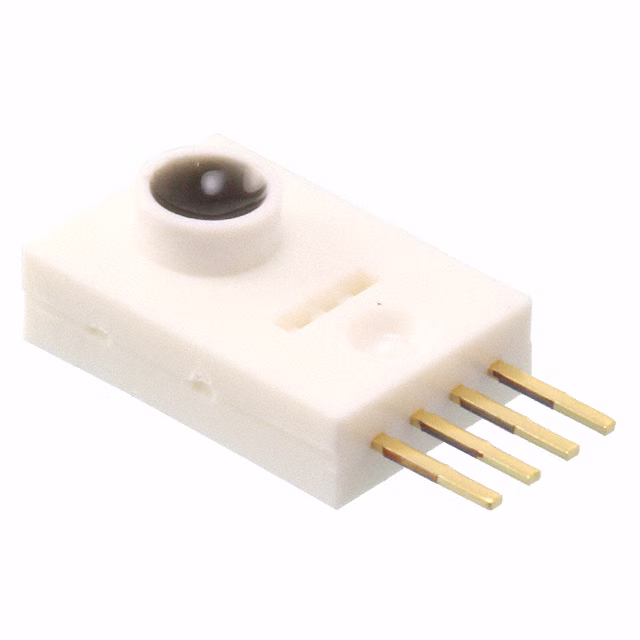

MPX2300DT1SENSOR 5.8PSID .003006V |
0 |
|
برگه مشخصات |
MPX2300 | 4-SSIP Module | Tape & Reel (TR) | Active | Board Mount | Differential | 5.8PSI (40kPa) | Wheatstone Bridge | 0 mV ~ 3.006 mV (6V) | ±1.5% | 6V ~ 10V | - | No Port | Temperature Compensated | PC Pin | 125PSI (861.84kPa) | 15°C ~ 40°C | - | - | Through Hole | - |
|
MPX10DPSENSOR 1.45PSID 0.19" .035V |
0 |
|
برگه مشخصات |
MPX10 | 4-SIP Module | Tray | Active | Board Mount | Differential | 1.45PSI (10kPa) | Wheatstone Bridge | 0 mV ~ 35 mV (3V) | ±1% | 3V ~ 6V | Male - 0.19" (4.93mm) Tube, Dual | Barbed | - | PC Pin | 10.88PSI (75kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
MPX10GPSENSOR 1.45PSIG 0.19" .035V |
0 |
|
برگه مشخصات |
MPX10 | 4-SIP Module | Tray | Active | Board Mount | Vented Gauge | 1.45PSI (10kPa) | Wheatstone Bridge | 0 mV ~ 35 mV (3V) | ±1% | 3V ~ 6V | Male - 0.19" (4.93mm) Tube | Barbed | - | PC Pin | 10.88PSI (75kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
MPXH6400AC6USENSOR 58.02PSIA 0.13" 4.8V SSOP |
0 |
|
برگه مشخصات |
MPXH6400A | 8-SOIC (0.335", 8.50mm Width), Top Port | Tube | Active | Board Mount | Absolute | 2.9PSI ~ 58.02PSI (20kPa ~ 400kPa) | Analog Voltage | 0.2 V ~ 4.8 V | ±1.5% | 4.64V ~ 5.36V | Male - 0.13" (3.3mm) Tube | Barbless | Temperature Compensated | Gull Wing | 232.06PSI (1600kPa) | -40°C ~ 125°C | - | - | Surface Mount | 8-SSOP |
|
MPXHZ6130A6USENSOR 18.85PSIA 4.8V 8SSOP |
0 |
|
برگه مشخصات |
MPXHZ6130A | 8-SOIC (0.295", 7.50mm Width) | Tube | Active | Board Mount | Absolute | 2.18PSI ~ 18.85PSI (15kPa ~ 130kPa) | Analog Voltage | 0.2 V ~ 4.8 V | ±1.5% | 4.75V ~ 5.25V | - | No Port | Temperature Compensated | Gull Wing | 58.02PSI (400kPa) | -40°C ~ 125°C | - | - | Surface Mount | 8-SSOP |
