سنسور فشار، مبدل
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته / کیس | بسته بندی | وضعیت محصول | برنامه های کاربردی | نوع فشار | فشار عملیاتی | نوع خروجی | خروجی | دقت | ولتاژ - منبع تغذیه | اندازه پورت | سبک بندری | ویژگی ها | سبک خاتمه | حداکثر فشار | دمای عملیاتی | درجه | صلاحیت | نوع نصب | بسته دستگاه تامین کننده |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADP5161SENSOR 72.52PSIG 0.12" 4.5V |
134 |
|
برگه مشخصات |
PS-A | 6-DIP Module | Box | Last Time Buy | Board Mount | Vented Gauge | 72.52PSI (500kPa) | Analog Voltage | 0 V ~ 4.5 V | ±1.25% | 5V | Male - 0.12" (3mm) Tube | Barbless | Amplified Output, Temperature Compensated | PC Pin | 145.04PSI (1000kPa) | -10°C ~ 60°C | - | - | Through Hole | - |
|
ADP5100SENSOR 14.5PSIC 0.12" 4.5V |
81 |
|
برگه مشخصات |
PS-A | 6-DIP Module | Bulk | Last Time Buy | Board Mount | Compound | ±14.5PSI (±100kPa) | Analog Voltage | 0 V ~ 4.5 V | ±1.25% | 5V | Male - 0.12" (3mm) Tube | Barbless | Amplified Output, Temperature Compensated | PC Pin | ±29.01PSI (±200kPa) | -10°C ~ 60°C | - | - | Through Hole | - |
|
ADP5171SENSOR 145.04PSIG 0.12" 4.5V |
56 |
|
برگه مشخصات |
PS-A | 6-DIP Module | Bulk | Last Time Buy | Board Mount | Vented Gauge | 145.04PSI (1000kPa) | Analog Voltage | 0 V ~ 4.5 V | ±1.25% | 5V | Male - 0.12" (3mm) Tube | Barbless | Amplified Output, Temperature Compensated | PC Pin | 217.56PSI (1500kPa) | -10°C ~ 60°C | - | - | Through Hole | - |
|
ADP5101SENSOR 14.5PSIG 0.12" 4.5V |
40 |
|
برگه مشخصات |
PS-A | 6-DIP Module | Bulk | Last Time Buy | Board Mount | Vented Gauge | ±14.5PSI (±100kPa) | Analog Voltage | 0 V ~ 4.5 V | ±1.25% | 5V | Male - 0.12" (3mm) Tube | Barbless | Amplified Output, Temperature Compensated | PC Pin | ±29.01PSI (±200kPa) | -10°C ~ 60°C | - | - | Through Hole | - |
|
PS01-S400MP-3WSENSOR 580.15PSIS 4.5V |
129 |
|
برگه مشخصات |
PS01 | Module | Box | Active | - | Sealed Gauge | 580.15PSI (4000kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.5% | 4.5V ~ 5.5V | - | No Port | Temperature Compensated | Wire Leads | 1160.3PSI (8000kPa) | -40°C ~ 105°C | - | - | - | - |
|

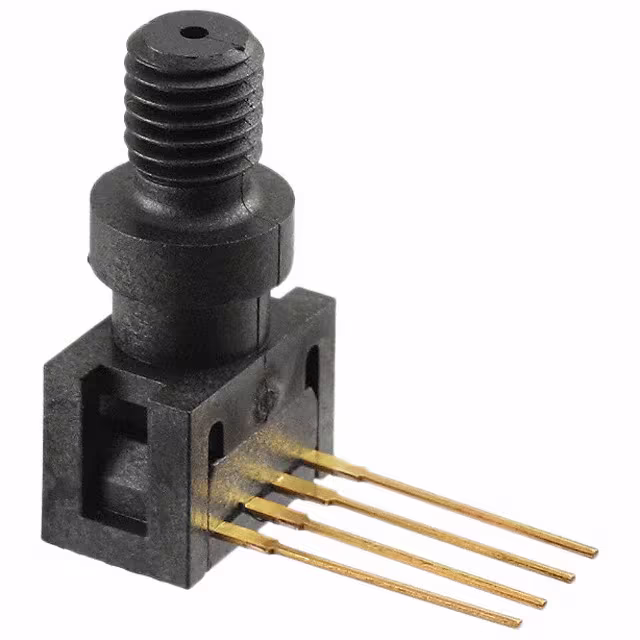

24PCGFM6GSENSOR 250PSIC 1/4" .212V |
155 |
|
برگه مشخصات |
24PC | 4-SIP Module | Bulk | Active | Board Mount | Compound | ±250PSI (±1723.69kPa) | Wheatstone Bridge | 0 mV ~ 212 mV (10V) | ±1% | 10V ~ 12V | Male - 1/4" (6.35mm) UNF | Threaded | - | PC Pin | ±500PSI (±3447.38kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|

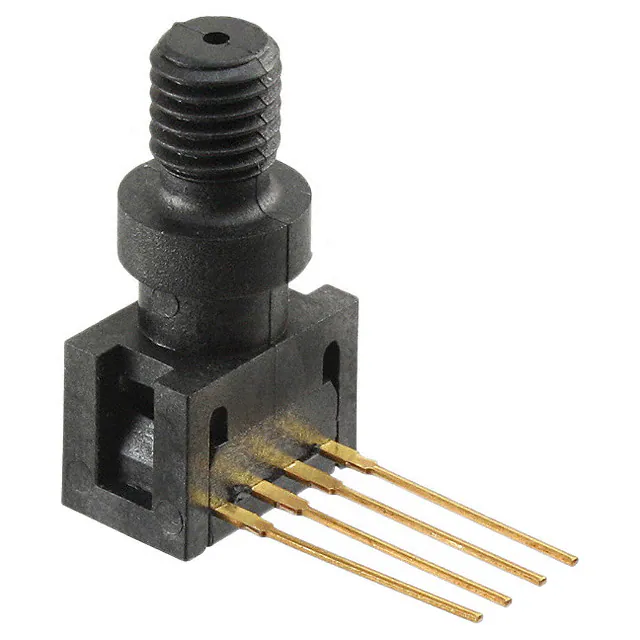

24PCFFM6GSENSOR 100PSIC 1/4" .225V |
44 |
|
برگه مشخصات |
24PC | 4-SIP Module | Bulk | Active | Board Mount | Compound | ±100PSI (±689.48kPa) | Wheatstone Bridge | 0 mV ~ 225 mV (10V) | ±1% | 10V ~ 12V | Male - 1/4" (6.35mm) UNF | Threaded | - | PC Pin | ±200PSI (±1378.95kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
76053-00000400-01SWITCH 50PSI SPST-NO 1/8"NPT |
26 |
|
برگه مشخصات |
5000 | Cylinder, Threaded | Bulk | Active | - | Switch | 25PSI ~ 50PSI (172.37kPa ~ 344.74kPa) | SPST-NO | - | - | - | Male - 1/8" (3.18mm) NPT | Threaded | - | Screw Terminal | 500PSI (3447.38kPa) | -40°C ~ 121°C | - | - | - | - |
|
M323M-000004-017BGSENSOR 246.56PSIG 7/16" 4.5V |
31 |
|
برگه مشخصات |
M3200 | Cylinder, Threaded | Box | Active | - | Vented Gauge | 246.56PSI (1700kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 7/16" (0.44mm) UNF | Threaded | Amplified Output, Temperature Compensated | Cable/Wire Leads | 493PSI (3400kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
M323M-000005-150PGPRESSURE TRANSDUCER |
196 |
|
برگه مشخصات |
- | - | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
2 INCH-D1-MV-MINISENSOR 0.07PSID 0.08" .01V |
94 |
|
برگه مشخصات |
MDCX | 4-SIP Module | Bulk | Active | Board Mount | Differential | 0.07PSI (0.5kPa) | Wheatstone Bridge | 0 mV ~ 10 mV (12V) | ±0.25% | 16V | Male - 0.08" (2.03mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | - | -25°C ~ 85°C | - | - | Through Hole | - |
|
|
NPI-15A-353AHSENSOR 5076.32PSIA .2V |
39 |
|
برگه مشخصات |
NPI-15 | Cylinder | Bulk | Active | Board Mount | Absolute | 5076.32PSI (35000kPa) | Wheatstone Bridge | 0 mV ~ 200 mV | ±0.25% | - | - | No Port | Temperature Compensated | Flex Cable | 10152.64PSI (70000kPa) | -40°C ~ 125°C | - | - | - | - |
|
PTE7100-32CC-2B200BNSENSOR 2900.75PSIG 7/16" 4.5V |
59 |
|
برگه مشخصات |
PTE7100 | Cylinder, Threaded | Box | Active | - | Gauge | 2900.75PSI (20000kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±1.5% | 4.75V ~ 5.25V | Male - 7/16" (11.11mm) UNF | Threaded | - | Connector | 5801.51PSI (40000kPa) | -40°C ~ 100°C | - | - | - | - |
|
NPI-19A-172AHSENSOR 246.56PSIA 0.1V |
129 |
|
برگه مشخصات |
NPI-19 | Cylinder | Bulk | Active | Board Mount | Absolute | 246.56PSI (1700kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.5% | - | - | No Port | Temperature Compensated | Flex Cable | 493.13PSI (3400kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
NPI-19A-201AHSENSOR 29.01PSIA 0.1V |
49 |
|
برگه مشخصات |
NPI-19 | Cylinder | Bulk | Active | Board Mount | Absolute | 29.01PSI (200kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.5% | - | - | No Port | Temperature Compensated | Flex Cable | 58.02PSI (400kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
NPI-19A-172GHSENSOR 246.56PSIG 0.1V |
45 |
|
برگه مشخصات |
NPI-19 | Cylinder | Bulk | Active | Board Mount | Vented Gauge | 246.56PSI (1700kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.5% | - | - | No Port | Temperature Compensated | Flex Cable | 493.13PSI (3400kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
NPI-19A-002GVSENSOR 2.5PSIG .075V |
32 |
|
برگه مشخصات |
NPI-19 | Cylinder | Bulk | Active | Board Mount | Vented Gauge | 2.5PSI (17.24kPa) | Wheatstone Bridge | 0 mV ~ 75 mV | ±0.5% | 10V | - | No Port | Temperature Compensated | Flex Cable | 7.5PSI (51.71kPa) | -10°C ~ 80°C | - | - | - | - |
|

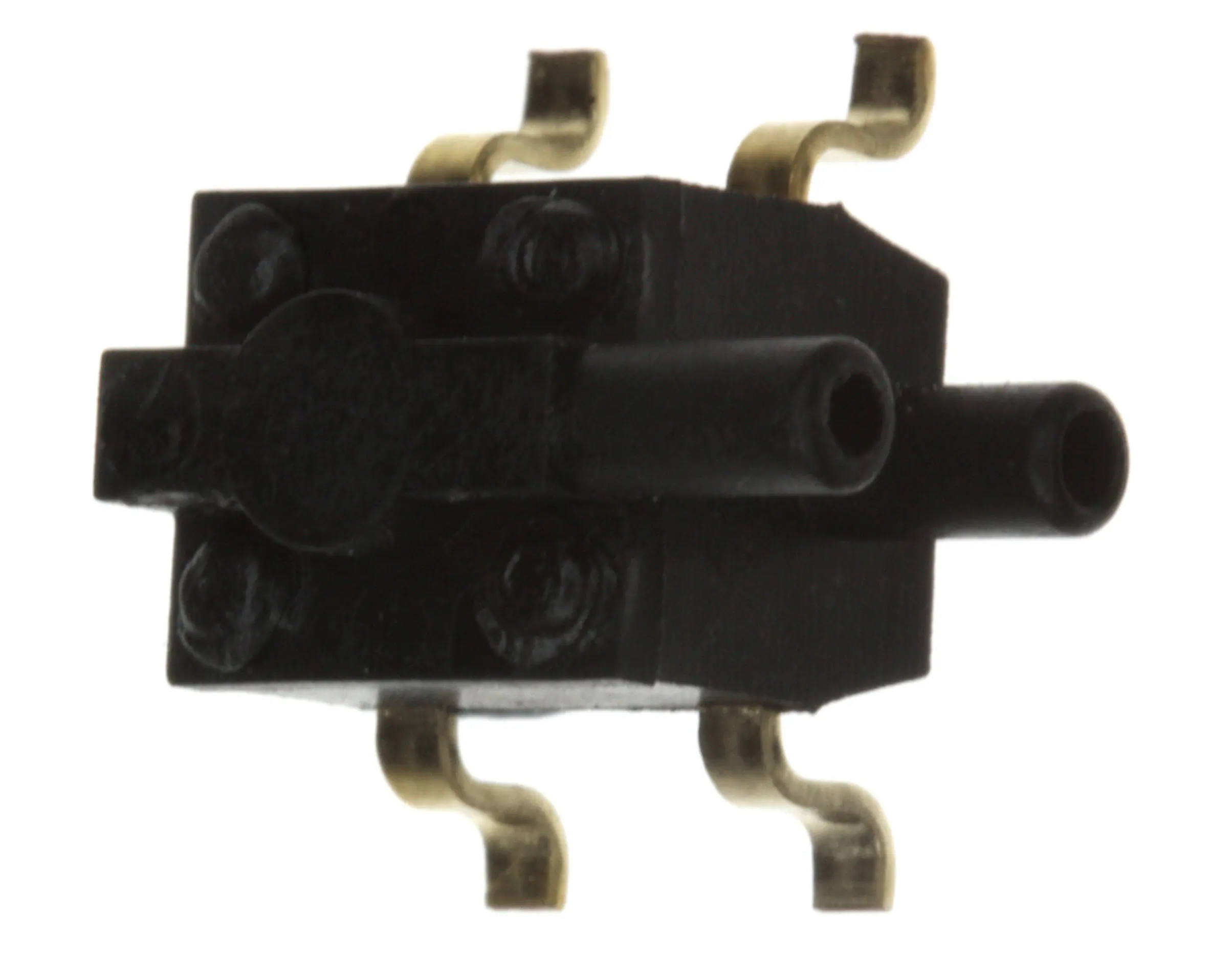

26PC05SMTSENSOR 5PSIC 0.07" .05V |
30 |
|
برگه مشخصات |
26PC SMT | 4-SMD Module | Tube | Active | Board Mount | Compound | ±5PSI (±34.47kPa) | Wheatstone Bridge | 0 mV ~ 50 mV (10V) | ±1.5% | 2.5V ~ 16V | Male - 0.07" (1.88mm) Tube | Barbless | Temperature Compensated | Gull Wing | ±20PSI (±137.9kPa) | -40°C ~ 85°C | - | - | Surface Mount | - |
|
86-500A-RSENSOR 500PSIA 0.1V |
65 |
|
برگه مشخصات |
- | Cylinder | Tube | Active | Board Mount | Absolute | 500PSI (3447.38kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | Cable with Connector | 1500PSI (10342.14kPa) | -40°C ~ 125°C | - | - | - | - |
|

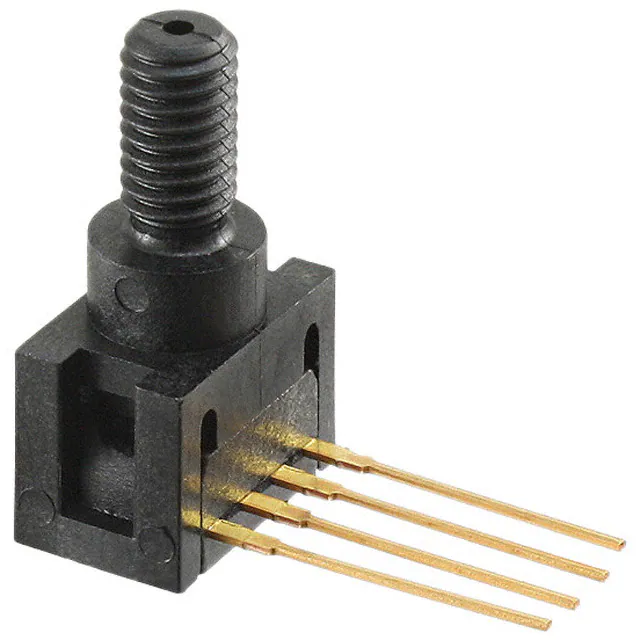

26PCFFH6GSENSOR 100PSIC M5 0.1V |
101 |
|
برگه مشخصات |
26PC | 4-SIP Module | Bulk | Active | Board Mount | Compound | ±100PSI (±689.48kPa) | Wheatstone Bridge | 0 mV ~ 100 mV (10V) | ±0.6% | 2.5V ~ 16V | Male - M5 | Threaded | Temperature Compensated | PC Pin | ±200PSI (±1378.95kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
