سنسور فشار، مبدل
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته / کیس | بسته بندی | وضعیت محصول | برنامه های کاربردی | نوع فشار | فشار عملیاتی | نوع خروجی | خروجی | دقت | ولتاژ - منبع تغذیه | اندازه پورت | سبک بندری | ویژگی ها | سبک خاتمه | حداکثر فشار | دمای عملیاتی | درجه | صلاحیت | نوع نصب | بسته دستگاه تامین کننده |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
26PCAFK2GSENSOR 1PSIC 0.2" .0167V |
0 |
|
برگه مشخصات |
26PC | 4-SIP Module | Bulk | Obsolete | Board Mount | Compound | ±1PSI (±6.89kPa) | Wheatstone Bridge | 0 mV ~ 16.7 mV (10V) | ±0.5% | 2.5V ~ 16V | Male - 0.2" (5.08mm) Tube | Barbless | Temperature Compensated | PC Pin | ±20PSI (±137.9kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
26PCCFC6GSENSOR 15PSIC 0.18" 0.1V |
0 |
|
برگه مشخصات |
26PC | 4-SIP Module | Bulk | Obsolete | Board Mount | Compound | ±15PSI (±103.42kPa) | Wheatstone Bridge | 0 mV ~ 100 mV (10V) | ±0.5% | 2.5V ~ 16V | Male - 0.18" (4.57mm) Tube | Barbless | Temperature Compensated | PC Pin | ±45PSI (±310.26kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
|
26PCAEB2GSENSOR 1PSIC 0.18" .0167V |
0 |
|
برگه مشخصات |
26PC | 4-DIP Module | Bulk | Obsolete | Board Mount | Compound | ±1PSI (±6.89kPa) | Wheatstone Bridge | 0 mV ~ 16.7 mV (10V) | ±0.5% | 2.5V ~ 16V | Male - 0.18" (4.57mm) Tube | Barbed | Temperature Compensated | - | ±20PSI (±137.9kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
HSCMRND006MD2A3TSENSOR 0.09PSID 0.08" 12BIT 8SMD |
0 |
|
برگه مشخصات |
TruStability® HSC | 8-SMD, J-Lead, Side Port | Tape & Reel (TR) | Active | Board Mount | Differential | ±0.09PSI (±0.6kPa) | I2C | 12 b | ±0.25% | 3V ~ 3.6V | Male - 0.08" (1.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | J Lead | ±9.79PSI (±67.5kPa) | -20°C ~ 85°C | - | - | Surface Mount | 8-SMD |
|
|
HSCMRRN005NDAA5TTRUSTABILITY PRESSURE SENSOR |
0 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
HSCMRRN002NG2A3TTRUSTABILITY PRESSURE SENSOR |
0 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
HSCMRRN005ND2A3TTRUSTABILITY PRESSURE SENSOR |
0 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
HSCMRRN006MDAA3TTRUSTABILITY PRESSURE SENSOR |
0 |
|
- |
TruStability® HSC | 8-SMD, J-Lead, Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±0.09PSI (±0.6kPa) | Analog Voltage | 0.33 V ~ 2.97 V | ±0.25% | 3.27V ~ 3.33V | Male - 0.08" (2.03mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | - | 246.56PSI (1700kPa) | -20°C ~ 85°C | - | - | Surface Mount | 8-SMD |
|
325401000-00SENSOR 14.5PSIA .15V |
0 |
|
برگه مشخصات |
- | 8-SMD Module | Tube | Obsolete | Board Mount | Absolute | 14.5PSI (100kPa) | Wheatstone Bridge | 0 mV ~ 150 mV (5V) | ±0.2% | 20V | - | No Port | - | SMD (SMT) Tab | 145.04PSI (1000kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|
SSCSHHN100MDAA5SENSOR 1.45PSID 0.16" 4.5V 4SIP |
0 |
|
برگه مشخصات |
TruStability® SSC | 4-SIP, Dual Ports, Same Side | Bulk | Obsolete | Board Mount | Differential | ±1.45PSI (±10kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.16" (3.94mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | ±20.31PSI (±140kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
|
26PCAFB6GSENSOR 1PSIC 0.18" .0167V |
0 |
|
برگه مشخصات |
26PC | 4-SIP Module | Bulk | Obsolete | Board Mount | Compound | ±1PSI (±6.89kPa) | Wheatstone Bridge | 0 mV ~ 16.7 mV (10V) | ±0.5% | 2.5V ~ 16V | Male - 0.18" (4.57mm) Tube | Barbed | Temperature Compensated | PC Pin | ±20PSI (±137.9kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
SSCDRRD010NDAA5SENSOR 0.36PSID 0.08" 4.5V 8DIP |
0 |
|
برگه مشخصات |
TruStability® SSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Bulk | Obsolete | Board Mount | Differential | ±0.36PSI (±2.49kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.95V ~ 5.05V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | ±12.65PSI (±87.21kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
HV210-SM02-MSENSOR 0.36PSID 0.08" 16BIT |
0 |
|
برگه مشخصات |
HV | 11-SMD, No Lead, Top Port | Tray | Active | Board Mount | Differential | ±0.004PSI ~ ±0.36PSI (±0.02kPa ~ ±2.5kPa) | I2C, SPI | 16 b | ±0.1% | 2.8V ~ 3.5V | Male - 0.08" (2.13mm) Tube, Dual | Barbless | Temperature Compensated | SMD (SMT) Tab | ±1.45PSI (±9.97kPa) | 0°C ~ 50°C | - | - | Surface Mount | - |
|
NSCSSNN015PDUNVSENSOR 15PSID .155V 4SIP |
0 |
|
برگه مشخصات |
TruStability® NSC | 4-SIP Module | Bulk | Active | Board Mount | Differential | ±15PSI (±103.42kPa) | Wheatstone Bridge | 0 mV ~ 155 mV (5V) | ±0.25% | 1.5V ~ 12V | - | No Port | - | PC Pin | ±30PSI (±206.84kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|

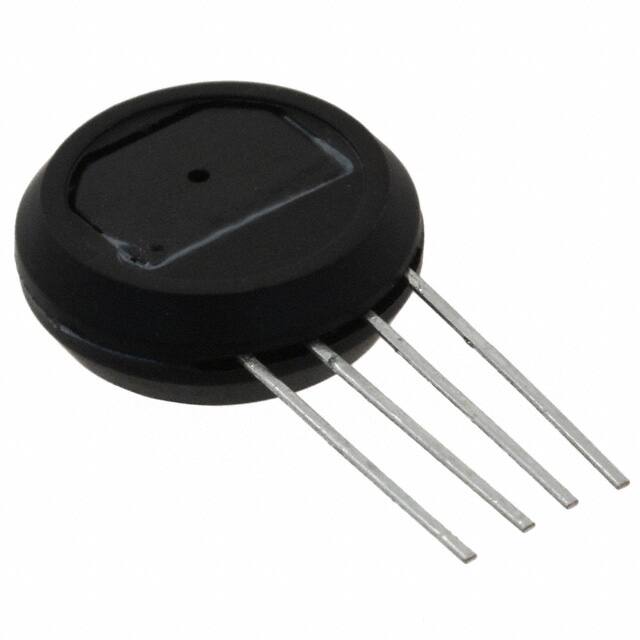

NSCSMNN150PDUNVSENSOR 150PSID .2585V 4SIP |
0 |
|
برگه مشخصات |
TruStability® NSC | 4-SIP Module | Bulk | Active | Board Mount | Differential | ±150PSI (±1034.21kPa) | Wheatstone Bridge | 0 mV ~ 258.5 mV (5V) | ±0.25% | 1.5V ~ 12V | - | No Port | - | PC Pin | ±250PSI (±1723.69kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|

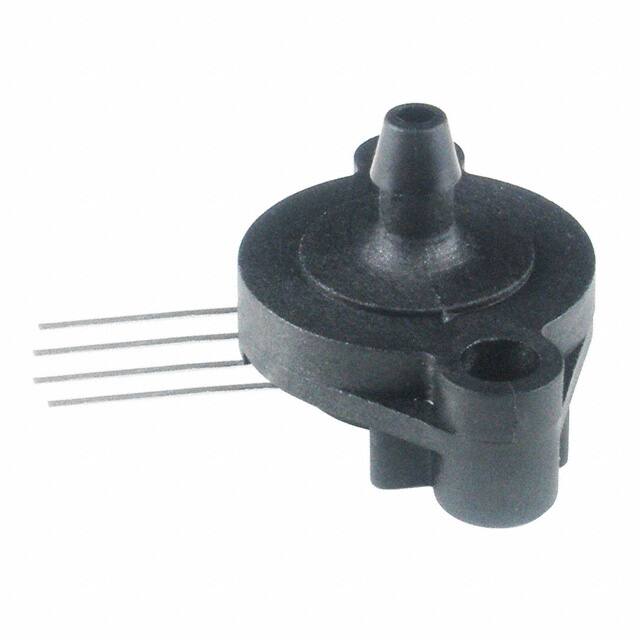

NSCSGNN100PGUNVSENSOR 100PSIG 0.19" .086V 4SIP |
0 |
|
برگه مشخصات |
TruStability® NSC | 4-SIP, Side Port | Bulk | Active | Board Mount | Vented Gauge | 100PSI (689.48kPa) | Wheatstone Bridge | 0 mV ~ 86 mV (5V) | ±0.25% | 1.5V ~ 12V | Male - 0.19" (4.78mm) Tube | Barbed | - | PC Pin | 250PSI (1723.69kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
|
NSCSJJN030NDUNVTRUSTABILITY PRESSURE SENSOR |
0 |
|
- |
TruStability® NSC | 4-SIP, Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±1.08PSI (±7.47kPa) | Wheatstone Bridge | - | ±0.25% | 1.5V ~ 12V | Male - 0.09" (2.29mm) Tube, Dual | Barbless | - | PC Pins | 12.28PSI (84.69kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
|
NSCSJJN060PAUNVTRUSTABILITY PRESSURE SENSOR |
0 |
|
- |
TruStability® NSC | 4-SIP, Dual Ports, Same Side | Bulk | Active | Board Mount | Absolute | 60PSI (413.69kPa) | Wheatstone Bridge | - | ±0.25% | 1.5V ~ 12V | Male - 0.09" (2.29mm) Tube, Dual | Barbless | - | PC Pins | 120PSI (827.37kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
|
ND110-SM02-CSENSOR 0.36PSID 0.08" 16BIT |
0 |
|
برگه مشخصات |
ND | 11-SMD, No Lead, Top Port | Strip | Active | Industrial Automation | Differential | 0.02PSI ~ 0.36PSI (0.13kPa ~ 2.5kPa) | I2C, SPI | 16 b | ±0.05% | 3.5V ~ 2.8V | Male - 0.08" (2.13mm) Tube, Dual | Barbless | Temperature Compensated | SMD (SMT) Tab | 1.45PSI (9.96kPa) | -20°C ~ 85°C | - | - | Surface Mount | - |
|
HSCDANN600MGAA5SENSOR 8.7PSIG 0.19" 4.5V 8DIP |
0 |
|
برگه مشخصات |
TruStability® HSC | 8-DIP (0.524", 13.30mm), Top Port | Bulk | Obsolete | Board Mount | Vented Gauge | 8.7PSI (60kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 29.01PSI (200kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
