سنسور فشار، مبدل
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته / کیس | بسته بندی | وضعیت محصول | برنامه های کاربردی | نوع فشار | فشار عملیاتی | نوع خروجی | خروجی | دقت | ولتاژ - منبع تغذیه | اندازه پورت | سبک بندری | ویژگی ها | سبک خاتمه | حداکثر فشار | دمای عملیاتی | درجه | صلاحیت | نوع نصب | بسته دستگاه تامین کننده |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HSCDRRN060MDSA3SENSOR 0.87PSID 0.08" 12BIT 8DIP |
0 |
|
برگه مشخصات |
TruStability® HSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±0.87PSI (±6kPa) | SPI | 12 b | ±0.25% | 3V ~ 3.6V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | ±12.33PSI (±85kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
17-030GSENSOR 30PSIG 0.19" 0.1V TO8 |
0 |
|
برگه مشخصات |
17 | TO-8 Style, 12 Leads | Bulk | Obsolete | Board Mount | Vented Gauge | 30PSI (206.84kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | Male - 0.19" (4.78mm) Tube | Barbless | Temperature Compensated | PC Pin | 90PSI (620.53kPa) | -40°C ~ 125°C | - | - | Through Hole | TO-8 |
|
B58611K1100A001SENSOR 0.36PSIG 0.19" .12V |
0 |
|
برگه مشخصات |
AK2 | 8-DIP Module | Tray | Active | Board Mount | Vented Gauge | 0.36PSI (2.5kPa) | Wheatstone Bridge | 0 mV ~ 120 mV (5V) | ±2% | 10V | Male - 0.19" (4.78mm) Tube | Barbless | - | PC Pin | 3.63PSI (25kPa) | -30°C ~ 85°C | - | - | Through Hole | - |
|

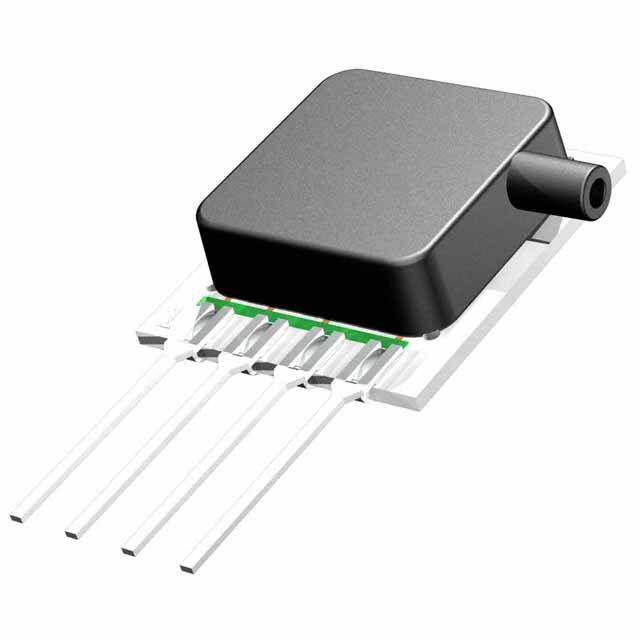

1 INCH-G-BASICSENSOR 0.04PSIG 0.08" .007V |
0 |
|
برگه مشخصات |
ADUX | 4-SIP Module | Tube | Discontinued | Board Mount | Vented Gauge | 0.04PSI (0.25kPa) | Wheatstone Bridge | 0 mV ~ 7 mV (4.5V) | ±0.5% | 6V | Male - 0.08" (2.14mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | 0.04PSI (0.25kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
1 INCH-D1-BASICSENSOR 0.04PSID 0.08" .007V |
0 |
|
برگه مشخصات |
ADUX | 4-SIP Module | Tube | Obsolete | Board Mount | Differential | 0.04PSI (0.25kPa) | Wheatstone Bridge | 0 mV ~ 7 mV (4.5V) | ±1% | 6V | Male - 0.08" (2.13mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | - | -25°C ~ 85°C | - | - | Through Hole | - |
|
1 INCH-D2-BASICSENSOR 0.04PSID 0.08" .007V |
0 |
|
برگه مشخصات |
ADUX | 4-SIP Module | Tube | Active | Board Mount | Differential | 0.04PSI (0.25kPa) | Wheatstone Bridge | 0 mV ~ 7 mV (4.5V) | ±1% | 6V | Male - 0.08" (2.13mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | - | -25°C ~ 85°C | - | - | Through Hole | - |
|
|
5 INCH-G-BASICSENSOR 0.18PSIG 0.08" .0225V |
0 |
|
برگه مشخصات |
ADUX | 4-SIP Module | Tube | Discontinued | Board Mount | Vented Gauge | 0.18PSI (1.25kPa) | Wheatstone Bridge | 0 mV ~ 22.5 mV (4.5V) | ±0.5% | 6V | Male - 0.08" (2.14mm) Tube | Barbless | Temperature Compensated | PC Pin | - | -25°C ~ 85°C | - | - | Through Hole | - |
|
|
5 INCH-D1-BASICSENSOR 0.18PSID 0.08" .0225V |
0 |
|
برگه مشخصات |
ADUX | 4-SIP Module | Tube | Active | Board Mount | Differential | 0.18PSI (1.25kPa) | Wheatstone Bridge | 0 mV ~ 22.5 mV (4.5V) | ±0.5% | 6V | Male - 0.08" (2.13mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | - | -25°C ~ 85°C | - | - | Through Hole | - |
|
|
5 INCH-D2-BASICSENSOR 0.18PSID 0.08" .0225V |
0 |
|
برگه مشخصات |
ADUX | 4-SIP Module | Tube | Obsolete | Board Mount | Differential | 0.18PSI (1.25kPa) | Wheatstone Bridge | 0 mV ~ 22.5 mV (4.5V) | ±0.5% | 6V | Male - 0.08" (2.13mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | - | -25°C ~ 85°C | - | - | Through Hole | - |
|
|
10 INCH-G-BASICSENSOR 0.36PSIG 0.08" .03V |
0 |
|
برگه مشخصات |
ADUX | 4-SIP Module | Tube | Discontinued | Board Mount | Vented Gauge | 0.36PSI (2.49kPa) | Wheatstone Bridge | 0 mV ~ 30 mV (4.5V) | ±0.5% | 6V | Male - 0.08" (2.14mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | - | -25°C ~ 85°C | - | - | Through Hole | - |
|
|
10 INCH-D1-BASICSENSOR 0.36PSID 0.08" .03V |
0 |
|
برگه مشخصات |
ADUX | 4-SIP Module | Tube | Active | Board Mount | Differential | 0.36PSI (2.49kPa) | Analog Voltage | 0 mV ~ 30 mV (4.5V) | ±0.5% | 6V | Male - 0.08" (2.13mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | - | -25°C ~ 85°C | - | - | Through Hole | - |
|
|
10 INCH-D2-BASICSENSOR 0.36PSID 0.08" .03V |
0 |
|
برگه مشخصات |
ADUX | 4-SIP Module | Tube | Active | Board Mount | Differential | 0.36PSI (2.49kPa) | Wheatstone Bridge | 0 mV ~ 30 mV (4.5V) | ±0.5% | 6V | Male - 0.08" (2.13mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | - | -25°C ~ 85°C | - | - | Through Hole | - |
|
|
20 INCH-G-BASICSENSOR 0.72PSIG 0.08" .03V |
0 |
|
برگه مشخصات |
ADUX | 4-SIP Module | Tube | Discontinued | Board Mount | Vented Gauge | 0.72PSI (4.98kPa) | Wheatstone Bridge | 0 mV ~ 30 mV (4.5V) | ±0.5% | 6V | Male - 0.08" (2.14mm) Tube | Barbless | Temperature Compensated | PC Pin | - | -25°C ~ 85°C | - | - | Through Hole | - |
|
|
20 INCH-D1-BASICSENSOR 0.72PSID 0.08" .03V |
0 |
|
برگه مشخصات |
ADUX | 4-SIP Module | Tube | Active | Board Mount | Differential | 0.72PSI (4.98kPa) | Wheatstone Bridge | 0 mV ~ 30 mV (4.5V) | ±0.5% | 6V | Male - 0.08" (2.13mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | - | -25°C ~ 85°C | - | - | Through Hole | - |
|
|
20 INCH-D2-BASICSENSOR 0.72PSID 0.08" .03V |
0 |
|
برگه مشخصات |
ADUX | 4-SIP Module | Tube | Active | Board Mount | Differential | 0.72PSI (4.98kPa) | Wheatstone Bridge | 0 mV ~ 30 mV (4.5V) | ±0.5% | 6V | Male - 0.08" (2.13mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | - | -25°C ~ 85°C | - | - | Through Hole | - |
|
|
30 INCH-G-BASICSENSOR 1.08PSIG 0.08" .03V |
0 |
|
برگه مشخصات |
ADUX | 4-SIP Module | Tube | Discontinued | Board Mount | Vented Gauge | 1.08PSI (7.48kPa) | Wheatstone Bridge | 0 mV ~ 30 mV (4.5V) | ±0.5% | 6V | Male - 0.08" (2.14mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | - | -25°C ~ 85°C | - | - | Through Hole | - |
|
|
30 INCH-D1-BASICSENSOR 1.08PSID 0.08" .03V |
0 |
|
برگه مشخصات |
ADUX | 4-SIP Module | Tube | Active | Board Mount | Differential | 1.08PSI (7.48kPa) | Wheatstone Bridge | 0 mV ~ 30 mV (4.5V) | ±0.5% | 6V | Male - 0.08" (2.13mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | - | -25°C ~ 85°C | - | - | Through Hole | - |
|
|
30 INCH-D2-BASICSENSOR 1.08PSID 0.08" .03V |
0 |
|
برگه مشخصات |
ADUX | 4-SIP Module | Tube | Active | Board Mount | Differential | 1.08PSI (7.48kPa) | Wheatstone Bridge | 0 mV ~ 30 mV (4.5V) | ±0.5% | 6V | Male - 0.08" (2.13mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | - | -25°C ~ 85°C | - | - | Through Hole | - |
|
PTE7100-32DB-0B200BNSENSOR 2900.75PSIG 1/4"NPT 4.5V |
0 |
|
برگه مشخصات |
PTE7100 | Cylinder, Threaded | Box | Active | - | Gauge | 2900.75PSI (20000kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±1.5% | 4.75V ~ 5.25V | Male - 1/4" (6.35mm) NPT | Threaded | - | Connector | 5801.51PSI (40000kPa) | -40°C ~ 100°C | - | - | - | - |
|
PTE7100-21DC-0A100BNSENSOR 1450.38PSIG 1/4"NPT .02A |
0 |
|
برگه مشخصات |
PTE7100 | Cylinder, Threaded | Box | Active | - | Gauge | 1450.38PSI (10000kPa) | Analog Current | 4 mA ~ 20 mA | ±1.5% | 8V ~ 32V | Male - 1/4" (6.35mm) NPT | Threaded | - | Connector | 2900.75PSI (20000kPa) | -40°C ~ 100°C | - | - | - | - |
