سنسور فشار، مبدل
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته / کیس | بسته بندی | وضعیت محصول | برنامه های کاربردی | نوع فشار | فشار عملیاتی | نوع خروجی | خروجی | دقت | ولتاژ - منبع تغذیه | اندازه پورت | سبک بندری | ویژگی ها | سبک خاتمه | حداکثر فشار | دمای عملیاتی | درجه | صلاحیت | نوع نصب | بسته دستگاه تامین کننده |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9307209XP05KPS1C1G XPRO STAINLESSSTEEL |
0 |
|
- |
- | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9305930PRESS TRANS SA 100 PSIS SCD1225 |
0 |
|
- |
- | - | Bulk | Obsolete | Board Mount | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SPT4V0015PA6W02PRESSURE-JZ STAINLESS |
0 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
060-R185-15"MODEL FP5000; 0.20% ACCURACY; 1 |
0 |
|
برگه مشخصات |
- | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
PS3208SENSOR 3.63PSI .02A |
0 |
|
- |
- | Cylinder | Box | Active | - | - | 3.63PSI (25kPa) | Analog Current | 4 mA ~ 20 mA | ±0.1% | 10V ~ 30V | - | - | - | Cable/Wire Leads | 34.81PSI (240kPa) | -10°C ~ 50°C | - | - | - | - |
|

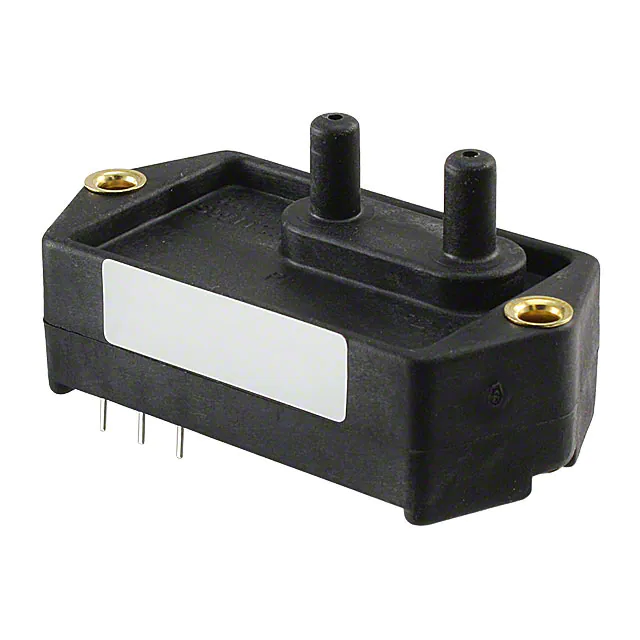

142PC05DSENSOR 5PSID 0.2" 6V |
0 |
|
- |
140PC | 3-SIP Module | Bulk | Active | Board Mount | Differential | 5PSI (34.47kPa) | Analog Voltage | 1 V ~ 6 V | ±1.5% | 7V ~ 16V | Male - 0.2" (5mm) Tube, Dual | Barbless | Amplified Output, Temperature Compensated | PC Pin | 20PSI (137.9kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
|
SPT4V0015PA4W02PRESSURE-JZ STAINLESS |
0 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

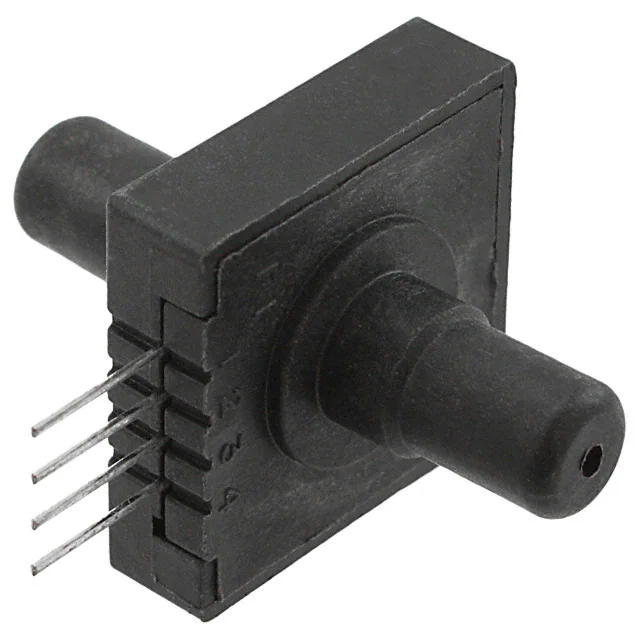

176PC14HD2SENSOR 0.51PSID 0.28" .035V |
0 |
|
- |
170PC | 4-SIP Module | Bulk | Active | Board Mount | Differential | 0.51PSI (3.49kPa) | Wheatstone Bridge | 0 mV ~ 35 mV (10V) | ±3% | 10V ~ 16V | Male - 0.28" (7.11mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | 5.06PSI (34.88kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
|
SPT4V3000PS6W02PRESSURE-JZ STAINLESS PRESR SPT- |
0 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SPT4V0030PA6W02PRESSURE-JZ STAINLESS PRESR SPT- |
0 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SPT4V0200PG6W02PRESSURE-JZ STAINLESS |
0 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9251405SENSOR 1000PSIS 1/8"NPT 4.5V |
0 |
|
- |
Eclipse | - | Bulk | Obsolete | - | Sealed Gauge | 1000PSI (6894.76kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 5V | Male - 1/8" (3.18mm) NPT | Threaded | Amplified Output, Temperature Compensated | - | 1500PSI (10342.14kPa) | -40°C ~ 105°C | - | - | - | - |
|
PG2794SENSOR 14.5PSI 1" .02A |
1 |
|
- |
- | Module Box with Display | Box | Active | - | Vacuum | -14.5PSI ~ 14.5PSI (-100kPa ~ 100kPa) | Analog Current, NPN/PNP- NC/NO | 4 mA ~ 20 mA | ±0.2% | 18V ~ 32V | Male - 1" (25.4mm) BSPP | Threaded | - | M12, 4 Pin | 2175.57PSI (15000kPa) | -25°C ~ 80°C | - | - | - | - |
|
PI2799SENSOR 14.5PSI 1" .02A |
0 |
|
برگه مشخصات |
- | Module | Box | Active | - | Vacuum | -14.5PSI ~ 14.5PSI (-100kPa ~ 100kPa) | Analog Current, NPN/PNP- NC/NO | 4 mA ~ 20 mA | ±0.2% | 18V ~ 32V | Male - 1" (25.4mm) BSPP | Threaded | - | M12 | 435.11PSI (3000kPa) | -25°C ~ 80°C | - | - | - | - |
|
PI2796SENSOR 36PSI 1" .02A |
0 |
|
- |
- | Module | Box | Active | - | - | -1.8PSI ~ 36PSI (-12.5kPa ~ 250kPa) | Analog Current, NPN/PNP- NC/NO | 4 mA ~ 20 mA | ±0.2% | 18V ~ 32V | Male - 1" (25.4mm) BSPP | Threaded | - | M12 | 725.19PSI (5000kPa) | -25°C ~ 80°C | - | - | - | - |
|
PG2793SENSOR 362.6PSI 1" .02A |
0 |
|
برگه مشخصات |
- | Module Box with Display | Box | Active | - | Vacuum | -14.5PSI ~ 362.6PSI (-100kPa ~ 2500kPa) | Analog Current, NPN/PNP- NC/NO | 4 mA ~ 20 mA | ±0.2% | 18V ~ 32V | Male - 1" (25.4mm) BSPP | Threaded | - | M12, 4 Pin | 5076.32PSI (35000kPa) | -25°C ~ 80°C | - | - | - | - |
|
PG2796SENSOR 36PSI 1" .02A |
0 |
|
- |
- | Module Box with Display | Box | Active | - | - | -1.8PSI ~ 36PSI (-12.5kPa ~ 250kPa) | Analog Current, NPN/PNP- NC/NO | 4 mA ~ 20 mA | ±0.2% | 18V ~ 32V | Male - 1" (25.4mm) BSPP | Threaded | - | M12, 4 Pin | 725.19PSI (5000kPa) | -25°C ~ 80°C | - | - | - | - |
|
PG2795SENSOR 58PSI 1" .02A |
0 |
|
- |
- | Module Box with Display | Box | Active | - | Vacuum | -14.5PSI ~ 58PSI (-100kPa ~ 400kPa) | Analog Current, NPN/PNP- NC/NO | 4 mA ~ 20 mA | ±0.2% | 18V ~ 32V | Male - 1" (25.4mm) BSPP | Threaded | - | M12, 4 Pin | 1450.38PSI (10000kPa) | -25°C ~ 80°C | - | - | - | - |
|
|
6058467PRESSURE TRANSMITTER |
0 |
|
- |
- | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
060-R158-09"MODEL FP5000; 0.10% ACCURACY; 2 |
0 |
|
برگه مشخصات |
- | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
