سوئیچ های دکمه ای
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | تایپ کنید | مدار | عملکرد سوئیچ | رتبه فعلی (آمپر) | رتبه بندی ولتاژ - AC | رتبه بندی ولتاژ - DC | نوع محرک | علامت گذاری محرک | رنگ - محرک/درپوش | نوع روشنایی، رنگ | ولتاژ روشنایی (اسمی) | سبک خاتمه | حفاظت از ورود | ویژگی ها | ابعاد برش پانل | دمای عملیاتی |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EB2065-CASWITCH PUSHBUTTON SPDT 3A 125V |
929 |
|
برگه مشخصات |
EB | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-On | 3A (AC) | 125 V | - | Round, Button | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -10°C ~ 70°C |
|

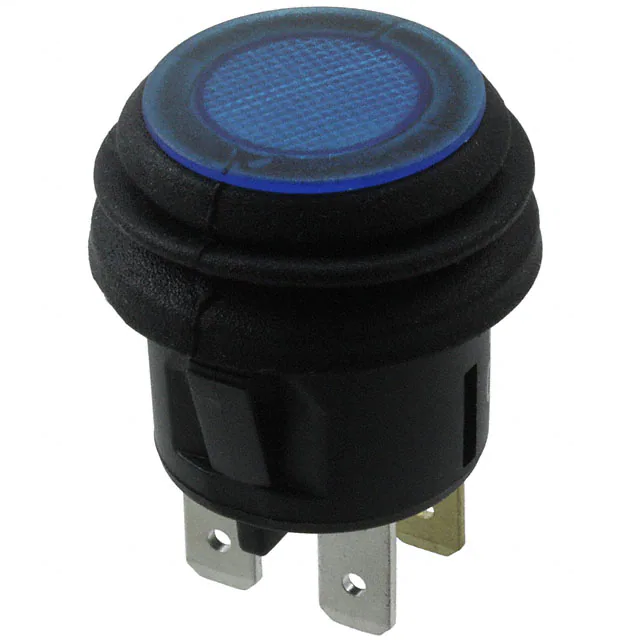

GPB527D2B02BU1SWITCH PUSHBUTTON SPST 10A 125V |
4,039 |
|
برگه مشخصات |
GPB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPST | Off-On | 10A (AC/DC) | 125 V | 28 V | Round, Button | No Marking | Blue | LED, Blue | 12 VDC | Quick Connect - 0.187" (4.7mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 20.20mm Dia | -25°C ~ 85°C |
|
982A01RXSWITCH PUSH SPST-NO 0.25A 28V |
990 |
|
برگه مشخصات |
98000R | Bulk | Active | Through Hole | Standard | SPST-NO | Off-Mom | 125mA (AC), 250mA (DC) | 125 V | 28 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | - | - |
|

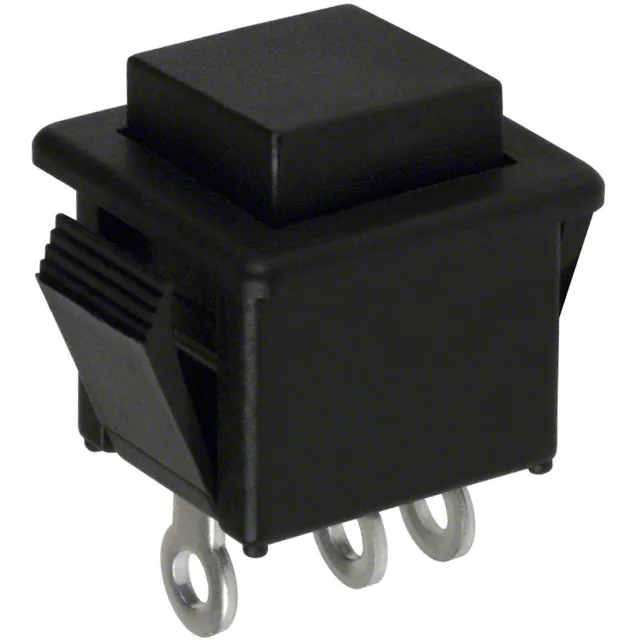

1415NC2SWITCH PUSHBUTTON SPDT 3A 12V |
246 |
|
برگه مشخصات |
1400N | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 3A (DC) | - | 12 V | Square, Button | No Marking | Black | - | - | Solder Lug | - | - | Rectangular - 16.50mm x 14.30mm | -20°C ~ 55°C |
|
40-2385-01SWITCH PUSHBUTTON SPST 2A 14V |
1,559 |
|
برگه مشخصات |
J-188 | Bulk | Active | Panel Mount, Rear | Standard | SPST | Off-On | 2A (DC) | - | 14 V | Round, Plunger | No Marking | Black | - | - | Wire Leads | - | - | - | - |
|
SB4011NCHSWITCH PUSH SPST-NC 3A 125V |
461 |
|
برگه مشخصات |
SB40 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NC | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Plunger for Cap | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 12.50mm Dia | -10°C ~ 70°C |
|
RP3508BBLKGRNGRNNSSWITCH PUSHBUTTON SPST 3A 125V |
2,928 |
|
برگه مشخصات |
RP3508 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST | Off-On | 3A (AC) | 125 V | - | Round, Button | No Marking | Green | LED, Green | 2.2 VDC | Solder Lug | - | - | Circular - 16.00mm Dia | 0°C ~ 65°C |
|
BB16AH-FASWITCH PUSH SPDT 0.4VA 28V |
8,325 |
|
برگه مشخصات |
BB | Tray | Active | Through Hole, Right Angle | Standard | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Antistatic | - | -30°C ~ 85°C |
|
SW-PB11-4CSKG-10IP67 ANTI-VANDAL PUSHBUTTON SWIT |
122 |
|
برگه مشخصات |
SW | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST | Off-On | 2A (AC), 100mA (DC) | 125 V | 24 V | Round, Button, Domed | No Marking | Black | LED, Green | - | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|

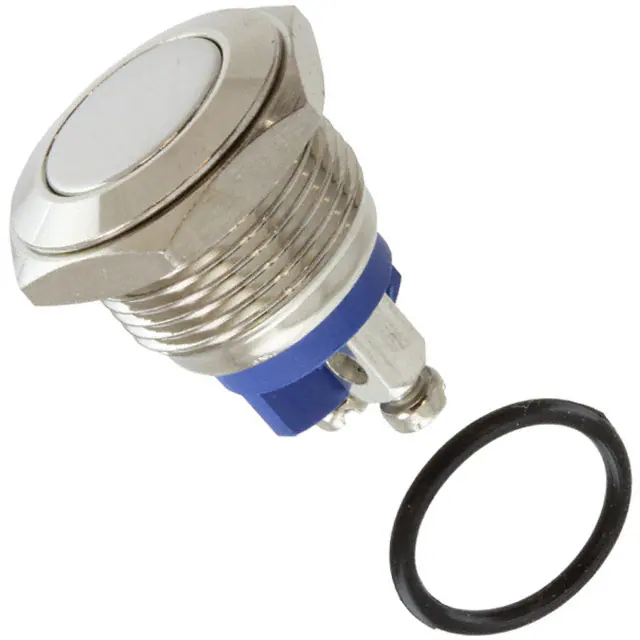

PV2F640NNSWITCH PUSHBUTTON SPST-NO 2A 48V |
129 |
|
برگه مشخصات |
PV2, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 2A (DC) | - | 48 V | Round, Button, Flush | No Marking | Silver | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
|

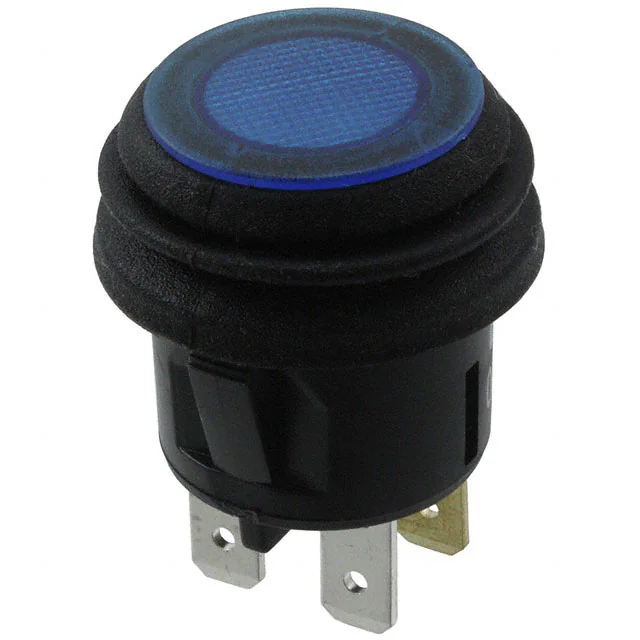

GPB527C2L02BU1SWITCH PUSH SPST-NO 10A 125V |
780 |
|
برگه مشخصات |
GPB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPST-NO | Off-Mom | 10A (AC/DC) | 125 V | 28 V | Round, Button | No Marking | Blue | LED, Blue | 12 VDC | Quick Connect - 0.187" (4.7mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 20.20mm Dia | -25°C ~ 85°C |
|
EP11FPD1ABESWITCH PUSH SPST-NO 0.4VA 20V |
3,448 |
|
برگه مشخصات |
EP | Bulk | Active | Through Hole, Right Angle | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger, Flush | No Marking | Black | - | - | PC Pin | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
RP8200B2M1CEBLKBLKNILSWITCH PUSH SPST 0.1A 24V |
395 |
|
برگه مشخصات |
RP8200 | Bulk | Active | Panel Mount, Front | Standard | SPST | Off-On | 100mA (DC) | - | 24 V | Round, Button | No Marking | Black | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
RP8200B2M1CEBLKREDNILSWITCH PUSH SPST 0.1A 24V |
384 |
|
برگه مشخصات |
RP8200 | Bulk | Active | Panel Mount, Front | Standard | SPST | Off-On | 100mA (DC) | - | 24 V | Round, Button | No Marking | Red | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
GPB527D2B02BR1SWITCH PUSHBUTTON SPST 10A 125V |
1,841 |
|
برگه مشخصات |
GPB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPST | Off-On | 10A (AC/DC) | 125 V | 28 V | Round, Button | No Marking | Red | LED, Red | 12 VDC | Quick Connect - 0.187" (4.7mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 20.20mm Dia | -25°C ~ 85°C |
|
RP8300B2M1CEBLKBLUNILSWITCH PB SPST-NO 200MA 250V |
1,358 |
|
برگه مشخصات |
RP8300 | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 200mA (AC/DC) | 250 V | 50 V | Round, Button | No Marking | Blue | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
RP8300B2M1CEBLKREDNILSWITCH PB SPST-NO 200MA 250V |
1,299 |
|
برگه مشخصات |
RP8300 | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 200mA (AC/DC) | 250 V | 50 V | Round, Button | No Marking | Red | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|

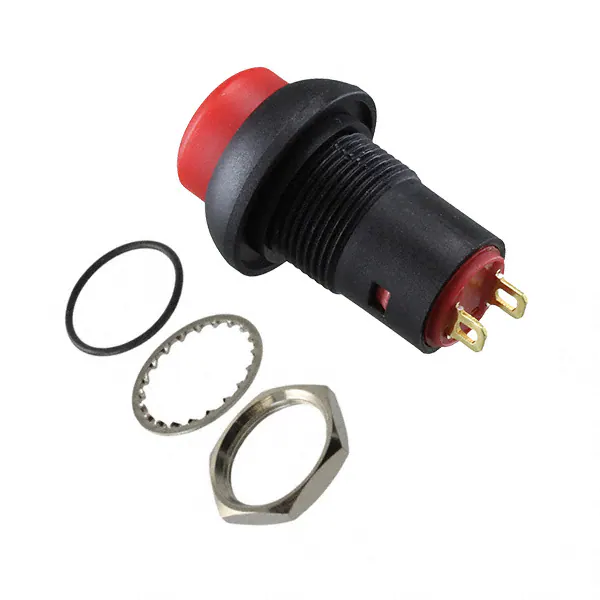

RP8201B2M1CEBLKREDNILSWITCH PUSH SPST 0.1A 24V |
200 |
|
برگه مشخصات |
RP8200 | Bulk | Active | Panel Mount, Front | Standard | SPST | Off-On | 100mA (DC) | - | 24 V | Round, Button | No Marking | Red | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|

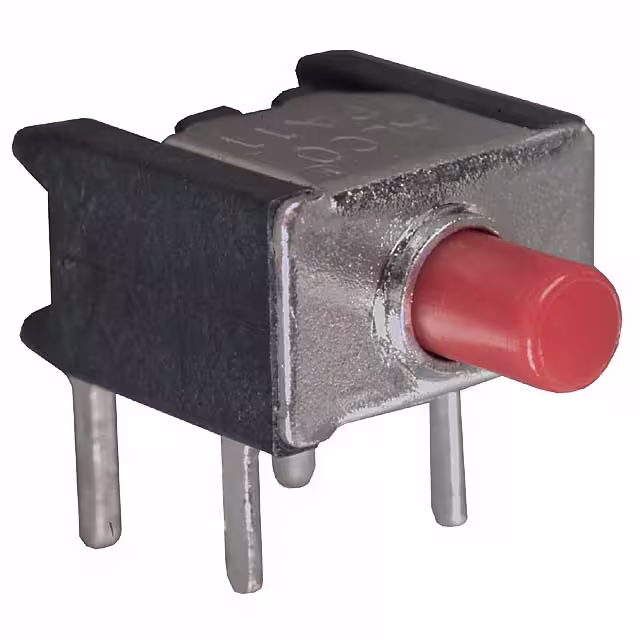

1825096-5SWITCH PUSH SPST-NO 0.4VA 20V |
977 |
|
برگه مشخصات |
TP | Bulk | Active | Through Hole, Right Angle | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Red | - | - | PC Pin | - | - | - | -30°C ~ 65°C |
|
EP11SD1SA1BESWITCH PUSH SPST-NO 0.4VA 20V |
918 |
|
برگه مشخصات |
EP | Tape & Reel (TR) | Active | Surface Mount, Right Angle | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | White | - | - | Gull Wing | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
