هدرها، پین های نر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع رابط | نوع تماس | زمین - جفت گیری | تعداد موقعیت ها | تعداد ردیف ها | فاصله ردیف - جفت گیری | تعداد موقعیت های بارگذاری شده | سبک | کفن زدن | نوع نصب | فسخ | نوع بست | طول تماس - جفت گیری | طول تماس - پست | طول تماس کلی | ارتفاع عایق | شکل تماس | تماس با پایان - جفت گیری | ضخامت پایان تماس - جفت گیری | تماس با پایان - ارسال | مواد تماس | مواد عایق | ویژگی ها | دمای عملیاتی | رتبه فعلی (آمپر) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
20021122-00008D4LFCONN HEADER SMD R/A 8POS 1.27MM |
476 |
|
برگه مشخصات |
Minitek127® 20021122 | Tube | Active | Header | Male Pin | 0.050" (1.27mm) | 8 | 2 | 0.050" (1.27mm) | All | Board to Board | Unshrouded | Surface Mount, Right Angle | Solder | Push-Pull | 0.150" (3.81mm) | - | - | 0.134" (3.40mm) | Square | Gold | 10.0µin (0.25µm) | - | Copper Alloy | Plastic | Pick and Place | -40°C ~ 105°C | 1A per Contact |
|

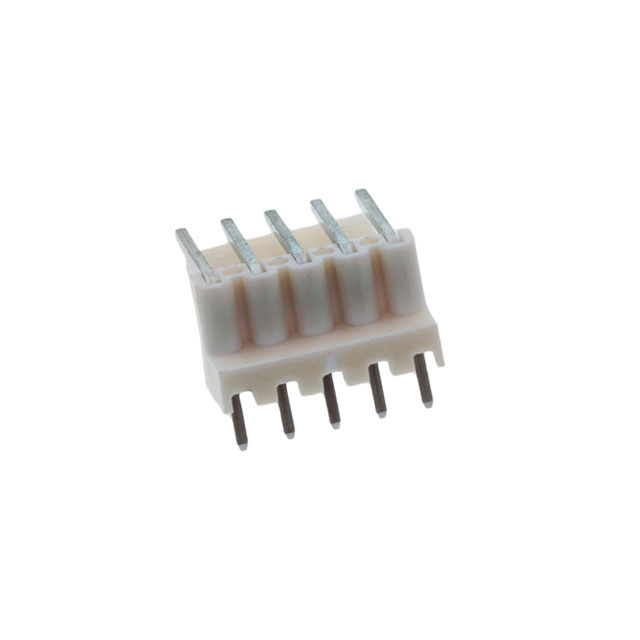

0022051052CONN HEADER R/A 5POS 2.5MM |
442 |
|
برگه مشخصات |
KK250, 5046 | Bulk | Active | Header | Male Pin | 0.098" (2.50mm) | 5 | 1 | - | All | Board to Cable/Wire | Shrouded - 1 Wall | Through Hole, Right Angle | Solder | Friction Lock | 0.295" (7.49mm) | 0.134" (3.40mm) | - | 0.248" (6.30mm) | Square | Tin | 200.0µin (5.08µm) | Tin | Brass | Polyamide (PA), Nylon | - | - | - |
|
5-103639-3CONN HEADER VERT 4POS 2.54MM |
383 |
|
برگه مشخصات |
AMPMODU MTE | Tube | Active | Header | Male Pin | 0.100" (2.54mm) | 4 | 1 | - | All | Board to Board or Cable | Shrouded - 4 Wall | Through Hole | Solder | Latch Holder | 0.230" (5.84mm) | 0.130" (3.30mm) | 0.545" (13.84mm) | 0.535" (13.60mm) | Square | Tin | 100.0µin (2.54µm) | Tin | Brass | Thermoplastic | Keying Slot | -65°C ~ 105°C | 3A |
|
|
SM15B-NSHSS-TBCONN HEADER SMD R/A 15POS 1MM |
372 |
|
برگه مشخصات |
NSH | Tape & Reel (TR) | Active | Header | Male Pin | 0.039" (1.00mm) | 15 | 1 | - | All | Board to Cable/Wire | Shrouded - 4 Wall | Surface Mount, Right Angle | Solder | Latch Holder | - | - | - | 0.173" (4.40mm) | - | Tin | - | Tin | Copper Alloy | Polyamide (PA), Nylon | Solder Retention | -25°C ~ 85°C | 1A |
|
SBH21-NBPN-D22-ST-BKCONN HEADER VERT 44POS 2MM |
351 |
|
برگه مشخصات |
SBH21 | Tray | Active | Header | Male Pin | 0.079" (2.00mm) | 44 | 2 | 0.079" (2.00mm) | All | Board to Board or Cable | Shrouded - 4 Wall | Through Hole | Solder | Push-Pull | - | 0.110" (2.79mm) | - | 0.220" (5.60mm) | Square | Gold | Flash | Gold | Brass | Polyamide (PA), Nylon | Keying Slot | -40°C ~ 105°C | 2A |
|
|
5055680881CONN HEADER SMD 8POS 1.25MM |
257 |
|
برگه مشخصات |
Micro-Lock PLUS 505568 | Tape & Reel (TR) | Active | Header | Male Pin | 0.049" (1.25mm) | 8 | 1 | - | All | Board to Cable/Wire | Shrouded - 4 Wall | Surface Mount | Solder | Push-Pull | - | - | - | 0.165" (4.20mm) | Square | Gold | 3.90µin (0.099µm) | Gold | Brass | Polyamide (PA), Nylon, Glass Filled | Pick and Place, Solder Retention | -40°C ~ 105°C | Varies by Wire Gauge |
|
HTSW-107-07-G-DCONN HEADER VERT 14POS 2.54MM |
194 |
|
برگه مشخصات |
HTSW | Bag | Active | Header | Male Pin | 0.100" (2.54mm) | 14 | 2 | 0.100" (2.54mm) | All | Board to Board or Cable | Unshrouded | Through Hole | Solder | Push-Pull | 0.230" (5.84mm) | 0.100" (2.54mm) | 0.430" (10.92mm) | 0.100" (2.54mm) | Square | Gold | 10.0µin (0.25µm) | Gold | Phosphor Bronze | Liquid Crystal Polymer (LCP) | - | -55°C ~ 125°C | Varies by Wire Gauge |
|
0039299202CONN HEADER VERT 20POS 4.2MM |
33,109 |
|
برگه مشخصات |
Mini-Fit Jr 5566 | Tray | Active | Header | Male Pin | 0.165" (4.20mm) | 20 | 2 | 0.165" (4.20mm) | All | Board to Cable/Wire | Shrouded - 4 Wall | Through Hole | Solder | Locking Ramp | - | 0.138" (3.50mm) | - | 0.504" (12.80mm) | Square | Tin | 35.4µin (0.90µm) | Tin | Brass | Polyamide (PA66), Nylon 6/6 | Board Lock | - | - |
|
0430450222CONN HEADER R/A 2POS |
14,449 |
|
برگه مشخصات |
Micro-Fit 3.0 43045 | Tray | Active | Header | Male Pin | - | 2 | 2 | 0.118" (3.00mm) | All | Board to Cable/Wire | Shrouded - 4 Wall | Through Hole, Right Angle | Solder | Locking Ramp | - | 0.125" (3.18mm) | - | 0.290" (7.37mm) | Square | Gold | 15.0µin (0.38µm) | Tin | Brass | Liquid Crystal Polymer (LCP), Glass Filled | Board Lock | -40°C ~ 105°C | 8A |
|
4-644457-2CONN HEADER R/A 12POS 2.54MM |
12,940 |
|
برگه مشخصات |
MTA-100 | Bulk | Active | Header | Male Pin | 0.100" (2.54mm) | 12 | 1 | - | All | Board to Cable/Wire | Unshrouded | Through Hole, Right Angle | Solder | - | 0.260" (6.60mm) | 0.110" (2.79mm) | - | 0.100" (2.54mm) | Square | Tin | 150.0µin (3.81µm) | Tin | Copper Alloy | Thermoplastic | - | -55°C ~ 105°C | Varies by Wire Gauge |
|
3020-16-0300-00-TRCONN HEADER SMD 16POS 2.54MM |
7,504 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | Header | Male Pin | 0.100" (2.54mm) | 16 | 2 | 0.100" (2.54mm) | All | Board to Cable/Wire | Shrouded - 4 Wall | Surface Mount | Solder | Push-Pull | - | - | - | 0.354" (9.00mm) | Square | Gold | Flash | Gold | Copper Alloy | Polyamide (PA9T), Nylon 9T | Keying Slot, Pick and Place | -40°C ~ 105°C | 3A (AC/DC) |
|
|
BM20B-SRDS-A-G-TFCONN HEADER SMD 20POS 1MM |
5,893 |
|
برگه مشخصات |
SHD | Tape & Reel (TR) | Active | Header | Male Pin | 0.039" (1.00mm) | 20 | 2 | - | All | Board to Cable/Wire | Shrouded - 4 Wall | Surface Mount | Solder | Push-Pull | - | - | - | 0.167" (4.25mm) | Square | Gold | - | - | Phosphor Bronze | Polyamide (PA), Nylon, Glass Filled | Board Guide, Pick and Place, Solder Retention | -25°C ~ 85°C | 1A |
|
|
78207-110HLFCONN HEADER R/A 10POS 2.54MM |
5,635 |
|
برگه مشخصات |
Mini-PV™, Basics+ | Bulk | Active | Header | Male Pin | 0.100" (2.54mm) | 10 | 2 | 0.100" (2.54mm) | All | Board to Cable/Wire | Shrouded - 2 Wall | Through Hole, Right Angle | Solder | Friction Lock | 0.230" (5.84mm) | 0.120" (3.05mm) | - | 0.303" (7.70mm) | Square | Gold or Gold, GXT™ | 30.0µin (0.76µm) | - | Phosphor Bronze | - | Keying Slot | - | - |
|
5015681407CONN HEADER SMD R/A 14POS 1MM |
5,461 |
|
برگه مشخصات |
Pico-Clasp 501568 | Tape & Reel (TR) | Active | Header | Male Pin | 0.039" (1.00mm) | 14 | 1 | - | All | Board to Cable/Wire | Shrouded - 4 Wall | Surface Mount, Right Angle | Solder | Latch Holder | - | - | - | 0.185" (4.70mm) | Square | Tin | 40.0µin (1.02µm) | Tin | Phosphor Bronze | Polyamide (PA), Nylon | Solder Retention | - | - |
|
|
BM12B-ZPDSS-TFCONN HEADER SMD 12POS 1.5MM |
5,207 |
|
برگه مشخصات |
ZPD | Tape & Reel (TR) | Active | Header | Outer Shroud Contact | 0.059" (1.50mm) | 12 | 2 | - | All | Board to Cable/Wire | Shrouded - 4 Wall | Surface Mount | Solder | Locking Ramp | - | - | - | 0.219" (5.56mm) | Rectangular | Tin | - | Tin | Copper Alloy | Polyamide (PA), Nylon | Solder Retention | -25°C ~ 85°C | 2A |
|
0901210764CONN HEADER R/A 4POS 2.54MM |
4,103 |
|
برگه مشخصات |
C-Grid III 90121 | Bulk | Active | Header, Breakaway | Male Pin | 0.100" (2.54mm) | 4 | 1 | - | All | Board to Board or Cable | Unshrouded | Through Hole, Right Angle | Solder | Push-Pull | 0.266" (6.75mm) | 0.114" (2.90mm) | - | 0.142" (3.60mm) | Square | Gold | 15.0µin (0.38µm) | Tin | Brass | Polyester, Glass Filled | - | - | - |
|
0436500629CONN HEADER VERT 6POS 3MM |
3,445 |
|
برگه مشخصات |
Micro-Fit 3.0 43650 | Tray | Active | Header | Male Pin | 0.118" (3.00mm) | 6 | 1 | - | All | Board to Cable/Wire | Shrouded - 4 Wall | Through Hole | Solder | Locking Ramp | - | 0.125" (3.18mm) | - | 0.390" (9.91mm) | Square | Gold | 30.0µin (0.76µm) | Tin | Brass | Liquid Crystal Polymer (LCP), Glass Filled | Board Guide | - | - |
|
3221-16-0200-00CONN HEADER R/A 16POS 1.27MM |
3,229 |
|
برگه مشخصات |
- | Tray | Active | Header | Male Pin | 0.050" (1.27mm) | 16 | 2 | 0.050" (1.27mm) | All | Board to Cable/Wire | Shrouded - 4 Wall | Through Hole, Right Angle | Solder | Push-Pull | - | 0.083" (2.11mm) | - | 0.201" (5.10mm) | Square | Gold | Flash | Gold | Brass | Polyamide (PA9T), Nylon 9T | Keying Slot | -40°C ~ 105°C | 1A (AC/DC) |
|
0353182020CONN HEADER R/A 20POS 4.2MM |
2,795 |
|
برگه مشخصات |
Mini-Fit Jr 35318 | Bulk | Active | Header | Male Pin | 0.165" (4.20mm) | 20 | 2 | 0.165" (4.20mm) | All | Board to Cable/Wire | Shrouded - 4 Wall | Through Hole, Right Angle | Solder | Locking Ramp | 0.208" (5.30mm) | 0.173" (4.40mm) | - | 0.378" (9.60mm) | Square | Tin | - | Tin | Brass | Polyamide (PA66), Nylon 6/6 | - | - | - |
|
IL-AG5-7P-S3L2CONN HEADER R/A 7POS 2.5MM |
2,356 |
|
برگه مشخصات |
IL-AG5 | Bulk | Active | Header | Male Pin | 0.098" (2.50mm) | 7 | 1 | - | All | Board to Cable/Wire | Shrouded - 4 Wall | Through Hole, Right Angle | Solder | Push-Pull | 0.331" (8.40mm) | 0.138" (3.50mm) | - | 0.433" (11.00mm) | Square | Tin | - | Tin | Brass | Polybutylene Terephthalate (PBT) | Board Guide | -40°C ~ 85°C | 3A per Contact |
