آرایه های دیودی

شماره قطعه تولیدکننده	موجودی	قیمت	تعداد	برگه مشخصات	سری	بسته / کیس	بسته بندی	وضعیت محصول	پیکربندی دیود	تکنولوژی	ولتاژ - معکوس DC (Vr) (حداکثر)	فعلی - میانگین اصلاح شده (Io) (در هر دیود)	ولتاژ - جلو (Vf) (حداکثر) @ اگر	سرعت	زمان بازیابی معکوس (trr)	جریان - نشت معکوس @ Vr	دمای عملیاتی - اتصال	درجه	صلاحیت	نوع نصب	بسته دستگاه تامین کننده
85CNQ015SL DIODE ARR SCHOTT 15V 40A PRM2-SL SMC Diode Solutions	1,765	-	RFQ	برگه مشخصات	-	PRM2-SL	Bulk	Active	1 Pair Common Cathode	Schottky	15 V	40A	450 mV @ 40 A	Fast Recovery =< 500ns, > 200mA (Io)	-	20 mA @ 15 V	-55°C ~ 125°C	-	-	Surface Mount	PRM2-SL
NDSH40120CDN DIODE ARR SIC 1200V 20A TO247-3 onsemi	260	-	RFQ	برگه مشخصات	-	TO-247-3	Tube	Active	1 Pair Common Cathode	SiC (Silicon Carbide) Schottky	1200 V	20A	1.75 V @ 20 A	No Recovery Time > 500mA (Io)	0 ns	200 µA @ 1200 V	-55°C ~ 175°C	-	-	Through Hole	TO-247-3
C4D30120D DIODE ARR SIC 1200V 44A TO247-3 Wolfspeed, Inc.	397	-	RFQ	برگه مشخصات	Z-Rec®	TO-247-3	Tube	Active	1 Pair Common Cathode	SiC (Silicon Carbide) Schottky	1200 V	44A (DC)	1.8 V @ 15 A	No Recovery Time > 500mA (Io)	0 ns	200 µA @ 1200 V	-55°C ~ 175°C	-	-	Through Hole	TO-247-3
SCS220KE2GC11 DIODE ARR SIC 1200V 10A TO-247N Rohm Semiconductor	800	-	RFQ	برگه مشخصات	-	TO-247-3	Tube	Active	1 Pair Common Cathode	SiC (Silicon Carbide) Schottky	1200 V	10A (DC)	1.6 V @ 10 A	No Recovery Time > 500mA (Io)	0 ns	200 µA @ 1200 V	175°C	-	-	Through Hole	TO-247N
83CNQ080S2 DIODE MODULE SCHOTT 80V 80A PRM2 SMC Diode Solutions	489	-	RFQ	برگه مشخصات	-	PRM2	Bulk	Active	1 Pair Common Cathode	Schottky	80 V	80A	1 V @ 80 A	Fast Recovery =< 500ns, > 200mA (Io)	-	1.5 mA @ 80 V	-55°C ~ 175°C	-	-	Chassis Mount	PRM2
STPSC40H12CWY DIODE ARRAY SIC 1200V 20A TO-247 STMicroelectronics	155	-	RFQ	برگه مشخصات	-	TO-247-3	Tube	Active	1 Pair Common Cathode	SiC (Silicon Carbide) Schottky	1200 V	20A	1.5 V @ 20 A	No Recovery Time > 500mA (Io)	0 ns	120 µA @ 1200 V	-40°C ~ 175°C	Automotive	AEC-Q101	Through Hole	TO-247
E4D20120D DIODE ARR SIC 1200V 33A TO247-3 Wolfspeed, Inc.	215	-	RFQ	برگه مشخصات	E-Series	TO-247-3	Tube	Last Time Buy	1 Pair Common Anode	SiC (Silicon Carbide) Schottky	1200 V	33A	1.8 V @ 10 A	No Recovery Time > 500mA (Io)	0 ns	200 µA @ 1200 V	-55°C ~ 175°C	Automotive	-	Through Hole	TO-247-3
SCS240KE2HRC11 DIODE ARRAY SIC 1200V 20A TO-247 Rohm Semiconductor	401	-	RFQ	برگه مشخصات	-	TO-247-3	Tube	Active	1 Pair Common Cathode	SiC (Silicon Carbide) Schottky	1200 V	20A (DC)	1.6 V @ 20 A	No Recovery Time > 500mA (Io)	0 ns	400 µA @ 1200 V	175°C (Max)	-	-	Through Hole	TO-247

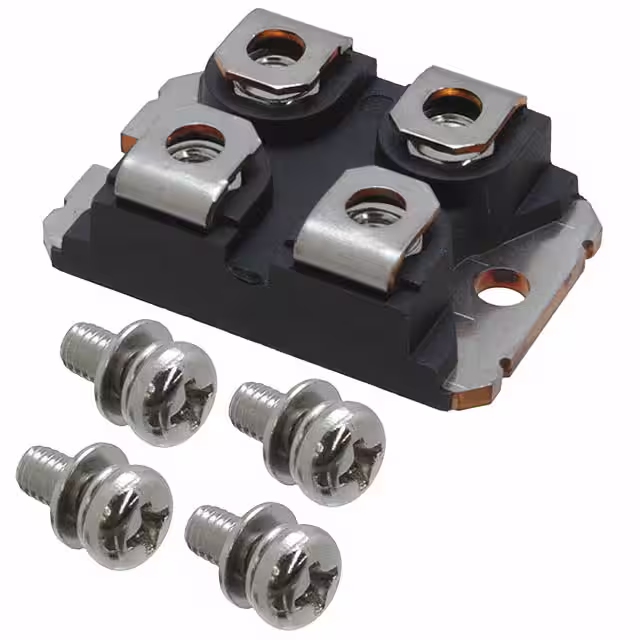

VS-UFB130FA20 DIODE MODULE GP 200V 65A SOT-227 Vishay General Semiconductor - Diodes Division	104	-	RFQ	برگه مشخصات	-	SOT-227-4, miniBLOC	Tube	Active	2 Independent	Standard	200 V	65A (DC)	1.13 V @ 60 A	Fast Recovery =< 500ns, > 200mA (Io)	42 ns	50 µA @ 200 V	-	-	-	Chassis Mount	SOT-227
APT2X60S20J DIODE MOD SCHOTT 200V 75A SOT227 Microchip Technology	167	-	RFQ	برگه مشخصات	-	SOT-227-4, miniBLOC	Tube	Active	2 Independent	Schottky	200 V	75A	900 mV @ 60 A	Fast Recovery =< 500ns, > 200mA (Io)	-	1 mA @ 200 V	-55°C ~ 150°C	-	-	Chassis Mount	SOT-227 (ISOTOP®)
DSEP2X60-12A DIODE MOD GP 1200V 60A SOT227B IXYS	110	-	RFQ	برگه مشخصات	HiPerFRED™	SOT-227-4, miniBLOC	Tube	Active	2 Independent	Standard	1200 V	60A	2.42 V @ 60 A	Fast Recovery =< 500ns, > 200mA (Io)	40 ns	1 mA @ 1200 V	-40°C ~ 150°C	-	-	Chassis Mount	SOT-227B
VS-HFA90FA120 DIODE MODULE GP 1200V 45A SOT227 Vishay General Semiconductor - Diodes Division	159	-	RFQ	برگه مشخصات	HEXFRED®	SOT-227-4, miniBLOC	Tray	Active	2 Independent	Standard	1200 V	45A (DC)	3.3 V @ 40 A	Fast Recovery =< 500ns, > 200mA (Io)	-	75 µA @ 1200 V	-55°C ~ 150°C	-	-	Chassis Mount	SOT-227
MD200A16D2-BP DIODE MODULE GP 1600V 200A D2 Micro Commercial Co	76	-	RFQ	برگه مشخصات	-	D2	Bulk	Active	1 Pair Common Anode	Standard	1600 V	200A	1.3 V @ 300 A	Standard Recovery >500ns, > 200mA (Io)	-	9 mA @ 1600 V	-40°C ~ 150°C	-	-	Chassis Mount	D2
MBR2X080A045 DIODE MOD SCHOTT 45V 80A SOT-227 GeneSiC Semiconductor	29	-	RFQ	برگه مشخصات	-	SOT-227-4, miniBLOC	Bulk	Active	2 Independent	Schottky	45 V	80A	700 mV @ 80 A	Fast Recovery =< 500ns, > 200mA (Io)	-	1 mA @ 45 V	-40°C ~ 150°C	-	-	Chassis Mount	SOT-227
209CMQ150 DIODE MOD SCHOTT 150V 100A PRM4 SMC Diode Solutions	29	-	RFQ	برگه مشخصات	-	PRM4	Bulk	Active	1 Pair Common Cathode	Schottky	150 V	100A	1.03 V @ 100 A	Fast Recovery =< 500ns, > 200mA (Io)	-	3 mA @ 150 V	-55°C ~ 175°C	-	-	Chassis Mount	PRM4 (Isolated)
409CNQ150 DIODE MODULE SCHOTTKY 150V PRM4 SMC Diode Solutions	121	-	RFQ	برگه مشخصات	-	PRM4	Bulk	Active	1 Pair Common Cathode	Schottky	150 V	-	1.03 V @ 200 A	Fast Recovery =< 500ns, > 200mA (Io)	-	6 mA @ 150 V	-55°C ~ 150°C	-	-	Chassis Mount	PRM4 (Isolated)
PD100KN8 DIODE MODULE GP 800V 100A MODULE KYOCERA AVX	31	-	RFQ	برگه مشخصات	-	Module	Bulk	Active	1 Pair Series Connection	Standard	800 V	100A	1.41 V @ 320 A	Standard Recovery >500ns, > 200mA (Io)	-	7 mA @ 800 V	-40°C ~ 150°C	-	-	Chassis Mount	Module
LSIC2SD120N80PA DIODE MOD SIC 1200V 75A SOT227B IXYS	100	-	RFQ	برگه مشخصات	-	SOT-227-4, miniBLOC	Tube	Active	2 Independent	SiC (Silicon Carbide) Schottky	1200 V	75A (DC)	1.8 V @ 40 A	No Recovery Time > 500mA (Io)	0 ns	100 µA @ 1200 V	-55°C ~ 175°C	-	-	Chassis Mount	SOT-227B - miniBLOC
MD18200S-DKM2MM DIODE MODULE GP 1800V 200A S3 Littelfuse Inc.	178	-	RFQ	برگه مشخصات	-	S-3 Module	Bulk	Active	1 Pair Common Cathode	Standard	1800 V	200A	1.5 V @ 600 A	Standard Recovery >500ns, > 200mA (Io)	-	500 µA @ 1800 V	-40°C ~ 150°C	-	-	Chassis Mount	S3
FST16035 DIODE MOD SCHOT 35V 160A TO249AB GeneSiC Semiconductor	28	-	RFQ	برگه مشخصات	-	TO-249AB	Bulk	Active	1 Pair Common Cathode	Schottky	35 V	160A	750 mV @ 160 A	Fast Recovery =< 500ns, > 200mA (Io)	-	1 mA @ 20 V	-55°C ~ 150°C	-	-	Chassis Mount	TO-249AB
