رله های نی
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | ولتاژ سیم پیچ | فرم تماس | رتبه بندی تماس (جاری) | ولتاژ سوئیچینگ | جریان سیم پیچ | نوع کویل | ویژگی ها | سبک خاتمه | رتبه بندی مهر و موم | ولتاژ باید کار کند | ولتاژ باید آزاد شود | زمان عملیات | زمان انتشار | دمای عملیاتی | مواد تماس |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7102-12-1000RELAY REED DPST 500MA 12V |
190 |
|
برگه مشخصات |
7000 | Bulk | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 1 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
7101-12-1000RELAY REED SPST 500MA 12V |
331 |
|
برگه مشخصات |
7000 | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 7.5 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 1 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
7302-12-1000RELAY REED DPST 500MA 12V |
200 |
|
برگه مشخصات |
7000 | Bulk | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 500 mA | 500VAC, 500VDC - Max | 18.8 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 1 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
2911-12-221RELAY 2000S |
493 |
|
برگه مشخصات |
2900 | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 250 mA | 150VAC, 150VDC - Max | 8 mA | Non Latching | - | PC Pin | Sealed - Hermetically | 9 VDC | 1 VDC | 1 ms | 2 ms | -20°C ~ 85°C | - |
|
|
7102-05-1010RELAY REED DPST 500MA 5V |
175 |
|
برگه مشخصات |
7000 | Bulk | Active | Through Hole | 5VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 33.3 mA | Non Latching | Electrostatic Shield | PC Pin | - | 3.75 VDC | 0.4 VDC | 1 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
7104-12-1010RELAY REED 4PST 500MA 12V |
176 |
|
برگه مشخصات |
7000 | Bulk | Active | Through Hole | 12VDC | 4PST-NO (4 Form A) | 500 mA | 200VAC, 200VDC - Max | 21.8 mA | Non Latching | Electrostatic Shield | PC Pin | - | 9 VDC | 1 VDC | 1 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
3650-05-82RELAY REED 3PST 250MA 5V |
200 |
|
برگه مشخصات |
3600 | Tube | Active | Through Hole | 5VDC | 3PST-NO (3 Form A) | 250 mA | 150VAC, 150VDC - Max | 14.3 mA | Non Latching | - | PC Pin | - | 3.8 VDC | 0.4 VDC | 0.75 ms | 0.1 ms | -20°C ~ 85°C | - |
|

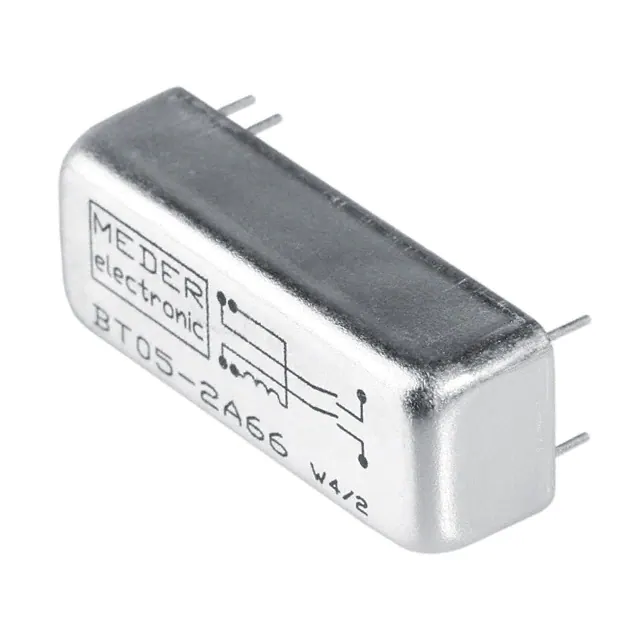

BT05-2A66RELAY REED DPST 500MA 5V |
273 |
|
برگه مشخصات |
BT | Tube | Active | Through Hole | 5VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 5.6 mA | Non Latching | - | PC Pin | - | 3.8 VDC | 1 VDC | 0.5 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
3650-12-52RELAY REED 3PST 250MA 12V |
198 |
|
برگه مشخصات |
3600 | Tube | Active | Through Hole | 12VDC | 3PST-NO (3 Form A) | 250 mA | 150VAC, 150VDC - Max | 6 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 0.75 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
3501-05-511RELAY REED SPST 500MA 5V |
246 |
|
برگه مشخصات |
3500 | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 14.3 mA | Non Latching | - | PC Pin | Sealed - Hermetically | 3.8 VDC | 0.4 VDC | 0.75 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
2300-5069RELAY REED DPDT 250MA 5V |
760 |
|
- |
- | Tube | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
1240-06-2104RELAY REED SPST 6V NSTD |
222 |
|
برگه مشخصات |
1240 | Bulk | Active | Through Hole | 6VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 40 mA | Non Latching | - | PC Pin | - | 4.5 VDC | 0.5 VDC | 1 ms | 100 µs | -20°C ~ 85°C | - |
|
HE12-1A83-02RELAY REED SPST 3A 12V |
32 |
|
برگه مشخصات |
HE | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 3 A | 7500VAC, 7500VDC - Max | 46.2 mA | Non Latching | - | PC Pin | - | 9 VDC | 2 VDC | 3 ms | 1.5 ms | -20°C ~ 70°C | - |
|
|
HE24-1A69-03HIGH VOLTAGE REED RELAY. FORM 1A |
26 |
|
برگه مشخصات |
HE | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 3 A | 10000VAC, 10000VDC - Max | 51.6 mA | Non Latching | - | PC Pin | - | 18 VDC | 2 VDC | 3 ms | 1.5 ms | -20°C ~ 70°C | - |
|
|
H24-1B83REED RELAY |
84 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SIP-1A05200V/1A REED RELAY, 1 FORM A, 5V |
903 |
|
برگه مشخصات |
SIP | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 100VAC, 100VDC - Max | 10 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.6 VDC | 1 ms | 0.5 ms | -40°C ~ 80°C | - |
|
|
MSIP-1A05D200V/0.5A MINI SIZE REED RELAY, |
1,685 |
|
برگه مشخصات |
MSIP | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 10 mA | Non Latching | Diode | PC Pin | - | 4 VDC | 0.4 VDC | 0.5 ms | 0.3 ms | -20°C ~ 85°C | - |
|
SD1A24ARELAY REED SPST 500MA 24V |
390 |
|
برگه مشخصات |
30 | Bulk | Discontinued | Through Hole | 24VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 16 VDC | 2 VDC | 1 ms | 0.5 ms | -55°C ~ 85°C | - |
|
3572-1220-124RELAY REED DIP DPST .5A 12V W/DI |
128 |
|
برگه مشخصات |
3572 | Tube | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 500 mA | 150VDC - Max | 24 mA | Non Latching | Diode, Electrostatic Shield | PC Pin | - | 9 VDC | 1 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C | - |
|
|
MSIP-1A05200V/0.5A MINI SIZE REED RELAY, |
910 |
|
برگه مشخصات |
MSIP | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 10 mA | Non Latching | - | PC Pin | Sealed - Hermetically | 4 VDC | 0.4 VDC | 0.5 ms | 300 µs | -20°C ~ 85°C | - |
