رله های نی
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | ولتاژ سیم پیچ | فرم تماس | رتبه بندی تماس (جاری) | ولتاژ سوئیچینگ | جریان سیم پیچ | نوع کویل | ویژگی ها | سبک خاتمه | رتبه بندی مهر و موم | ولتاژ باید کار کند | ولتاژ باید آزاد شود | زمان عملیات | زمان انتشار | دمای عملیاتی | مواد تماس |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S8-0504VRELAY REED SPST 1A 5V |
0 |
|
برگه مشخصات |
S8 | Bulk | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 41.7 mA | Non Latching | - | PC Pin | - | 4 VDC | 1 VDC | 1 ms | 0.5 ms | -40°C ~ 85°C | Rhodium (Rh) |
|
|
S8-1204VRELAY REED SPST 1A 12V |
0 |
|
برگه مشخصات |
S8 | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 16 mA | Non Latching | - | PC Pin | - | 9.6 VDC | 2 VDC | 1 ms | 0.5 ms | -40°C ~ 85°C | Rhodium (Rh) |
|
BFS-1C05200V/0.5A REED RELAY, 1 FORM C, |
2 |
|
برگه مشخصات |
BFS | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 250 mA | 100VDC - Max | 22 mA | Non Latching | - | PC Pin | Sealed - Hermetically | 3.8 VDC | 0.4 VDC | 1 ms | 2 ms | -25°C ~ 85°C | - |
|
7103-12-1010RELAY REED 3PST 500MA 12V |
0 |
|
برگه مشخصات |
7000 | Bulk | Active | Through Hole | 12VDC | 3PST-NO (3 Form A) | 500 mA | 200VAC, 200VDC - Max | 15 mA | Non Latching | Electrostatic Shield | PC Pin | - | 9 VDC | 1 VDC | 1 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
D31C7110REED RELAY 1C/24V/DIODE |
0 |
|
برگه مشخصات |
- | Tray | Active | Through Hole | 24VDC | SPDT (1 Form C) | 250 mA | 100VDC - Max | 11.2 mA | Non Latching | Diode | PC Pin | - | 18 VDC | 2 VDC | 1.5 ms | 2 ms | -40°C ~ 70°C | Rhodium (Rh) |
|
|
D31C5110REED RELAY 1C/12V/DIODE |
0 |
|
برگه مشخصات |
- | Tray | Active | Through Hole | 12VDC | SPDT (1 Form C) | 250 mA | 100VDC - Max | 24 mA | Non Latching | Diode | PC Pin | - | 9 VDC | 1 VDC | 1.5 ms | 2 ms | -40°C ~ 70°C | Rhodium (Rh) |
|
|
7141-12-1010RELAY REED SPDT 250MA 12V |
0 |
|
برگه مشخصات |
7000 | Bulk | Obsolete | Through Hole | 12VDC | SPDT (1 Form C) | 250 mA | 150VAC, 150VDC - Max | 10.9 mA | Non Latching | Electrostatic Shield | PC Pin | - | 9 VDC | 1 VDC | 2 ms | 2.5 ms | -20°C ~ 85°C | - |
|

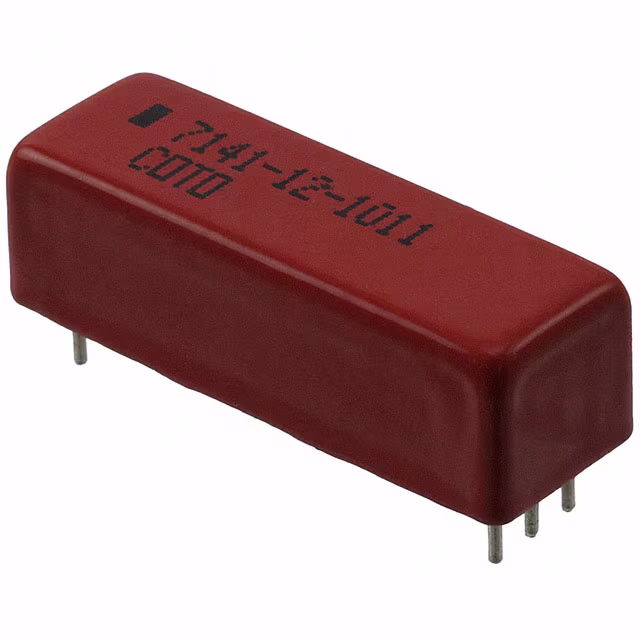

7141-12-1011RELAY REED SPDT 250MA 12V |
0 |
|
برگه مشخصات |
7000 | Bulk | Obsolete | Through Hole | 12VDC | SPDT (1 Form C) | 250 mA | 150VAC, 150VDC - Max | 10.9 mA | Non Latching | Diode, Electrostatic Shield | PC Pin | - | 9 VDC | 1 VDC | 2 ms | 2.5 ms | -20°C ~ 85°C | - |
|
|
V23100V4324C010RELAY REED SPDT 250MA 24V |
0 |
|
برگه مشخصات |
V23100-V4, AXICOM | Tube | Discontinued | Through Hole | 24VDC | SPDT (1 Form C) | 250 mA | 175VDC - Max | 12 mA | Non Latching | Diode | PC Pin | - | 16.8 VDC | 3.6 VDC | 1.1 ms | 1.6 ms | -40°C ~ 85°C | Ruthenium (Ru) |
|
JWD-172-161RELAY REED SPDT 500MA 12V |
0 |
|
برگه مشخصات |
JWD | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 500 mA | 28VDC - Max | 12 mA | Non Latching | Diode | PC Pin | - | 9.6 VDC | 1 VDC | 1.5 ms | 3 ms | -35°C ~ 85°C | Ruthenium (Ru) |
|
|
3501-05-811RELAY REED SPST 500MA 5V |
0 |
|
برگه مشخصات |
3500 | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 14.3 mA | Non Latching | - | PC Pin | Sealed - Hermetically | 3.8 VDC | 0.4 VDC | 0.75 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
3660-12-92RELAY REED 3PST 250MA 12V |
0 |
|
برگه مشخصات |
3600 | Tube | Active | Through Hole | 12VDC | 3PST-NO (3 Form A) | 250 mA | 150VAC, 150VDC - Max | 6 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 0.75 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
3502-05-911RELAY REED DPST 500MA 5V |
0 |
|
برگه مشخصات |
3500 | Tube | Active | Through Hole | 5VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 14.3 mA | Non Latching | - | PC Pin | Sealed - Hermetically | 3.8 VDC | 0.4 VDC | 0.75 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
7301-05-1110RELAY REED SPST 500MA 5V |
0 |
|
برگه مشخصات |
7000 | Tube | Not For New Designs | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 500VAC, 500VDC - Max | 28.6 mA | Non Latching | Electrostatic Shield | PC Pin | - | 3.75 VDC | 0.4 VDC | 1 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
JWD-172-158RELAY REED SPDT 500MA 24V |
0 |
|
برگه مشخصات |
JWD | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 500 mA | 28VDC - Max | 11.2 mA | Non Latching | - | PC Pin | - | 19.2 VDC | 2 VDC | 1.5 ms | 3 ms | -35°C ~ 85°C | Ruthenium (Ru) |
|
|
3602-05-72RELAY REED DPST 250MA 5V |
0 |
|
برگه مشخصات |
3600 | Tube | Active | Through Hole | 5VDC | DPST-NO (2 Form A) | 250 mA | 150VAC, 150VDC - Max | 14.3 mA | Non Latching | - | PC Pin | - | 3.8 VDC | 0.4 VDC | 0.75 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
3660-05-92RELAY REED 3PST 250MA 5V |
0 |
|
برگه مشخصات |
3600 | Tube | Obsolete | Through Hole | 5VDC | 3PST-NO (3 Form A) | 250 mA | 150VAC, 150VDC - Max | 14.3 mA | Non Latching | - | PC Pin | - | 3.8 VDC | 0.4 VDC | 0.75 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
7103-12-1011RELAY REED 3PST 500MA 12V |
0 |
|
برگه مشخصات |
7000 | Bulk | Active | Through Hole | 12VDC | 3PST-NO (3 Form A) | 500 mA | 200VAC, 200VDC - Max | 15 mA | Non Latching | Diode, Electrostatic Shield | PC Pin | - | 9 VDC | 1 VDC | 1 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
7104-05-1011RELAY REED 4PST 500MA 5V |
0 |
|
برگه مشخصات |
7000 | Bulk | Active | Through Hole | 5VDC | 4PST-NO (4 Form A) | 500 mA | 200VAC, 200VDC - Max | 62.5 mA | Non Latching | Diode, Electrostatic Shield | PC Pin | - | 3.75 VDC | 0.4 VDC | 1 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
MVS21A24RELAY REED SPST 2A 24V |
0 |
|
برگه مشخصات |
MVS2 | Tube | Discontinued | Through Hole | 24VDC | SPST-NO (1 Form A) | 2 A | 1000VAC, 1000VDC - Max | 11.2 mA | Non Latching | - | PC Pin | - | 18 VDC | 2 VDC | 2.5 ms | 2.5 ms | -40°C ~ 105°C | - |
