رله های نی
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | ولتاژ سیم پیچ | فرم تماس | رتبه بندی تماس (جاری) | ولتاژ سوئیچینگ | جریان سیم پیچ | نوع کویل | ویژگی ها | سبک خاتمه | رتبه بندی مهر و موم | ولتاژ باید کار کند | ولتاژ باید آزاد شود | زمان عملیات | زمان انتشار | دمای عملیاتی | مواد تماس |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DSS41A05BRELAY REED SPST 500MA 5V |
0 |
|
برگه مشخصات |
DSS4 | Tube | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 10 mA | Non Latching | Diode | PC Pin | - | 3.75 VDC | 0.8 VDC | 0.5 ms | 0.5 ms | -40°C ~ 85°C | - |
|
|
DSS41A12RELAY REED SPST 500MA 12V |
0 |
|
برگه مشخصات |
DSS4 | Tube | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 8.6 VDC | 1.5 VDC | 0.5 ms | 0.5 ms | -40°C ~ 85°C | - |
|
|
DSS41A12BRELAY REED SPST 500MA 12V |
0 |
|
برگه مشخصات |
DSS4 | Tube | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | Diode | PC Pin | - | 8.6 VDC | 1.5 VDC | 0.5 ms | 0.5 ms | -40°C ~ 85°C | - |
|
|
DSS41A24RELAY REED SPST 500MA 24V |
0 |
|
برگه مشخصات |
DSS4 | Tube | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 17.5 VDC | 2.5 VDC | 0.5 ms | 0.5 ms | -40°C ~ 85°C | - |
|
|
DSS41A24BRELAY REED SPST 500MA 24V |
0 |
|
برگه مشخصات |
DSS4 | Tube | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 17.5 VDC | 2.5 VDC | 0.5 ms | 0.5 ms | -40°C ~ 85°C | - |
|
8001-05-001RELAY REED SPST 500MA 5V |
0 |
|
برگه مشخصات |
8000 | Tube | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 10 mA | Non Latching | - | PC Pin | - | 3.8 VDC | 0.5 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C | - |
|
|
8002-05-10RELAY REED DPST 500MA 5V |
0 |
|
برگه مشخصات |
8000 | Tube | Obsolete | Through Hole | 5VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 25 mA | Non Latching | Electrostatic Shield | PC Pin | - | 3.8 VDC | 0.5 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C | - |
|
|
8041-05-001RELAY REED SPDT 250MA 5V |
0 |
|
برگه مشخصات |
8000 | Tube | Obsolete | Through Hole | 5VDC | SPDT (1 Form C) | 250 mA | 100VAC, 100VDC - Max | 25 mA | Non Latching | - | PC Pin | - | 3.8 VDC | 0.5 VDC | 1 ms | 1 ms | -20°C ~ 85°C | - |
|
8L01-12-101RELAY REED SPST 500MA 12V |
0 |
|
برگه مشخصات |
8L | Tube | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 24 mA | Non Latching | Electrostatic Shield | PC Pin | - | 9.6 VDC | 1 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C | - |
|
|
8L01-24-101RELAY REED SPST 500MA 24V |
0 |
|
برگه مشخصات |
8L | Tube | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 11 mA | Non Latching | Electrostatic Shield | PC Pin | - | 19.2 VDC | 2 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C | - |
|
9081-05-00RELAY REED SPST 500MA 5V |
0 |
|
برگه مشخصات |
9000, Spartan | Bulk | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 10 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.4 VDC | 0.5 ms | 0.2 ms | -20°C ~ 85°C | - |
|
|
9081-12-00RELAY REED SPST 500MA 12V |
0 |
|
برگه مشخصات |
9000, Spartan | Bulk | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 0.5 ms | 0.2 ms | -20°C ~ 85°C | - |
|
|
9081-24-00RELAY REED SPST 500MA 24V |
0 |
|
برگه مشخصات |
9000, Spartan | Bulk | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 18 VDC | 2 VDC | 0.5 ms | 0.2 ms | -20°C ~ 85°C | - |
|
8501-0005RELAY REED SPDT 24V |
0 |
|
- |
8500 | Tube | Obsolete | - | 24VDC | SPDT (1 Form C) | - | - | - | Non Latching | - | - | - | - | - | - | - | - | - |
|
MS05-1A71-75LHRRELAY REED SPST 500MA 5V |
0 |
|
برگه مشخصات |
MS | Tube | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 10 mA | Non Latching | - | PC Pin | - | 3.5 VDC | 0.75 VDC | 0.5 ms | 0.1 ms | -20°C ~ 65°C | - |
|

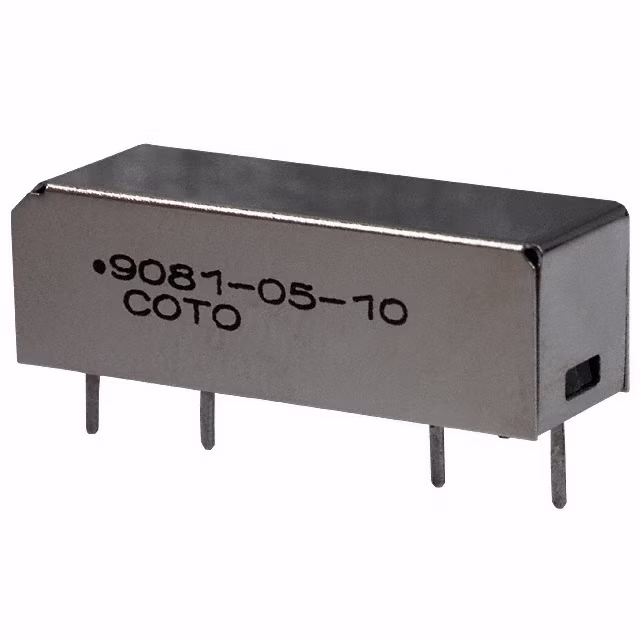

9081-05-10RELAY REED SPST 500MA 5V |
0 |
|
برگه مشخصات |
9000, Spartan | Tube | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 10 mA | Non Latching | EMI Shielded | PC Pin | - | 3.75 VDC | 0.4 VDC | 0.5 ms | 0.2 ms | -20°C ~ 85°C | - |
|
|
9081-24-10RELAY REED SPST 500MA 24V |
0 |
|
برگه مشخصات |
9000, Spartan | Bulk | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | EMI Shielded | PC Pin | - | 18 VDC | 2 VDC | 0.5 ms | 0.2 ms | -20°C ~ 85°C | - |
|
|
DSS71A05RELAY REED SPST 500MA 5V |
0 |
|
برگه مشخصات |
DSS7 | Tube | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 10 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.8 VDC | 0.5 ms | 0.5 ms | -40°C ~ 80°C | - |
|
|
HE221A0550RELAY REED SPST 500MA 5V |
0 |
|
برگه مشخصات |
200 | Bulk | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 35.7 mA | Non Latching | - | PC Pin | Sealed - Hermetically | 3.5 VDC | 0.28 VDC | 1 ms | 1 ms | -40°C ~ 85°C | - |
|
|
HE221A1250RELAY REED SPST 500MA 12V |
0 |
|
برگه مشخصات |
200 | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 14 mA | Non Latching | - | PC Pin | Sealed - Hermetically | 8.4 VDC | 0.7 VDC | 1 ms | 1 ms | -40°C ~ 85°C | - |
