رله های نی
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | ولتاژ سیم پیچ | فرم تماس | رتبه بندی تماس (جاری) | ولتاژ سوئیچینگ | جریان سیم پیچ | نوع کویل | ویژگی ها | سبک خاتمه | رتبه بندی مهر و موم | ولتاژ باید کار کند | ولتاژ باید آزاد شود | زمان عملیات | زمان انتشار | دمای عملیاتی | مواد تماس |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
8041-05-111RELAY REED SPDT 250MA 5V |
0 |
|
برگه مشخصات |
8000 | Tube | Obsolete | Through Hole | 5VDC | SPDT (1 Form C) | 250 mA | 100VAC, 100VDC - Max | 25 mA | Non Latching | Diode, Electrostatic Shield | PC Pin | - | 3.8 VDC | 0.5 VDC | 1 ms | 1.5 ms | -20°C ~ 85°C | - |
|
|
8041-12-001RELAY REED SPDT 250MA 12V |
0 |
|
برگه مشخصات |
8000 | Tube | Obsolete | Through Hole | 12VDC | SPDT (1 Form C) | 250 mA | 100VAC, 100VDC - Max | 24 mA | Non Latching | - | PC Pin | - | 9.6 VDC | 1 VDC | 1 ms | 1 ms | -20°C ~ 85°C | - |
|
|
8041-12-011RELAY REED SPDT 250MA 12V |
0 |
|
برگه مشخصات |
8000 | Tube | Obsolete | Through Hole | 12VDC | SPDT (1 Form C) | 250 mA | 100VAC, 100VDC - Max | 24 mA | Non Latching | Diode | PC Pin | - | 9.6 VDC | 1 VDC | 1 ms | 1.5 ms | -20°C ~ 85°C | - |
|
|
8041-12-101RELAY REED SPDT 250MA 12V |
0 |
|
برگه مشخصات |
8000 | Tube | Obsolete | Through Hole | 12VDC | SPDT (1 Form C) | 250 mA | 100VAC, 100VDC - Max | 24 mA | Non Latching | Electrostatic Shield | PC Pin | - | 9.6 VDC | 1 VDC | 1 ms | 1 ms | -20°C ~ 85°C | - |
|

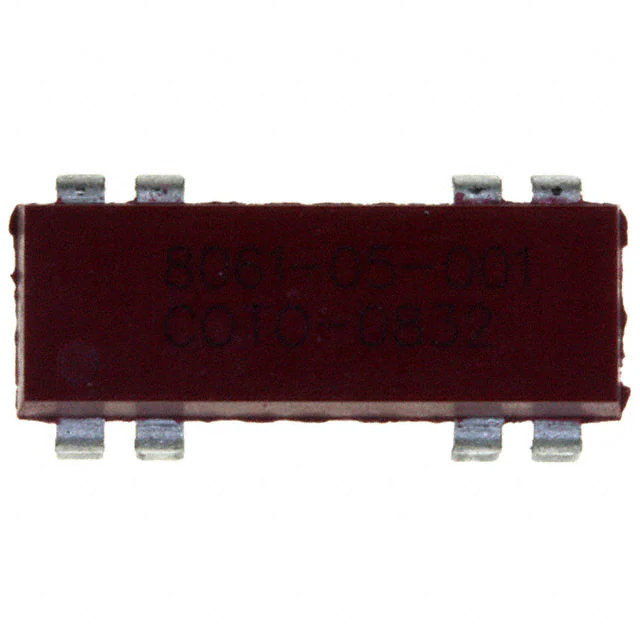

8061-05-001RELAY REED SPDT 250MA 5V |
0 |
|
برگه مشخصات |
8000 | Tube | Obsolete | Surface Mount | 5VDC | SPDT (1 Form C) | 250 mA | 100VAC, 100VDC - Max | 25 mA | Non Latching | - | J Lead | - | 3.8 VDC | 0.5 VDC | 1 ms | 1 ms | -20°C ~ 85°C | - |
|
|
8061-05-011RELAY REED SPDT 250MA 5V |
0 |
|
برگه مشخصات |
8000 | Tube | Obsolete | Surface Mount | 5VDC | SPDT (1 Form C) | 250 mA | 100VAC, 100VDC - Max | 25 mA | Non Latching | Diode | J Lead | - | 3.8 VDC | 0.5 VDC | 1 ms | 1.5 ms | -20°C ~ 85°C | - |
|

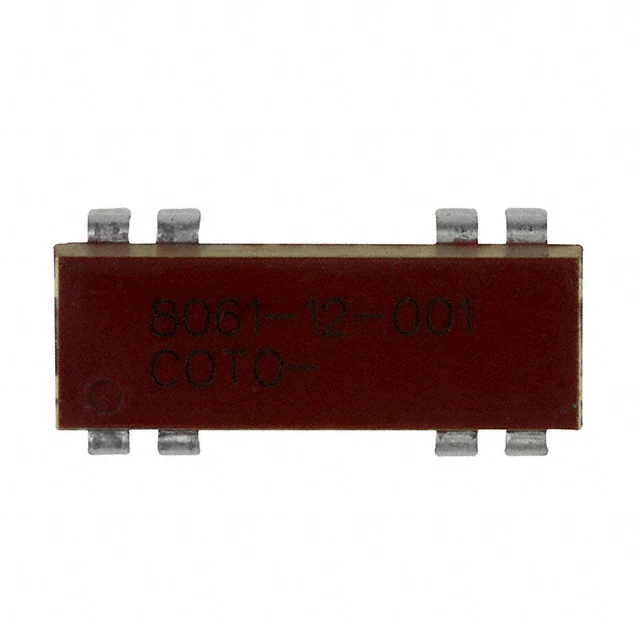

8061-12-001RELAY REED SPDT 250MA 12V |
0 |
|
برگه مشخصات |
8000 | Tube | Obsolete | Surface Mount | 12VDC | SPDT (1 Form C) | 250 mA | 100VAC, 100VDC - Max | 24 mA | Non Latching | - | J Lead | - | 9.6 VDC | 1 VDC | 1 ms | 1 ms | -20°C ~ 85°C | - |
|
8061-12-011RELAY REED SPDT 250MA 12V |
0 |
|
برگه مشخصات |
8000 | Tube | Obsolete | Surface Mount | 12VDC | SPDT (1 Form C) | 250 mA | 100VAC, 100VDC - Max | 24 mA | Non Latching | Diode | J Lead | - | 9.6 VDC | 1 VDC | 1 ms | 1.5 ms | -20°C ~ 85°C | - |
|
|
8061-12-111RELAY REED SPDT 250MA 12V |
0 |
|
برگه مشخصات |
8000 | Tube | Obsolete | Surface Mount | 12VDC | SPDT (1 Form C) | 250 mA | 100VAC, 100VDC - Max | 24 mA | Non Latching | Diode, Electrostatic Shield | J Lead | - | 9.6 VDC | 1 VDC | 1 ms | 1.5 ms | -20°C ~ 85°C | - |
|
8L21-05-00RELAY REED SPST 500MA 5V |
0 |
|
برگه مشخصات |
8L | Tube | Obsolete | Through Hole | 5VDC | SPST-NC (1 Form B) | 500 mA | 200VAC, 200VDC - Max | 25 mA | Non Latching | - | PC Pin | - | 3.8 VDC | 0.5 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C | - |
|
|
8L21-05-01RELAY REED SPST 500MA 5V |
0 |
|
برگه مشخصات |
8L | Tube | Obsolete | Through Hole | 5VDC | SPST-NC (1 Form B) | 500 mA | 200VAC, 200VDC - Max | 25 mA | Non Latching | Diode | PC Pin | - | 3.8 VDC | 0.5 VDC | 0.5 ms | 1 ms | -20°C ~ 85°C | - |
|
|
8L21-05-11RELAY REED SPST 500MA 5V |
0 |
|
برگه مشخصات |
8L | Tube | Obsolete | Through Hole | 5VDC | SPST-NC (1 Form B) | 500 mA | 200VAC, 200VDC - Max | 25 mA | Non Latching | Diode, Electrostatic Shield | PC Pin | - | 3.8 VDC | 0.5 VDC | 0.5 ms | 1 ms | -20°C ~ 85°C | - |
|
|
8L21-12-00RELAY REED SPST 500MA 12V |
0 |
|
برگه مشخصات |
8L | Tube | Obsolete | Through Hole | 12VDC | SPST-NC (1 Form B) | 500 mA | 200VAC, 200VDC - Max | 24 mA | Non Latching | - | PC Pin | - | 9.6 VDC | 1 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C | - |
|
|
8L21-24-00RELAY REED SPST 500MA 24V |
0 |
|
برگه مشخصات |
8L | Tube | Obsolete | Through Hole | 24VDC | SPST-NC (1 Form B) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 19.2 VDC | 2 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C | - |
|
9007-12-50RELAY REED SPST 500MA 12V |
0 |
|
برگه مشخصات |
9007, Spartan | Tube | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 6 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 0.5 ms | 0.2 ms | -20°C ~ 85°C | - |
|
|
9007-24-11RELAY REED SPST 500MA 24V |
0 |
|
برگه مشخصات |
9007, Spartan | Tube | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | Diode, EMI Shielded | PC Pin | - | 18 VDC | 2 VDC | 0.5 ms | 0.2 ms | -20°C ~ 85°C | - |
|

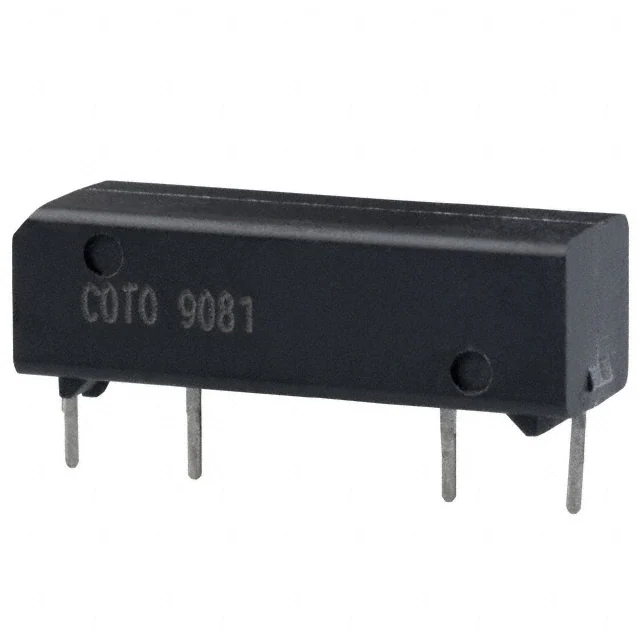

9081-05-40RELAY REED SPST 500MA 5V |
0 |
|
برگه مشخصات |
9000, Spartan | Bulk | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 5 mA | Non Latching | EMI Shielded | PC Pin | - | 3.75 VDC | 0.4 VDC | 0.5 ms | 0.2 ms | -20°C ~ 85°C | - |
|
|
9081C1-05-00RELAY REED SPDT 400MA 5V |
0 |
|
برگه مشخصات |
9000, Spartan | Bulk | Obsolete | Through Hole | 5VDC | SPDT (1 Form C) | 400 mA | 175VAC, 175VDC - Max | 40 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.4 VDC | 1 ms | 1.5 ms | -20°C ~ 85°C | - |
|
|
9081C1-05-10RELAY REED SPDT 400MA 5V |
0 |
|
برگه مشخصات |
9000, Spartan | Bulk | Obsolete | Through Hole | 5VDC | SPDT (1 Form C) | 400 mA | 175VAC, 175VDC - Max | 40 mA | Non Latching | EMI Shielded | PC Pin | - | 3.75 VDC | 0.4 VDC | 1 ms | 1.5 ms | -20°C ~ 85°C | - |
|
|
9081C1-24-00RELAY REED SPDT 400MA 24V |
0 |
|
برگه مشخصات |
9000, Spartan | Bulk | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 400 mA | 175VAC, 175VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 18 VDC | 2 VDC | 1 ms | 1.5 ms | -20°C ~ 85°C | - |
