آنتن های RF
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | RF Family/Standard | گروه فرکانس | فرکانس (مرکز/باند) | محدوده فرکانس | نوع آنتن | تعداد باندها | VSWR | ضرر برگشتی | به دست آوردن | قدرت - حداکثر | ویژگی ها | فسخ | حفاظت از ورود | درجه | صلاحیت | نوع نصب | ارتفاع (حداکثر) | برنامه های کاربردی |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE51YA10064.9-5.8 GHz 17 dBi Dual Polarity |
35 |
|
برگه مشخصات |
- | Retail Package | Active | Cellular, WiFi | Wide Band | 5.38GHz | 4.9GHz ~ 5.85GHz | Yagi | 1 | 1.5 | - | 17dBi | 50 W | - | N Type Female | - | - | - | Bracket Mount | 13.900" (353.06mm) | 802.11a/n, Wi-Fi, WiMax, WLAN |
|
|
M1621HCT-P-UFL/100-00032-01Helical Iridium Certified Passiv |
37 |
|
برگه مشخصات |
- | Tape & Box (TB) | Active | General ISM | UHF (1GHz ~ 2GHz) | 1.621GHz | 1.616GHz ~ 1.626GHz | Module | 1 | 1.5 | - | 2.8dBic | - | - | U.FL | - | - | - | Connector Mount | 1.299" (33.00mm) | Iridium™ |
|
|
M1590HCT-LP-SM/100-00183-01INMARSAT SCREW MOUNT LOW-PROFILE |
30 |
|
برگه مشخصات |
- | Tape & Box (TB) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.542GHz, 1.642GHz | 1.525GHz ~ 1.56GHz, 1.625GHz ~ 1.66GHz | Dome | 2 | - | - | 2dBic, 2dBic | - | - | TNC | - | - | - | Screw | 1.496" (38.00mm) | GPS |
|
915-15NM-MKYAGI 915 MHZ ANT MOUNT KIT |
50 |
|
برگه مشخصات |
- | Box | Active | - | - | 915MHz | 902MHz ~ 928MHz | Yagi, 15-Element | 1 | 1.2 | - | 13dBi | 50 W | Cable - 300mm | N Type Male | - | - | - | - | - | - |
|
|
M1621HCT-LP-MM/100-00101-02IRIDIUM SFX Magnet Mount LOW-PRO |
49 |
|
برگه مشخصات |
- | Tape & Box (TB) | Active | General ISM | UHF (1GHz ~ 2GHz) | 1.621GHz | 1.616GHz ~ 1.626GHz | Dome | 1 | 2 | - | 2.5dBic | - | Cable - 1m | SMA | IP66 | - | - | Magnetic | 1.472" (37.40mm) | Iridium™ |
|
|
OMB.868.B10F21ANTENNA |
0 |
|
برگه مشخصات |
- | Bulk | Obsolete | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | 860MHz ~ 870MHz | Whip, Straight | 1 | 1.5 | - | 10dBi | 50 W | - | N Type Female | IP65 | - | - | Pole, Wall Mount | 88.189" (224.00cm) | ISM |
|
MA1270.A.LBICGTY.005ANTENNA RAPTORIII 7IN1 3M COMBO |
35 |
|
برگه مشخصات |
Raptor III | Bag | Last Time Buy | Cellular, Navigation, WiFi | UHF (1GHz ~ 2GHz) | 1.07MHz, 98MHz, 425MHz, 657.5MHz, 752MHz, 892MHz, 1.4725GHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.955GHz, 2.45GHz, 2.59GHz, 3.55GHz, 5.5GHz, 5.5375GHz | 535kHz ~ 1.605MHz, 88MHz ~ 108MHz, 380MHz ~ 470MHz, 617MHz ~ 698MHz, 698MHz ~ 806MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.4GHz ~ 2.5GHz, 2.49GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz, 5.15G | Dome | 16 | 2, 3.7 | -11dB | -1.7dBi, -3.7dBi, -1.9dBi, -0.3dBi, 1.6dBi, 3.6dBi, 0dBi, 1.8dBi, 0.6dBi, 0.4dBi, 2.8dBi, 3.3dBi, 0.9dBi, 3.7dBi | 10 W | Cable - 3m, LNA, Filter | SMA Male | IP67 | - | - | Panel Mount | 3.661" (92.98mm) | 3G, 4G, 5G, Beidou, Galileo, GLONASS, GNSS, GPS, HSPA, HSPA+, LTE, WCDMA, Wi-Fi |
|
|
915-15HNMHEAVY DUTY YAGI 915 MHZ ANTENNA |
49 |
|
برگه مشخصات |
- | Box | Active | - | - | 915MHz | 902MHz ~ 928MHz | Yagi, 15-Element | 1 | 1.2 | - | 13dBi | 50 W | Cable - 300mm | N Type Male | - | - | - | Rear Mount | - | - |
|
|
33-3967-05-0200EMBEDDED, TRI-BAND ANTENNA + L-B |
135 |
|
برگه مشخصات |
Accutenna® | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.209GHz, 1.5655GHz | 1.164GHz ~ 1.254GHz, 1.525GHz ~ 1.606GHz | Ceramic Patch | 2 | 1.8 | - | -1.5dBic, 2.5dBic, 4dBic | - | Cable - 200mm, LNA, Filter | MCX Male | - | - | - | Chassis Mount | 0.587" (14.90mm) | Beidou, Galileo, GLONASS, GPS |
|
ANT-81 KM EXTERNAL ANTENNA FOR SST-24 |
29 |
|
برگه مشخصات |
- | Box | Obsolete | - | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Whip, Straight | 1 | - | - | 8dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 16.535" (420.00mm) | General Purpose |
|
|
PE51028Fixed Antenna Operates From 902 |
26 |
|
برگه مشخصات |
- | Retail Package | Active | - | Wide Band | 915MHz | 902MHz ~ 928MHz | Whip, Straight | 1 | 2 | - | 5dBi | - | - | N Type Female | - | - | - | Connector Mount | 0.967" (24.55mm) | - |
|
ANT-159 KM EXTERNAL ANTENNA FOR SST-24 |
29 |
|
برگه مشخصات |
- | Box | Obsolete | - | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Whip, Straight | 1 | 1.3 | - | 15dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 62.992" (160.00cm) | General Purpose |
|
IDAS.W.001IDAS LTE MIMO CEILING MOUNT ANTE |
0 |
|
برگه مشخصات |
- | Bulk | Active | Cellular, General ISM | Wide Band | 727.5MHz, 892MHz, 1.795GHz, 1.92GHz, 1.94GHz, 2.595GHz | 699MHz ~ 756MHz, 824MHz ~ 960MHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 2.5GHz ~ 2.17GHz 2.69GHz | Module | 6 | - | -17dB, -20dB, -21dB, -22dB, -23dB | 7.2dBi, 7.1dBi, 7dBi, 7.1dBi, 7dBi, 7.1dBi | 50 W | Cable - 300mm | Mini-DIN Female | IP54 | - | - | Panel Mount | 2.835" (72.00mm) | DCS, GSM, LTE, PCS, UMTS |
|
MA1280.K.LBICGRT.0017IN1 RAPTORIII STAGGERED RG174:G |
97 |
|
برگه مشخصات |
Raptor III | Bulk | Last Time Buy | Cellular, Navigation, WiFi | Wide Band | 1.07MHz, 98MHz, 440MHz, 657.5MHz, 752MHz, 800MHz, 892MHz, 1.4725GHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.955GHz, 2.45GHz, 2.59GHz, 4.15GHz, 5.5GHz, 5.5375GHz | 535kHz ~ 1.605MHz, 88MHz ~ 108MHz, 400MHz ~ 480MHz, 617MHz ~ 698MHz, 698MHz ~ 806MHz, 700MHz ~ 900MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.4GHz ~ 2.5GHz, 2.49GHz ~ 2.69GHz, 3.3GH | Dome | 17 | 2, 3.8 | -11.5dB | -3.7dBi, -1.9dBi, -0.3dBi, 1.6dBi, 1.6dBi, 2.8dBi, 3.3dBi, 3.7dBi, 3.6dBi, 0dBi, 1.8dBi, 0.6dBi, 0.9dBi, 0.4dBi | 10 W | Cable - 5m, LNA, Filter | RP-SMA Male, SMA Male, UHF Male | IP67 | - | - | Panel Mount | 3.661" (92.98mm) | 4G/5G, AM, FM, Beidou, Galileo, GLONASS, GPS, GNSS, Wi-Fi |
|
915-6ESP-MKYAGI 915 MHZ ANT MOUNT KIT |
50 |
|
برگه مشخصات |
- | Box | Active | - | - | 915MHz | 902MHz ~ 928MHz | Yagi, 6-Element | 1 | 1.2 | - | 9dBi | 50 W | Cable - 300mm | N Type Female | - | - | - | - | - | - |
|
FMA459.A.LBFCG.001FMA459 5IN1 PERMANENT MOUNT ANTE |
0 |
|
برگه مشخصات |
- | Bulk | Obsolete | Cellular, Navigation, WiFi | Wide Band | 750.5MHz, 869MHz, 920MHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.45GHz, 2.59GHz | 698MHz ~ 803MHz, 824MHz ~ 894MHz, 880MHz ~ 960MHz, 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.597GHz ~ 1.607GHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.4GHz ~ 2.5GHz, 2.49GHz ~ 2. | Dome | 13 | 2, 3 | 10dB | 1.25dBi, 0.07dBi, 1.16dBi, 1dBi, 0.9dBi, 0.6dBi, 5.48dBi, 4.22dBi, 3.31dBi, 4.17dBi, 3.77dBi, 3.01dB | - | Cable - 3m, LNA, Filter | RP-SMA Male (1), SMA Male (2) | IP67 | - | - | Panel Mount | 1.219" (30.95mm) | Beidou, Galileo, GLONASS, GNSS, GPS, LTE, Wi-Fi |
|
|
M10HCT-A-TNC/100-00282-01L1 L2 L5 ACTIVE GNSS ANTENNA |
49 |
|
برگه مشخصات |
- | Tape & Box (TB) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.232GHz, 1.574GHz | 1.164GHz ~ 1.3GHz, 1.539GHz ~ 1.61GHz | Module | 2 | - | - | 3.3dBic, 3.4dBic | - | - | TNC | IP67 | - | - | Screw | 1.480" (37.59mm) | BeiDou, Galileo, GLONASS, GNSS, GPS |
|
|
PEANGPS1001ANT 1.17-1.61GHz, 37.5 DBI, SMA |
28 |
|
برگه مشخصات |
- | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.222GHz, 1.565GHz | 1.166GHz ~ 1.278GHz, 1.52GHz ~ 1.61GHz | Whip, Straight | 3 | 2 | - | 39dBi, 40dBi | - | - | SMA Male | IP67 | - | - | Connector Mount | 3.250" (82.55mm) | Galileo, GLONASS, GNSS, GPS |
|

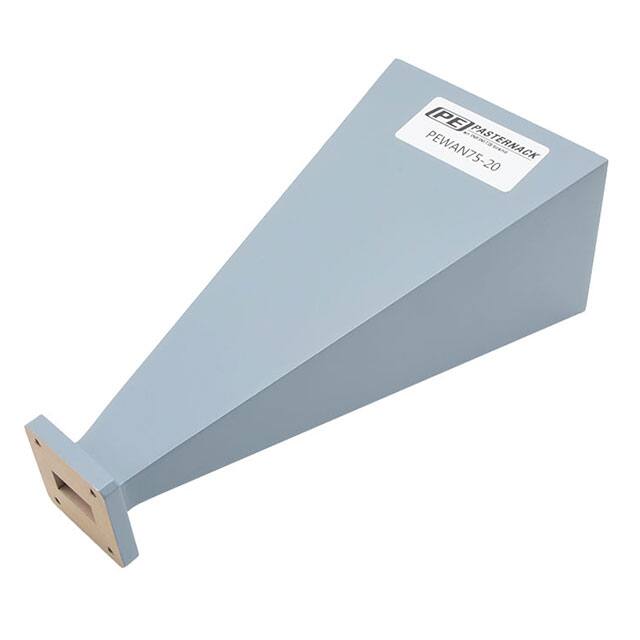

PEWAN075-20WR75 GAIN HORN 10-15GHZ 20DBI |
55 |
|
برگه مشخصات |
- | Bulk | Active | Waveguide | X-Ku Band (8GHz ~ 18GHz) | 12.5GHz | 10GHz ~ 15GHz | Horn | 1 | 1.3 | - | 20dBi | - | - | - | - | - | - | Waveguide Flange Mount | - | - |
|
|
PEWAN075-20ELNFWR75 GAIN HRN 10-15GHZ 20DBI |
55 |
|
برگه مشخصات |
- | Tape & Box (TB) | Active | - | Wide Band | 12.5GHz | 10GHz ~ 15GHz | Horn | 1 | 1.4 | - | 20dBi | - | Cable - 305mm, Cable - 3.048m, Cable - 7.62m | N Type Female | - | - | - | Waveguide Mount | 2.721" (69.11mm) | General Purpose |
