آنتن های RF
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | RF Family/Standard | گروه فرکانس | فرکانس (مرکز/باند) | محدوده فرکانس | نوع آنتن | تعداد باندها | VSWR | ضرر برگشتی | به دست آوردن | قدرت - حداکثر | ویژگی ها | فسخ | حفاظت از ورود | درجه | صلاحیت | نوع نصب | ارتفاع (حداکثر) | برنامه های کاربردی |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BMYD890KRF ANT 925MHZ YAGI N TYPE F POLE |
25 |
|
برگه مشخصات |
BMYD | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 925MHz | 890MHz ~ 960MHz | Yagi, 7-Element | 1 | - | - | 10dBd | 200 W | Cable - 609.6mm | N Type Female | - | - | - | Pole Mount | 23.800" (604.52mm) | ISM, LoRa, LPWAN |
|
GNSS1-TMG-26NRF ANT GNSS 26DB NF DOME |
19 |
|
برگه مشخصات |
Timing Ref | Bulk | Active | PNT | UHF (1GHz ~ 2GHz) | 1.5845GHz | 1.554GHz ~ 1.615GHz | Dome | 1 | 2 | - | 26dBi | - | LNA, Filter | N Type Female | IP67 | - | - | Bracket Mount, Through Hole | 4.961" (126.00mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
L000320-01OMNI, 2X2 MIMO BATON, 617-960/14 |
5 |
|
برگه مشخصات |
- | Box | Active | Cellular | Wide Band | 788.5MHz, 2.06GHz, 4.05GHz, 5.45GHz | 617MHz ~ 960MHz, 1.43GHz ~ 2.7GHz, 3.3GHz ~ 4.8GHz, 4.9GHz ~ 6GHz | Whip, Straight | 4 | 2.5 | - | 3dBi, 5dBi, 4.09dBi, 4.62dBi | 10 W | Cable - 5m | SMA Male | IP67 | - | - | Bracket Mount | 21.811" (554.00mm) | 5G |
|
33-HC860-35DUAL BAND, ACTIVE IRIDIUM |
25 |
|
برگه مشخصات |
- | Box | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.236GHz, 1.59275GHz | 1.217GHz ~ 1.255GHz, 1.559GHz ~ 1.6265GHz | Helical | 2 | 2 | - | 2.1dBic, 2.2dBic, 2.4dBic, 2.6dBic | - | LNA, Filter | SMA Male | IP67 | - | - | Base Mount | 2.457" (62.40mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
GLHPDLTE-SF-MMRF ANT 789MHZ DOME SMA MAGN |
7 |
|
برگه مشخصات |
GLHPDLTE-MM | Box | Active | Navigation, WiFi | Wide Band | 789MHz, 1.5865GHz, 2.205GHz | 617MHz ~ 960MHz, 1.565GHz ~ 1.608GHz, 1.71GHz ~ 2.7GHz | Dome | 3 | 2 | - | 1.5dBi, 3dBic, -2dBic, 2.5dBi | 50 W | Cable - 5.1816m | SMA (2) | IP67 | - | - | Magnetic | 3.622" (92.00mm) | 2G, 3G, 5G, Bluetooth, Cellular, GNSS, GPS, LTE |
|
|
HG2415U-PROANTOMNI 2.4GHZ 15DBI |
8 |
|
برگه مشخصات |
HG | Bag | Active | General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Whip, Straight | 1 | 1.5 | - | 15dBi | 100 W | - | N Type Female | - | - | - | Bracket Mount | 0.040" (1.02mm) | 802.11b/g/n, ISM, Wi-Fi |
|
GNSS1-TMG-40NMSRF ANT 1.5845GHZ DOME N TYPE |
18 |
|
برگه مشخصات |
- | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.5845GHz | 1.554GHz ~ 1.615GHz | Dome | 1 | 2 | - | 3dBic | - | LNA, Filter | N Type Female | - | - | - | Pole Mount | 4.961" (126.00mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
GLHPDLTEMIMO-SFRF ANT 657.5MHZ DOME RP-SMA M |
12 |
|
برگه مشخصات |
GLHPDLTE-SF | Bulk | Active | Cellular, Navigation, WiFi | Wide Band | 657.5MHz, 750MHz, 892MHz, 1.5865GHz, 1.955GHz, 2.495GHz, 2.45GHz, 3.6GHz, 5.4125GHz, 5.55GHz | 617MHz ~ 698MHz, 698MHz ~ 802MHz, 824MHz ~ 960MHz, 1.565GHz ~ 1.608GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 2.4GHz ~ 2.5GHz, 3.4GHz ~ 3.8GHz, 4.9GHz ~ 5.925GHz, 5.15GHz ~ 5.95GHz | Dome | 10 | 2 | - | 3.8dBi, 5.2dBi, 6.2dBi, 3dBic, -2dBic, 7.5dBi, 8.9dBi, 9.4dBi, 5.4dBi, 9.4dBi, 8.1dBi | 50 W | Cable - 5.1816m | RP-SMA Male (1), SMA Male (2) | IP67 | - | - | Panel Mount | 3.531" (89.70mm) | 2G, 3G, 5G, Bluetooth, Cellular, GNSS, GPS, LTE, Wi-Fi |
|
2701186RF ANT 2.4GHZ/5GHZ PANEL N FEM |
10 |
|
برگه مشخصات |
- | Bulk | Active | - | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz | Panel | 2 | - | - | 9dBi | - | - | N Type Female | IP67 | - | - | Chassis Mount | 3.976" (101.00mm) | - |
|
PAS69278P-FNFPANEL SLP LOW PIM NF |
5 |
|
برگه مشخصات |
- | Bulk | Active | Cellular, WiFi | Wide Band | 700MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.3GHz, 2.6GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.7GHz | Panel | 8 | 2 | - | 8.7dBi, 9dBi, 9.8dBi, 7.5dBi, 8.5dBi, 8.4dBi, 9.5dBi, 9.7dBi | 50 W | - | N Type Female | IP55 | - | - | Bracket Mount | 3.200" (81.28mm) | GSM, LTE, WiMax™ |
|
33-HC882-35TRIPLE BAND ANTENNA + L BAND |
20 |
|
برگه مشخصات |
- | Bulk | Active | Cellular, Navigation | UHF (1GHz ~ 2GHz) | 1.2215GHz, 1.5655GHz | 1.189GHz ~ 1.254GHz, 1.525GHz ~ 1.606GHz | Helical | 2 | 1.8 | - | 35dB | - | - | SMA Male | IP67 | - | - | Connector Mount | 2.457" (62.40mm) | Beidou, Galileo, GLONASS, GPS, LTE |
|
|
33-HC882-28DUAL BAND ANTENNA + L BAND |
6 |
|
برگه مشخصات |
- | Bulk | Active | Cellular, Navigation | UHF (1GHz ~ 2GHz) | 1.2215GHz, 1.5655GHz | 1.189GHz ~ 1.254GHz, 1.525GHz ~ 1.606GHz | Helical | 2 | 1.8 | - | 28dB | - | - | SMA Male | IP67 | - | - | Connector Mount | 2.457" (62.40mm) | Beidou, Galileo, GLONASS, GPS, LTE |
|

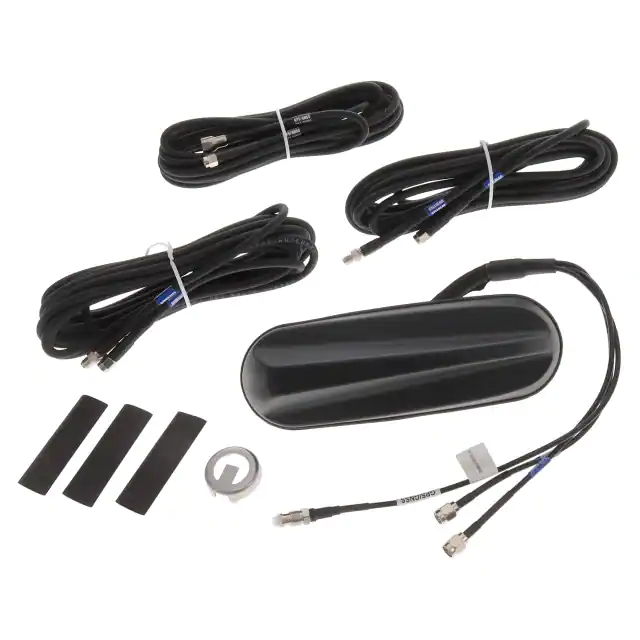

60011193IN1 SHARKFIN ANTENNA - 2XLTE, G |
13 |
|
برگه مشخصات |
AirLink® - Accessory | Box | Active | Cellular, Navigation | UHF (2GHz ~ 3GHz) | 2.249GHz | 698MHz ~ 3.8GHz | Panel | 1 | - | - | - | - | Cable - 4m | - | - | - | - | Panel Mount | - | GNSS, LTE |
|
|
L000306-01RP40 LITE, 4X4 MIMO 5G,4G/LTE, O |
20 |
|
برگه مشخصات |
- | Bulk | Active | Cellular | Wide Band | 657.5MHz, 829MHz, 1.461GHz, 1.582GHz, 2.945GHz, 5.1GHz | 617MHz ~ 698MHz, 698MHz ~ 960MHz, 1.427GHz ~ 1.496GHz, 1.559GHz ~ 1.606GHz, 1.69GHz ~ 4.2GHz, 4.2GHz ~ 6GHz | Panel | 6 | 2.2 | - | 6.5dBi, 6.5dBi, 6.5dBi, 6.5dBi, 6.5dBi, 6.5dBi | 10 W | Cable - 5m | SMA Male (4) | IP66 | - | - | Pole, Wall Mount | 1.181" (30.00mm) | 4G, 5G, LTE |
|
|
HG5158DP-13UANTOMNI 5.1-5.8GHZ 13DBI |
12 |
|
برگه مشخصات |
HG | Bag | Active | WiFi | SHF (f > 4GHz) | 5.5GHz | 5.15GHz ~ 5.85GHz | Whip, Straight | 1 | 2 | - | 13dBi | 100 W | - | N Type Female | - | - | - | Bracket Mount | 23.600" (599.44mm) | 802.11a/n, Wi-Fi, WiMax, WLAN |
|
|
BMYD890ORF ANT 925MHZ YAGI N TYPE F POLE |
21 |
|
برگه مشخصات |
BMYD | Box | Active | General ISM | UHF (300MHz ~ 1GHz) | 925MHz | 890MHz ~ 960MHz | Yagi, 18-Element | 1 | - | - | 14dBd | 200 W | Cable - 609.6mm | N Type Female | - | - | - | Pole Mount | 62.992" (160.00cm) | ISM, LoRa, LPWAN |
|
2885919RF ANT 2.4GHZ WHIP STR N FEM |
17 |
|
برگه مشخصات |
- | Bulk | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Straight | 1 | 1.5 | - | 6dBi | - | - | N Type Female | IP55 | - | - | Bracket Mount | 9.843" (250.00mm) | - |
|
33-3872-01-01PRE-FILTERED, DUAL BAND ANTENNA, |
6 |
|
برگه مشخصات |
Accutenna® | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.2276GHz, 1.248GHz, 1.561GHz, 1.575GHz, 1.589GHz, 1.602GHz | 1.213GHz ~ 1.261GHz, 1.557GHz ~ 1.606GHz | Dome | 6 | 1.8 | - | 3.8dBi, 4.5dBi | - | LNA | TNC Female | IP67 | - | - | Panel Mount | 0.827" (21.00mm) | Beidou, Galileo, GLONASS, GPS |
|
33-3742AJ-01-WBEIDOU/GALILEO/GPS/GLONASS, ANTI |
16 |
|
برگه مشخصات |
Accutenna® | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.5815GHz | 1.557GHz ~ 1.606GHz | Dome | 1 | 1.8 | - | 4.25dBi | - | LNA | TNC Female | IP67 | - | - | Panel Mount | 1.870" (47.50mm) | Beidou, Galileo, GLONASS, GPS |
|
|
33-3870-01-11RF ANT 1.2GHZ/1.575GHZ DOME PAN |
11 |
|
برگه مشخصات |
- | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.2GHz, 1.575GHz, 1.602GHz | 1.228GHz ~ 1.248GHz, 1.575GHz ~ 1.602GHz | Dome | 4 | 1.5 | - | 3dBic, 4.5dBic | - | LNA | - | IP67 | - | - | Panel Mount | 0.827" (21.00mm) | GLONASS, GPS |
